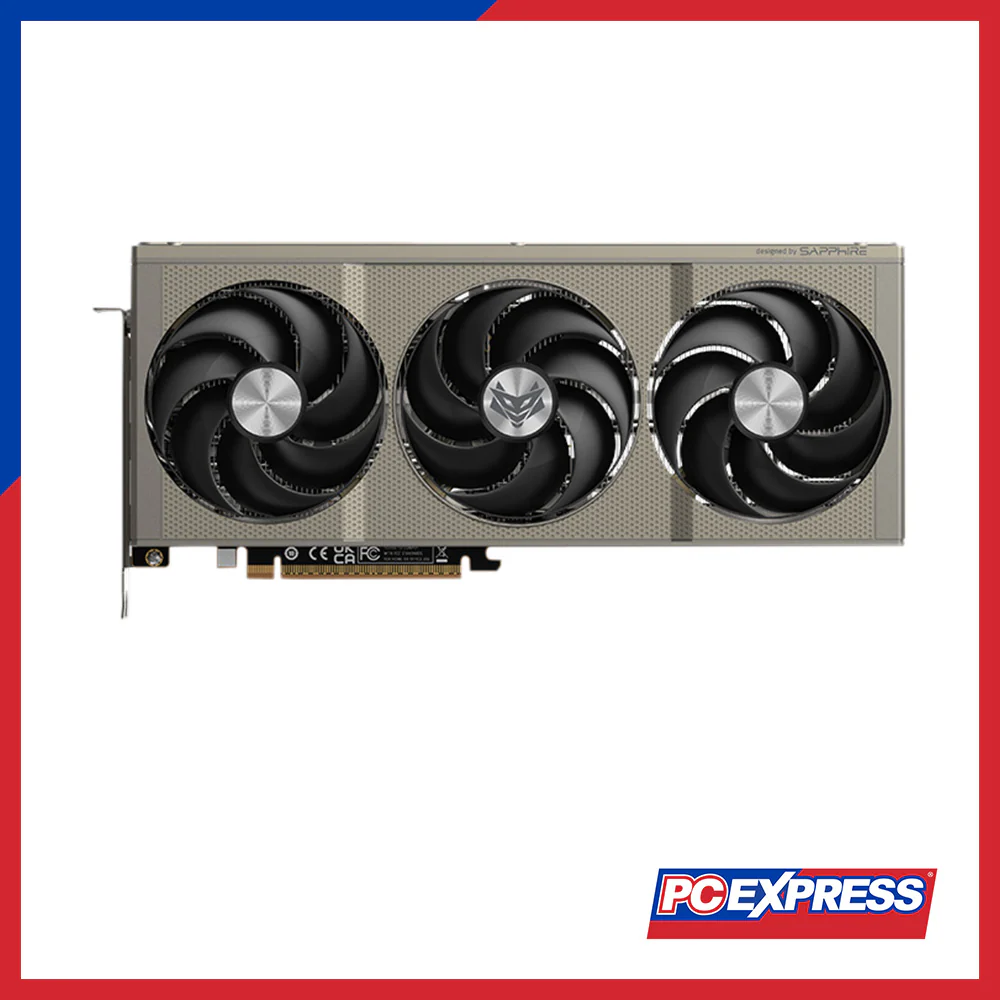

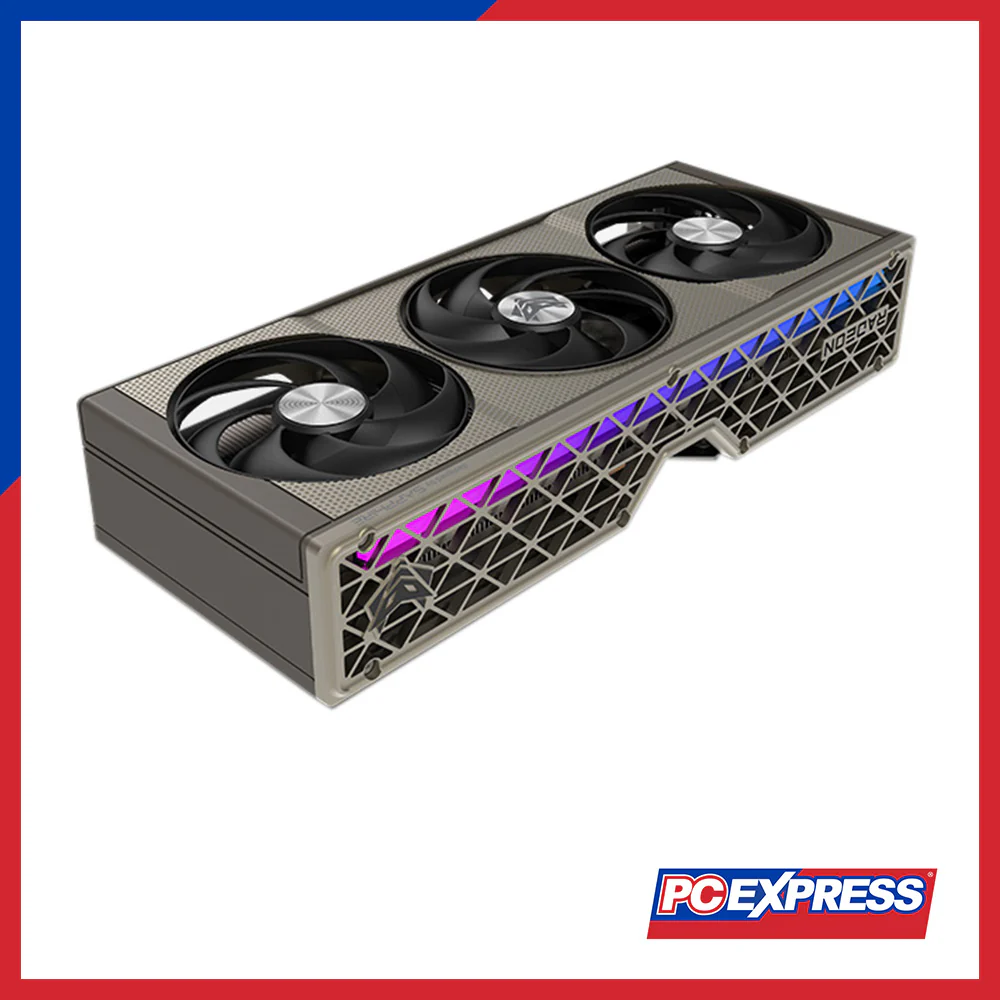

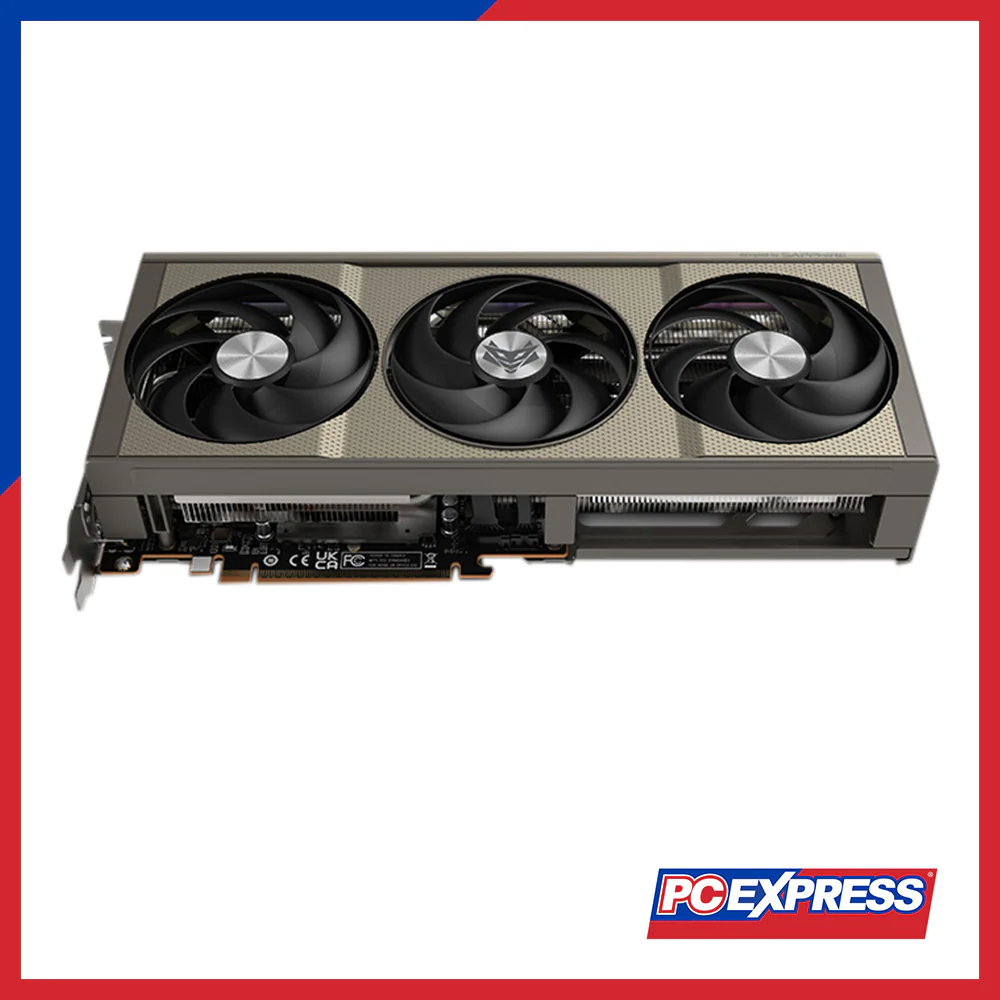

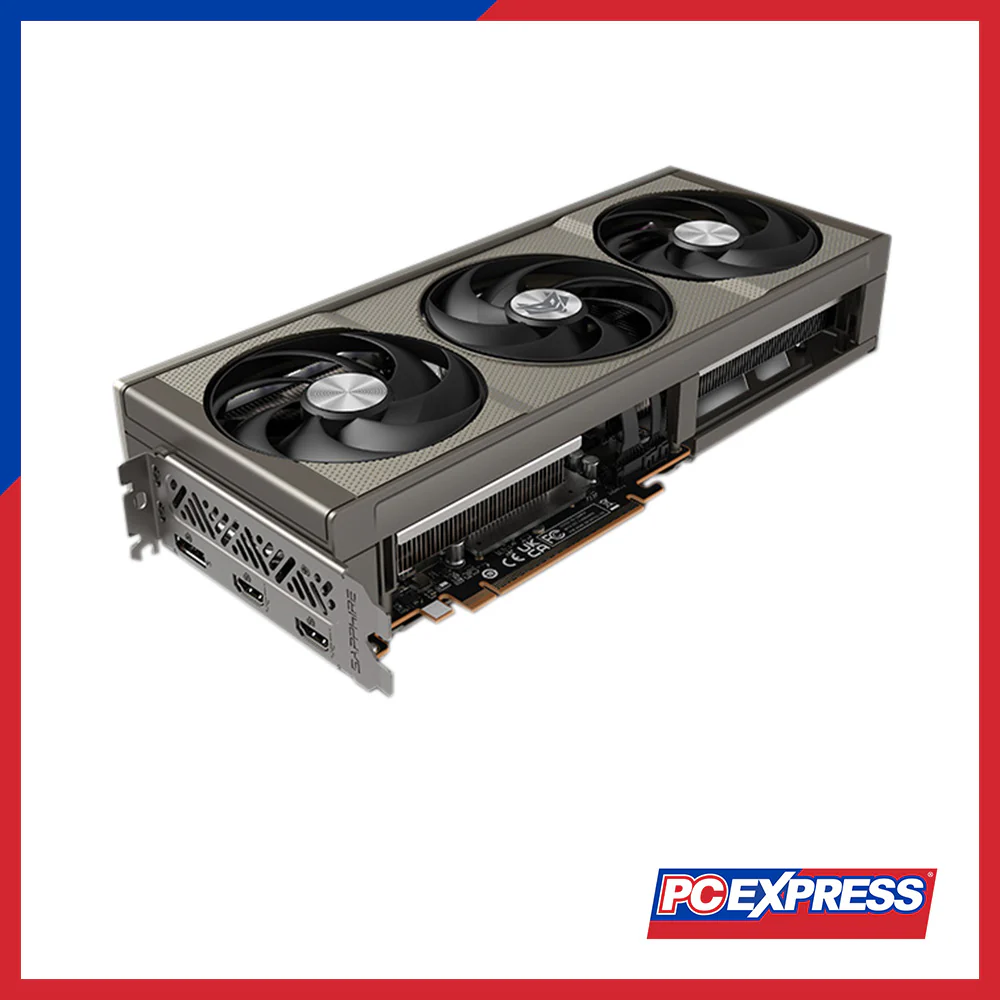

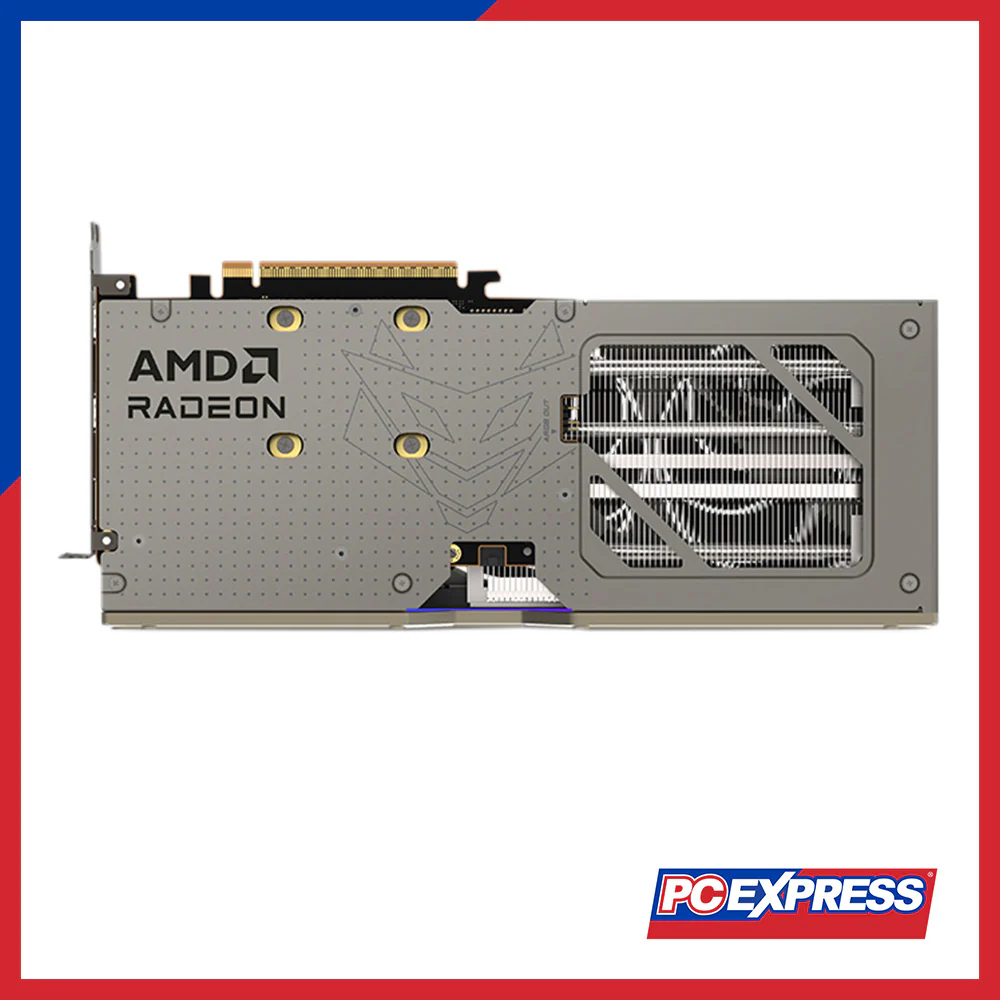

SAPPHIRE NITRO+ AMD Radeon™ RX 9060 XT 16GB GDDR6 Graphics Card

Part Number

SPR-11350-01-20G

GPU

AMD Radeon™ RX 9060 XT Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock

- Boost Clock: Up to 3320 MHz
- Game Clock: Up to 2780 MHz

Boost and Game clocks may vary based on workload, thermals, and power limits

Stream Processors

2048

Compute Units

32 CUs (3rd Gen Ray Tracing + 2nd Gen AI Accelerators)

Infinity Cache

32MB

Ray Accelerators

32

AI Accelerators

64

Memory Size / Bus

16GB GDDR6 / 128-bit

Memory Clock

20 Gbps Effective

Displays

Maximum 3 Displays

Resolution Support

- HDMI®: 7680 × 4320
- DisplayPort™ 2.1a: 7680 × 4320

Interface

PCI Express 5.0 x16

Output Ports

- 2 × HDMI®
- 1 × DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

1440p

Cooler Type

Tri-X Cooling with:
• AeroCurve Fan Blade
• Free Flow Design
• Integrated Cooling Module
• Optimized Composite Heatpipes
• Two-Ball Bearing Fans

Sapphire Features

- Honeywell PTM7950 Thermal Interface Material
- FrameDefense
- High TG Copper PCB
- Metal Backplate
- ARGB Light Bar
- Fan Quick Connect
- Premium 9-Phase Digital Power
- Fuse & Fan Protection
- TriXX Software Support
- RGB MB Sync

Accessories Bundled

- L-Shape Support Bracket
- 3-pin 5V ARGB Cable

AMD Features

- AMD RDNA™ 4 Architecture
- HYPR-RX with AFMF 2
- FidelityFX™ Super Resolution 4 (AI Upscaling)
- Radiance Display™ Engine
- Fluid Motion Frames 2
- Anti-Lag 2
- AV1 Encode/Decode
- DirectX® 12 Ultimate
- Noise Suppression
- FreeSync™ Technology
- Smart Technologies
- Adrenalin Edition™ Software

Form Factor

ATX, 2.7-slot
Dimensions: 300 × 131 × 55 mm

Power Consumption

182W (Typical Board Power)

Power Requirements

- Minimum 450W PSU
- 1 × 8-pin Power Connector

System Requirements

- PCIe® x16 slot
- Min. 8GB RAM (16GB recommended)
- 64-bit OS

Operating System

Linux®, Windows® 10 / 11 (64-bit)
