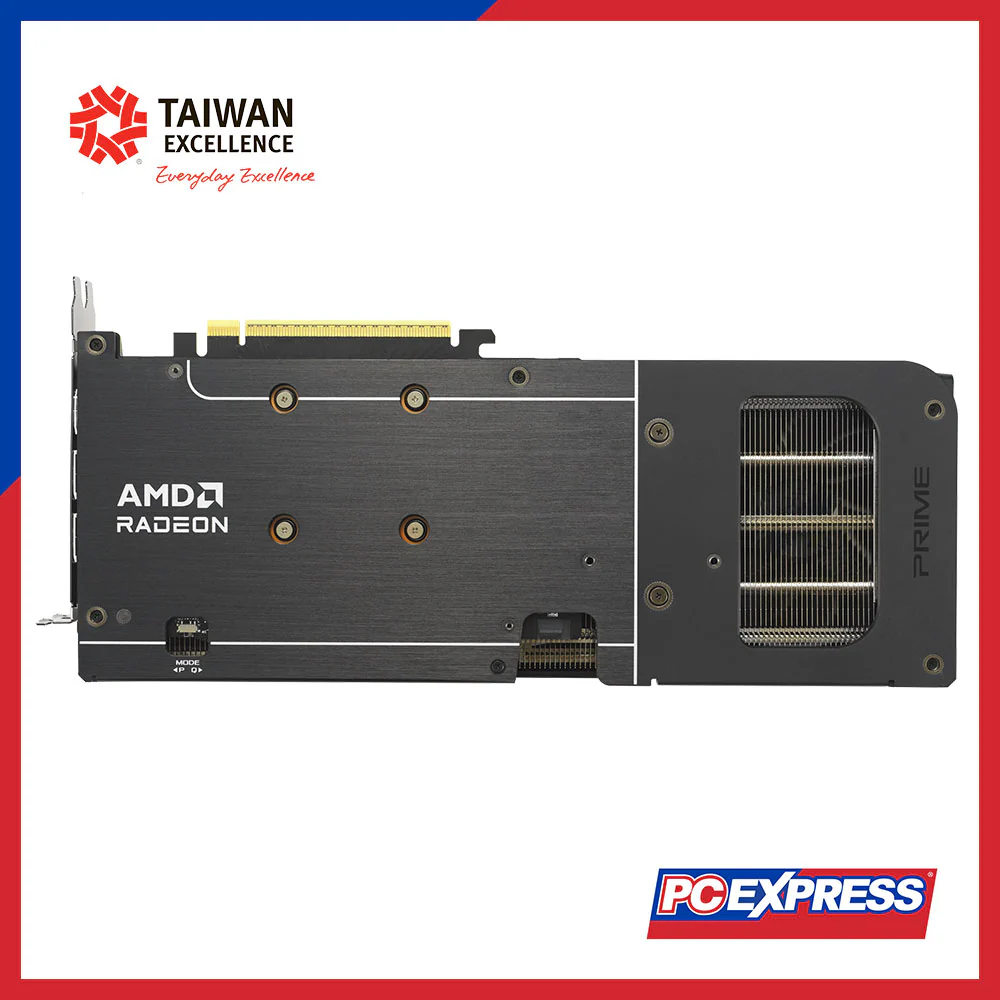

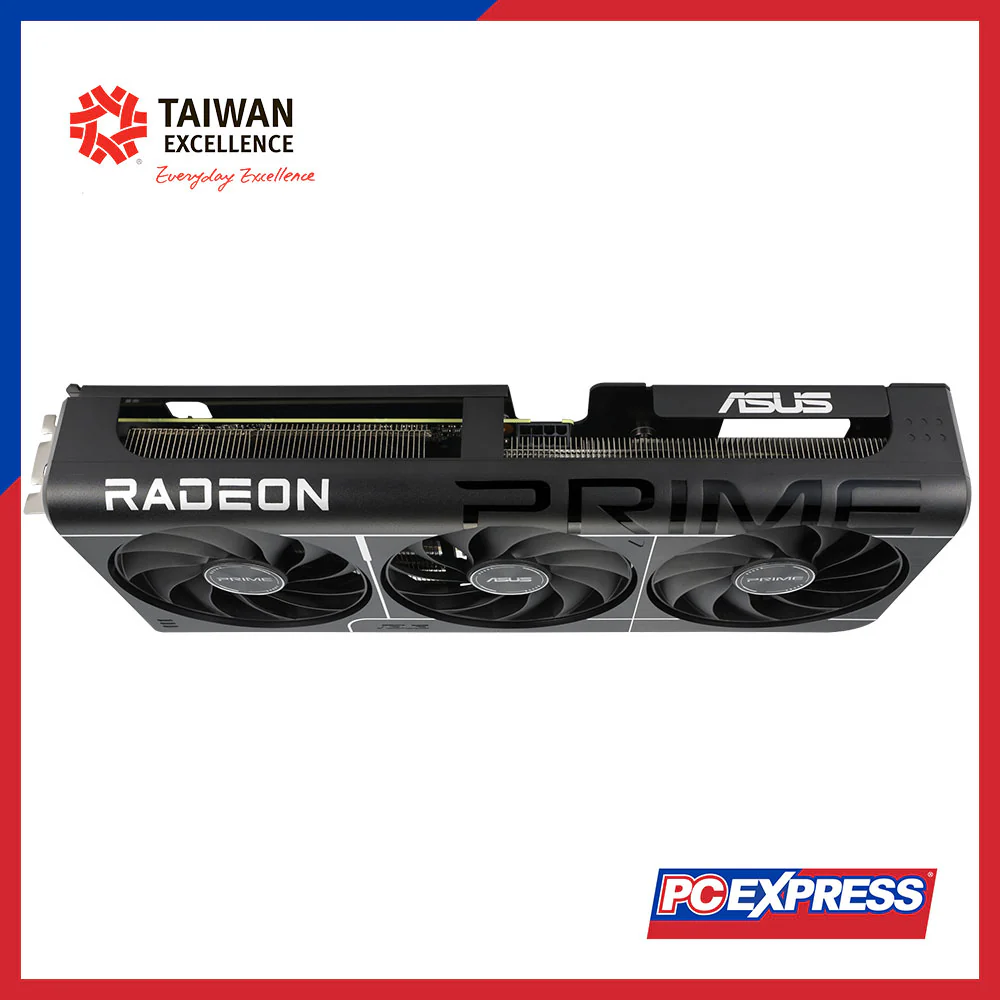

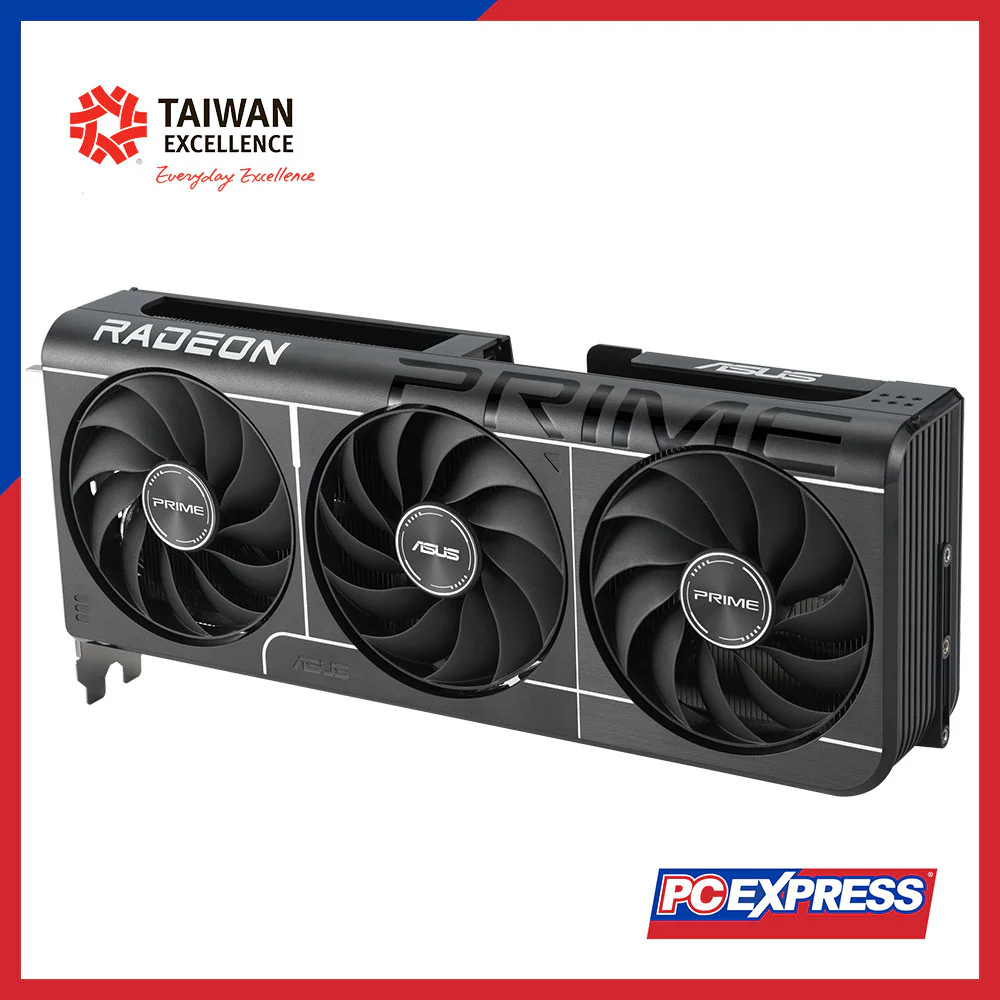

ASUS Prime Radeon™ RX 9060 XT OC Edition 16GB GDDR6 128-bit Graphics Card

Model

PRIME‑RX9060XT‑O16G

Graphic Engine

AMD Radeon™ RX 9060 XT

Bus Standard

PCI Express 5.0

OpenGL

OpenGL® 4.6

Video Memory

16 GB GDDR6

Engine Clock

• OC mode (GPU Tweak III): up to 3330 MHz (Boost) / up to 2760 MHz (Game)
• Default mode: up to 3310 MHz (Boost) / up to 2740 MHz (Game)

Stream Processors

2048

Memory Speed

20 Gbps

Memory Interface

128‑bit

Digital Max Resolution

7680 × 4320

Display Outputs

• 1 × HDMI 2.1b (native)
• 2 × DisplayPort 2.1a (native)

HDCP Support

Yes (2.3)

Maximum Displays Supported

3

NVLink / Crossfire Support

No

Accessories

1 × Thank you card
1 × Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers (download from support site)

Dimensions (L × W × H)

304 mm × 126 mm × 50 mm

Recommended PSU

550 W

Power Connectors

1 × 8‑pin

Slot Width

2.5 slots

Notes

• Wattage recommendation based on fully overclocked GPU+CPU; use “Choose By Wattage” PSU tool for tailored advice.
• Specs subject to change—check your supplier for the latest.
• Clocks vary with workload and conditions.
