ASUS Dual Radeon™ RX 6500 XT V2 OC Edition 4GB GDDR6 64-bit Graphics Card

Model

DUAL-RX6500XT-O4G-V2

Graphic Engine

Radeon RX 6500 XT

Bus Standard

PCI Express 4.0

OpenGL

OpenGL® 4.6

Video Memory

4 GB GDDR6

Engine Clock

• OC mode: up to 2820 MHz (Boost Clock) / up to 2670 MHz (Game Clock)
• Gaming mode: up to 2820 MHz (Boost Clock) / up to 2650 MHz (Game Clock)

Stream Processors

1024

Memory Speed

18 Gbps

Memory Interface

64-bit

Maximum Resolution

7680 × 4320 (Digital Max)

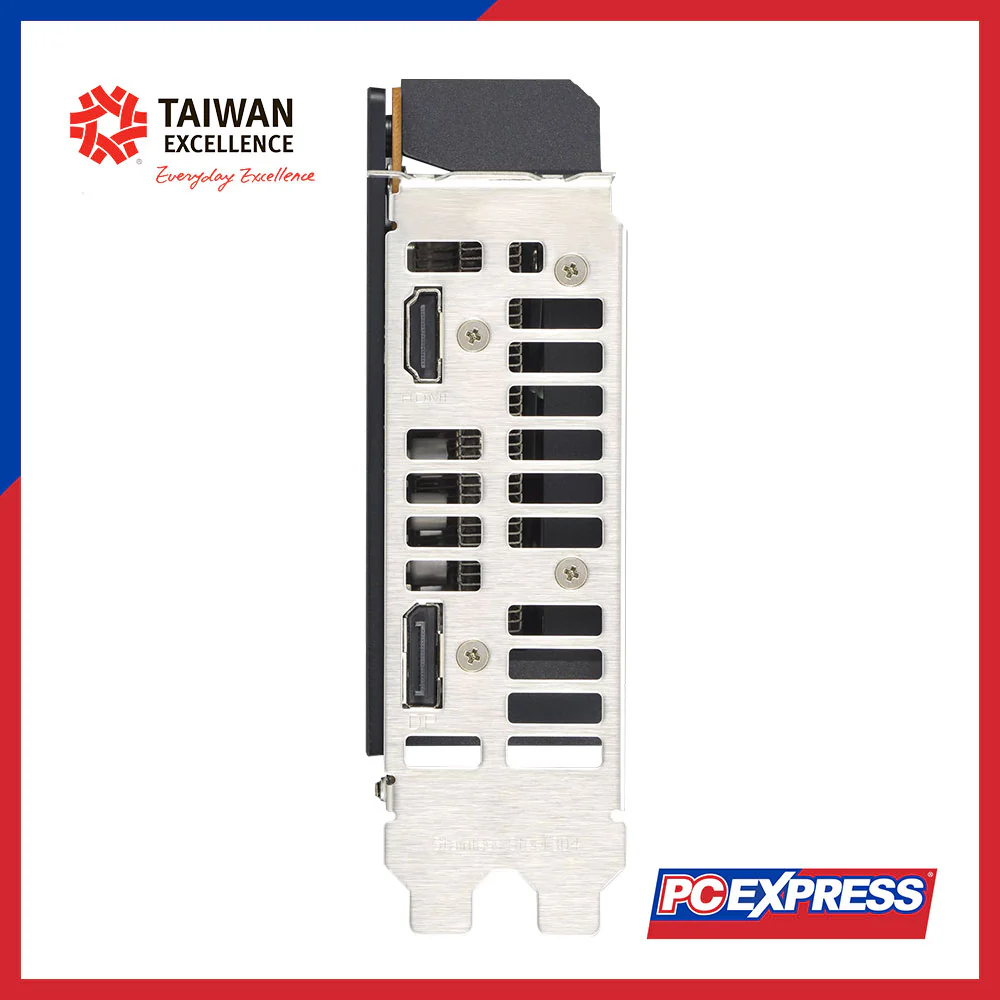

Display Outputs

• 1 × HDMI 2.1 (native)
• 1 × DisplayPort 1.4a (native)

HDCP Support

Yes (2.3)

Maximum Displays Supported

2

NVLink / CrossFire Support

No († CrossFire support available under DirectX® 12 and Vulkan®)

Accessories Included

1 × Speedsetup Manual

Software

ASUS GPU Tweak III & drivers (download from ASUS support site)

Dimensions (L × W × H)

201 × 128 × 40 mm
7.9 × 5.03 × 1.57 in

Recommended PSU

500 W (based on a fully overclocked GPU + CPU)

Power Connector

1 × 6-pin PCIe

Slot Width

2 slots

Notes

• Wattage recommendation considers a fully overclocked system—use “Choose By Wattage” on ASUS PSU page for tailored advice
• Specifications subject to change; verify with supplier for availability and exact details
• “Game Clock” is the expected GPU clock under typical gaming TGP; actual results may vary
• “Boost Clock” is the maximum burst frequency; achievability varies based on thermal conditions and workload characteristics
