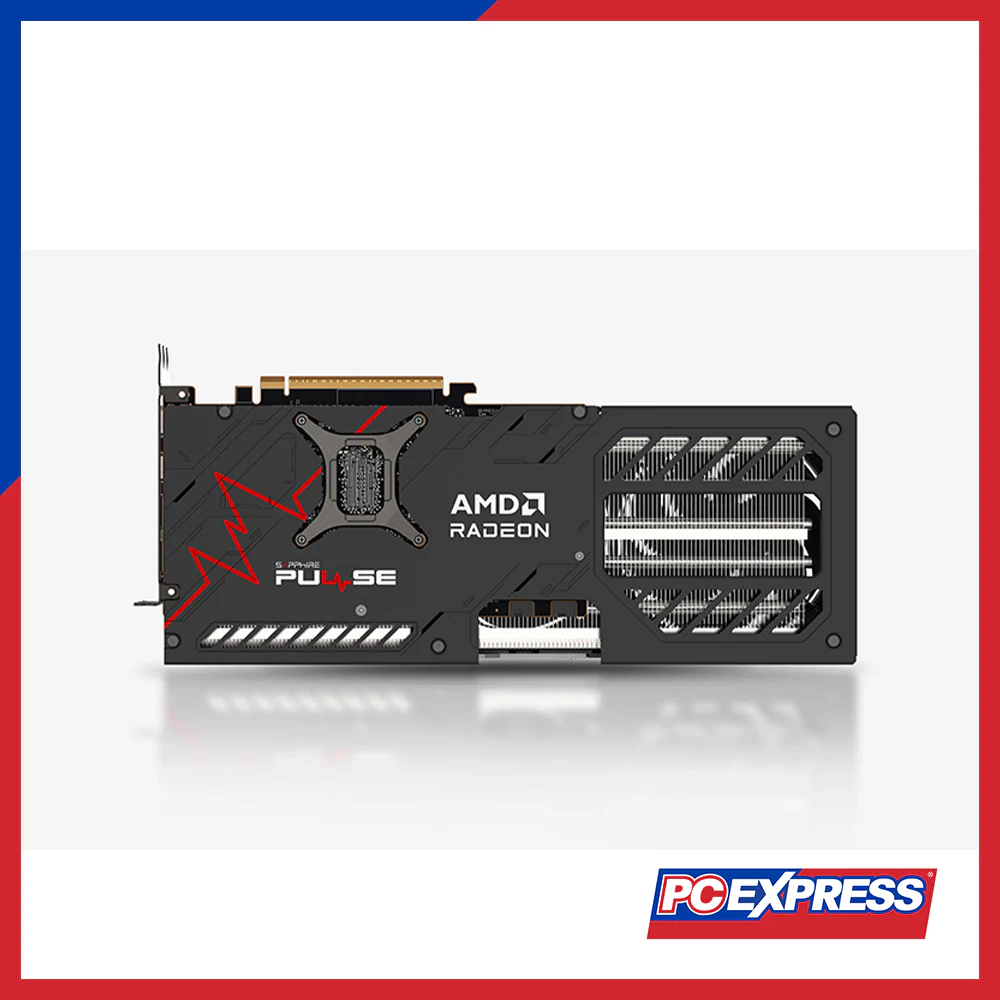

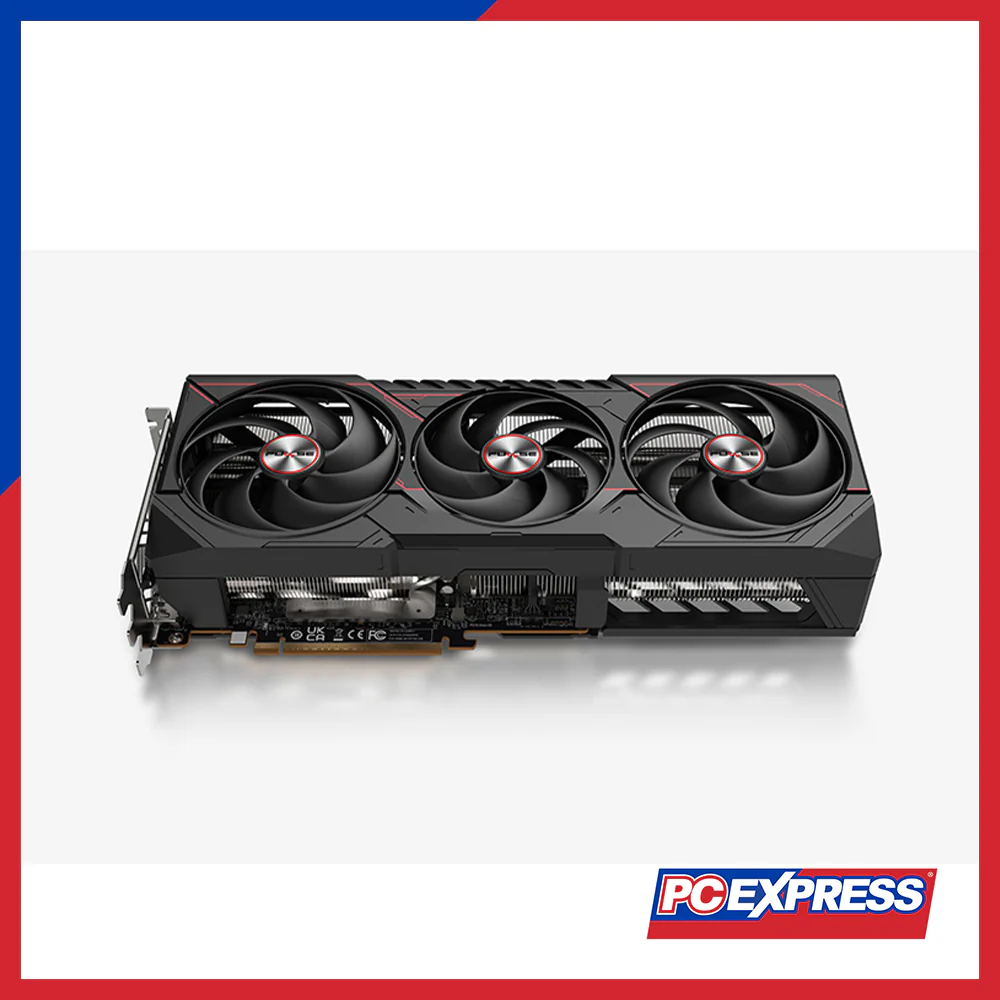

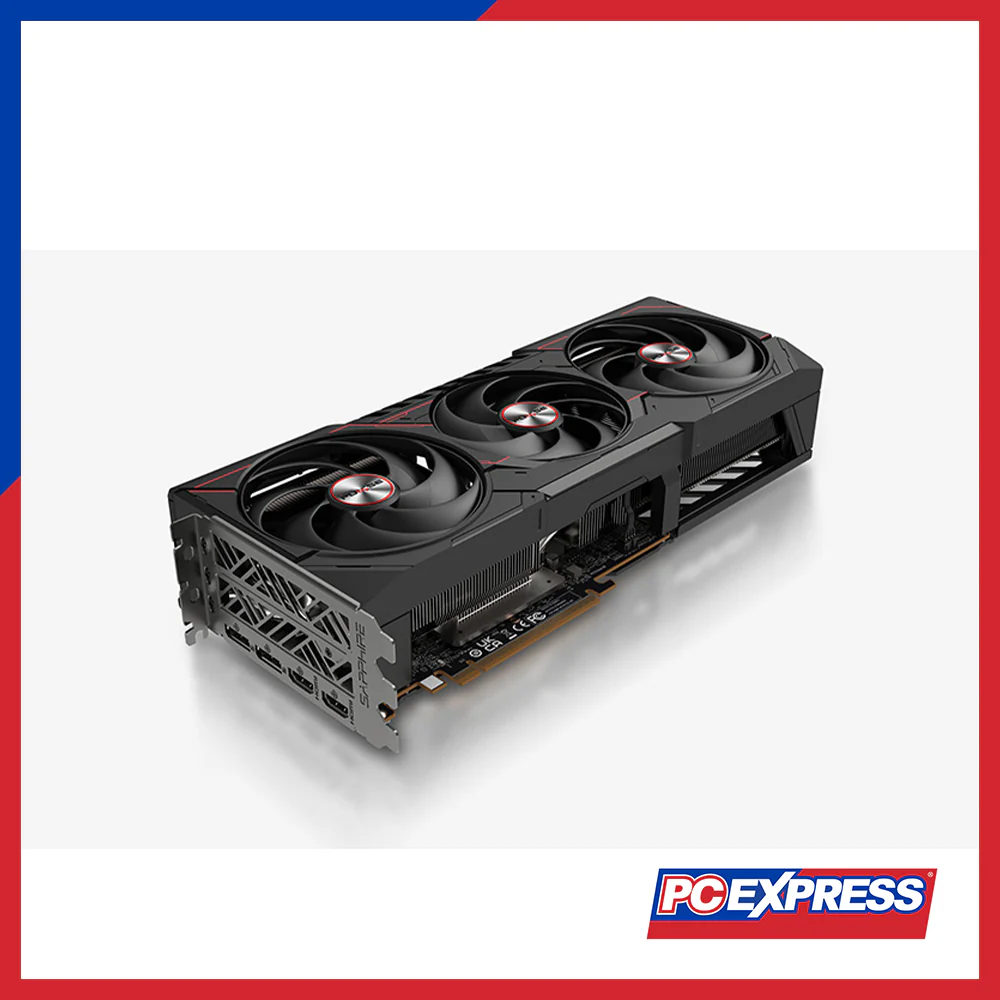

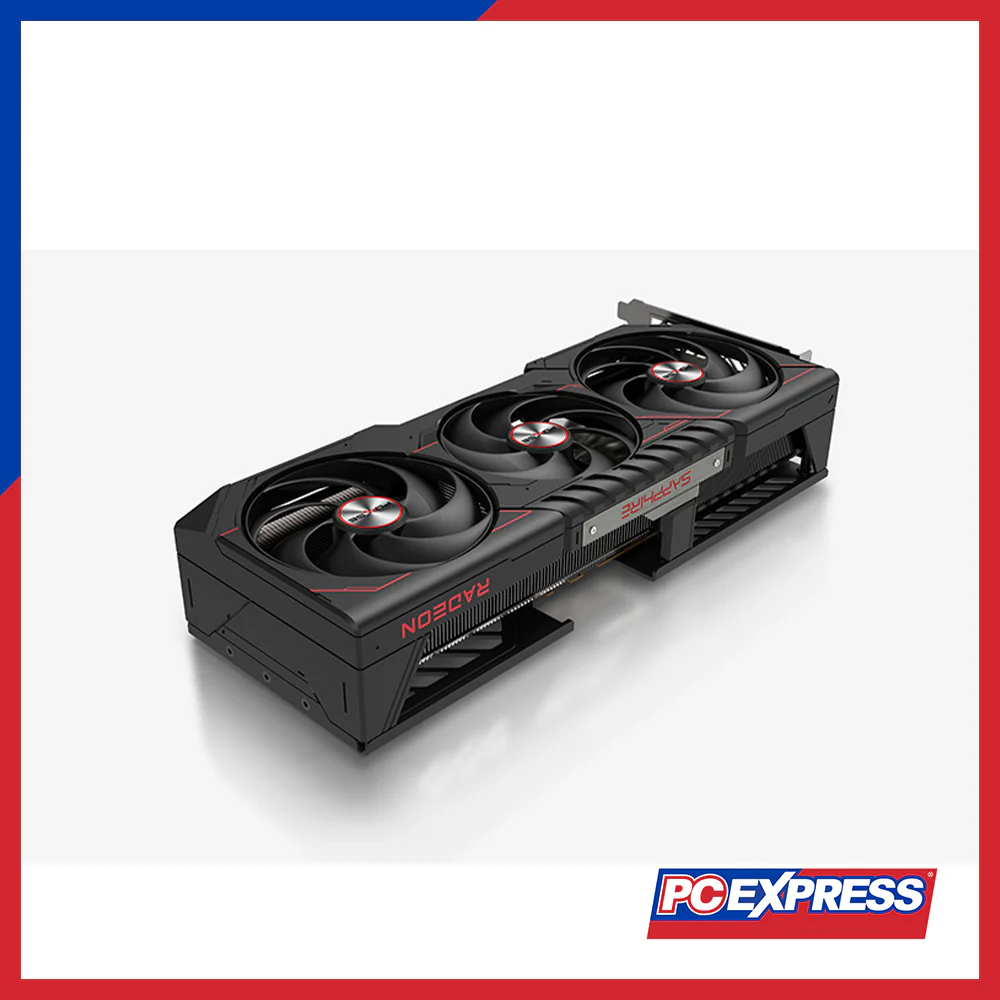

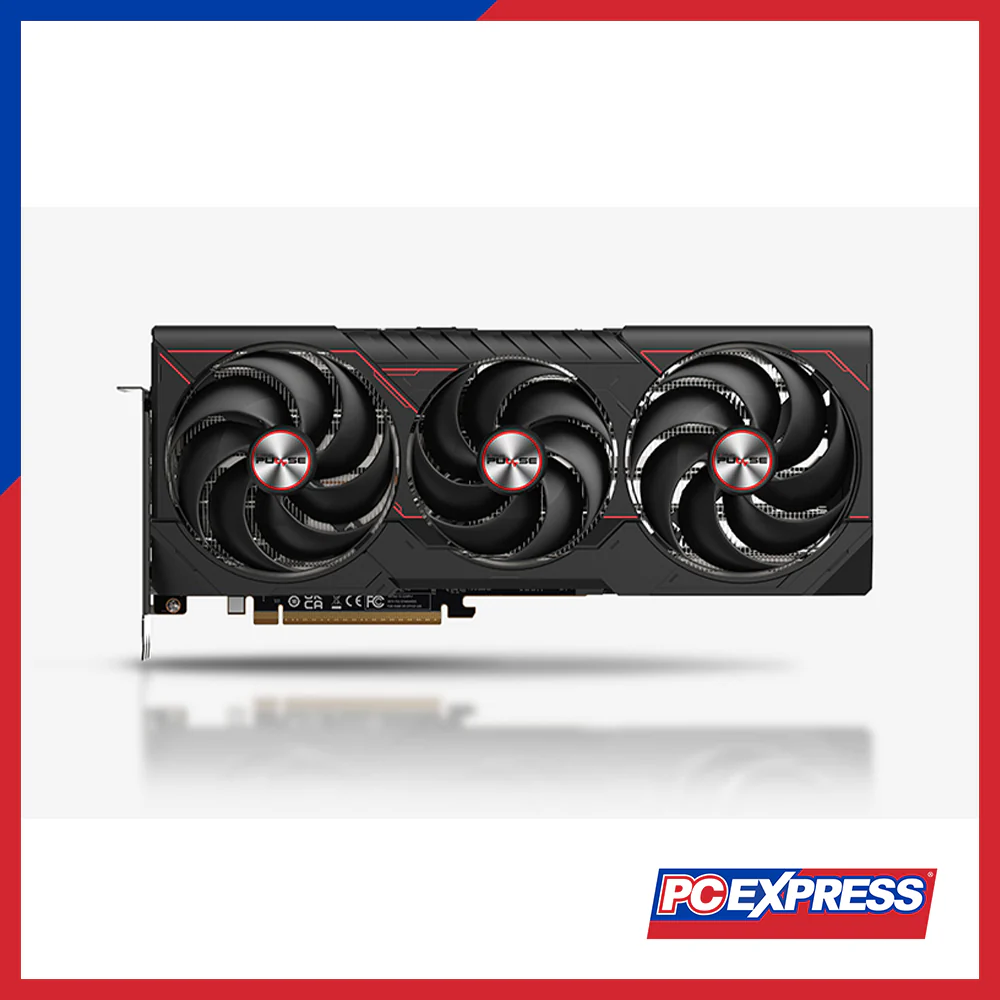

SAPPHIRE AMD Radeon™ RX 9070 XT GAMING OC 16GB GDDR6 256-bit Graphics Card

Part Number

SPR-11348-01-20G

GPU Model

AMD Radeon™ RX 9070 XT

Architecture

AMD RDNA™ 4

Engine Clock

Boost Clock: Up to 3060 MHz
Game Clock: Up to 2520 MHz

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

64

AI Accelerators

128

Memory Size/Bus

16GB GDDR6 / 256-bit

Memory Clock

20 Gbps Effective

Displays Supported

Up to 4 Displays

Max Resolution

HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output Ports

2x HDMI®
2x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

4K

Sapphire Features

Quick Connect MagniPlate
STEALTH Hidden Power Cable
12V-2x6(H++) Power Connector
Honeywell PTM7950 TIM
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Cold Rolled Steel Frame
Tri-X Cooling
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
ARGB Light Bar
Fan Quick Connect
Two-Ball Bearing Fans
Premium 16-Phase Digital Power Design
Fuse Protection
Intelligent & Precision Fan Control
TriXX Supported, Boost, Fan Check, Glow!
External RGB LED MB Sync

Accessories Included

L-Shape Support Bracket
3pin 5V ARGB Cable
Magnetic Backplate
12V-2x6(H++) to PCIe 3x8-pin Adapter

AMD Features

AMD HYPR-RX with AFMF 2
FSR 4 with AI Upscaling
Radiance Display™ Engine
Fluid Motion Frames 2
Anti-Lag 2
AV1 Encode/Decode
FidelityFX Technologies
DirectX® 12 Ultimate
Noise Suppression
FreeSync™
Adrenalin Edition™ Software

Cooler Type

Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
Optimized Heatpipes
Two-Ball Bearing

Form Factor

3.2 Slot, ATX
330.8 x 128.5 x 65.68 mm

Power Consumption

330W Typical

Operating Systems

Linux®, Windows® 10/11 (64-bit)

System Requirements

750W PSU (Minimum)
12V-2x6(H++) or 3x8-pin Adapter
PCIe x16 Slot
8GB RAM (16GB Recommended)
