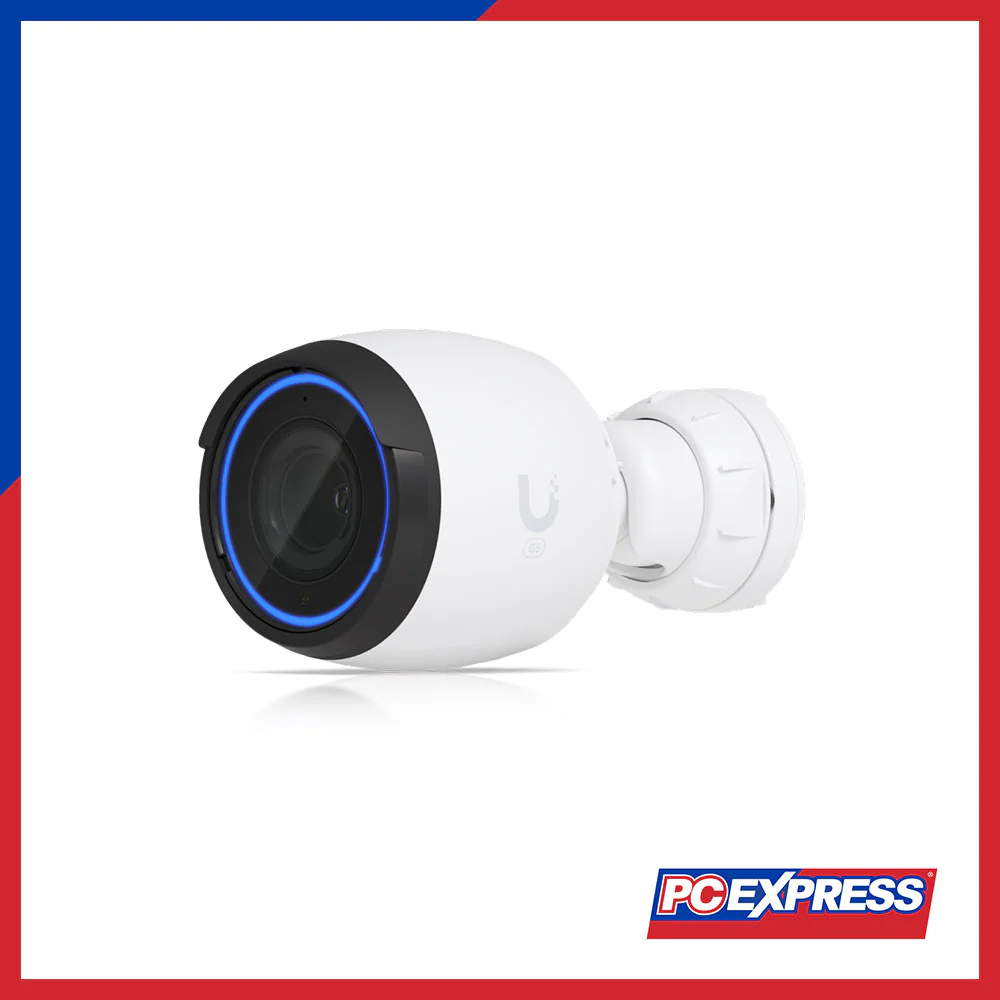

UBIQUITI UVC-G5-Pro Surveillance Camera
Product
Deployment
Build Features
SPECIFICATION
|
Mechanical |
|
|
Dimensions |
Ø86 x 154.3 mm (Ø3.4 x 6.1") |
|
Weight |
650 g (1.4 lb) |
|
Enclosure Material |
UV stabilized polycarbonate, aluminum alloy |
|
Mount Material |
Aluminum alloy |
|
Weatherproofing |
IP65 |
|
Resistance |
IK04 |
|
Optics |
|
|
Sensor |
1/2" 8MP |
|
Lens |
F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
|
View Angle |
Wide: H 109.9°, V 60°, D 127.7° |
|
Night Mode |
Built-in IR LED illumination and IR cut filter |
|
Video |
|
|
Resolution |
8MP 3840 x 2160 (16:9) |
|
Max. Frame Rate |
30 FPS |
|
Image Settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
|
System |
|
|
Processor |
Dual-core Arm® Cortex®-A53 based chip |
|
Networking Interface |
10/100 MbE RJ45 port |
|
Max. Power Consumption |
Device: 10W |
|
Power Method |
PoE |
|
Supported Voltage Range |
37–57V DC |
|
Button |
Factory reset |
|
Mounting |
Wall, pole mount |
|
Ambient Operating Temp. |
-20 to 50º C (-4 to 122º F) |
|
Ambient Operating Humidity |
0 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Audio |
|
|
Microphone |
Yes (Can be disabled) |
|
Software |
|
|
Web Application |
UniFi Protect |
|
Mobile App |
UniFi Protect iOS™ and Android™ |
