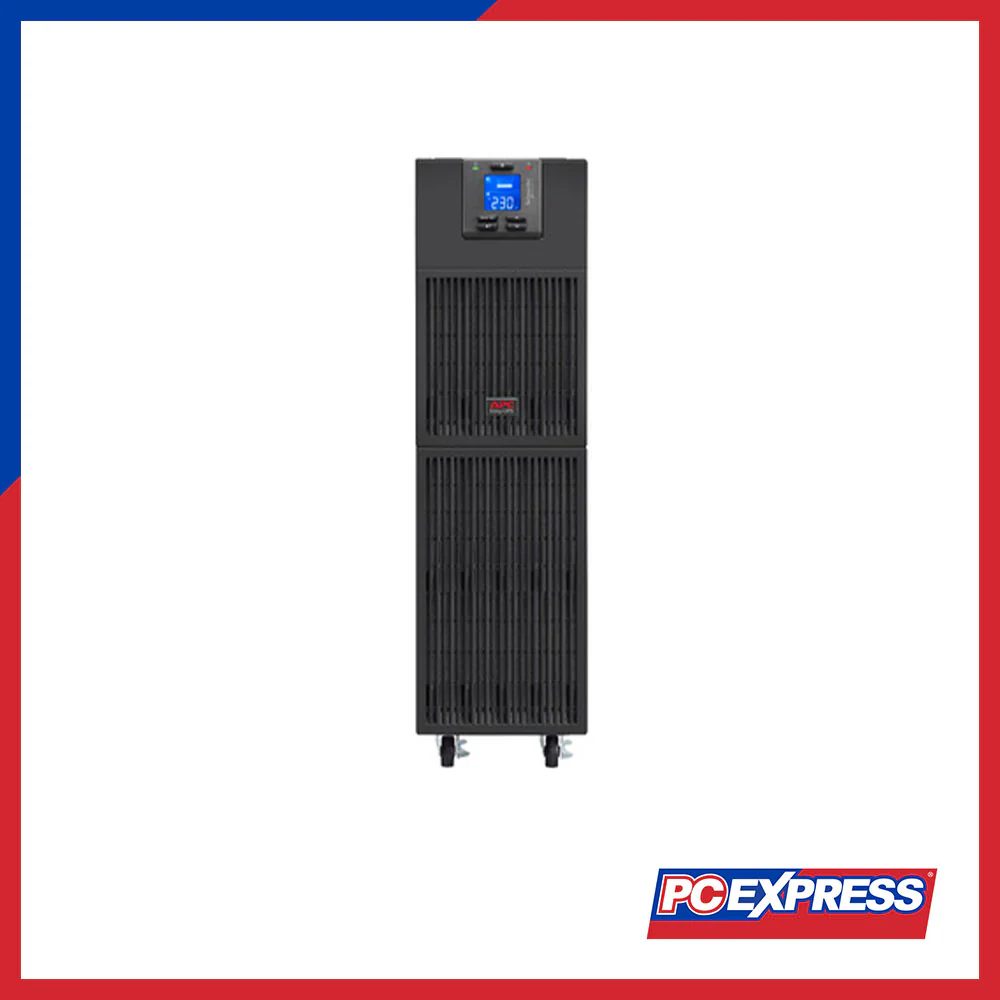

APC (SRV6KI) Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD
APC (SRV6KI) Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD
SPECIFICATION
|
Main |
|
|
Main Input Voltage |
230 V |
|
Product Type |
Uninterruptible power supply (UPS) |
|
Other Input Voltage |
220 V, 240 V |
|
Main Output Voltage |
230 V |
|
Other Output Voltage |
220 V, 240 V |
|
Rated Power (W) |
6000 W |
|
Rated Power (VA) |
6000 VA |
|
Output Connector Type |
Hard wire 3-wire (1P + N + E) |
|
Provided Equipment |
1 USB cable, 1 RS-232 configuration cable, 1 user manual |
|
Range of Product |
Easy UPS On-Line |
|
Batteries & Runtime |
|
|
Battery Type |
Lead-acid battery |
|
Battery Voltage |
192 V |
|
Battery Recharge Time |
4 hours |
|
Battery Life |
3–5 years |
|
Battery Charger Power |
235 W rated |
|
General |
|
|
Number of Power Module Slots |
Filled: 0, Free: 0 |
|
Redundant |
No |
|
Physical |
|
|
Colour |
Black (RAL 7010) |
|
Dimensions (H x W x D) |
68.5 cm x 19 cm x 37.4 cm |
|
Net Weight |
54 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
USB Compatible |
Yes |
|
Mounting Position |
Vertical |
|
Input |
|
|
Input Voltage Limits |
110–300 V (60% load), 176–300 V (full load) |
|
Number of Input Connectors |
1 hard wire 3-wire (1P + N + E) |
|
Network Frequency |
40–70 Hz (auto sensing) |
|
Output |
|
|
Maximum Configurable Power |
6000 W / 6000 VA |
|
Output Frequency |
50/60 Hz ± 3 Hz (sync to mains) |
|
Harmonic Distortion |
1% |
|
UPS Type |
Double conversion online |
|
Wave Type |
Sine wave |
|
Efficiency |
94% (full load) |
|
Additional Information |
Configurable for 220, 230, or 240 nominal output voltage |
|
Bypass Type |
Internal (automatic and manual) |
|
Crest Factor |
3:1 |
|
Conformance |
|
|
Product Certifications |
UKCA, EAC, TISI |
|
Standards |
EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
|
Environmental |
|
|
Operating Temperature |
0–40 °C |
|
Relative Humidity |
0–95% non-condensing |
|
Operating Altitude |
0–3000 m |
|
Storage Temperature |
-15–60 °C |
|
Storage Relative Humidity |
0–95% non-condensing |
|
Storage Altitude |
0–15000 m |
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
1172 Btu/h |
|
IP Degree of Protection |
IP20 |
|
Communications & Management |
|
|
Alarm |
Battery alarm, low battery alarm, overload continuous tone alarm |
|
Emergency Power Off |
Yes |
|
Free Slots |
1 |
|
Control Panel |
Multifunction LCD status and control console |
|
Surge Protection & Filtering |
|
|
Surge Energy Rate |
600 J |
|
Packing Units |
|
|
Package Type |
PCE |
|
Package Dimensions (H x W x L) |
91 cm x 29 cm x 49.5 cm |
|
Package Weight |
66 kg |
