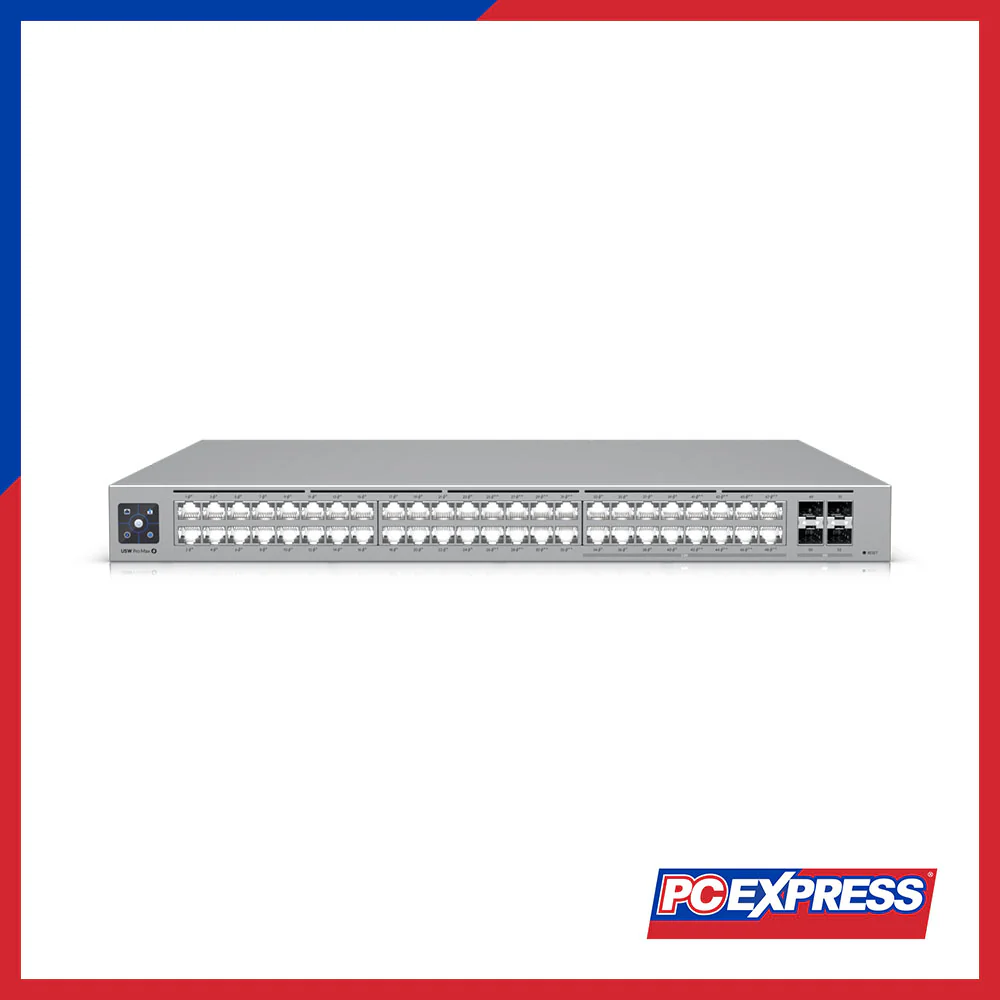

UBIQUITI USW-PRO-Max-48-PoE Switch

Mechanical

Dimensions

442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")

Weight

Without mounting brackets: 6.2 kg (13.7 lb)

With mounting brackets: 6.3 kg (13.9 lb)

Enclosure Material

SGCC steel

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports

PoE Interface

(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total Non-blocking Throughput

112 Gbps

Switching Capacity

224 Gbps

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input

Power Supply

AC/DC, internal, 820W

Supported Voltage Range

100—240V AC

Max. Power Consumption

100W (Excluding PoE output)

Total Available PoE

720W

Max. PoE Wattage per Port

PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage Range (PoE Mode)

PoE: 44—57V
PoE+: 50—57V

LCM Display

(1) 1.3" touchscreen

Button

Factory reset

Environmental

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% non-condensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 Features

DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

LEDs

System: Status
RPS: Status

Application Requirements

UniFi Network: Version 8.0.24 and later
