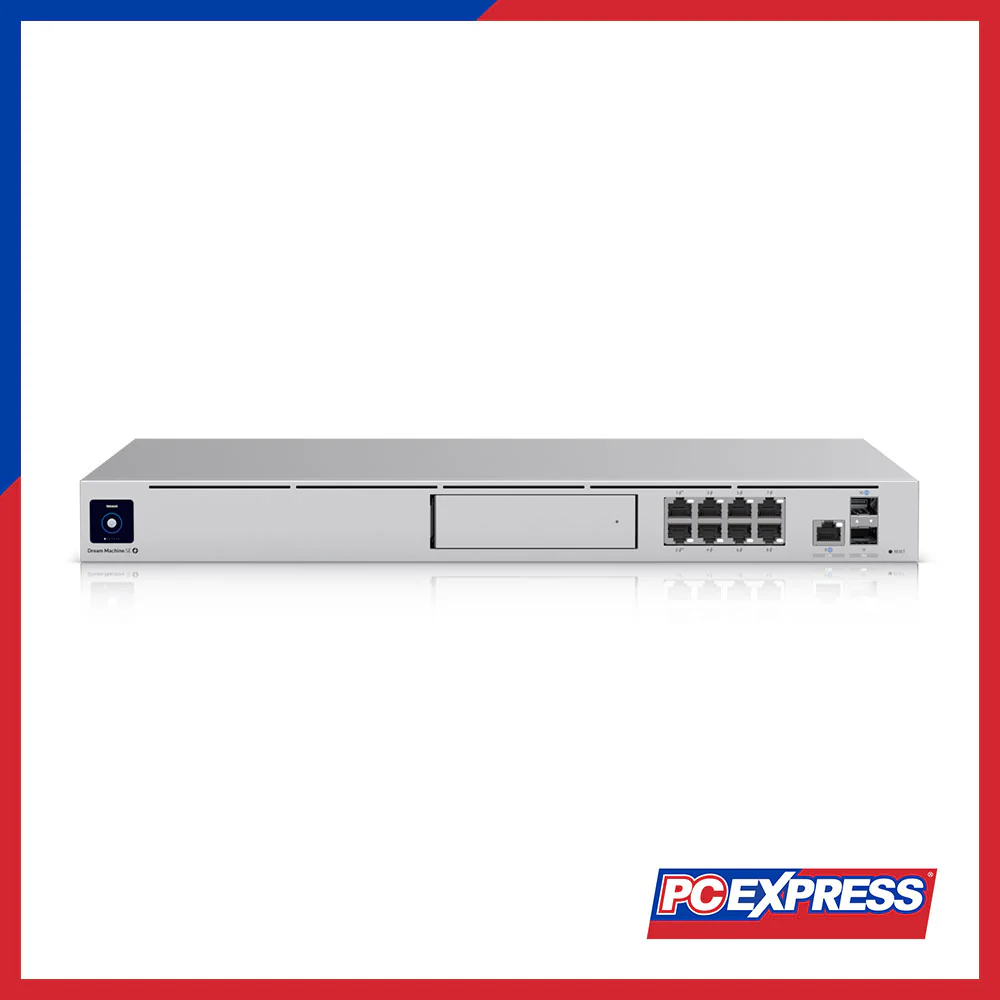

UBIQUITI UDM-SE (Dream Machine Special Edition) Cloud Gateways

Mechanical

Dimensions

442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

Weight

5 kg (10.9 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

Hardware

Processor

Quad-core ARM® Cortex®-A57 at 1.7 GHz

System Memory

4 GB DDR4

On-board Storage

16 GB eMMC

Integrated SSD

128 GB

Management Interface

Ethernet, Bluetooth

Networking Interface

LAN

(8) GbE RJ45 ports, (1) 10G SFP+ port

WAN

(1) 2.5 GbE RJ45 port, (1) 10G SFP+ port

PoE Interface

(6) PoE (Pair A 1, 2+; 3, 6-), (2) PoE+ (Pair A 1, 2+; 3, 6-)

IDS/IPS Throughput

3.5 Gbps* (Measured with iPerf3 on a DHCP network)

Power

Power Method

Universal AC input (100—240V AC, 4.4A Max., 50/60 Hz), USP-RPS DC input (52V DC, 3.94A)

Power Supply

AC/DC, internal, 240W

Supported Voltage Range

100—240V AC

Max Power Consumption

50W (Excluding PoE output)

PoE Budget

180W

Max PoE Wattage per Port

PoE: 15.4W, PoE+: 30W

Voltage Range (PoE Mode)

PoE: 44—57V, PoE+: 50—57V

Environmental

ESD/EMP Protection

Air: ±15kV, Contact: ±8kV

Ambient Temperature

-10 to 40° C (14 to 104° F)

Ambient Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Gateway Features

Performance

Redundant WAN with failover/load balancing, WiFi QoS with UniFi APs, app/device type identification

Security

Application-aware firewall, IPS/IDS threat detection, filtering (content, domain, country, ad)

Networking

License-free SD-WAN, WireGuard, OpenVPN, site-to-site VPN, DHCP relay, IPv6 ISP support

LED Indicators

Ethernet

White: link/activity

SFP+

White: link/activity

HDD

White: disk activity, Amber: disk error

RPS

Blue: ready

Other Features

1.3" touchscreen display, Factory reset button
