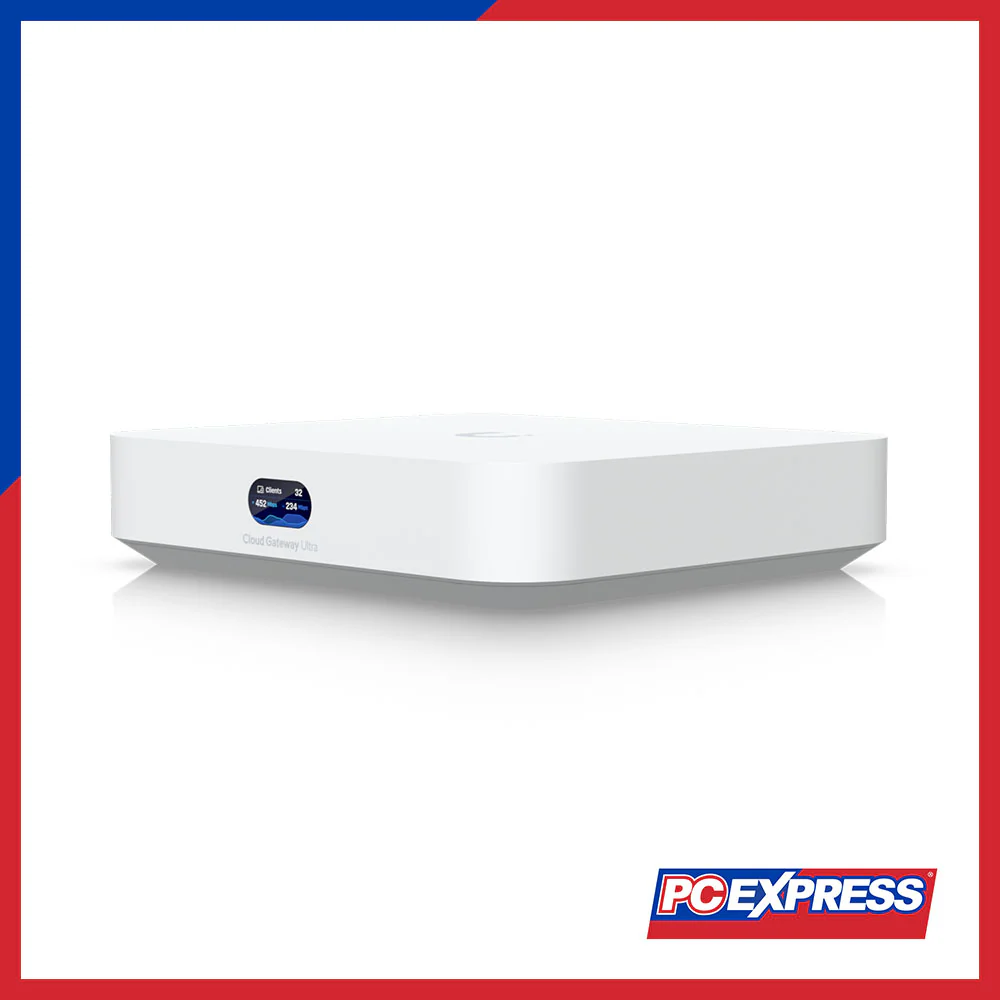

UBIQUITI UCG-Ultra (Cloud Gateway Ultra)
Product
Deployment
Build Features
SPECIFICATION
|
Mechanical |
|
|
Dimensions |
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
|
Weight |
520 g (1.1 lb) |
|
Enclosure Material |
Polycarbonate |
|
Hardware |
|
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
|
System Memory |
3 GB DDR4 |
|
On-board Storage |
16 GB eMMC |
|
Management Interface |
Ethernet, Bluetooth |
|
Networking Interface |
|
|
LAN |
(4) GbE RJ45 ports |
|
WAN |
(1) 1/2.5 GbE RJ45 port |
|
IDS/IPS Throughput |
1 Gbps* (Measured with iPerf3 on a DHCP network) |
|
Power |
|
|
Power Method |
USB Type-C (5V DC/3A) |
|
Supported Voltage Range |
100–240V AC |
|
Max Power Consumption |
6.2W |
|
Environmental |
|
|
LCM Display |
0.96" status display |
|
Button |
Factory reset |
|
Ambient Temperature |
-10 to 40° C (14 to 104° F) |
|
Ambient Humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Gateway Features |
|
|
Performance |
Redundant WAN with failover/load balancing, WiFi QoS with UniFi APs, app/device type identification |
|
Security |
Application-aware firewall, IPS/IDS threat detection, filtering (content, domain, country, ad) |
|
Networking |
License-free SD-WAN, WireGuard, OpenVPN, site-to-site VPN, DHCP relay, IPv6 ISP support |
|
LED Indicators |
|
|
Ethernet |
Green: link/activity |
|
Application Requirements |
|
|
Mobile App |
UniFi iOS™: Version 10.12.0 and later, UniFi Android™: Version 10.11.2 and later |
UBIQUITI UCG-Ultra (Cloud Gateway Ultra)
Product
Deployment
Build Features
SPECIFICATION
|
Mechanical |
|
|
Dimensions |
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
|
Weight |
520 g (1.1 lb) |
|
Enclosure Material |
Polycarbonate |
|
Hardware |
|
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
|
System Memory |
3 GB DDR4 |
|
On-board Storage |
16 GB eMMC |
|
Management Interface |
Ethernet, Bluetooth |
|
Networking Interface |
|
|
LAN |
(4) GbE RJ45 ports |
|
WAN |
(1) 1/2.5 GbE RJ45 port |
|
IDS/IPS Throughput |
1 Gbps* (Measured with iPerf3 on a DHCP network) |
|
Power |
|
|
Power Method |
USB Type-C (5V DC/3A) |
|
Supported Voltage Range |
100–240V AC |
|
Max Power Consumption |
6.2W |
|
Environmental |
|
|
LCM Display |
0.96" status display |
|
Button |
Factory reset |
|
Ambient Temperature |
-10 to 40° C (14 to 104° F) |
|
Ambient Humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Gateway Features |
|
|
Performance |
Redundant WAN with failover/load balancing, WiFi QoS with UniFi APs, app/device type identification |
|
Security |
Application-aware firewall, IPS/IDS threat detection, filtering (content, domain, country, ad) |
|
Networking |
License-free SD-WAN, WireGuard, OpenVPN, site-to-site VPN, DHCP relay, IPv6 ISP support |
|
LED Indicators |
|
|
Ethernet |
Green: link/activity |
|
Application Requirements |
|
|
Mobile App |
UniFi iOS™: Version 10.12.0 and later, UniFi Android™: Version 10.11.2 and later |
