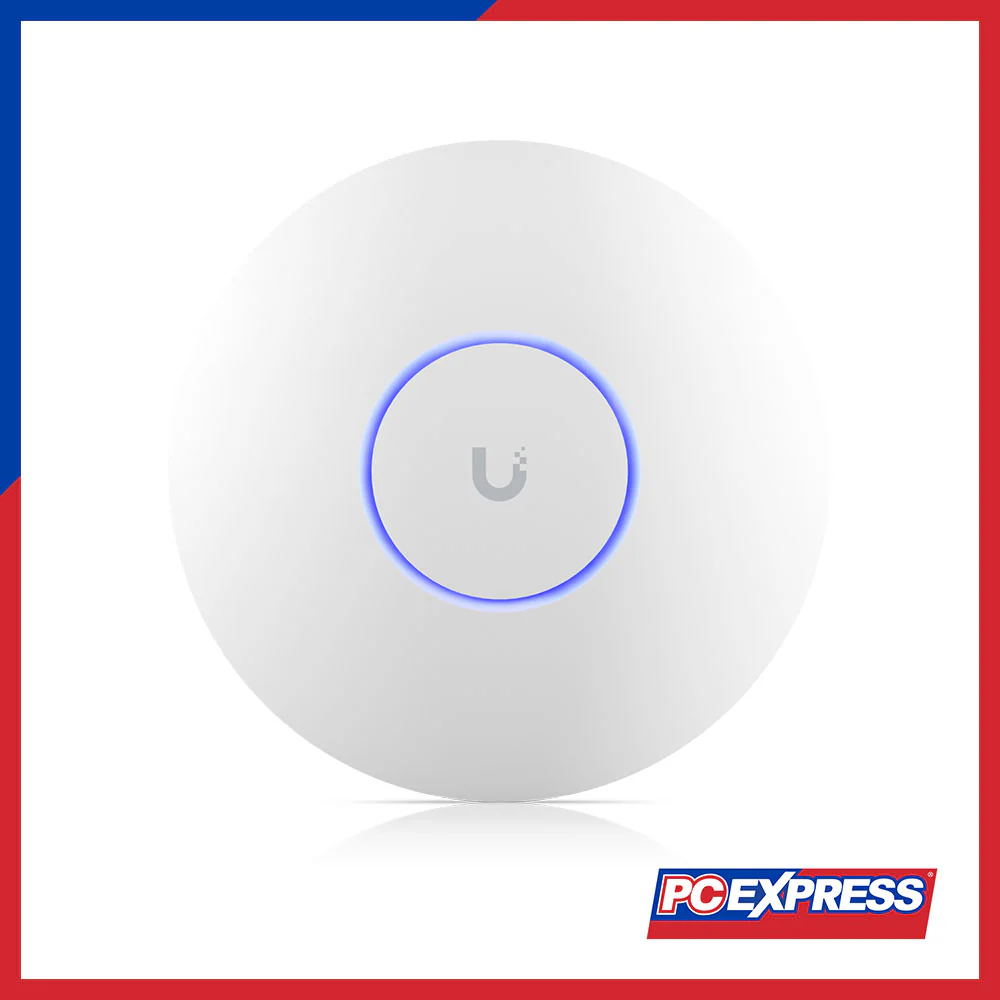

UBIQUITI U6 Long Range (LR) WiFi Access Point

Mechanical

Dimensions

Ø220 x 48 mm (Ø8.7 x 1.9")

Weight

Without mount: 800 g (1.8 lb) / With mount: 930 g (2.1 lb)

Enclosure Material

Polycarbonate

Mount Material

Stainless steel (SUS304)

Weatherproofing

IP54

Hardware

Networking Interface

(1) GbE RJ45 port

Management Interface

Ethernet, Bluetooth

Power Method

PoE+, Passive PoE, 48V

Power Supply

UniFi PoE switch, 48V, 0.5A PoE adapter (Not included)

Supported Voltage

44—57V DC

Max. Power Consumption

18.5W

Max. TX Power

2.4 GHz

26 dBm

5 GHz

26 dBm

6 GHz

–

MIMO

2.4 GHz

4 x 4 (SU-MIMO)

5 GHz

4 x 4 (DL/UL MU-MIMO)

6 GHz

–

Max. Data Rate

2.4 GHz

600 Mbps (BW40)

5 GHz

2.4 Gbps (BW160)

6 GHz

–

Antenna Gain

2.4 GHz

4 dBi

5 GHz

5.5 dBi

6 GHz

–

LEDs

White/blue

Button

Factory reset

Mounting

Wall, ceiling (Included)

Ambient Operating Temp

-30 to 60° C (-22 to 140° F)

Ambient Operating Hum.

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi Standards

802.11a/b/g/n/ac/ax (WiFi 6)

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest Traffic Isolation

Supported

Concurrent Clients

350+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 160)

Application Requirements

UniFi Network Version 6.0.34 and later
