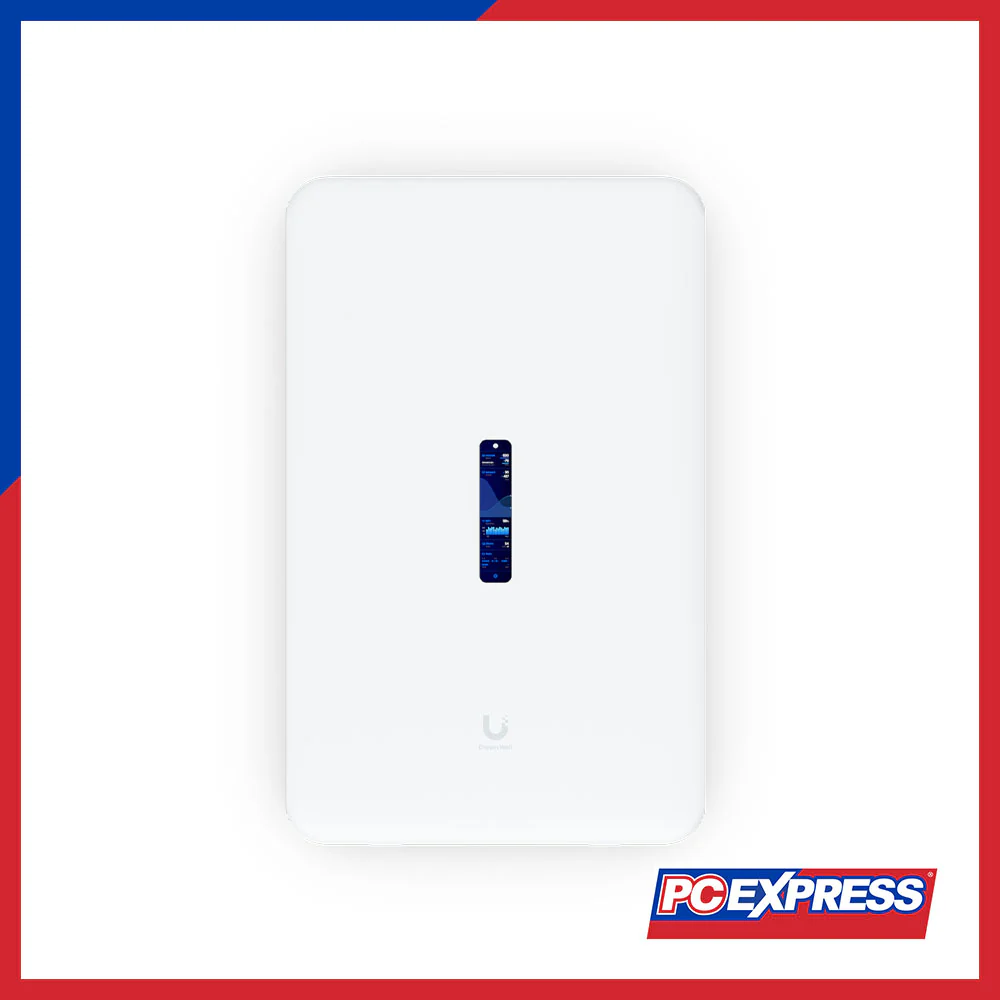

UBIQUITI Dream Wall (UDW) Cloud Gateways
Product
Deployment
Build Features
SPECIFICATION
|
Mechanical |
|
|
Dimensions |
549 x 342 x 62 mm (21.6 x 13.5 x 2.4") |
|
Weight |
8.6 kg (19 lb) |
|
Enclosure Material |
Polycarbonate, galvanized steel, aluminum alloy |
|
Mount Material |
Stainless steel |
|
Hardware |
|
|
Processor |
Quad-core ARM® Cortex®-A57 at 1.7 GHz |
|
System Memory |
4 GB DDR4 |
|
On-board Storage |
16 GB eMMC, Integrated 128 GB SSD, Pre-installed 512 GB microSD card |
|
Expansion Slot |
Micro SD memory card* (Requires a memory card with at least 128 GB of storage) |
|
Management Interface |
Ethernet, Bluetooth, WiFi |
|
Networking Interface |
|
|
LAN |
(17) GbE RJ45 ports |
|
WAN |
(1) 2.5 GbE RJ45 port, (1) 10G SFP+ port |
|
PoE Interface |
|
|
PoE |
(4) PoE (Pair A 1, 2+; 3, 6-) |
|
PoE+ |
(4) PoE+ (Pair A 1, 2+; 3, 6-) |
|
PoE++ |
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
|
Power |
|
|
Power Method |
Universal AC input 100—240V AC, 7A Max., 50/60Hz |
|
Power Supply |
(2) Hot-Swappable AC/DC 550W PSU* (Comes with (1) pre-installed PSU) |
|
Max. Power Consumption |
532W (Including PoE output) |
|
PoE Budget |
420W |
|
Max. PoE Wattage per Port |
PoE: 15.4W, PoE+: 30W, PoE++: 60W |
|
Voltage Range PoE Mode |
PoE: 44—57V, PoE+/PoE++: 50—57V |
|
Max TX Power |
|
|
2.4 GHz |
23 dBm |
|
5 GHz |
26 dBm |
|
MIMO |
|
|
2.4 GHz |
2 x 2 |
|
5 GHz |
4 x 4 |
|
Throughput Rate |
|
|
2.4 GHz |
300 Mbps |
|
5 GHz |
2.4 Gbps |
|
Antenna Gain |
|
|
2.4 GHz |
5.9 dBi |
|
5 GHz |
6 dBi |
|
Protection |
ESD/EMP: Air ±8kV, Contact ±4kV |
|
LCM Display |
(1) 4.7" touchscreen |
|
Button |
Factory reset |
|
Mounting |
Wall mount (included) |
|
Environmental |
|
|
Ambient Operating Temp |
-10 to 40° C (14 to 104° F) |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Gateway Features |
|
|
Performance |
Redundant WAN with failover, load balancing, LTE backup, application QoS, traffic reporting |
|
Security |
Application-aware firewall, Signature-based IPS/IDS, Filtering, VLAN/subnet-based traffic segmentation |
|
Networking |
SD-WAN, VPN (WireGuard, L2TP, OpenVPN), Policy-based WAN routing, DHCP relay |
|
Software |
|
|
WiFi Standards |
802.11a/b/g/n/ac/ax |
|
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
|
BSSID |
8 per radio |
|
VLAN |
802.1Q |
|
|
