TP-LINK Omada EAP650 AX3000 Wall Plate Dual Band WiFi 6 Access Point

Interface

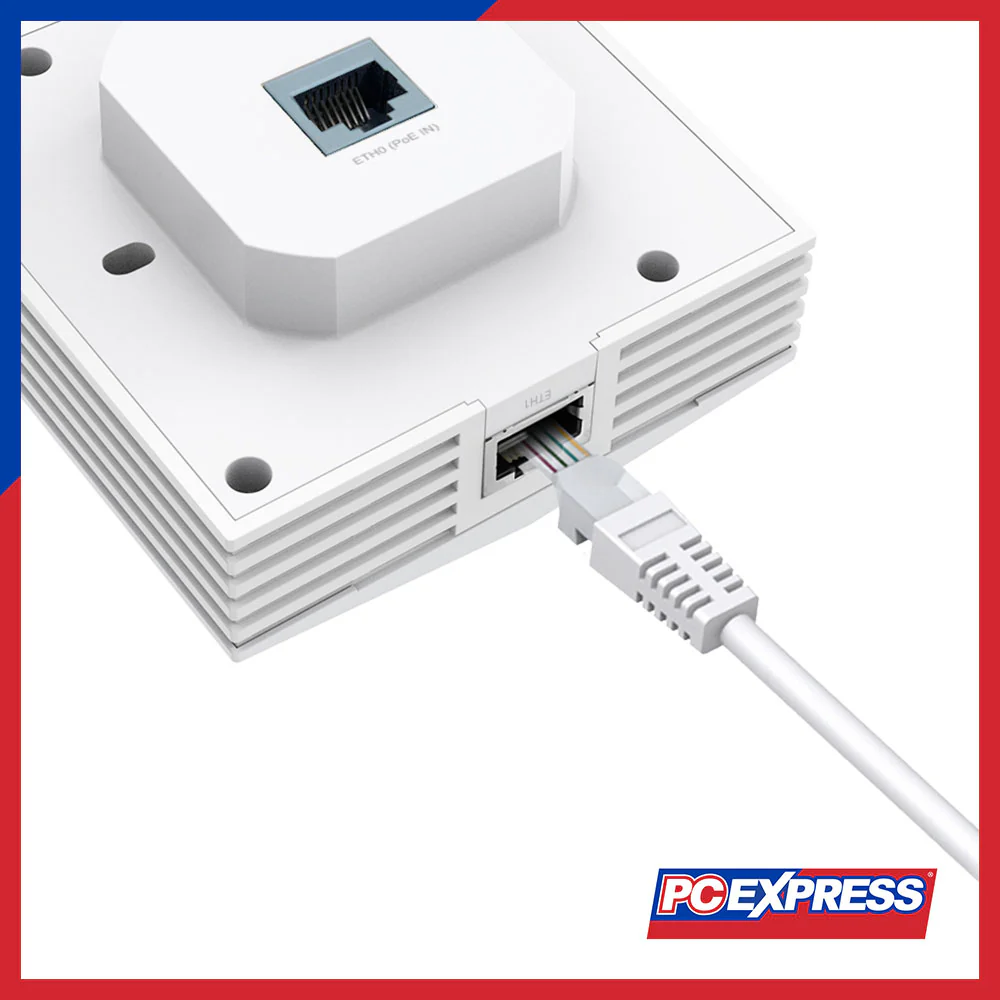

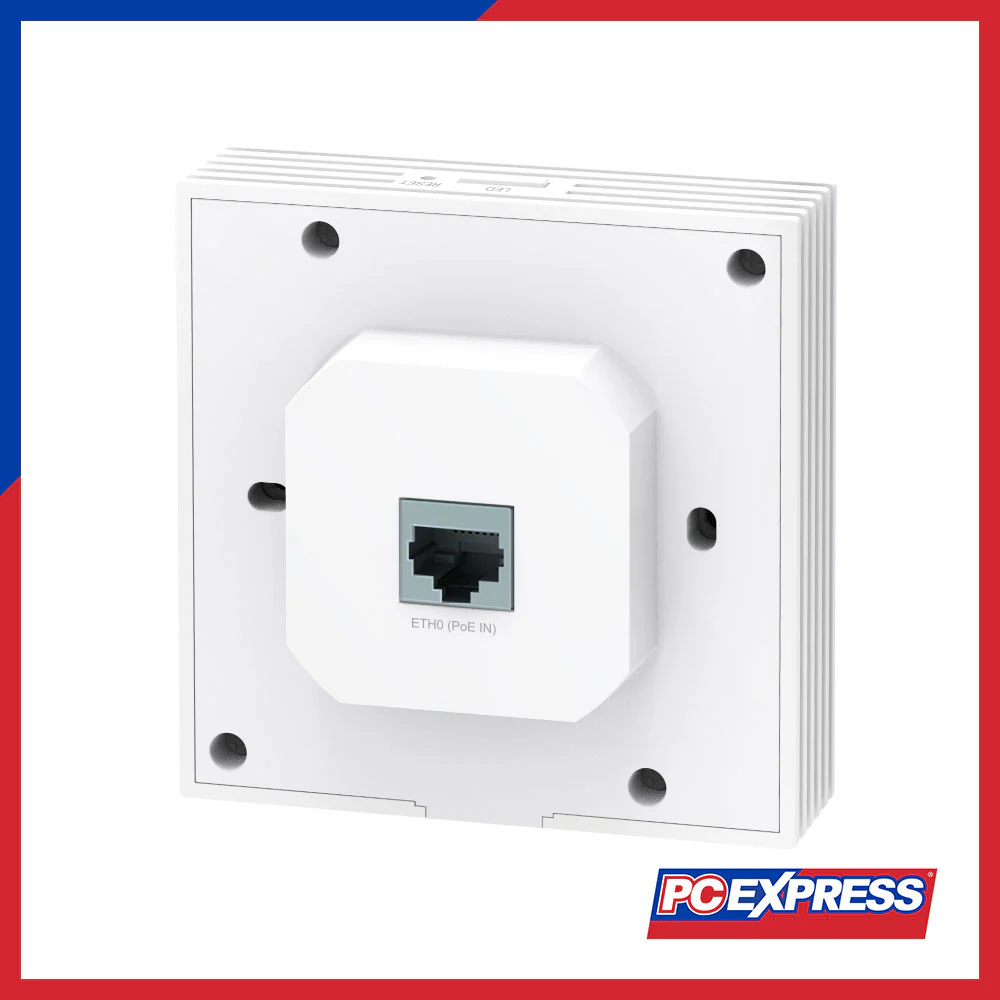

• Uplink: 1 × 10/100/1000 Mbps Ethernet Port

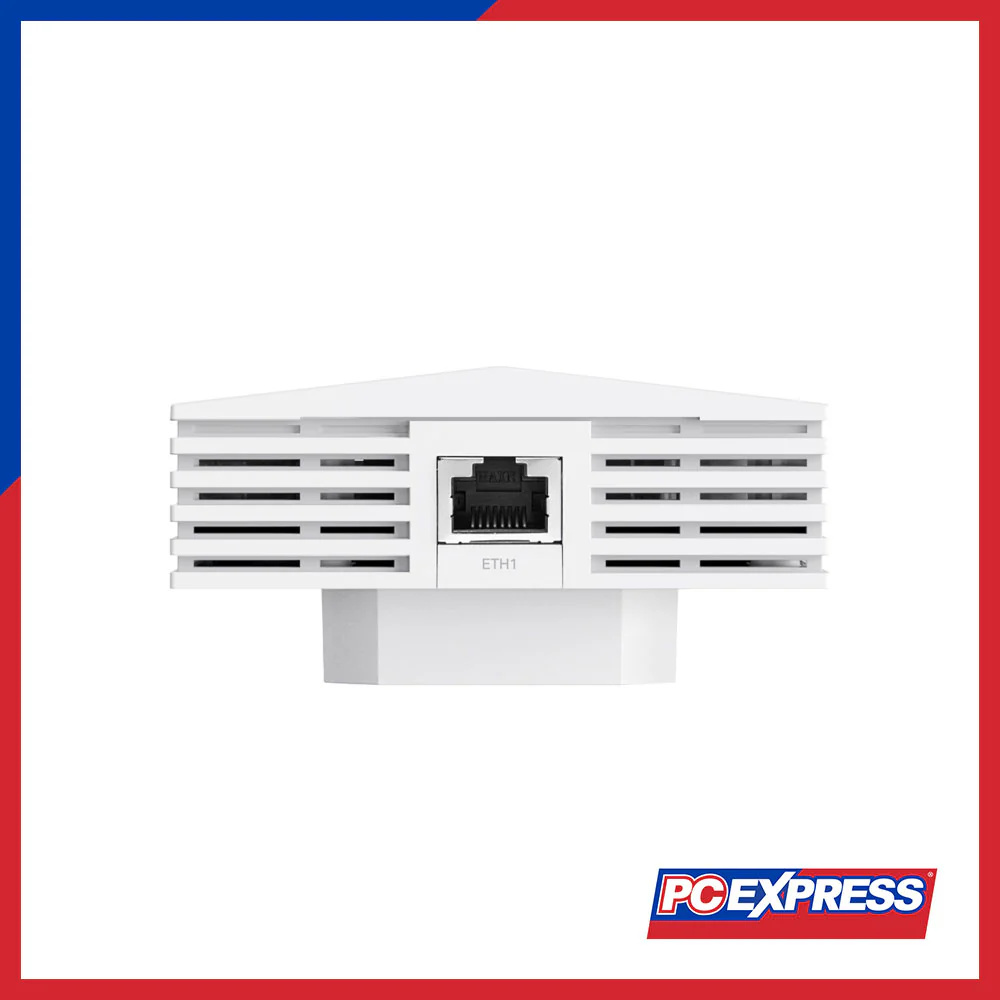

• Downlink: 1 × 10/100/1000 Mbps Ethernet Port

Physical Security Lock

No

Button

Reset, LED

Power Supply

802.3af PoE

Max. Power Consumption

EU: 10.5 W

Dimensions (W × D × H)

86 × 86 × 42.2 mm (3.4 × 3.4 × 1.7 in)

Antenna

2 Dual‑Band Antennas
• 2.4 GHz: 2 × 3 dBi
• 5 GHz: 3 × 5 dBi

Mounting

Wall‑plate mounting (kits included)

Coverage

40 ㎡ (450 ft²)***

Concurrent Clients

100+**

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 2,402 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 16 SSIDs (up to 8 per band)
• Enable/Disable radio
• Auto channel assignment
• Transmit power control (dBm)
• QoS (WMM)
• Omada Mesh§
• Seamless Roaming (802.11k/v/r)§
• Beamforming
• Rate limit
• Load balance
• Airtime fairness
• Band steering
• Reboot schedule
• Wireless schedule
• RADIUS accounting
• MAC authentication
• Wireless statistics
• Static / Dynamic IP

Wireless Security

• Captive portal authentication§
• Access control
• MAC address filtering
• Client isolation
• VLAN
• Rogue AP detection
• 802.1X support
• WPA‑Personal/Enterprise, WPA2‑Personal/Enterprise, WPA3‑Personal/Enterprise

Transmission Power

• CE:
  – < 20 dBm (2.4 GHz, EIRP)
  – < 23 dBm (5 GHz, EIRP)

Omada App

Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud‑Based Controller

Cloud Access

Yes (via OC300, OC200, Software or Cloud‑Based Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging

Local/Remote Syslog

SSH

Yes

Web‑based Management

HTTP/HTTPS

L3 Management

Yes

Multi‑site Management

Yes

Management VLAN

Yes

Zero‑Touch Provisioning

Yes (requires Omada Cloud‑Based Controller)

Certification

CE, RoHS

Package Content

• AX3000 Wall‑Plate WiFi 6 Access Point (EAP650‑Wall)
• Installation Guide
• Mounting Kits

System Requirements

Microsoft Windows XP/Vista/7/8/10/11; Linux

Environment

• Operating Temperature: 0 – 40 ℃ (32 – 104 ℉)
• Storage Temperature: –40 – 70 ℃ (–40 – 158 ℉)
• Operating Humidity: 10 – 90 % RH non‑condensing
• Storage Humidity: 5 – 90 % RH non‑condensing
