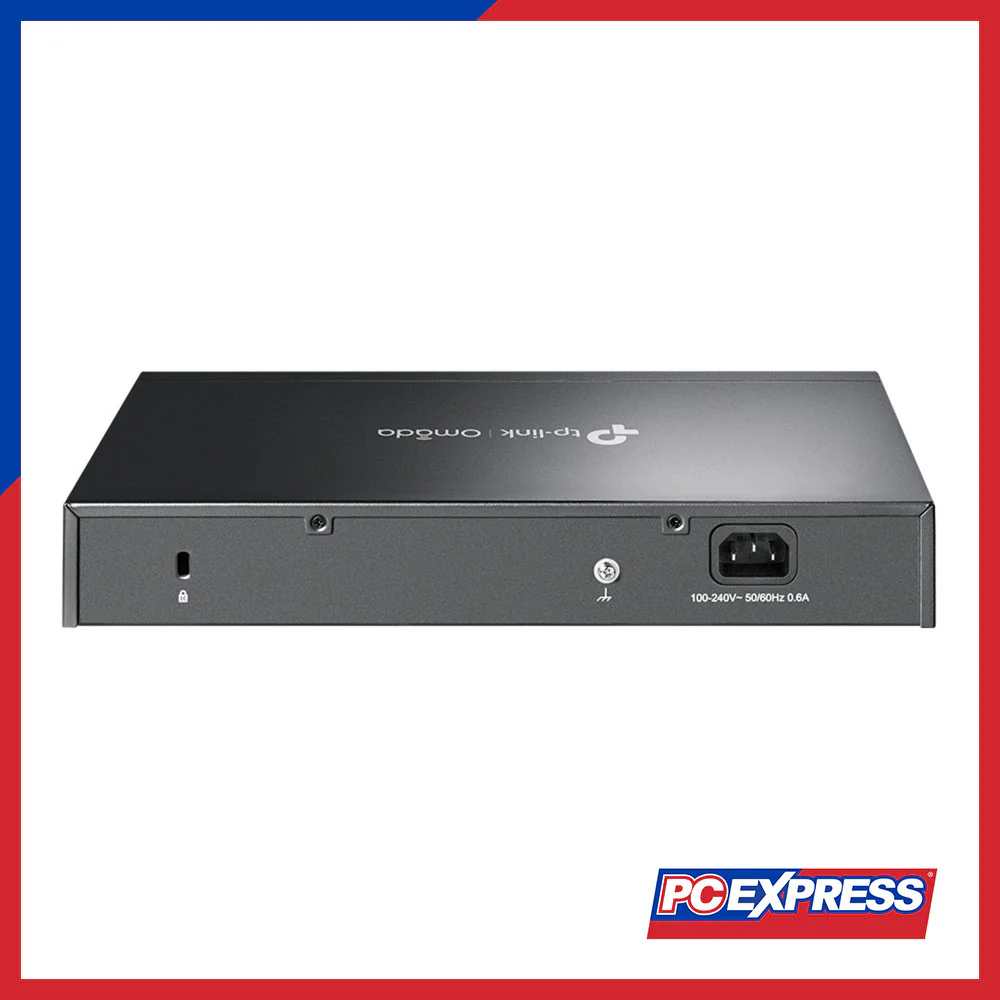

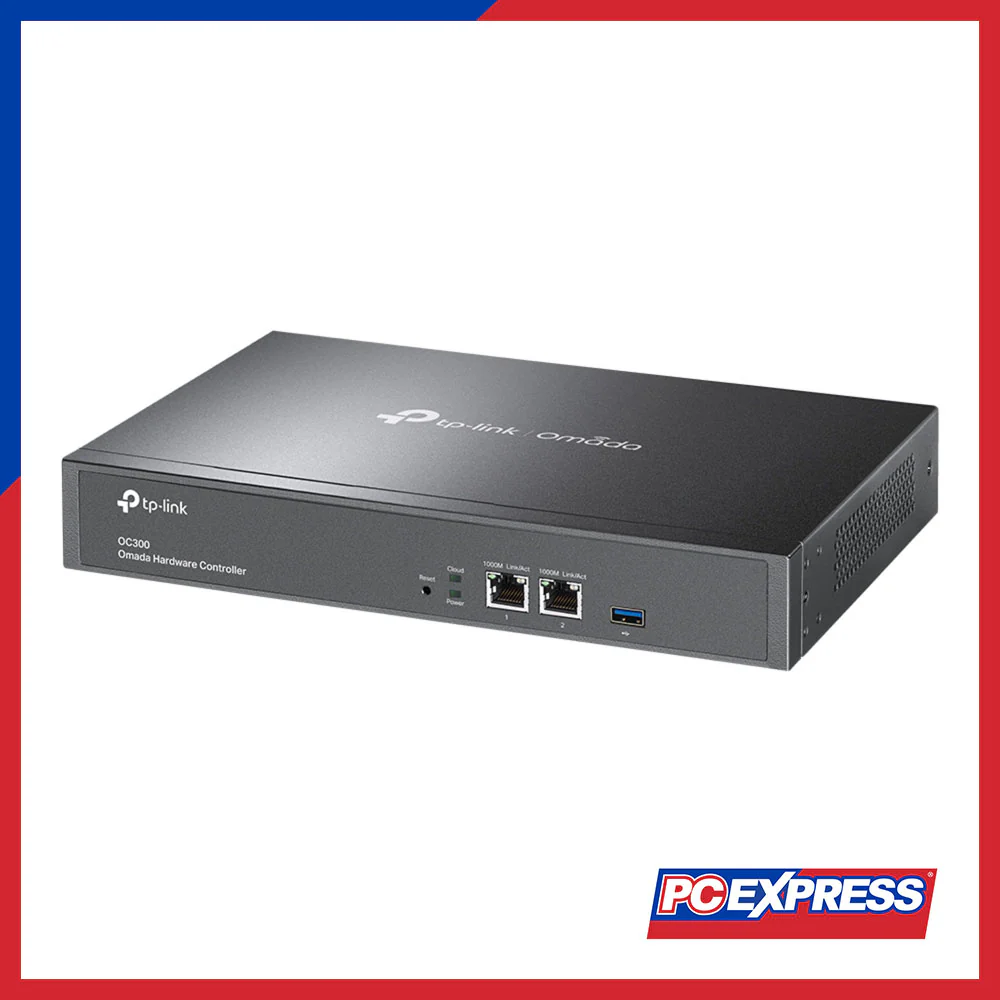

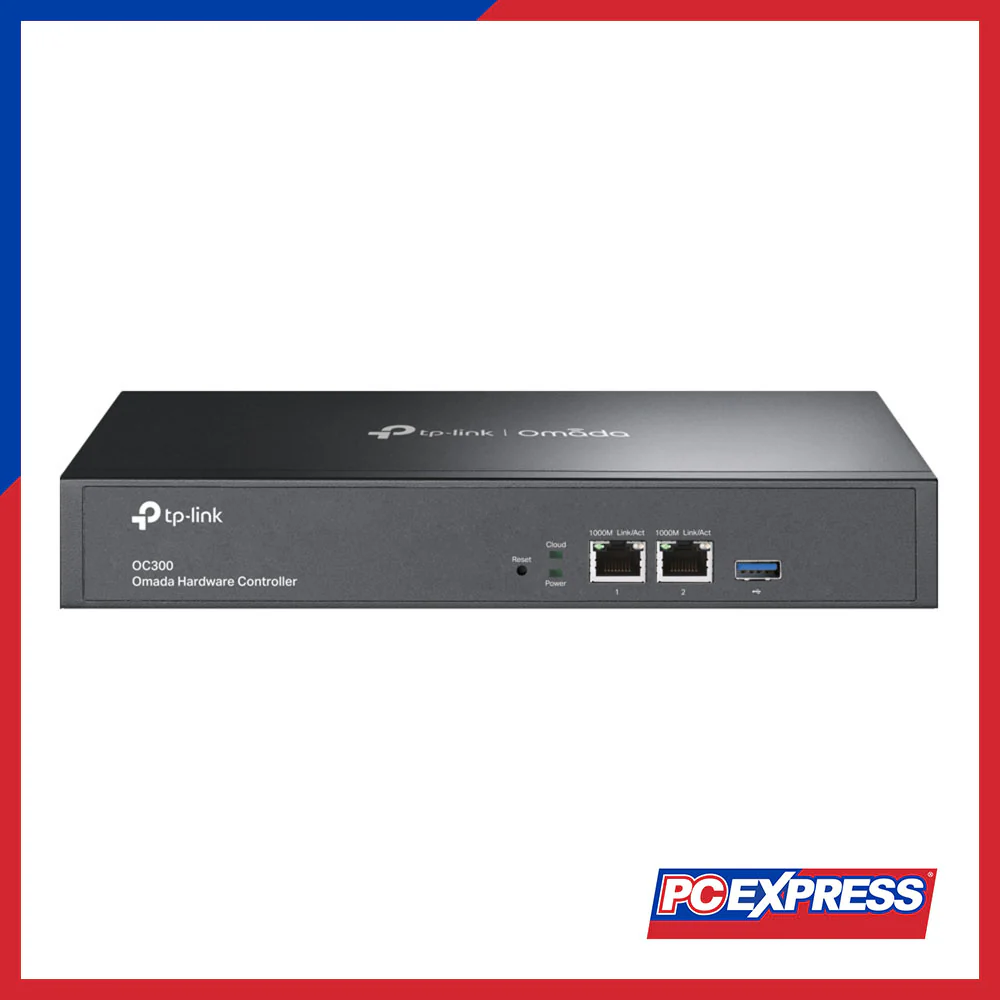

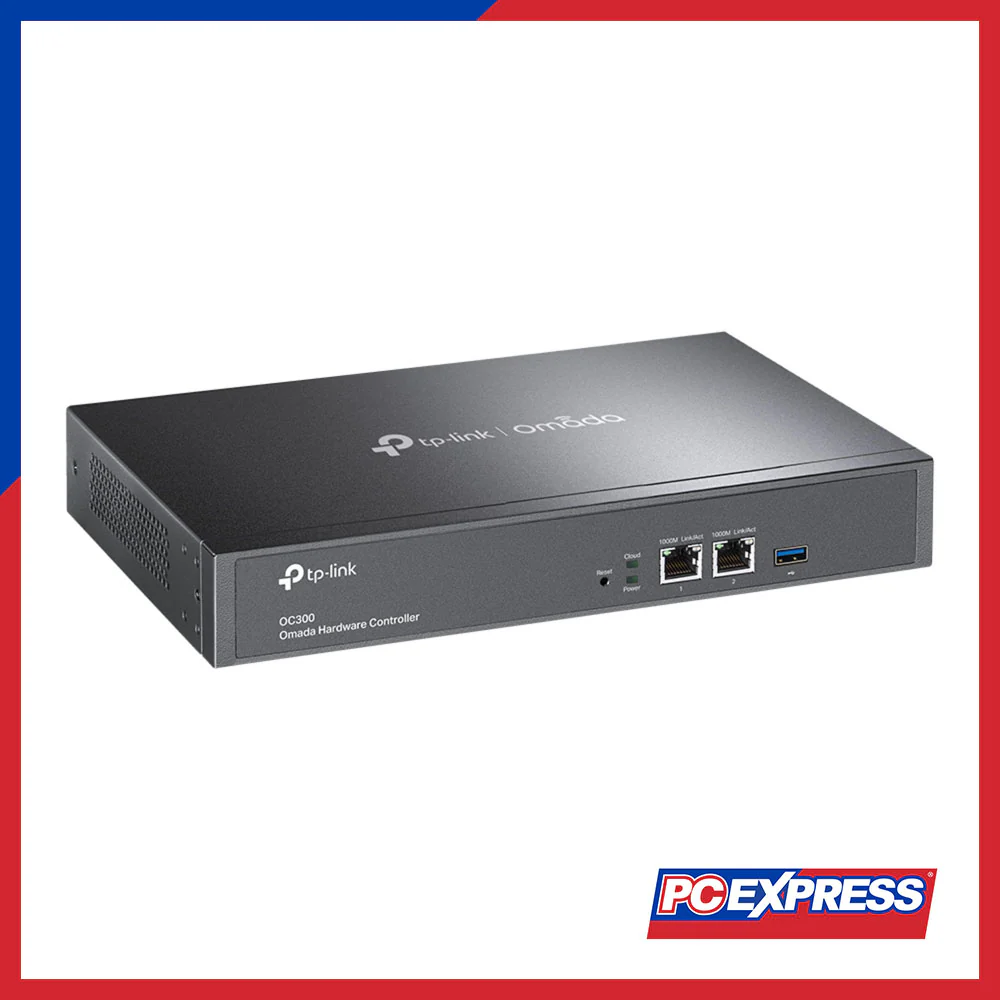

TP-LINK OC300 Omada Hardware Controller

Interface

• 2× 10/100/1000 Mbps Ethernet Ports
• 1× USB 3.0 Port

Power Supply

100–240 V ~ 50/60 Hz, 0.6 A

Dimensions (W × D × H)

11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

Omada App

Yes

Centralized Management

• Up to 500 Omada access points, JetStream switches, and SafeStream routers*
• Up to 15,000 clients

*Only some JetStream switches and SafeStream gateways can be centrally managed by OC300; see TP‑Link site for full model list.

Cloud Access

Yes

L3 Management

Yes

Multi‑site Management

Yes

Management Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

Certification

CE, FCC, RoHS

Package Content

• Omada Hardware Controller OC300
• Quick Installation Guide
• Ethernet Cable
• Power Cord
• Rackmount Kit

System Requirements

Microsoft® Windows® 10/8/7, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment

• Operating Temperature: 0–50 ℃ (32–122 ℉)
• Storage Temperature: –40–70 ℃ (–40–158 ℉)
• Operating Humidity: 10–90% RH non‑condensing
• Storage Humidity: 5–90% RH non‑condensing
