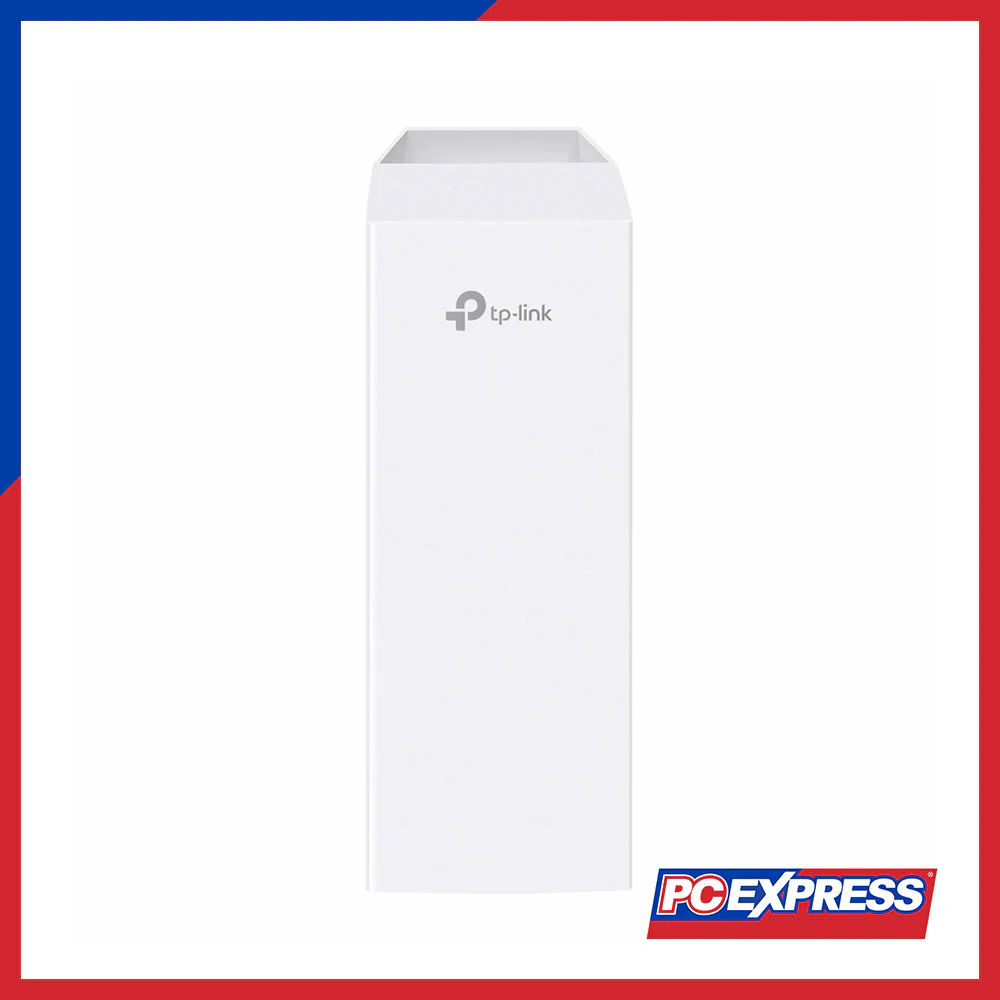

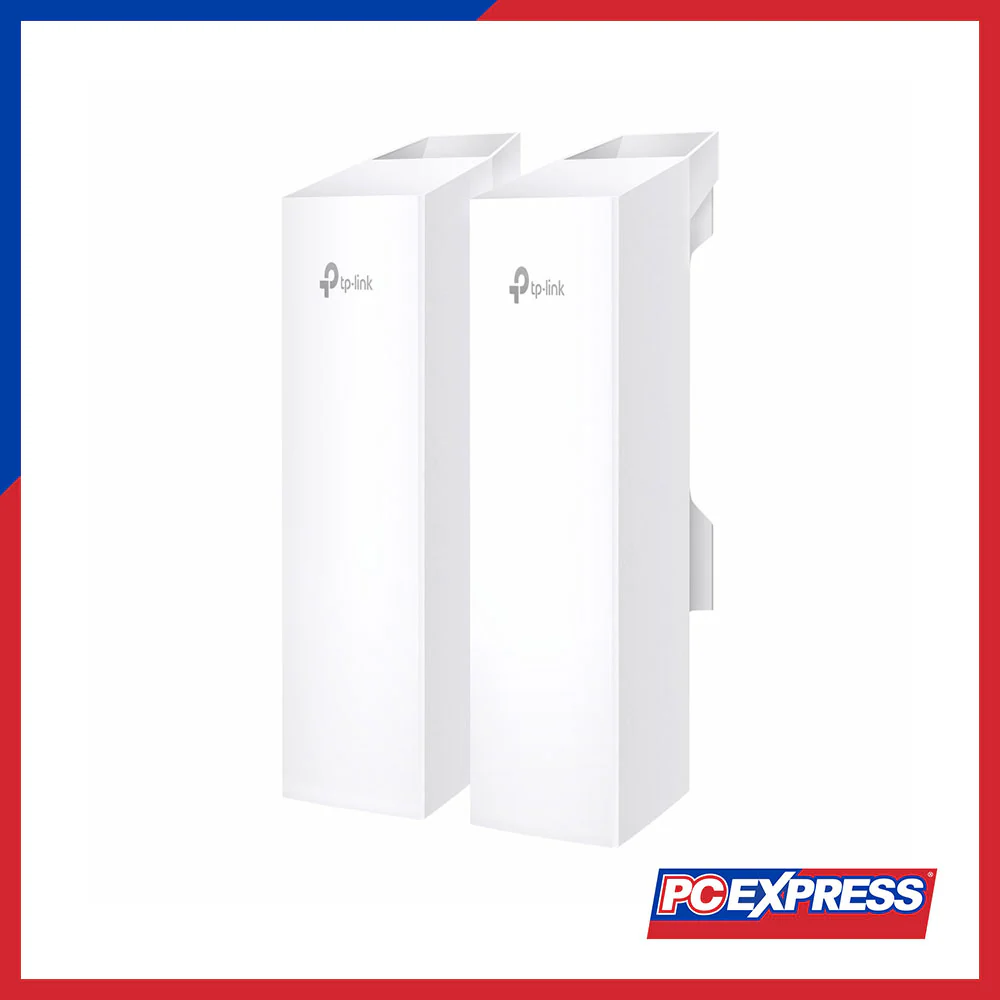

TP-LINK EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point

Interface

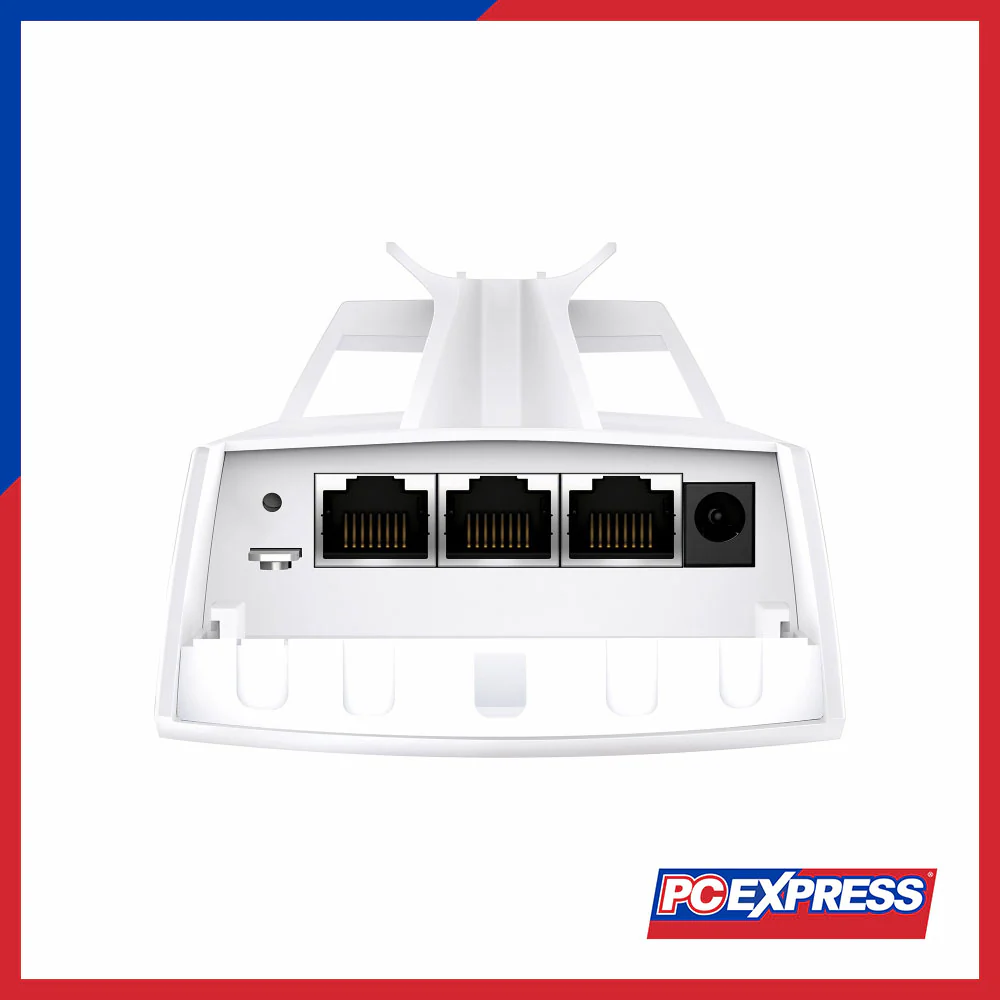

3 × 10/100 Mbps Ethernet Ports⁶

Button

Reset

Power Supply

12 V DC / 24 V Passive PoE (Passive PoE adapter included)

Max. Power Consumption

6.5 W

Dimensions (W × D × H)

3.1 × 2.4 × 8.8 in (79 × 60 × 224 mm)

Antenna

Internal 2 × 2 dual‑polarized directional MIMO antennas
• 5 GHz: 11.0 dBi
• Horizontal: 35°; Vertical: 35°

Weatherproof Enclosure

IP65

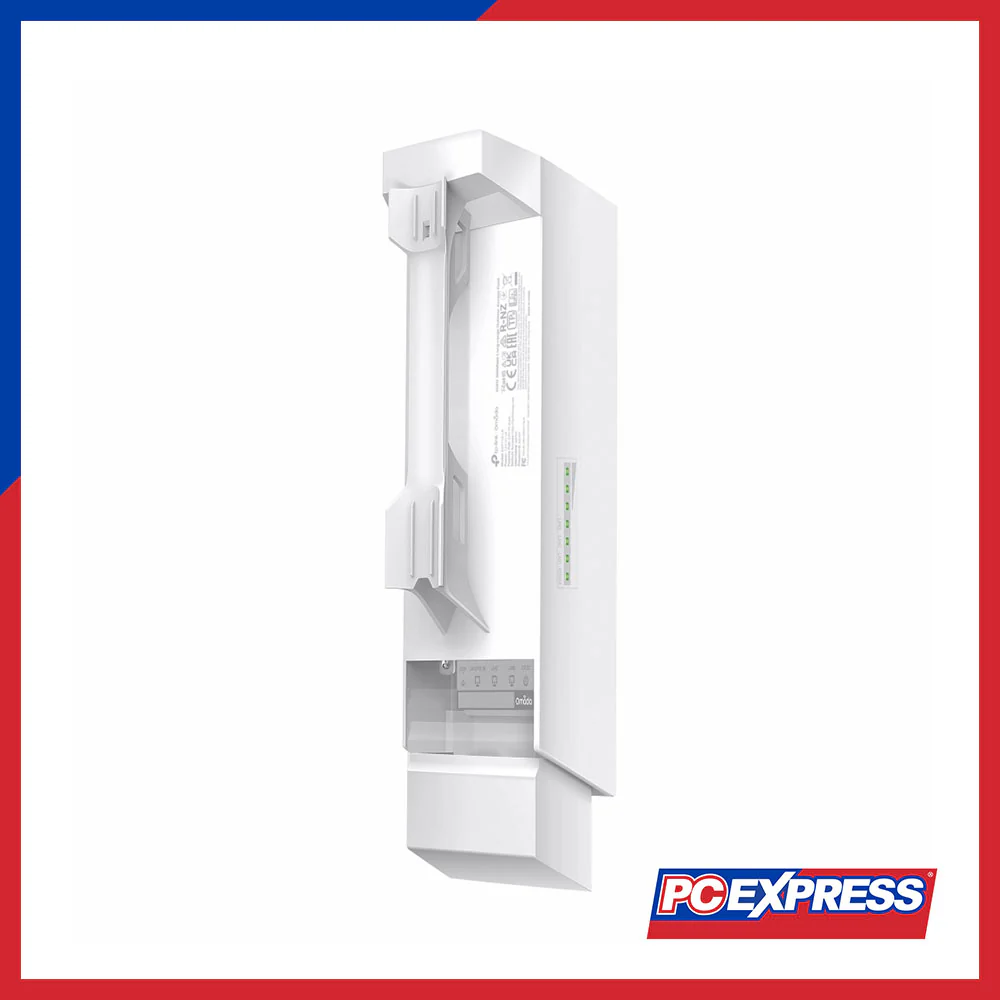

Mounting

Pole mounting (accessories included)

Coverage

5,000 m (16,400 ft)⁵

Wireless Standards

IEEE 802.11 a/b/g/n

Frequency

5 GHz

Signal Rate

5 GHz: Up to 300 Mbps

Wireless Functions

• Mesh*⁴
• Load Balance
• Beamforming
• Airtime Fairness
• Seamless Roaming (802.11r)
• Multiple SSIDs (up to 8)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP / Dynamic IP

Wireless Security

• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*⁴
• Max. MAC Filters: 4,000
• WPA‑Personal/Enterprise, WPA2‑Personal/Enterprise

Transmission Power

• CE:
  – < 23 dBm (5 GHz band 1/2, EIRP)
  – < 30 dBm (5 GHz band 3, EIRP)
• FCC:
  – < 22 dBm (5 GHz band 1/4)

Management Features

• Omada App
• Restore & Backup
• Firmware Update via Web
• NTP
• Centralized Management:
  – OC300 Hardware Controller
  – OC200 Hardware Controller
  – Omada Software Controller
  – Omada Cloud‑Based Controller
• Cloud Access (via OC300, OC200, Software or Cloud Controller)
• LED ON/OFF Control
• Management MAC Access Control
• SNMP v1/v2c/v3
• SSH
• Web‑based Management

Certification

CE, FCC, RoHS

Package Content

• EAP115‑Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit

Environment

• Operating Temperature: –40 ℃ to 70 ℃ (–40 ℉ to 158 ℉)
• Storage Temperature: –40 ℃ to 70 ℃ (–40 ℉ to 158 ℉)
• Operating Humidity: 10 % – 90 % non‑condensing
• Storage Humidity: 5 % – 90 % non‑condensing
