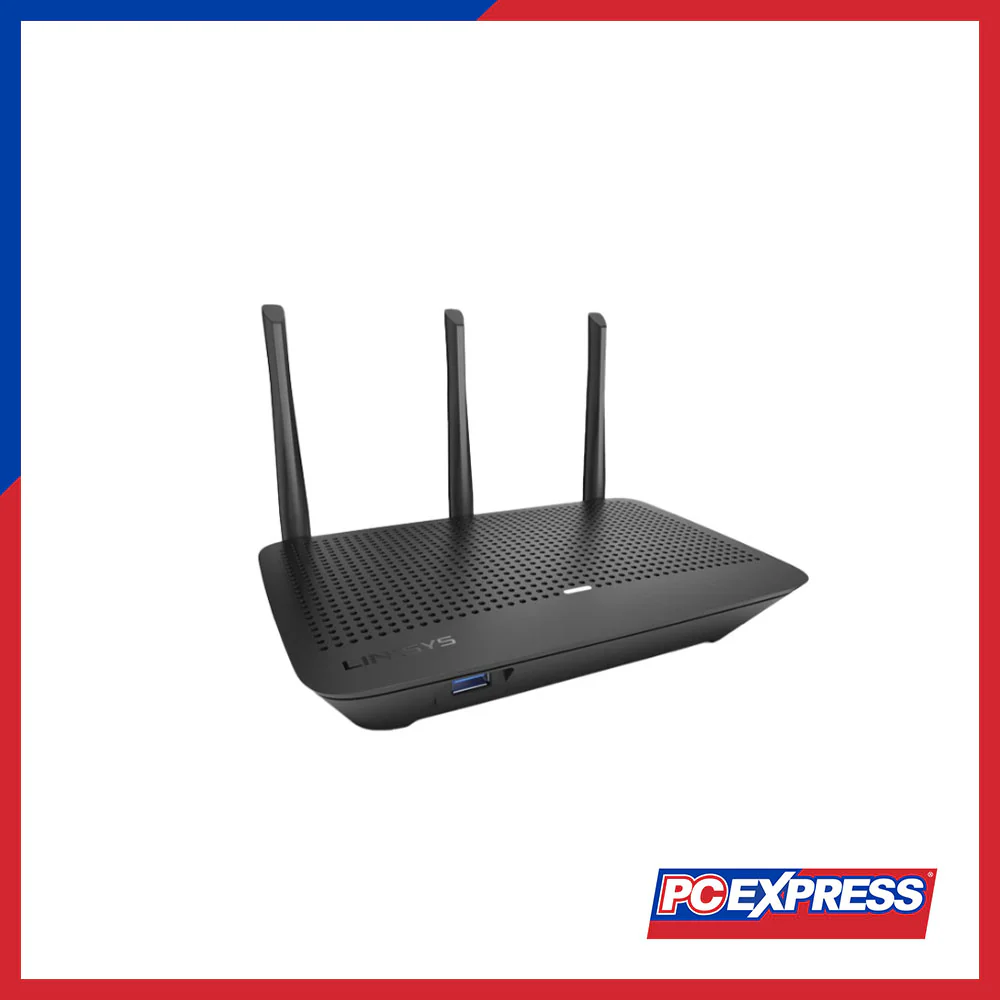

LINKSYS EA7500s Max-Steam Dual Band AC1900 WIFI 5 Router

Highlights

• Next-Gen AC Wi‑Fi with breakthrough MU-MIMO for powerful streaming & gaming
• Up to 1.9 Gbps speeds
• Up to 2x faster than non‑MU-MIMO routers
• Easy setup out of the box

WiFi Bands

Dual‑Band (2.4 GHz & 5 GHz, simultaneous dual‑band)

WiFi Speed

AC1200 – AC1900
(AC1900: N600 + AC1300)

WiFi Technology

• WiFi 5 (802.11ac)
• WiFi 4 (802.11n)
• Next‑Gen AC2 MU‑MIMO
• AC1900 MU‑MIMO Dual‑band Gigabit (600+1300 Mbps)

Works With

Alexa WiFi Access

Ethernet Ports

1x Gigabit WAN port
4x Gigabit LAN ports

Certified Operating Systems

MacOS (10.X or higher), Windows 7, Windows 8.1, Windows 10

Wi‑Fi Range

Medium Household

LEDs

Indicators for: Internet, Ethernet (1‑4), Linksys Logo, WPS

Dimensions (LxWxH)

257 x 184 x 56 mm (10.12 x 7.24 x 2.2 in.) (without antennas)

Weight

558 g (20.74 oz)

Operation Modes

Access Point, Wired Bridge, Wireless Bridge, Wireless Router

Minimum System Requirements

• Firefox® 8
• Google Chrome™
• Internet Explorer® (v8 and newer)
• Safari® 5 (for Mac®)

Storage File System Support

FAT, HFS+, NTFS

Security Features

• 64/128‑bit WEP
• WPA2‑Enterprise
• WPA2‑Personal
• Up to 128‑bit wireless encryption

Setup

Browser‑based Setup, Linksys Smart Wi‑Fi Setup

Key Features

• 3x3 AC
• Advanced Security
• Beamforming Technology
• Dual‑Core CPU
• Smart Wi‑Fi
• Coverage up to 1,500 sq. ft
• Supports up to 15+ devices
• USB 3.0 Port

Power Supply

Input: 100‑240V ~ 50‑60Hz; Output: 12V, 2A

Antennas

3x external antennas

Other Ports

1x USB 3.0 port

Processor

Dual‑Core

Network Standards

802.11a, 802.11ac, 802.11b, 802.11g, 802.11n

Regulatory Compliance

FCC Class B
