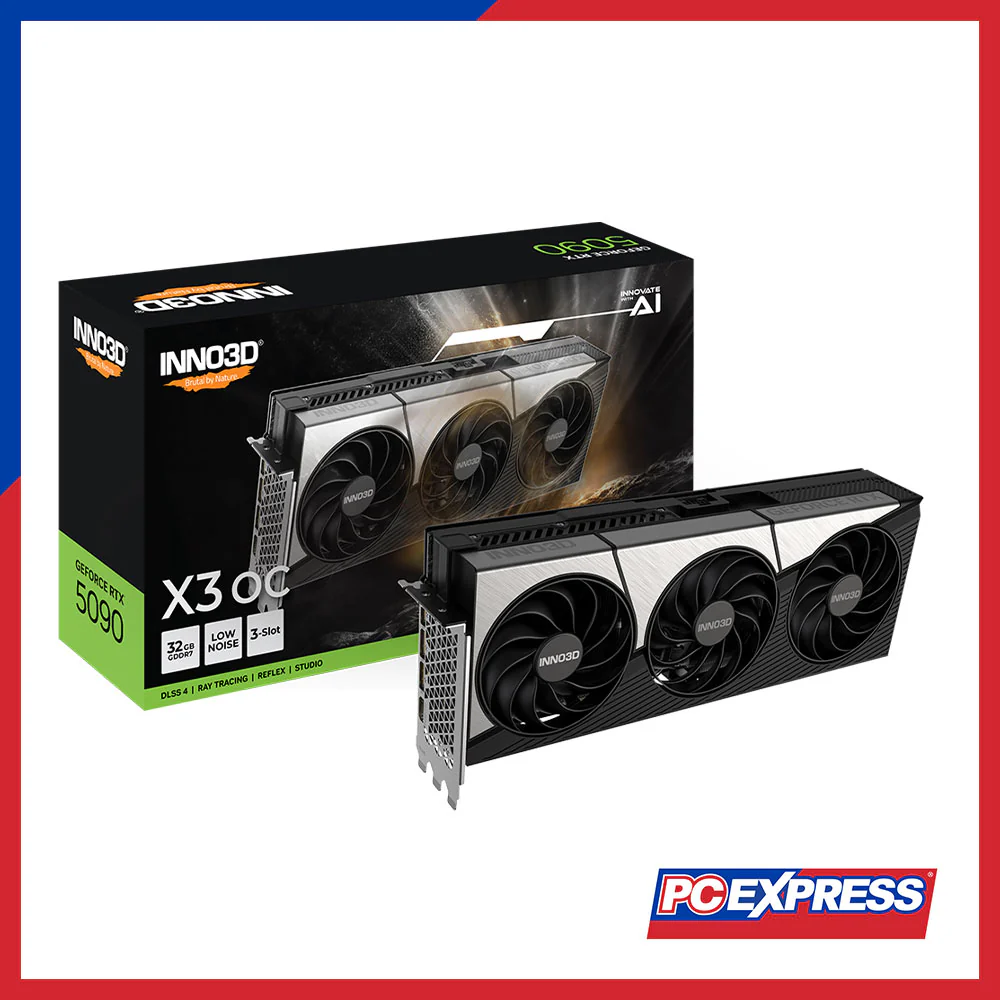

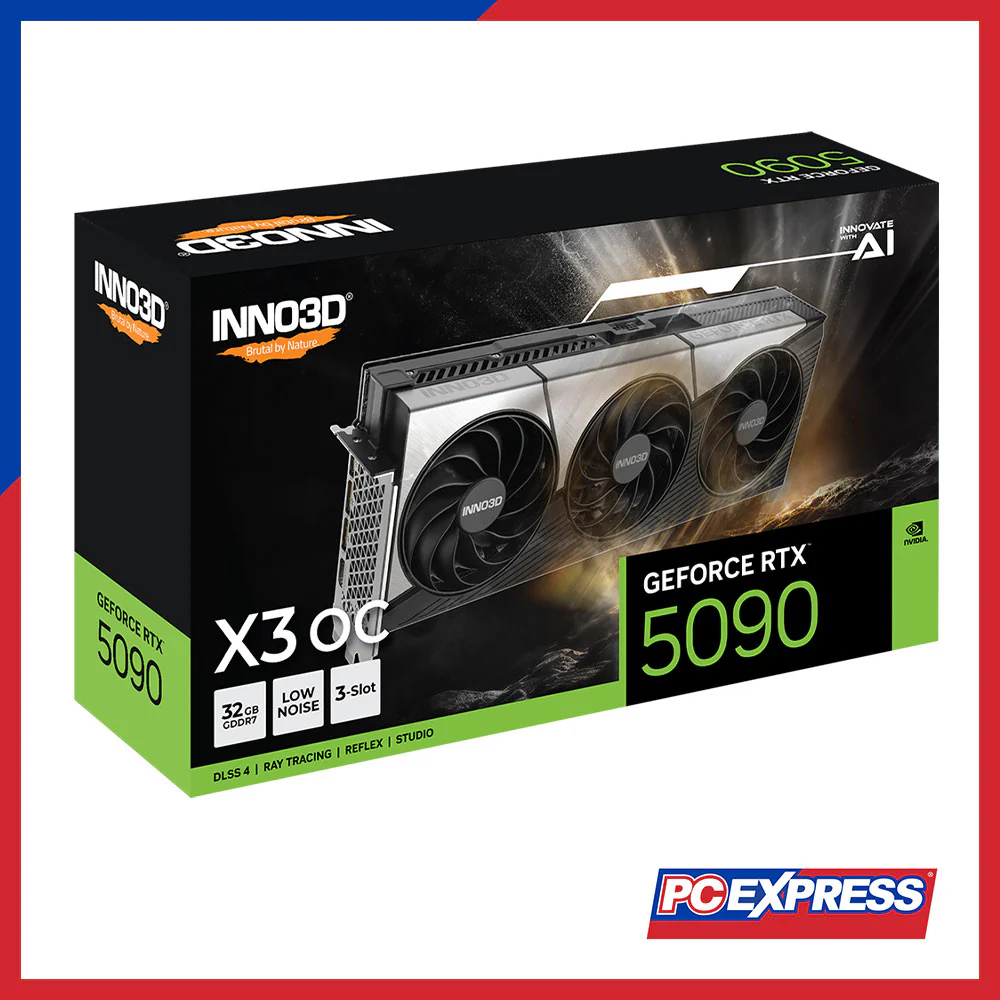

INNO3D GeForce RTX™ 5090 X3 OC 32GB GDDR7 512-bit Graphics Card

GPU Engine Specs

CUDA Cores

21,760

Base Clock

2017 MHz

Boost Clock

2452 MHz

Thermal and Power Spec

Minimum System Power

1000W

Power Connectors

4x PCIe 8-pin (adapter in box) OR 1x 600W PCIe Gen 5 cable

Memory Specs

Memory Clock

28 Gbps

Standard Memory Config

32 GB

Memory Type

GDDR7

Memory Interface Width

512-bit

Memory Bandwidth

1792 GB/sec

Feature Support

Real-Time Ray Tracing

Yes

Ray Tracing Cores

4th Gen, 318 TFLOPS

Tensor Cores

5th Gen, 3352 AI TOPS

Architecture

NVIDIA Blackwell

Microsoft DirectX

12 Ultimate

NVIDIA DLSS

Version 4

NVIDIA Ansel

Yes

NVIDIA FreeStyle

Yes

NVIDIA ShadowPlay

Yes

NVIDIA Highlights

Yes

NVIDIA G-SYNC™ Ready

Yes

NVIDIA GPU Boost™

Yes

Game Ready Drivers

Yes

Studio Drivers

Yes

OS Certification

Windows 11 / 10, Linux, FreeBSDx86

API Support

Vulkan 1.4, OpenGL 4.6

NVIDIA Encoder

3x Ninth Generation

NVIDIA Decoder

2x Sixth Generation

Bus Support

PCI Express Gen 5

Display Support

Multi Monitor Support

Up to 4

Max Digital Resolution

4K at 480Hz or 8K at 165Hz (with DSC)

HDCP Support

Yes (2.3)

Display Connectors

3x DisplayPort 2.1b, 1x HDMI 2.1b

Accessories

Graphics Card Stand (embedded with cooler)

Card Dimensions (mm)

Length: 333
Height: 137
Width: 60
