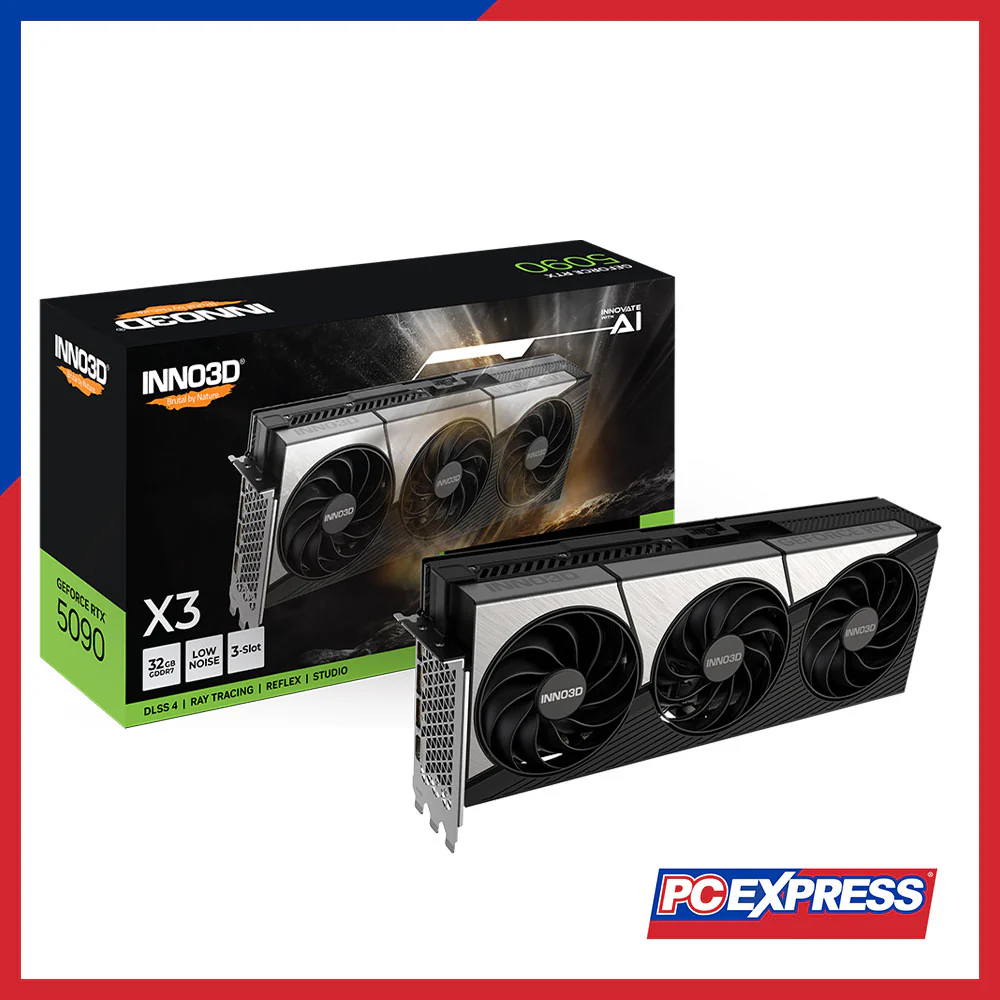

INNO3D GeForce RTX™ 5090 X3 32GB GDDR7 512-bit Graphics Card

CUDA Cores

21760

Boost Clock (MHz)

2407 MHz

Base Clock (MHz)

2017 MHz

Minimum System Power Requirement (W)

1000W

Supplementary Power Connectors

4x PCIe 8-pin cables (adapter in box) OR 1x 600W PCIe Gen 5 cable

Memory Clock

28 Gbps

Standard Memory Config

32GB GDDR7

Memory Interface

GDDR7

Memory Interface Width

512-bit

Memory Bandwidth (GB/sec)

1792 GB/sec

Real-Time Ray Tracing

Yes

Ray Tracing Cores

4th Generation, 318 TFLOPS

Tensor Cores

5th Generation, 3352 AI TOPS

NVIDIA Architecture

Blackwell

Microsoft DirectX

12 Ultimate

NVIDIA DLSS

4

NVIDIA Ansel

Yes

NVIDIA FreeStyle

Yes

Bus Support

PCI Express Gen 5

NVIDIA ShadowPlay

Yes

OS Certification

Windows 11 / 10, Linux, FreeBSD x86

NVIDIA Highlights

Yes

NVIDIA G-SYNC™-Ready

Yes

Game Ready Drivers

Yes

NVIDIA Studio Drivers

Yes

NVIDIA GPU Boost™

Yes

Vulkan API

1.4

OpenGL

4.6

NVIDIA Encoder

3x Ninth Generation

NVIDIA Decoder

2x Sixth Generation

Graphics Card Stand

Yes (embedded with cooler)

Graphics Card Dimensions (mm)

Length: 333, Height: 137, Width: 60

Display Support

Multi Monitor, up to 4

Maximum Digital Resolution

4K at 480Hz or 8K at 165Hz with DSC

HDCP

2.3

Standard Display Connectors

3x DisplayPort 2.1b, 1x HDMI 2.1b
