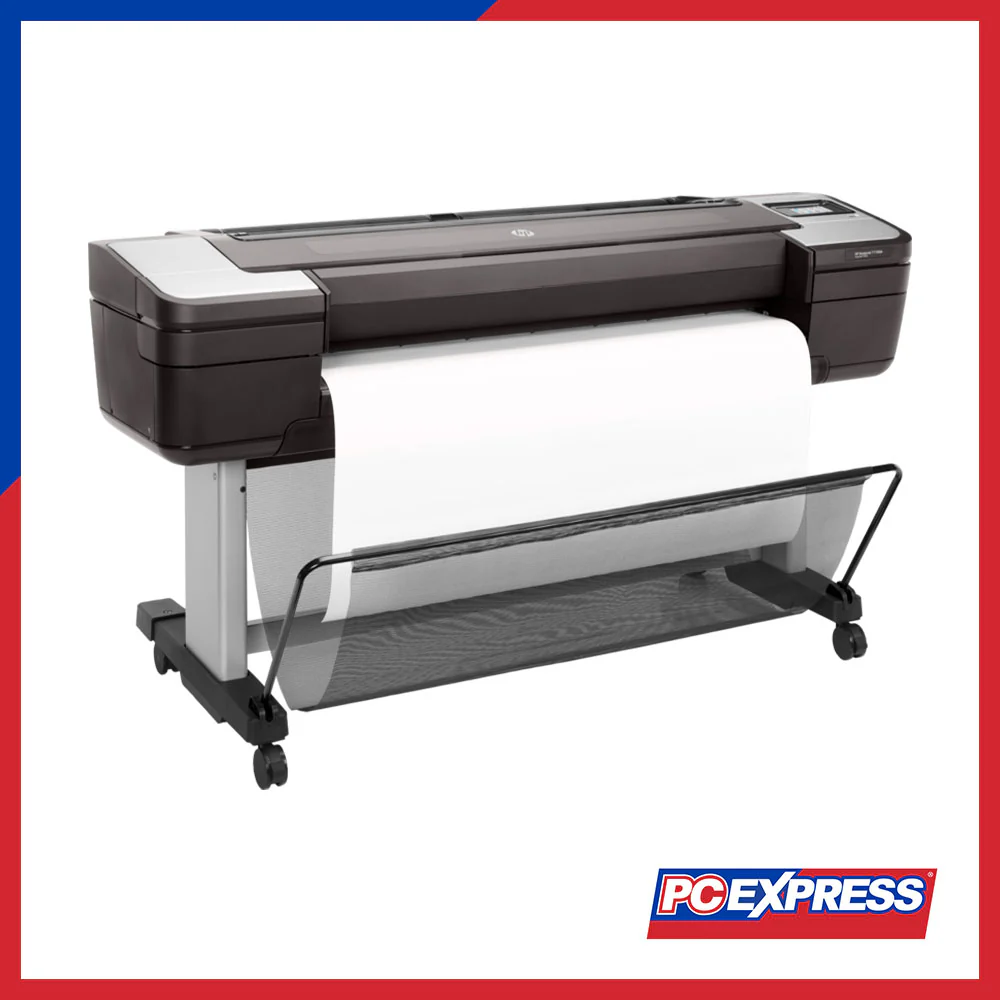

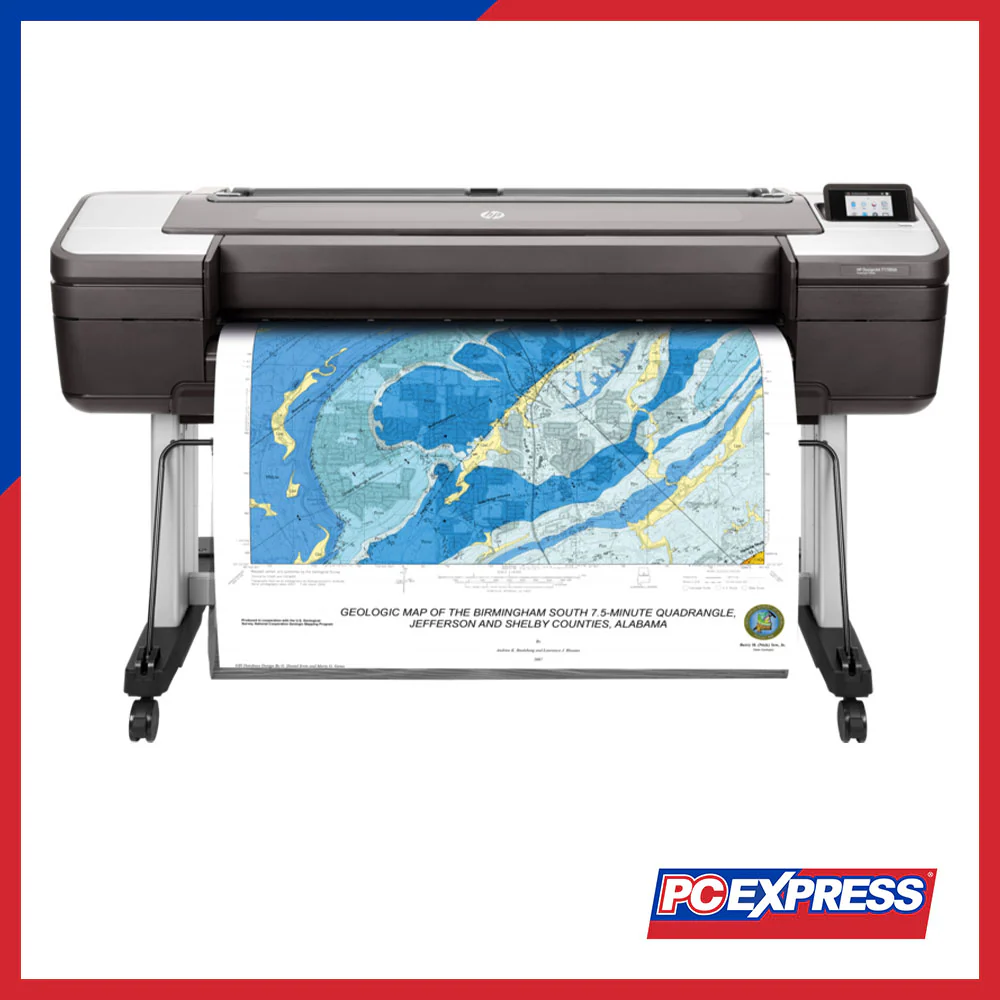

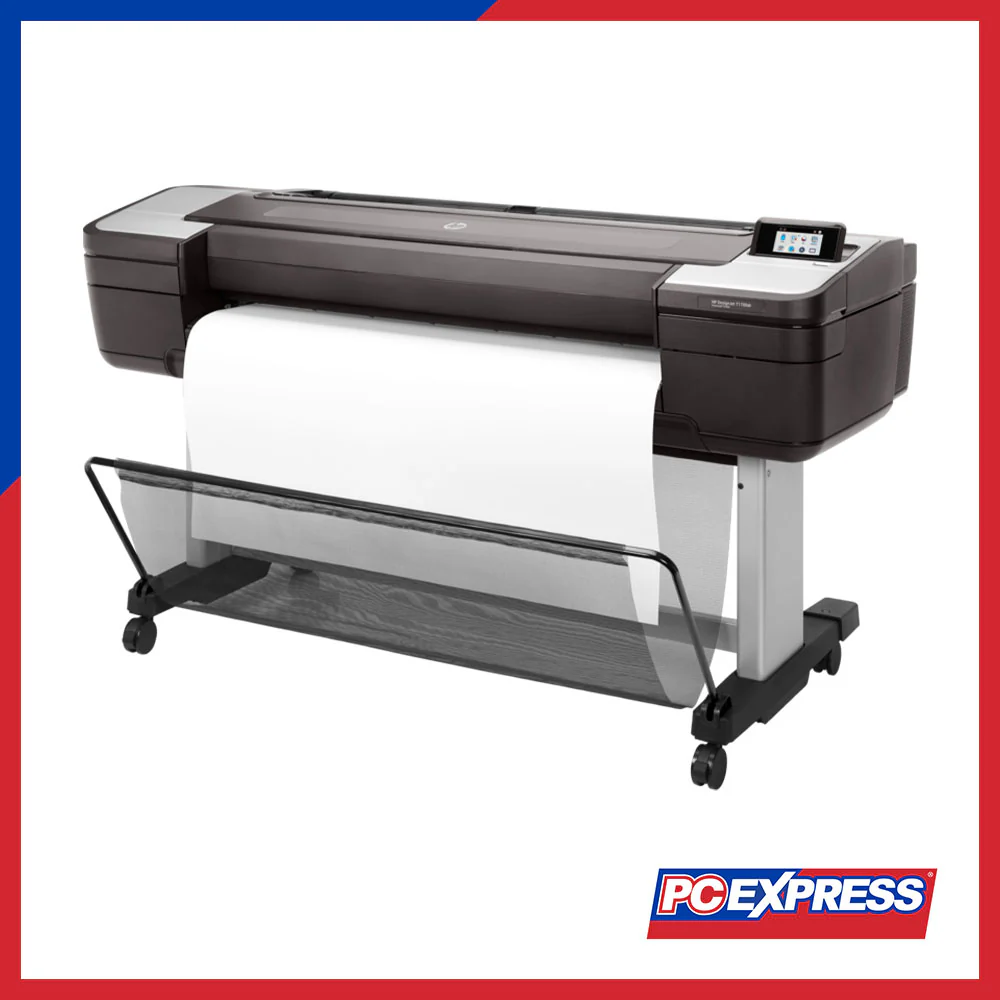

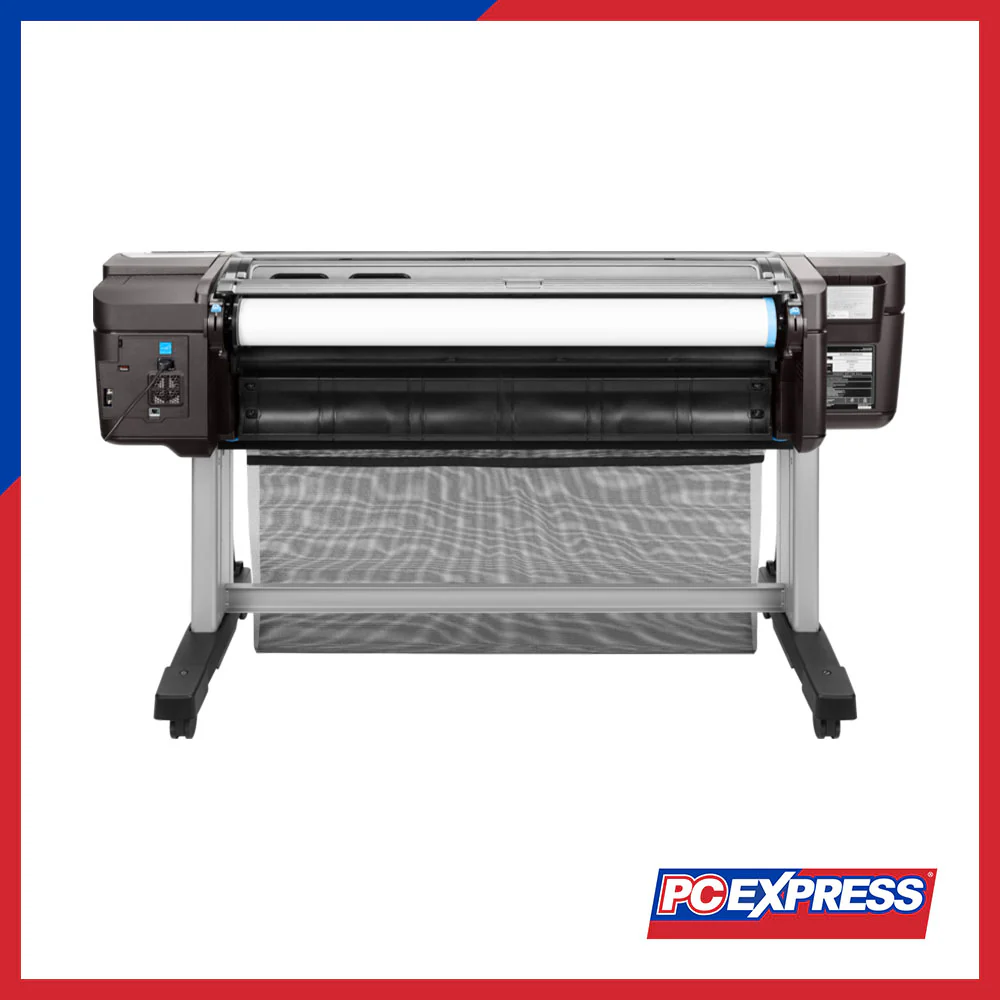

HP DesignJet T1700 Dual Roll 44-inch Printer (W6B56A)

Functions

Print

Print Speed

116 A1/hr, 26 sec/A1

Print Technology

HP Thermal Inkjet

Print Quality (Best)

Up to 2400 x 1200 optimized dpi

Ink Types

Dye-based (C, M, Y, PK, G); Pigment-based (MK)

Ink Cartridges

6 (Cyan, Magenta, Yellow, Photo Black, Matte Black, Grey)

Ink Drop

6 pl

Print Head Nozzles

2112 per color

Print Heads

3 universal printheads, 2 colors each

Maximum Optical Density (Black)

2.15 maximum black optical density (6 L*min)

Media Handling

Sheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter

Supported Media Sizes

A4, A3, A2, A1, A0

Custom Media Sizes

210 x 279 to 1118 x 1676 mm

Maximum Media Width

1118 mm

Roll Max Diameter

135 mm

Roll Max Weight

11.9 kg

Supported Media Types

Bond, coated, technical, photographic, backlit, self-adhesive

Recommended Media Weight

60 to 328 g/m²

Internal Storage

500 GB self-encrypting HDD

Memory

128 GB (virtual)

Line Accuracy

±0.1%

Minimum Line Width

0.02 mm (PDF addressable @ 1200 dpi)

Print Languages

HP-GL/2, TIFF, JPEG, URF, CALS G4

Optional Languages

Adobe PostScript 3, Adobe PDF 1.7 ext 3

Printing Path

USB, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint, HP Click, HP Smart App

Connectivity (Standard)

Ethernet, Fast Ethernet, Gigabit Ethernet (10/100/1000Base-T), USB Type-A host port

Connectivity (Optional)

HP USB 3.0 to Gigabit LAN Adapter

Network Ready

Yes

Mobile Printing

HP ePrint, Direct print (iOS, Android, Chrome OS), HP Smart App

Security Features

HP Wolf Pro Security, Secure Boot, Role-Based Access, IPsec/Firewall, Self-encrypting HDD, PIN printing

Power Consumption

< 100 W (printing), < 24 W (ready), < 0.3 W (sleep), 0.1 W (off)

Power Supply

Auto-ranging 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Operating Temperature

5 to 40°C (41 to 104°F)

Storage Temperature

-25 to 55°C (-13 to 131°F)

Operating Humidity

20 to 80% RH

Storage Humidity

0 to 90% RH

Acoustic Power Emissions

6.1 B(A) (printing), 5.0 B(A) (idle), <3.1 B(A) (sleep)

Acoustic Pressure Emissions

45 dB(A) (printing), 32 dB(A) (idle), <15 dB(A) (sleep)

Dimensions (W x D x H)

1802 x 695 x 998 mm

Package Dimensions (W x D x H)

1955 x 770 x 710 mm

Weight

89.4 kg

Package Weight

128 kg

Software Included

HP Click, HP Utility, HP Web Jetadmin, HP Embedded Web Server, HP JetAdvantage Security Manager

Certifications

ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Silver

Safety Compliance

CSA, LVD, EN 60950-1, CCC, BIS, EAC, IRAM

What's in the Box

Printer, printheads, ink cartridges, stand, spindles (x2), setup poster, power cords, label kits
