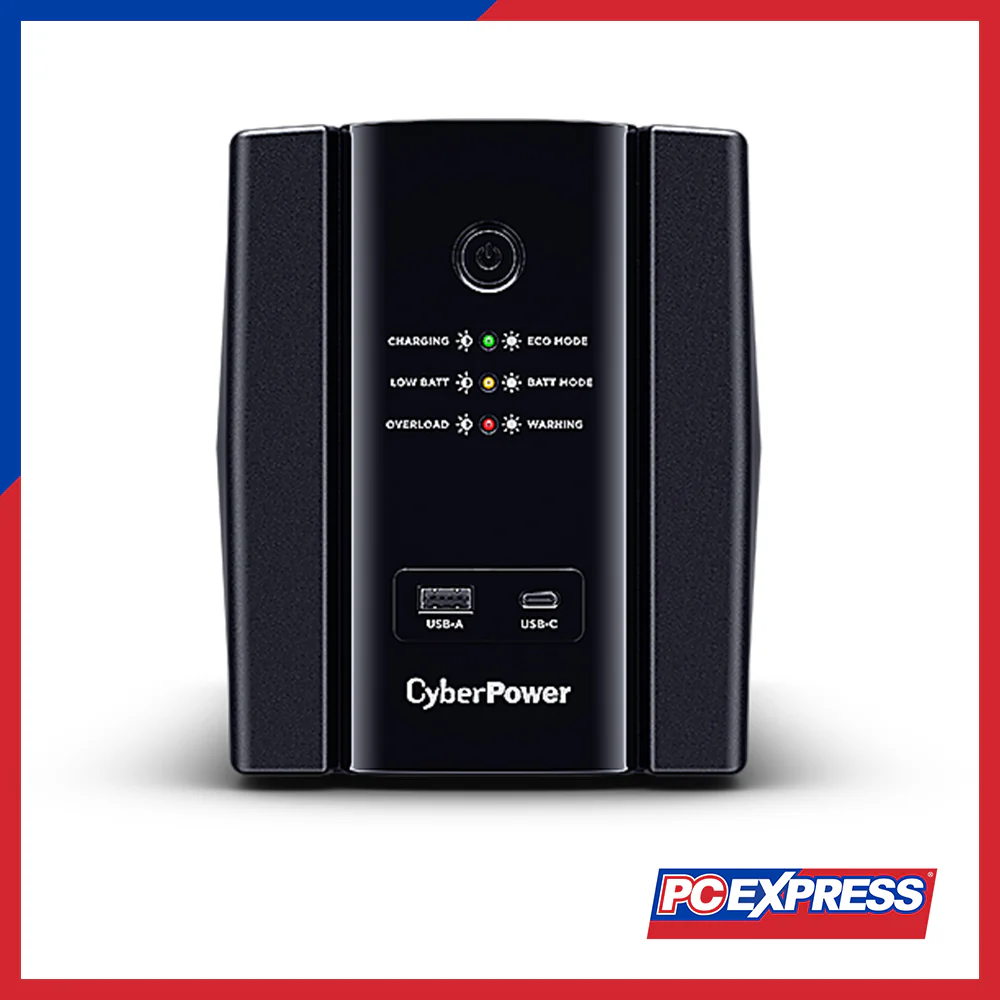

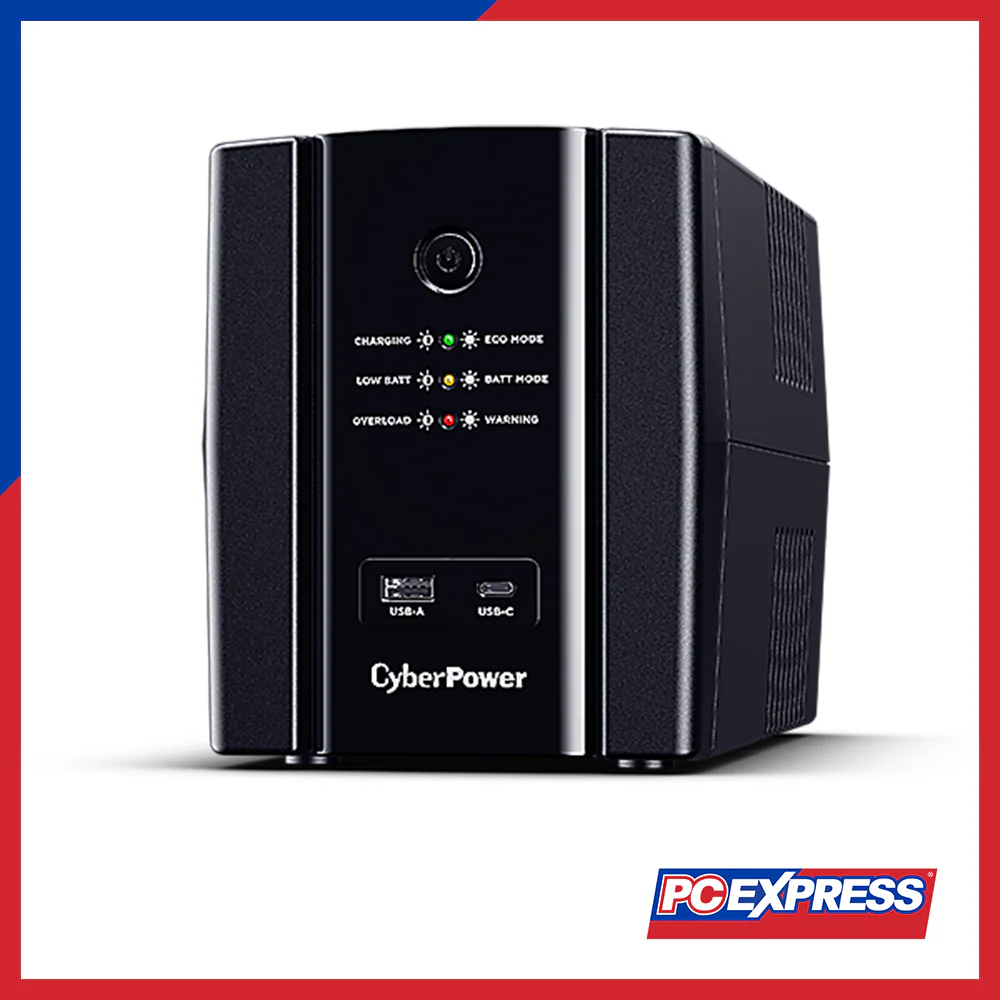

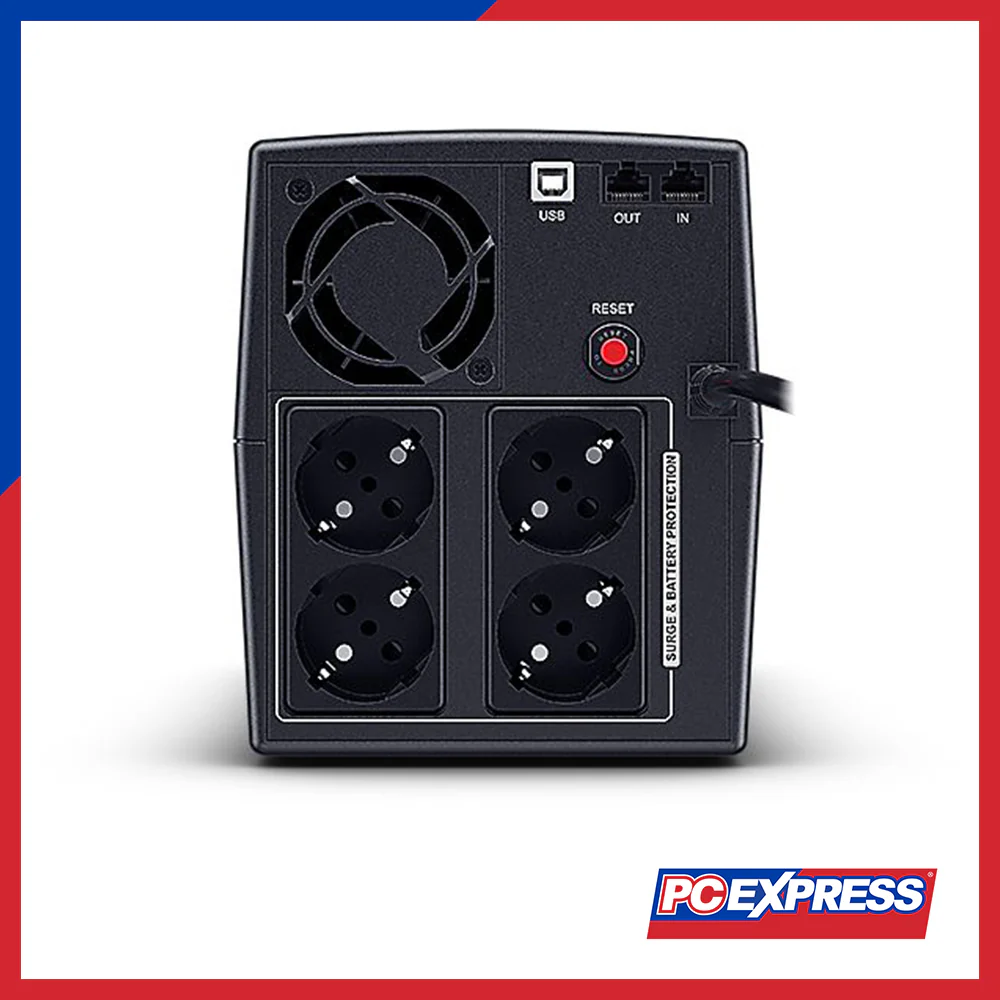

CYBERPOWER UT2200EG 2200VA/1320W Uninterruptible Power Supply
SPECIFICATION
|
General |
|
|
Phase |
Single Phase |
|
Form Factor |
Tower |
|
UPS Topology |
Line-interactive |
|
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
|
Input |
|
|
Generator Compatibility |
Yes |
|
Nominal Input Voltage (Vac) |
230 ± 10% |
|
Input Voltage Range (Vac) |
167 ~ 295 |
|
Input Frequency (Hz) |
50 / 60 |
|
Input Frequency Detection |
Auto-sensing |
|
Rated Input Current (A) |
10 |
|
Input Connector Type |
Schuko |
|
Power Cord Length (ft) |
5 |
|
Power Cord Length (m) |
1.5 |
|
Output |
|
|
Capacity (VA) |
2200 |
|
Capacity (Watts) |
1320 |
|
On Battery Waveform |
Simulated Sine Wave |
|
On Battery Voltage(s) (Vac) |
230 ± 10% |
|
On Battery Frequency (Hz) |
50 ± 1% / 60 ± 1% |
|
Automatic Voltage Regulation (AVR) |
Single Boost, Single Buck |
|
Overload Protection |
Internal Current Limiting, Circuit Breaker |
|
Outlet(s) – Total |
4 |
|
Outlet Type |
Schuko x 4 |
|
Outlet(s) – Battery & Surge Protected |
4 |
|
Typical Transfer Time (ms) |
4 |
|
USB Charging Port(s) |
USB-A x1, USB-C x1 |
|
USB Charging Total Output |
5V / 2.1A |
|
Battery |
|
|
Runtime at 60W (min) |
95 |
|
Runtime at 90W (min) |
70 |
|
Runtime at 200W (min) |
34 |
|
Typical Recharge Time (Hours) |
8 |
|
Start On Battery |
Yes |
|
User-replaceable |
No |
|
Battery Type |
Sealed Lead-acid |
|
Surge Protection & Filtering |
|
|
Surge Suppression (Joules) |
150 |
|
EMI/RFI Filtration |
Yes |
|
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
|
Management & Communications |
|
|
LED Indicators |
Power On, Line Mode, Battery Mode, Bypass Mode, Low Battery, Overload, UPS Fault |
|
HID Compliant USB Port(s) |
1 |
|
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
|
Ethernet Data Transmission Speed |
Up to 1Gbps |
|
Power Management Software |
PowerPanel Personal (Recommended) |
|
Physical |
|
|
Enclosure Construction |
Plastic |
|
Color |
Black |
|
Dimensions (WxHxD) (in) |
5.83 x 7.01 x 11.73 |
|
Dimensions (WxHxD) (mm) |
148 x 178 x 298 |
|
Weight (lbs) |
23.81 |
|
Weight (kg) |
10.8 |
|
Shipping Dimensions (in) |
10.67 x 7.95 x 15.63 |
|
Shipping Dimensions (mm) |
271 x 202 x 397 |
|
Shipping Weight (lbs) |
24.47 |
|
Shipping Weight (kg) |
11.1 |
|
Environmental |
|
|
Operating Temperature (°F) |
32 ~ 104 |
|
Operating Temperature (°C) |
0 ~ 40 |
|
Operating Relative Humidity |
0 ~ 90% (non-condensing) |
|
Operating Elevation |
0 – 9,843 ft (0 – 3,000 m) |
|
Storage Temperature (°F) |
-4 ~ 122 |
|
Storage Temperature (°C) |
-20 ~ 50 |
|
Storage Relative Humidity |
0 ~ 90% (non-condensing) |
|
Storage Elevation |
0 – 9,843 ft (0 – 3,000 m) |
|
Online Thermal Dissipation (BTU/hr) |
34.1 |
|
Audible Noise at 1.5M |
50 dBA |
|
Certifications |
|
|
Certifications |
CE |
|
RoHS |
Yes |
