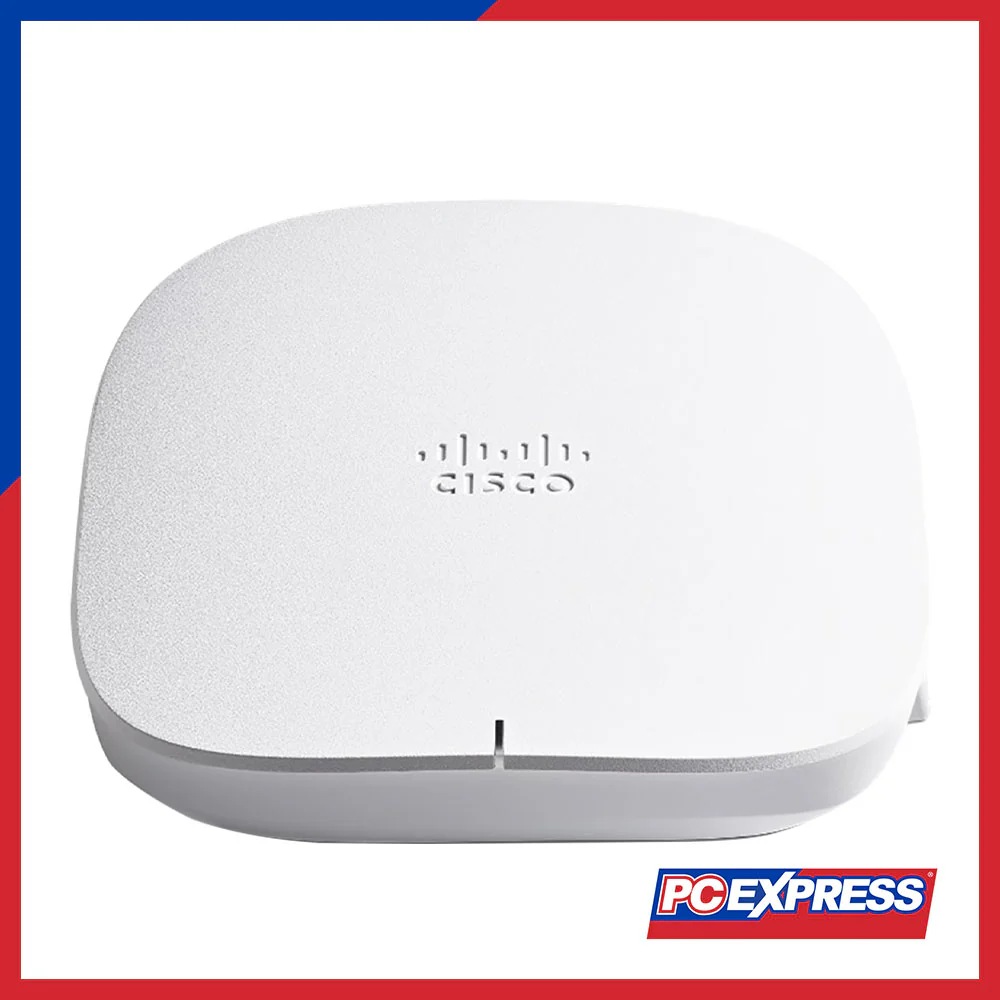

CISCO Business (CBW150AX-A-EU) 150AX Access Point
|
Item |
Specification |
||
|
Authentication and security |
● Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication
● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
● Segmentation via VLANs (up to 16)
● 802.11r and 802.11i
● Guest network can also authenticate against a Social Login account: Google and Facebook
|
||
|
Maximum clients |
● Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system
|
||
|
Maximum # of Access Points |
● 50
● Recommended up to 25
|
||
|
Max # of Mesh Extenders |
● Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
|
||
|
Management Compatibility |
● A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity.
● CBW150AX access points must not be installed on the same management network and CBW140AC or CBW240AC access points.
● CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard versions 2.4.1 and higher.
|
||
|
802.11ax |
● 2x2 downlink MU-MIMO with two spatial streams
● Uplink/downlink OFDMA
● TWT
● BSS coloring
● MRC
● 802.11ax beamforming
● 20-, 40-, 80- channels
● PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support
● WPA3 support
|
||
|
802.11ac |
● 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
● 20-, 40-, and 80-MHz channels
● Dynamic Frequency Selection (DFS)
|
||
|
Ethernet ports |
● Authentication with 802.1X or MAC filtered
● Dynamic VLAN or per port
● Traffic locally switched or tunneled back to Master AP
|
||
|
Data rates supported |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
||
|
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
|||
|
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) |
|||
|
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) |
|||
|
802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11) |
|||
|
Integrated antenna |
2.4GHz: peak gain 4dBi, internal antenna, omnidirectional in azimuth 5GHz: peak gain 5dBi, internal antenna, omnidirectional in azimuth |
||
|
Maximum number of |
A (A regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
◦ excludes 5.600 to 5.640 GHz
● 5.745 to 5.825 GHz; 5 channels
B (B regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.720 GHz; 12 channels
● 5.745 to 5.825 GHz; 5 channels
D (D regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.720 GHz; 12 channels
● 5.745 to 5.865 GHz; 7 channels
E (E regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
F (F regulatory domain)
● 2.412 - 2.472 GHz; 13 channels
● 5.180 - 5.320 GHz; 8 channels
● 5.745 to 5.805 GHz; 4 channels
H (H regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
I (I regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
|
K (K regulatory domain)
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.620 GHz; 7 channels
● 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.660 to 5.700 GHz; 3 channels
● 5.745 to 5.805 GHz; 4 channels
S (S regulatory domain)
● 2.412 - 2.472 GHz; 13 channels
● 5.180 - 5.320 GHz; 8 channels
● 5.500 -5.700 GHz; 11 channels
● 5.745- 5.825 GHz; 5 channels
T (T regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.720 GHz; 12 channels
● 5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
◦ excludes 5.600 to 5.640 GHz
● 5.745 to 5.825 GHz; 5 channels
|
|
|
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
|||
|
Available transmit power settings |
2.4 GHz Up to 20 dBm |
5 GHz Up to 20 dBm |
|
|
Note: The maximum power setting will vary by channel and according to individual country regulations. |
|||
|
Interfaces |
● 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
|
||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
||
|
Dimensions (W x L x H) |
● Access point (without mounting bracket): 5.92 x 5.92 x 1.57 in. (150.4 x 150.4 x 39.9 mm)
|
||
|
Weight |
● Access point without mounting bracket or any other accessories: 11.6 oz (330 g)
|
||
|
Environmental |
Operating
● Temperature: 32° to 104°F (0° to 40°C)
● Humidity: 0% to 95% (noncondensing)
● Maximum altitude: 9843 ft (3000 m) at 40°C
Nonoperating (storage and transportation)
● Temperature: –22° to 158°F (-30° to 70°C)
● Humidity: 0% to 95% (noncondensing)
● Maximum altitude: 15,000 ft (4570 m) at 25°C
|
||
|
System |
● 1 GB DRAM, 512MB flash
● 1GHz quad core processor
|
||
|
Powering options |
● Use the Cisco Business passive PoE injector (included with select country-specific models)
or
● 802.3af/at Ethernet switch; a Cisco Business Switch with PoE is recommended (CBS220/250/350 series); or Cisco Business PoE injector (CB-PWRINJ-XX)
|
||
|
Power draw |
● 9.2W (maximum, on PoE)
|
||
|
Mounting and physical security |
Included with the access point:
● Mounting bracket and hardware
|
||
|
Warranty |
Cisco Business 3-year limited hardware warranty Free software updates, no service contract required |
||
|
Compliance |
● Safety:
◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ IEC 60950-1 ◦ EN 60950-1 ◦ IEC 62368-1 ◦ EN 62368-1 ◦ UL/CUL 62368-1
● Radio approvals:
◦ FCC Part 15.247, 15.407 ◦ RSS-247 ◦ EN 300328, EN 301893 ◦ EN 50385 ◦ ARIB-STD 66 ◦ ARIB-STD T71
● EMC
◦ EMI and susceptibility (Class B) ◦ FCC Part 15B ◦ ICES-003 ◦ VCCI(Japan) ◦ EN 301489-1 and -17 ◦ EN 55032, EN55035
● IEEE standards:
◦ IEEE 802.3 ◦ IEEE 802.3ab ◦ IEEE 802.3af/at ◦ IEEE 802.11a/b/g/n/ac/ax ◦ IEEE 802.11h, 802.11d
● Security:
◦ 802.11i, WPA2, WAP3, WPA ◦ 802.1X ◦ AES
● Extensible Authentication Protocol (EAP) types:
◦ EAP-Transport Layer Security (TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ EAP-Flexible Authentication via Secure Tunneling (FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM)
● Multimedia:
◦ Wi-Fi Multimedia (WMM)
● Other:
◦ FCC Bulletin OET-65C ◦ RSS-102 |
||
Cisco CBW150AX Antenna Pattern 2.4GHz - Azimuth
Cisco CBW150AX Antenna Pattern 2.4GHz - Elevation
Cisco CBW150AX Antenna Pattern 5GHz - Azimuth
Cisco CBW150AX Antenna Pattern 5GHz - Elevation
