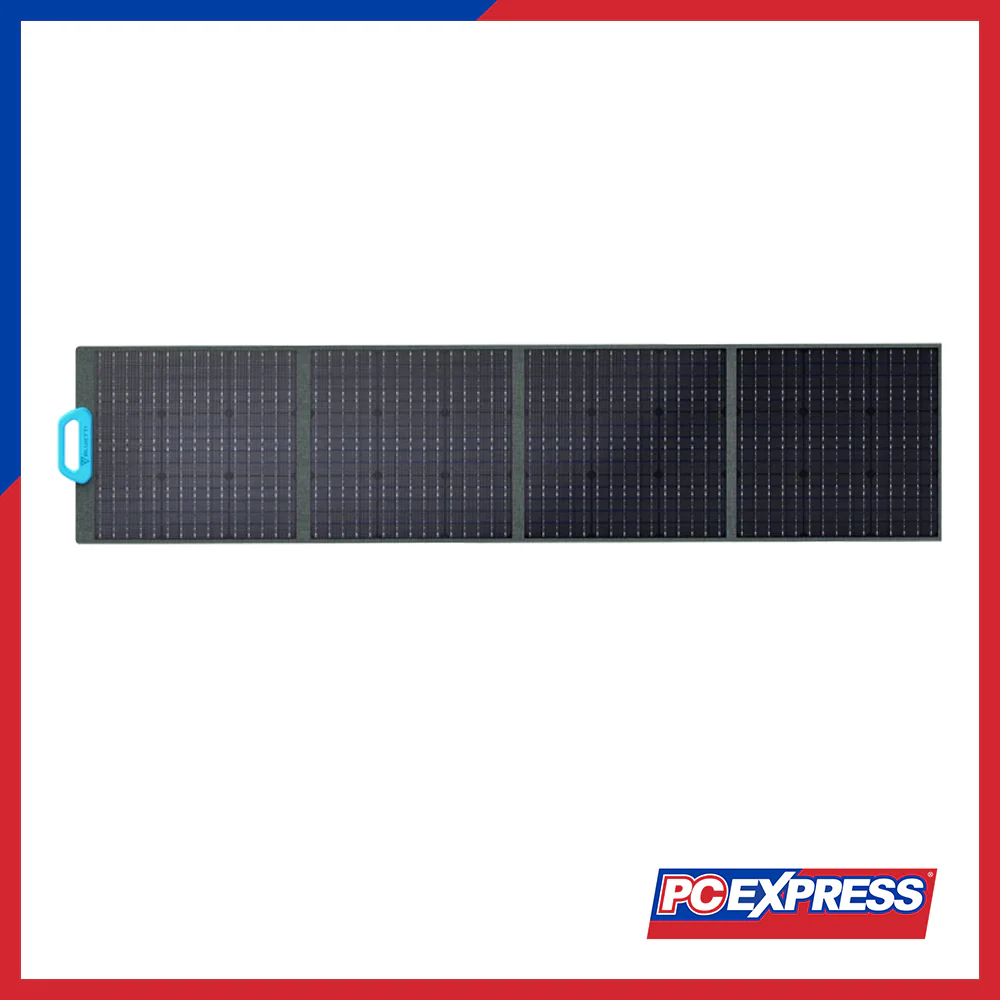

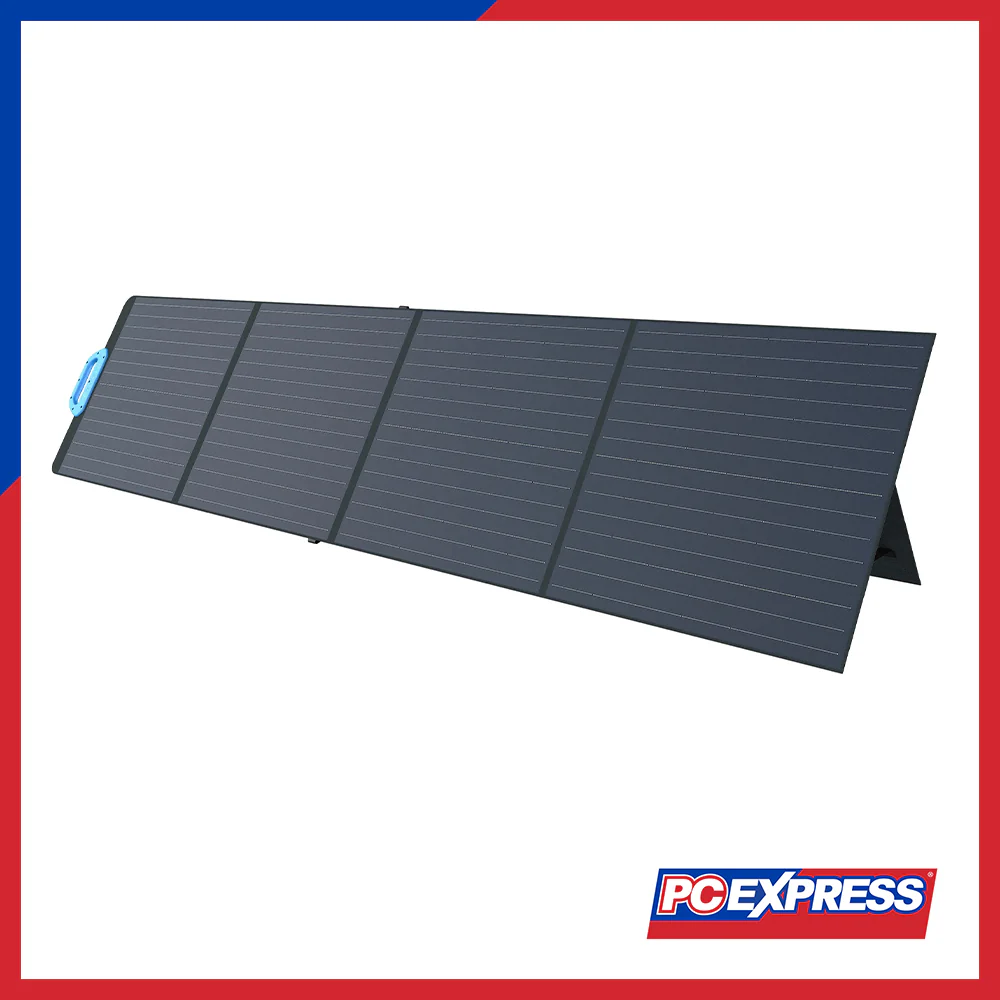

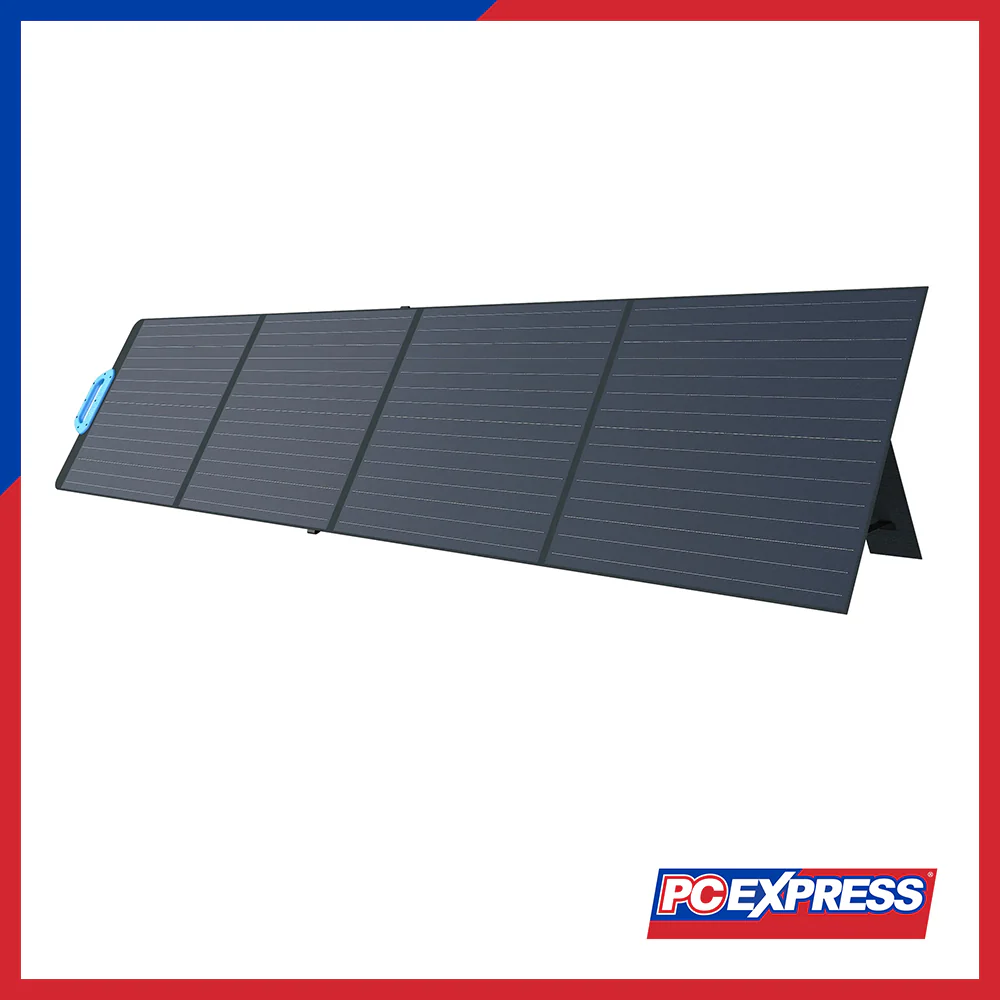

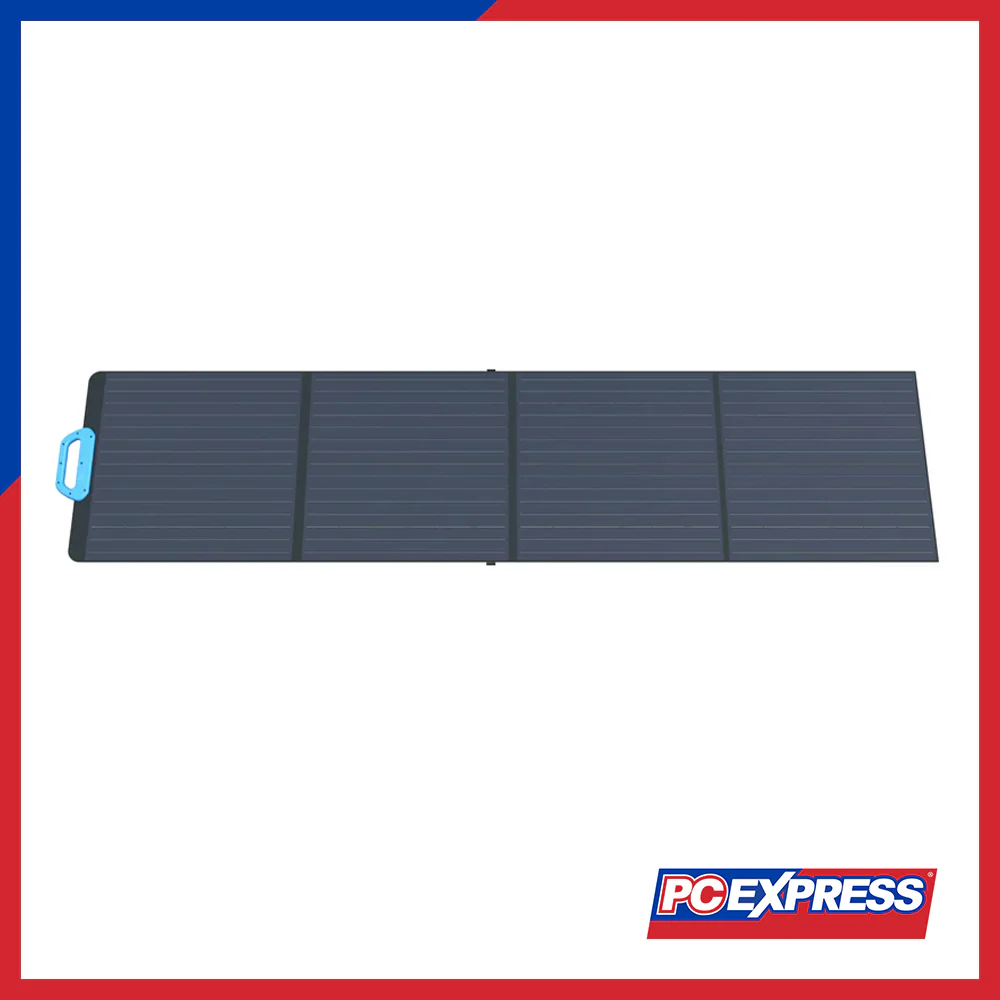

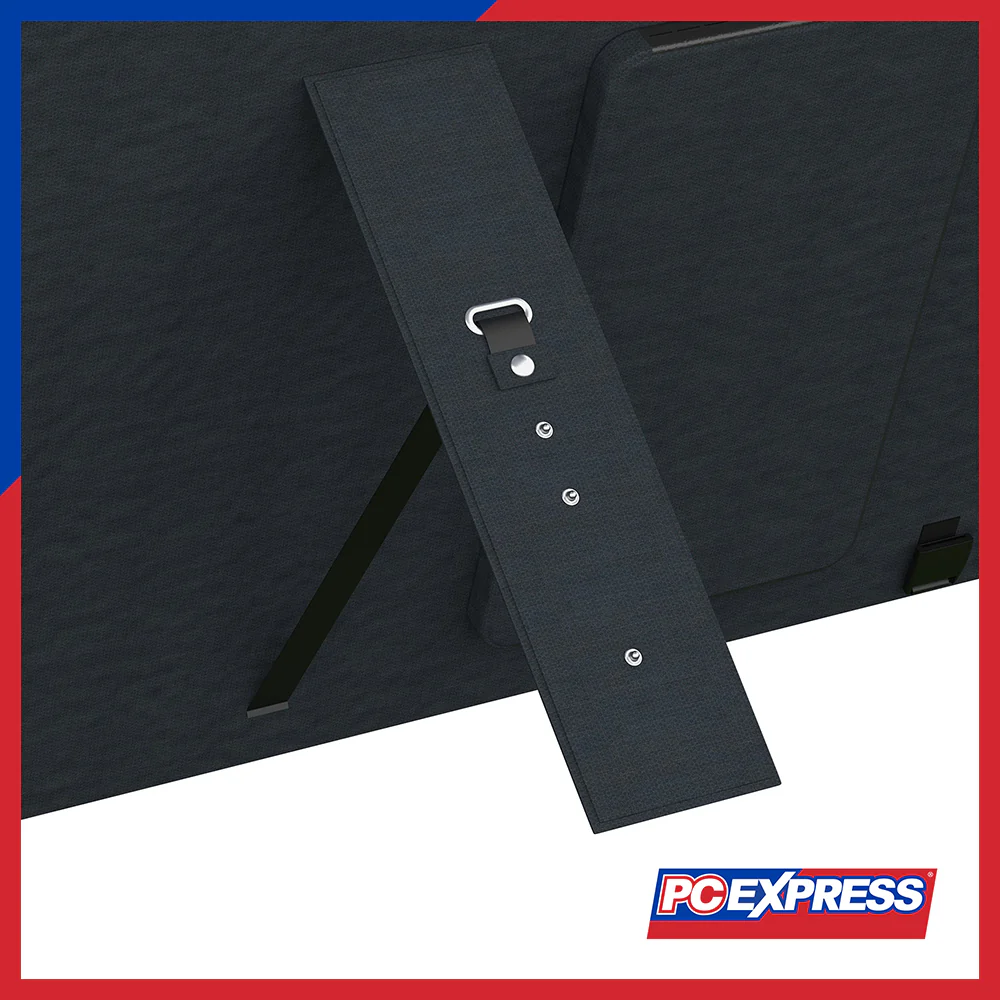

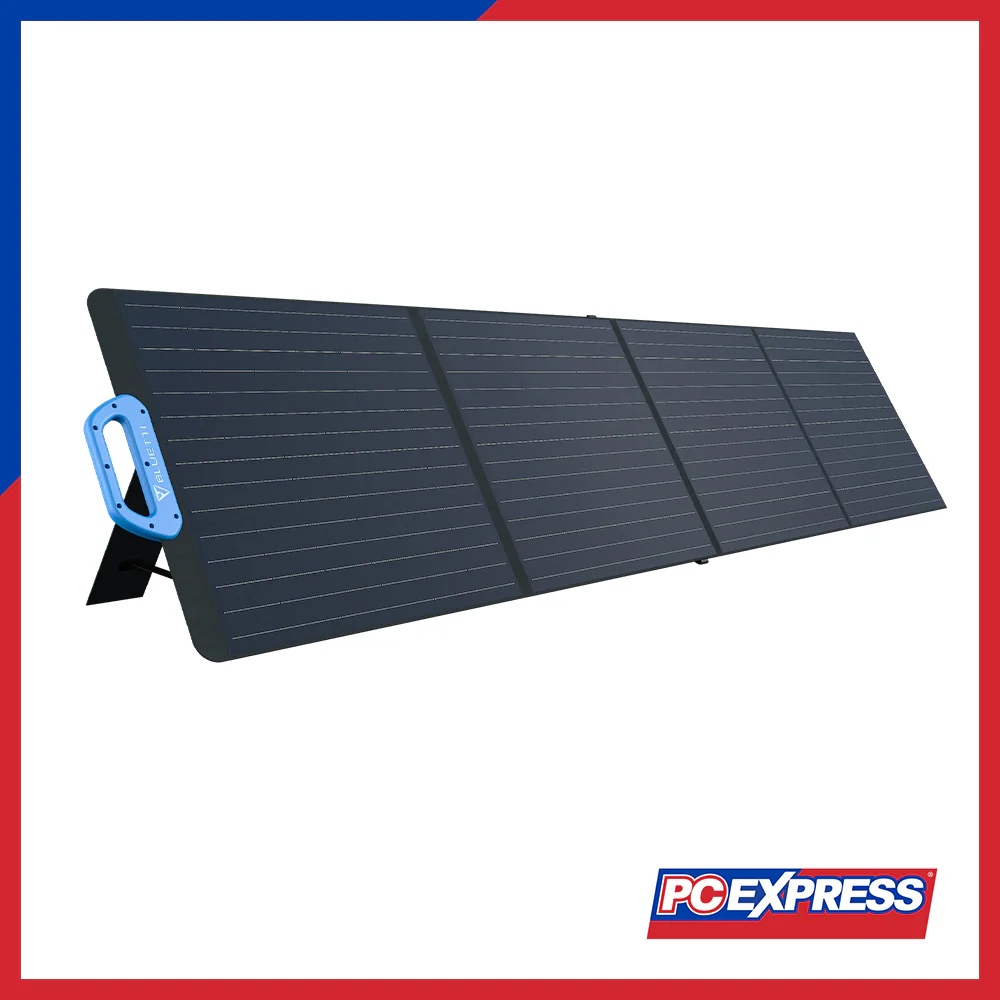

BLUETTI PV200 Solar Panel | 200W
SPECIFICATION
|
POWER |
|
|
Power |
200W |
|
Lamination |
ETFE (Ethylene tetrafluoroethylene) |
|
Cell Type |
Monocrystalline Silicon |
|
Cell Efficiency |
Up to 23.4% |
|
Voltage at Max Power (Vmp) |
26.5V |
|
Current at Max Power (Imp) |
9.7A |
|
Open Circuit Voltage (OCV) |
26.5V |
|
Short Circuit Current (Isc) |
9.4A |
|
GENERAL |
|
|
Connector |
Standard MC4 Connector |
|
Weight |
20.1lbs (9.1kg) |
|
Dimensions (Unfolded) |
24 × 90.7in (61 × 230.4cm) |
|
Dimensions (Folded) |
24 × 24.2in (61 × 67cm) |
|
Operating Temperature |
14–149℉ (-10–65℃) |
|
Best Working Temperature |
77℉ (25℃) |
|
Cable Length |
118in (3m) |
|
Certifications |
FCC, CE, ROHS |
