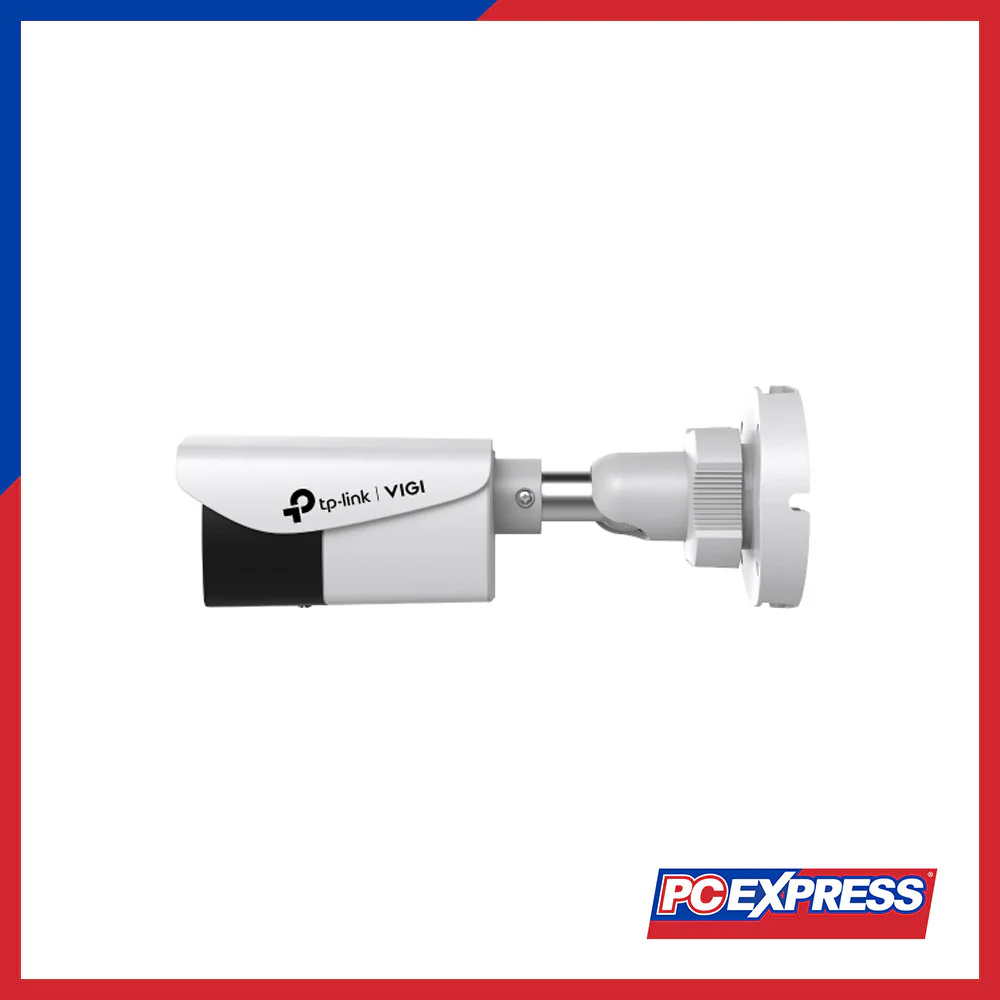

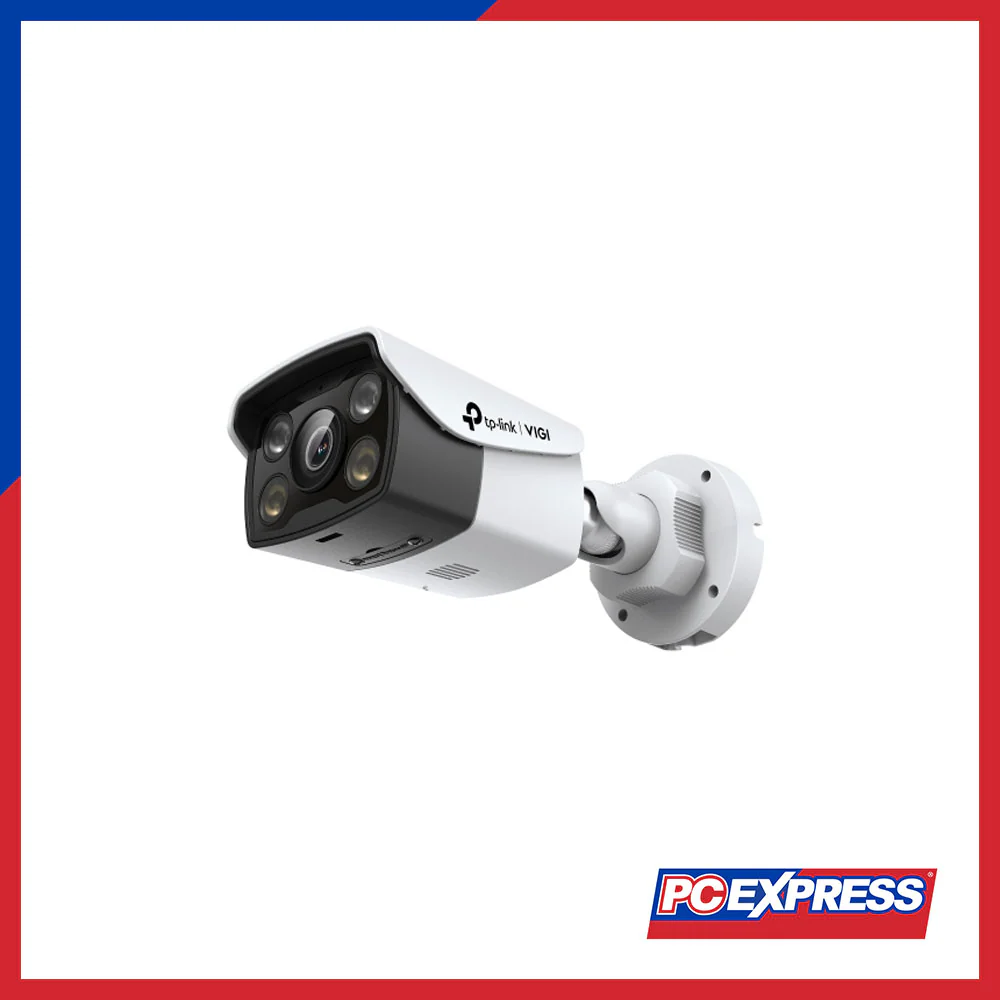

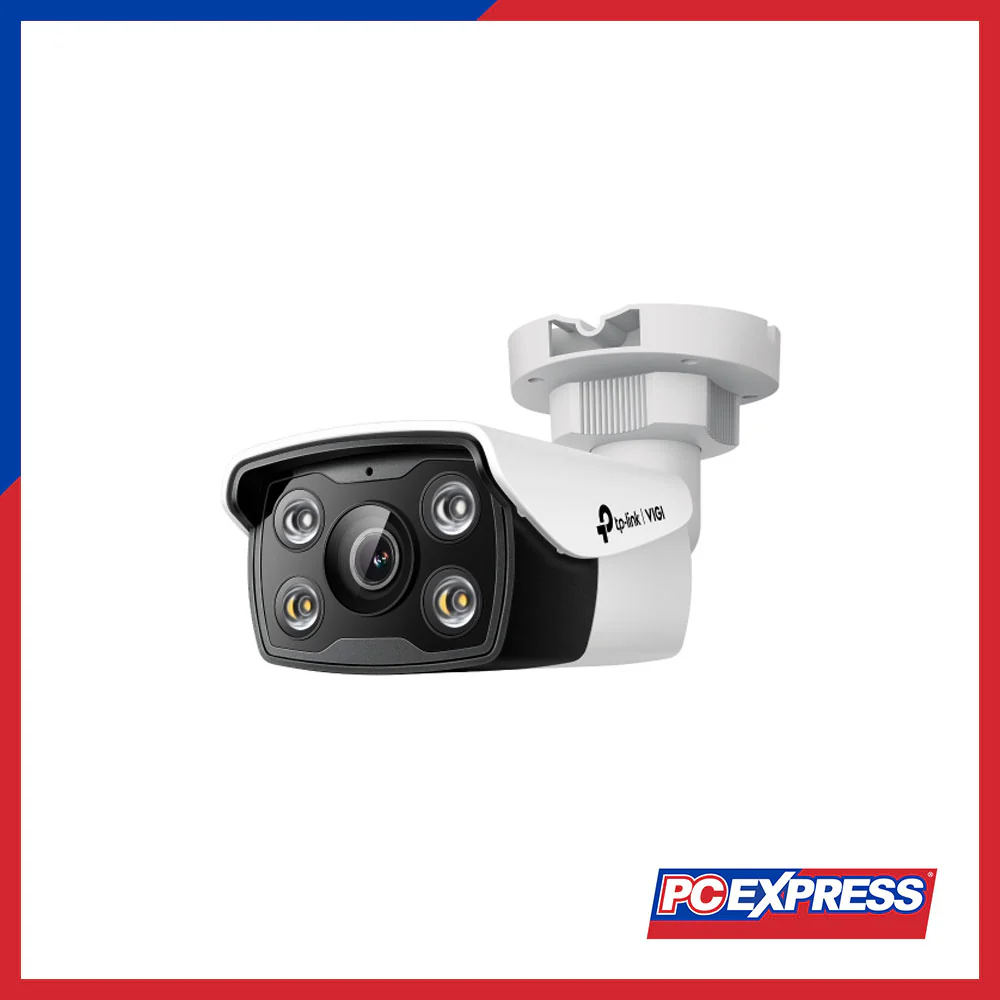

TP-LINK VIGI C340 4MP Outdoor Full-Color Bullet Network Camera Suveillance

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/white light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified / Scheduled / Auto

Lens Type

Fixed Focal Lens

Focal Length

2.8 mm / 4 mm / 6 mm

Aperture

F1.6

Field of View (FOV)

2.8mm: H: 102.5°, V: 55.2°, D: 122.1°
4mm: H: 76.3°, V: 40.6°, D: 90.2°
6mm: H: 50.6°, V: 27.8°, D: 58.8°

Lens Mount

M12

DORI Distance

2.8mm: Detect: 64 m, Observe: 27 m, Recognize: 13 m, Identify: 6 m
4mm: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m
6mm: Detect: 128 m, Observe: 53 m, Recognize: 26 m, Identify: 13 m

Angle Adjustment (Manual)

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

IR LED

Quantity: 2, Range: 30m, Wavelength: 850nm

White LED

Quantity: 2, Range: 30m

Illuminator Control

Auto / Scheduled / Always on / Always off

Max. Resolution

2560 X 1440

Main Stream Frame Rate

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Main Stream Resolution

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream Frame Rate

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream Resolution

640x480, 352x288, 320x240

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+ Support

Main Stream Supported

H.265 Type

Main Profile

H.265+ Support

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC, Rotation

Image Enhancement

BLC, 3D DNR, HLC, SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

Audio Communication

Two-Way Audio

Audio Input/Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8 KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps (G.711 alaw)

Network Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF

Yes

API

Open Network Video Interface (Profile S)

Simultaneous Live View
