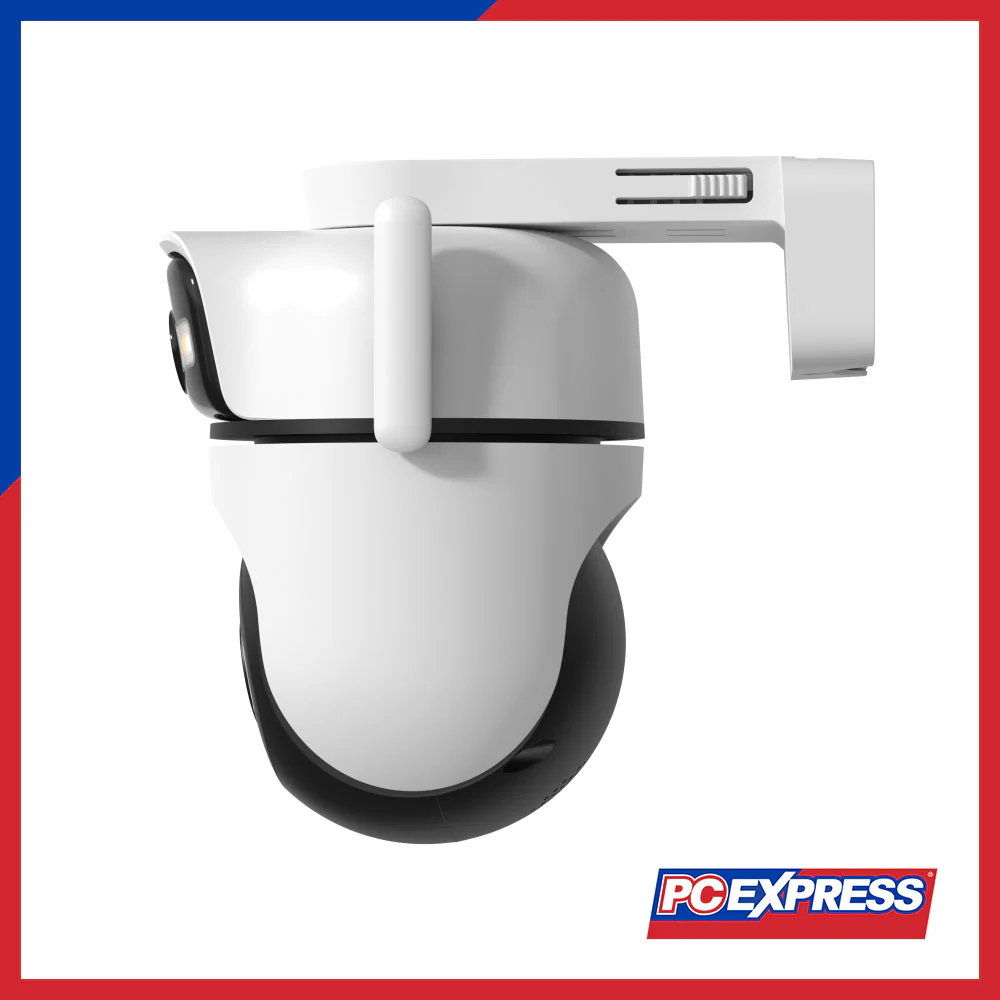

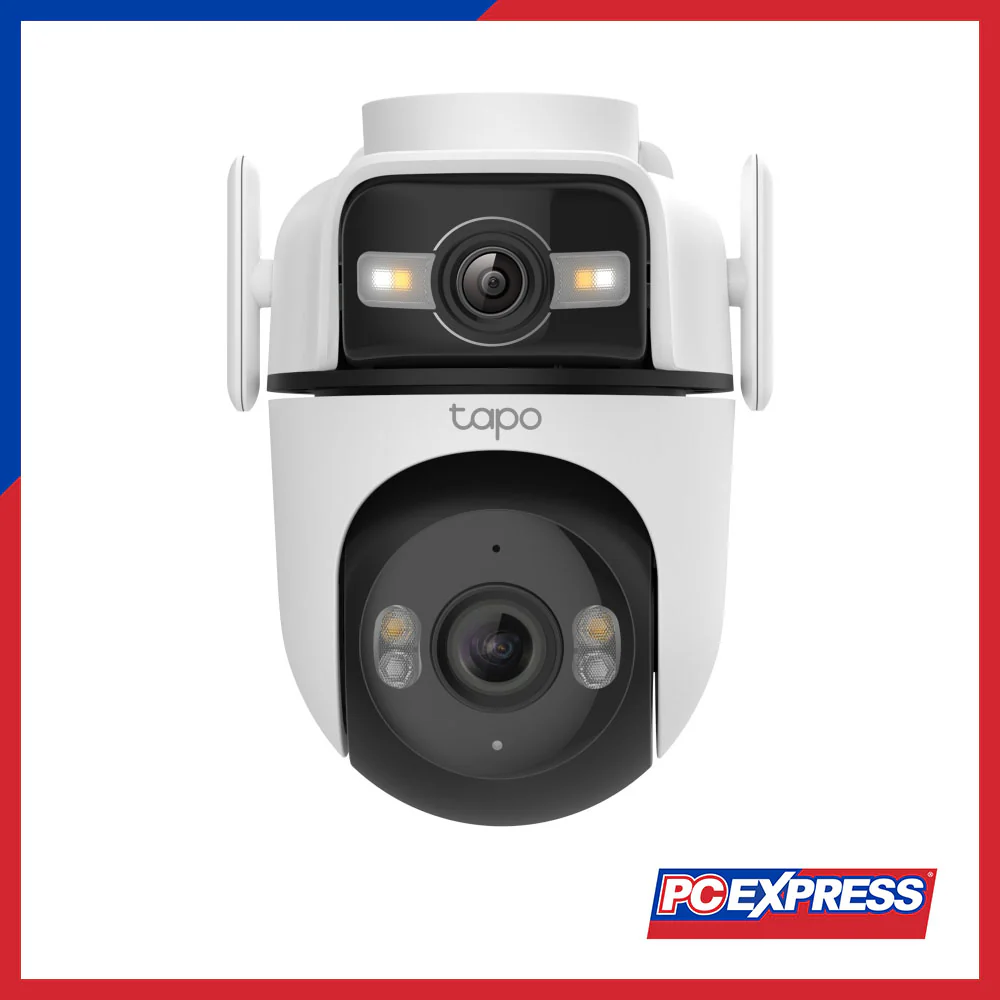

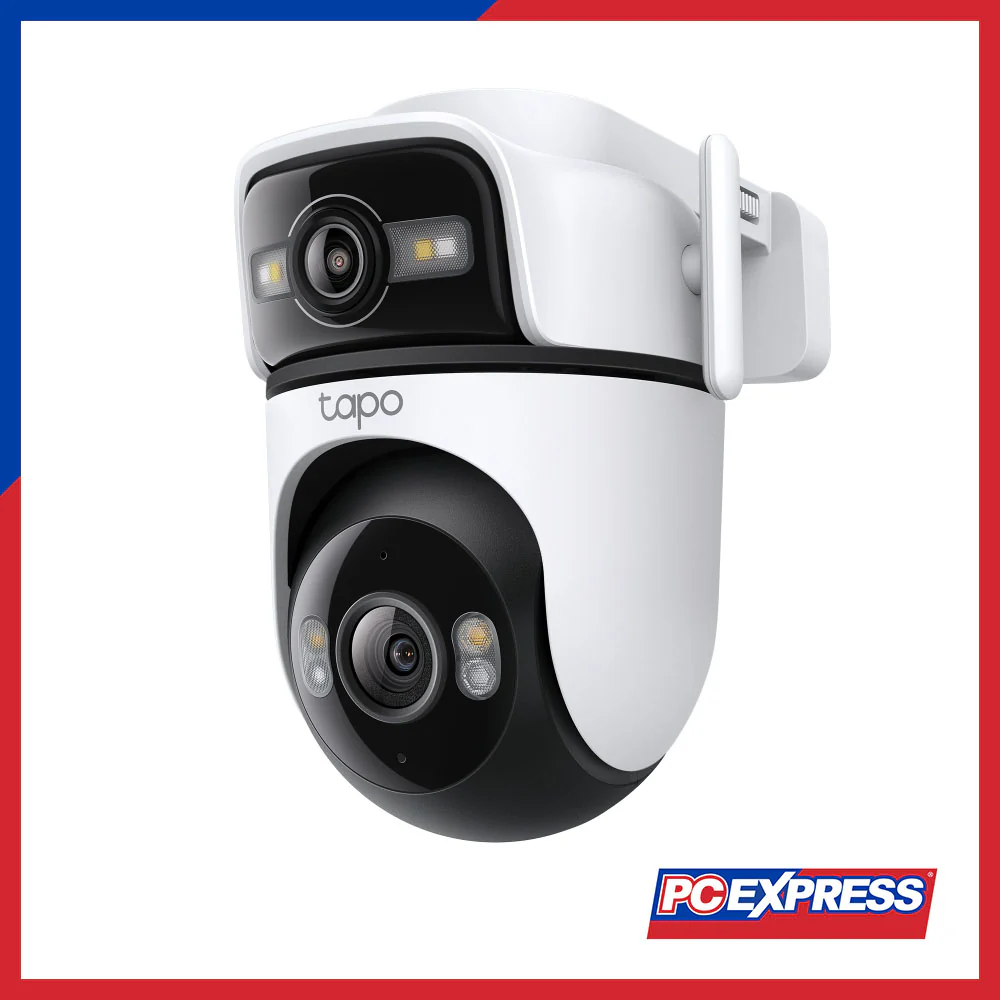

TP-LINK Tapo C545D Outdoor Dual Lens Pan/Tilt Security Wi-fi Camera

Image Sensor

1/2.8″ Progressive-Scan CMOS

Lenses

Two lenses:
• Wide-angle: 2.53 mm, F1.6
• Telephoto: 6 mm, F1.6

Field of View (FOV)

Wide-angle: 165.1° (diagonal), 137.6° (horizontal), 73.0° (vertical)
Telephoto: 66.5° (diagonal), 57.3° (horizontal), 31.7° (vertical)

Resolution

Dual 2K (3MP) for both lenses: 2304 × 1296 px

Frame Rate

15 fps

Video Compression

H.264

Night Vision

<ul><li>850 nm IR LED, up to ~29.9 m (99 ft)</li><li>Color Night Vision</li></ul>

Day/Night Switch

IR-Cut filter with auto-switching

Pan / Tilt

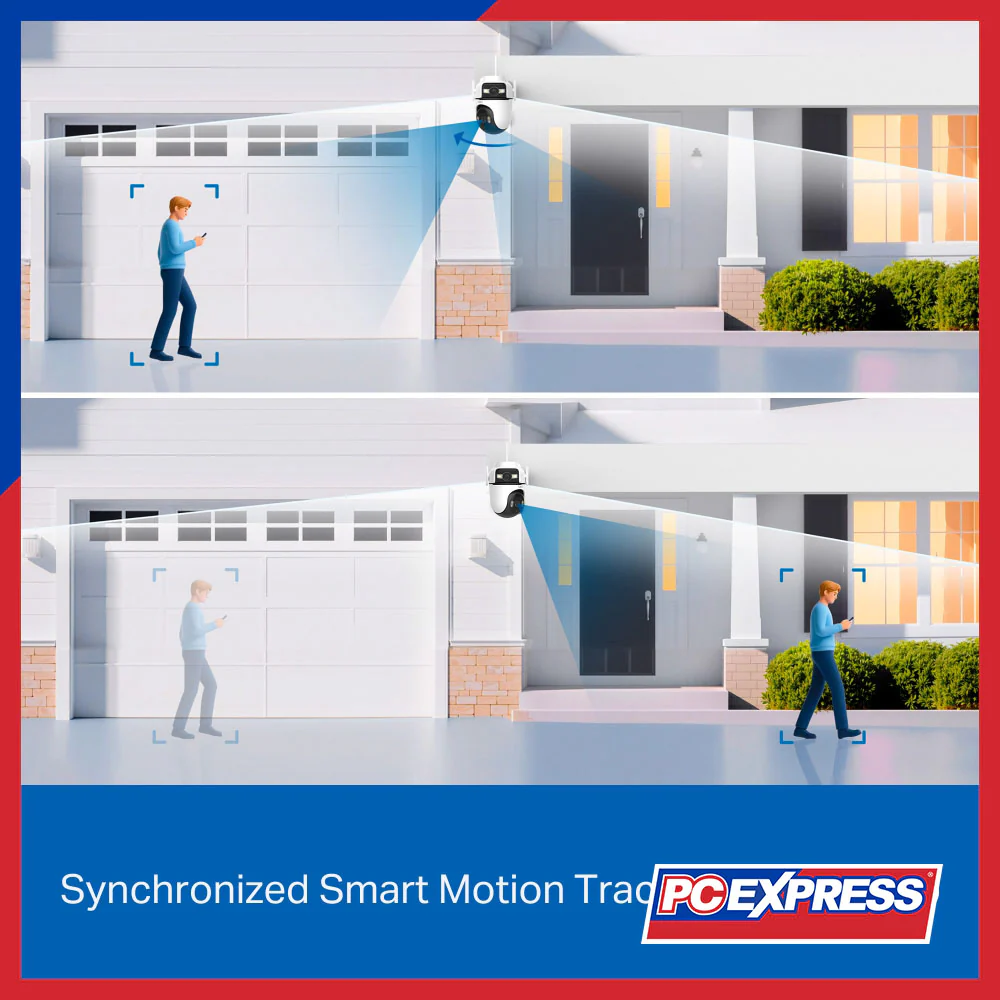

<ul><li>Wide-angle (top) lens — manual pan: 270°, tilt: –30° to –10° </li><li>Telephoto (bottom) lens — automatic pan & tilt for tracking motion </li></ul>

Zoom

Telephoto lens supports up to 10.8× digital zoom

Audio

Built-in microphone and speaker; two-way audio with noise cancellation

Siren

99 dB (measured at ~10 cm)

Storage

microSD slot up to 512 GB
Cloud: Tapo Care (subscription required)

AI / Detection

Motion detection, person detection, pet detection, vehicle detection, line-crossing detection, camera tampering; custom activity zones

Network

<ul><li>Wi-Fi: IEEE 802.11 b/g/n/ax (2.4 GHz)</li><li>Ethernet: 1× RJ45 10/100 Mbps</li><li>Supports: RTSP, ONVIF </li></ul>

Security

128-bit AES encryption with SSL/TLS, WPA/WPA2-PSK/WPA3, on-device machine learning

Power

12 V DC adapter; 100-240 V input, 1 A output; typical power ~5.3 W, max ~11.2 W

Weather Resistance

IP66 rating (dust & water resistant)

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F)

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Humidity (Operating)

10%–90% RH, non-condensing

Dimensions

114.57 mm (W) × 159.55 mm (D) × 152.1 mm (H)

Weight

~491 g (17.32 oz)

Mounting Options

Wall, ceiling, or pole mount supported

Smart Integration

Google Assistant, Amazon Alexa, Samsung SmartThings
