TP-LINK Archer BE900 BE24000 Quad-Band WiFi 7 Router

WiFi Speeds

BE24000; 6 GHz: 11520 Mbps (802.11be); 5 GHz-1: 5760 Mbps (802.11be); 5 GHz-2: 5760 Mbps (802.11be); 2.4 GHz: 1376 Mbps (802.11be)

WiFi Range

4 Bedroom Houses; 12× Optimally Positioned Antennas; Multiple antennas form a signal-boosting array to cover more directions and large areas; Beamforming (concentrates wireless signal strength toward clients to expand WiFi range); High-Power FEM (improves transmission power to strengthen signal coverage)

WiFi Capacity

Very High; Quad-Band (allocates devices to different bands for optimal performance); 4×4 MU-MIMO (simultaneously communicates with multiple MU-MIMO clients); OFDMA (simultaneously communicates with multiple clients); Airtime Fairness (improves network efficiency by limiting excessive occupation); DFS (access extra band to reduce congestion); 16 Streams (connect devices to more bandwidth)

Working Modes

Router Mode; Access Point Mode

Advanced Features

320 MHz Channel; 4K-QAM; Multi-RUs; EasyMesh-Compatible; Works with Alexa and Google Assistant; IoT Network

Network Security

SPI Firewall; Access Control; IP & MAC Binding; Application Layer Gateway; HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner)

Guest Network

1× 6 GHz Guest Network; 1× 5 GHz-1 Guest Network; 1× 5 GHz-2 Guest Network; 1× 2.4 GHz Guest Network

VPN Server

OpenVPN Server; PPTP VPN Server; L2TP VPN Server; WireGuard VPN Server

VPN Client

OpenVPN Client; PPTP VPN Client; L2TP VPN Client; WireGuard VPN Client

WiFi Encryption

WPA; WPA2; WPA3; WPA/WPA2-Enterprise (802.1x)

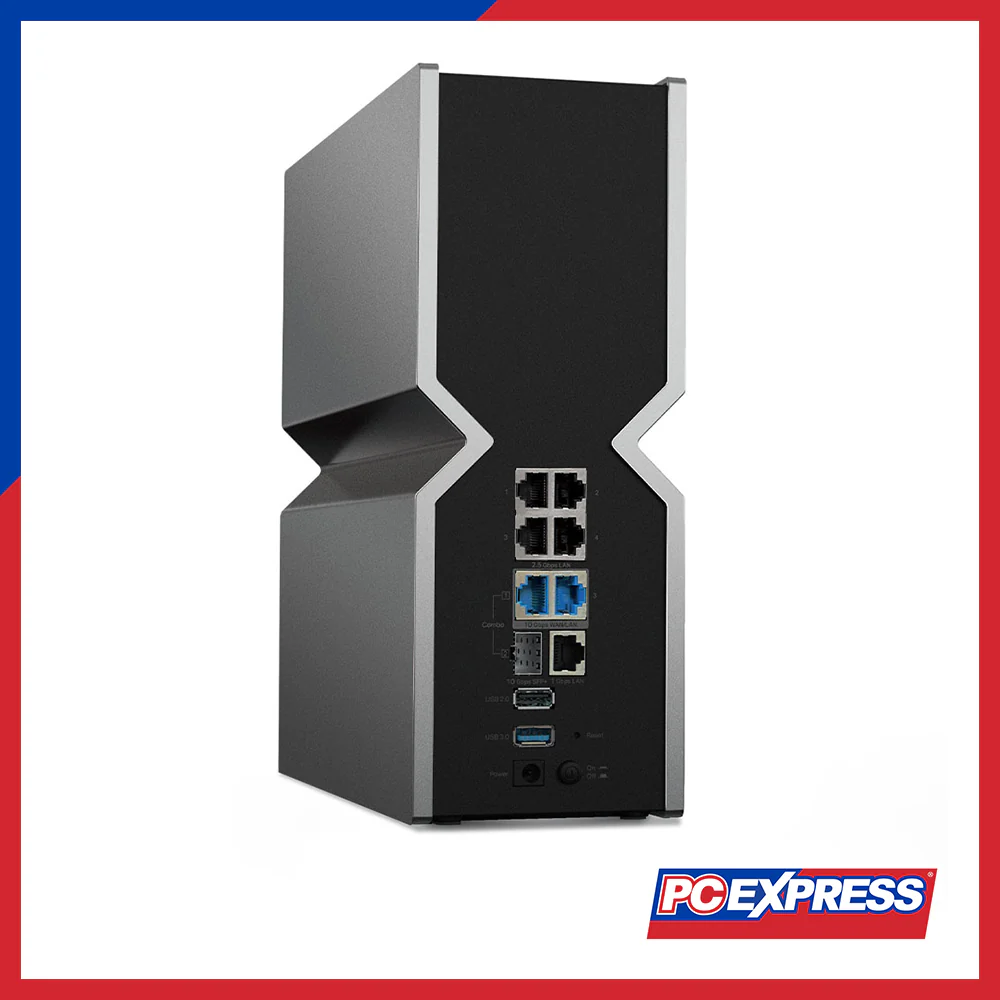

Ethernet Ports

1× 10 Gbps WAN/LAN; 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN; 4× 2.5 Gbps LAN; 1× 1 Gbps LAN

USB Support

1× USB 3.0, 1× USB 2.0; Supported Partition Formats: NTFS, exFAT, HFS+, FAT32; Supported Functions: FTP Server, Media Server, Samba Server

Buttons

Power On/Off Button; Wi-Fi On/Off Button (Touchscreen); LED Button (Touchscreen); WPS Button (Touchscreen); Reset Button

Power

15 V ⎓ 5 A

Touchscreen

Yes

LED Screen

Yes

Protocols

IPv4; IPv6

Service Kit

HomeShield

EasyMesh

Compatible with EasyMesh

Parental Controls

HomeShield Parental Controls; Custom Profiles; Professional Content Filter Library; Family Time; Bedtime; Off Time; Time Rewards; Family Online Time Ranking; Pause the Internet; Weekly and Monthly Reports

WAN Type

Dynamic IP; Static IP; PPPoE; PPTP; L2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware Upgrade; TP-Link ID; DDNS

NAT Forwarding

Port Forwarding; Port Triggering; DMZ; UPnP

IPTV

IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN

DHCP

Address Reservation; DHCP Client List; Server

DDNS

TP-Link; NO-IP; DynDNS

Management Features

Tether App; Webpage

Network Services Enabled by Default

Web Server (HTTP/HTTPS, Port 80/443 TCP); DNS (Port 53 TCP & UDP); DHCP Server (Port 67 UDP); App Management (Ports 20001 TCP, 30001 TCP, 20002 UDP)

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider (for internet access)

Certifications

CE, FCC, RoHS

Environment

Operating Temperature: 0℃–40℃ (32℉–104℉); Operating Humidity: 10%–90% non-condensing

Dimensions (W×D×H)

3.8 × 11.9 × 10.3 in (96 × 302 × 262.5 mm)

Package Content

Wi-Fi 7 Router Archer BE900; Power Adapter; RJ45 Ethernet Cable; Quick Installation Guide
