TP-LINK Archer BE700 BE15000 Tri-Band WiFi 7 Wireless Router

WiFi Speeds

BE15000; 6 GHz: 11528 Mbps (802.11be); 5 GHz: 2882 Mbps (802.11be); 2.4 GHz: 688 Mbps (802.11ax)

WiFi Range

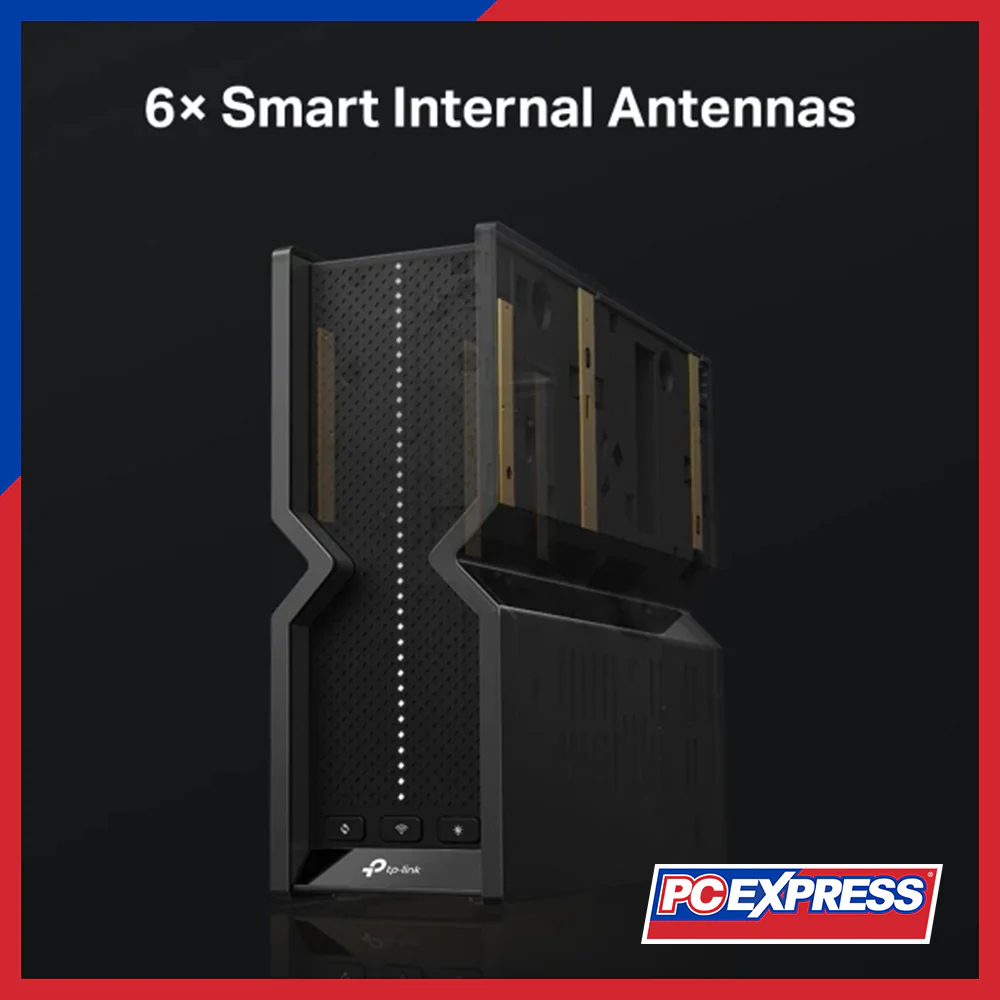

4 Bedroom Houses; 6× Optimally Positioned Antennas; Multiple antennas form a signal-boosting array to cover more directions and large areas; Beamforming (concentrates wireless signal strength toward clients to expand range); High-Power FEM (improves transmission power to strengthen coverage)

WiFi Capacity

High; Tri-Band (allocates devices to different bands for optimal performance); OFDMA (simultaneous communication with multiple clients); Airtime Fairness (limits excessive device occupation); DFS (access extra band to reduce congestion); 8 Streams (more bandwidth for connected devices)

Working Modes

Router Mode; Access Point Mode

Advanced Features

Multi-Link Operation (MLO); 320 MHz Channel; 4K-QAM; Multi-RUs; EasyMesh-Compatible; Works with Alexa and Google Assistant; IoT Network

Network Security

SPI Firewall; Access Control; IP & MAC Binding; Application Layer Gateway; HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner)

Guest Network

6 GHz Guest Network; 5 GHz Guest Network; 2.4 GHz Guest Network

VPN Server

OpenVPN Server; PPTP VPN Server; L2TP VPN Server; WireGuard VPN Server

VPN Client

OpenVPN Client; PPTP VPN Client; L2TP VPN Client; WireGuard VPN Client

WiFi Encryption

WPA; WPA2; WPA3; WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

1× 10 Gbps WAN; 1× 2.5 Gbps LAN; 3× 1 Gbps LAN

USB Support

1× USB 3.0; Supported Partition Formats: NTFS, exFAT, HFS+, FAT32; Supported Functions: FTP Server, Media Server, Samba Server

Buttons

Power On/Off Button; Wi-Fi On/Off Button; LED Button; WPS Button; Reset Button

Power

12 V ⎓ 3.3 A

Protocols

IPv4; IPv6

Service Kit

HomeShield

EasyMesh

Compatible with EasyMesh

Parental Controls

HomeShield Parental Controls; Custom Profiles; Professional Content Filter Library; Family Time; Bedtime; Off Time; Time Rewards; Family Online Time Ranking; Pause the Internet; Weekly and Monthly Reports

WAN Type

Dynamic IP; Static IP; PPPoE; PPTP; L2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware Upgrade; TP-Link ID; DDNS

NAT Forwarding

Port Forwarding; Port Triggering; DMZ; UPnP

IPTV

IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN

DHCP

Address Reservation; DHCP Client List; Server

DDNS

TP-Link; NO-IP; DynDNS

Management Features

Tether App; Webpage

Network Services Enabled by Default

Web Server (HTTP/HTTPS, Port 80/443 TCP); DNS (Port 53 TCP & UDP); DHCP Server (Port 67 UDP); App Management (Ports 20001 TCP, 30001 TCP, 20002 UDP)

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider

Certifications

CE, FCC, RoHS

Environment

Operating Temperature: 0℃–40℃ (32℉–104℉); Operating Humidity: 10%–90% non-condensing

Dimensions (W×D×H)

3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm)

Package Content

Wi-Fi 7 Router Archer BE700; Power Adapter; RJ45 Ethernet Cable; Quick Installation Guide
