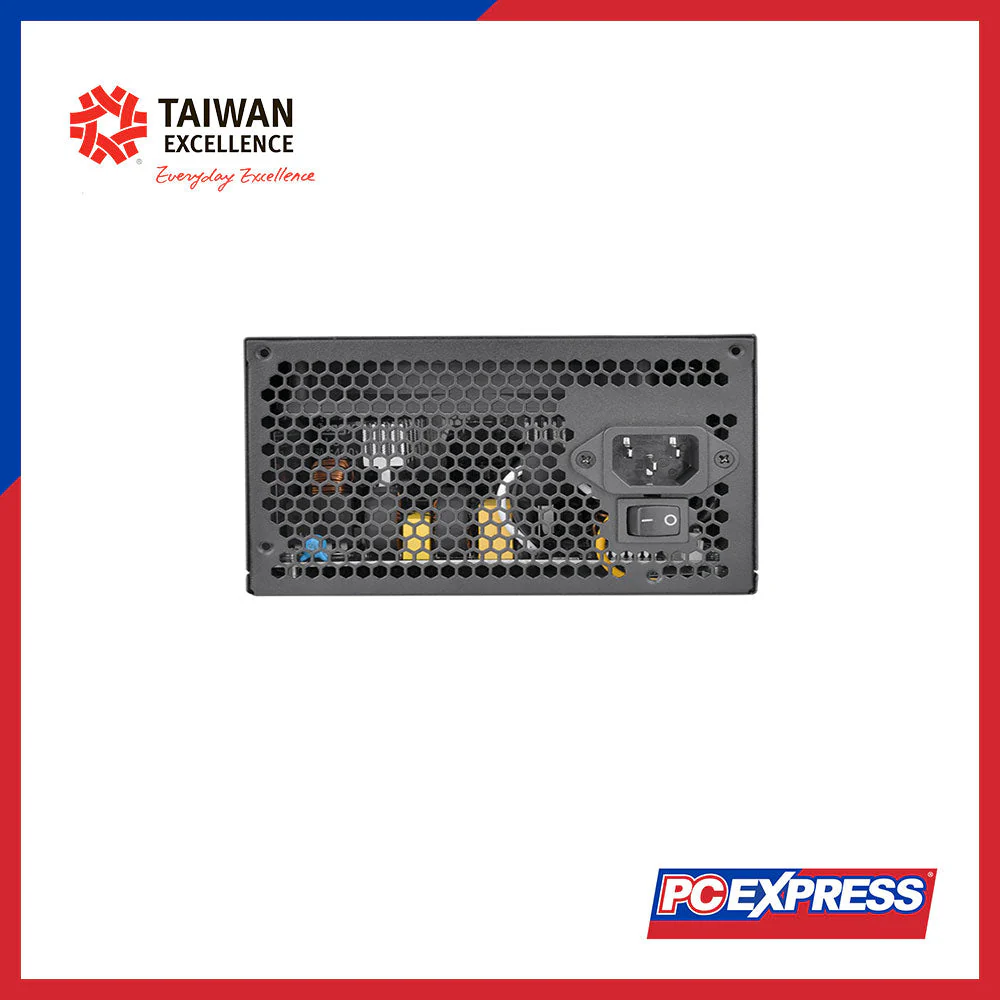

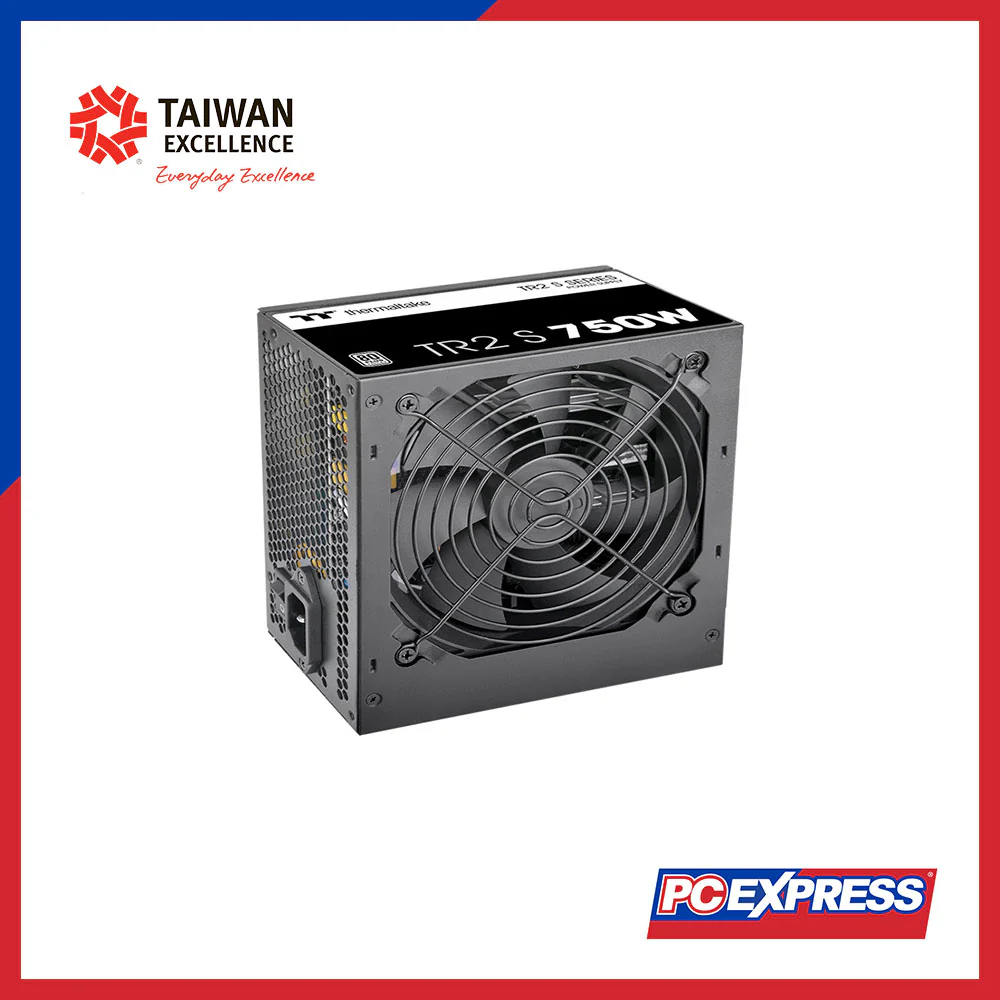

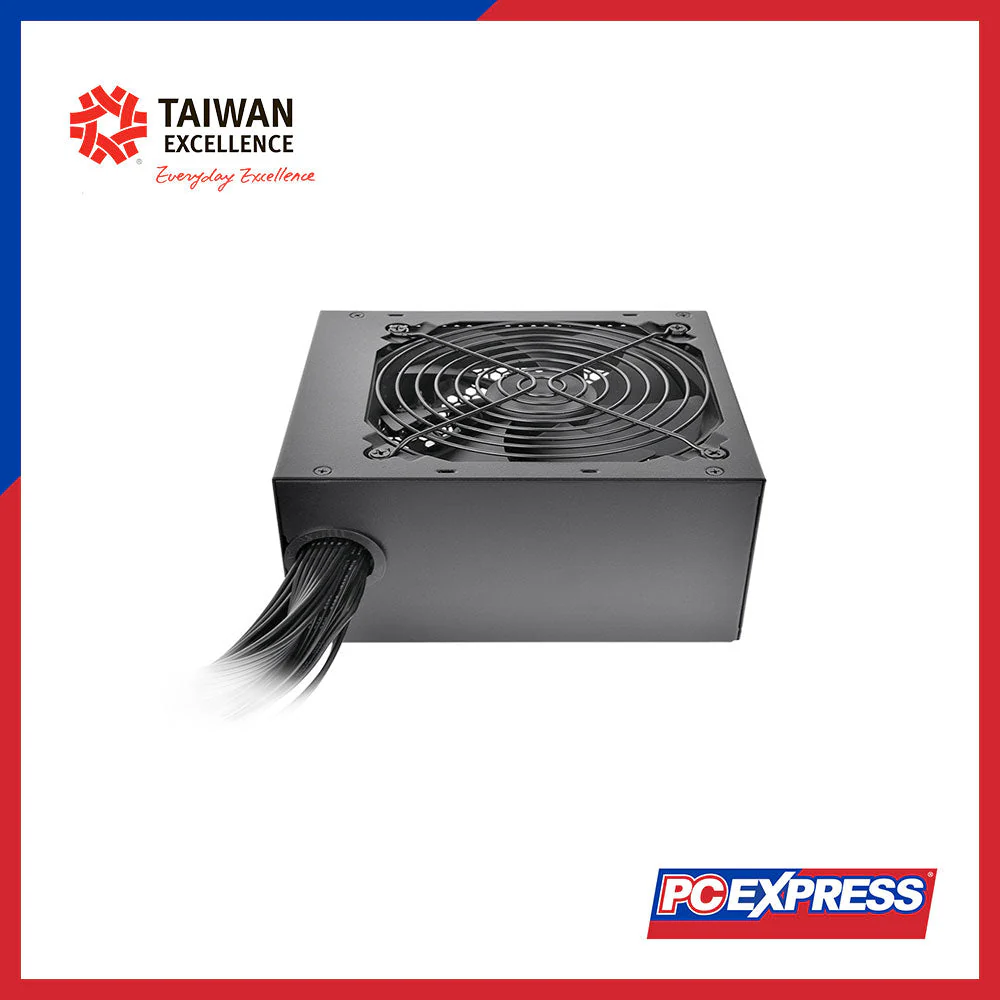

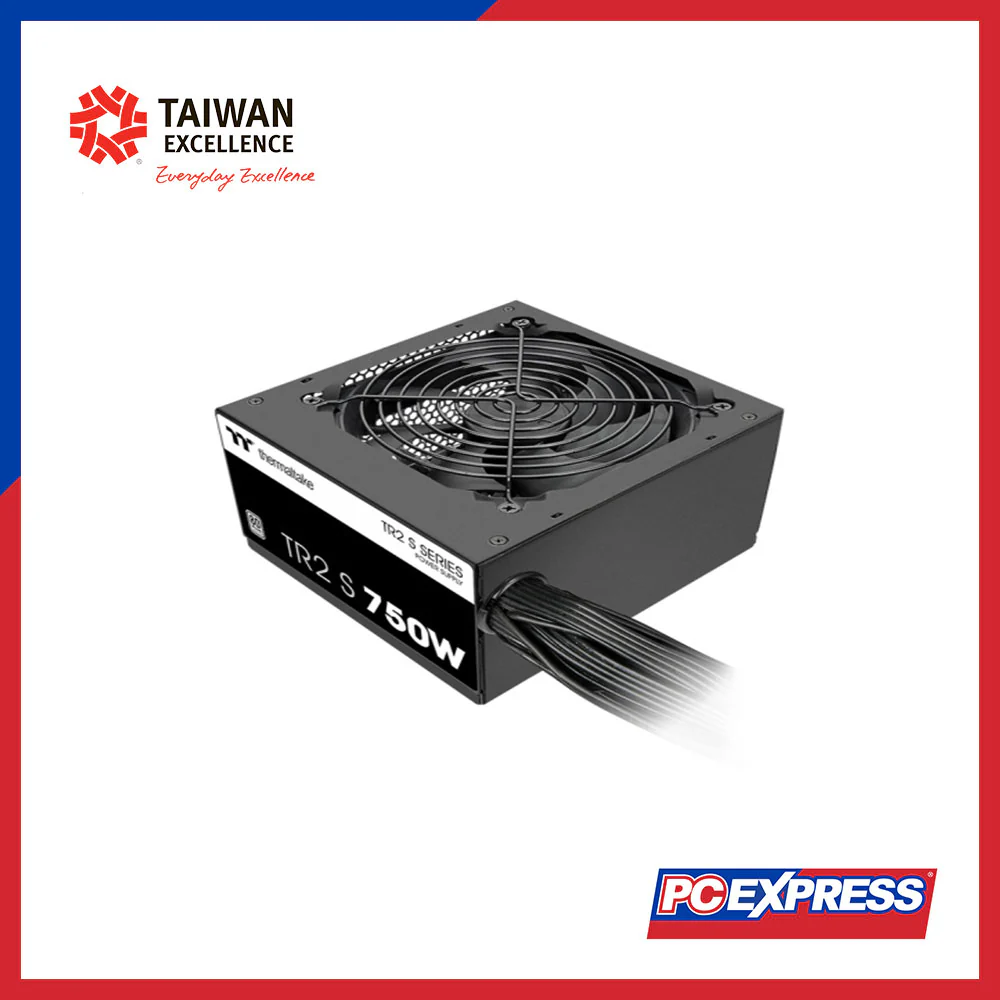

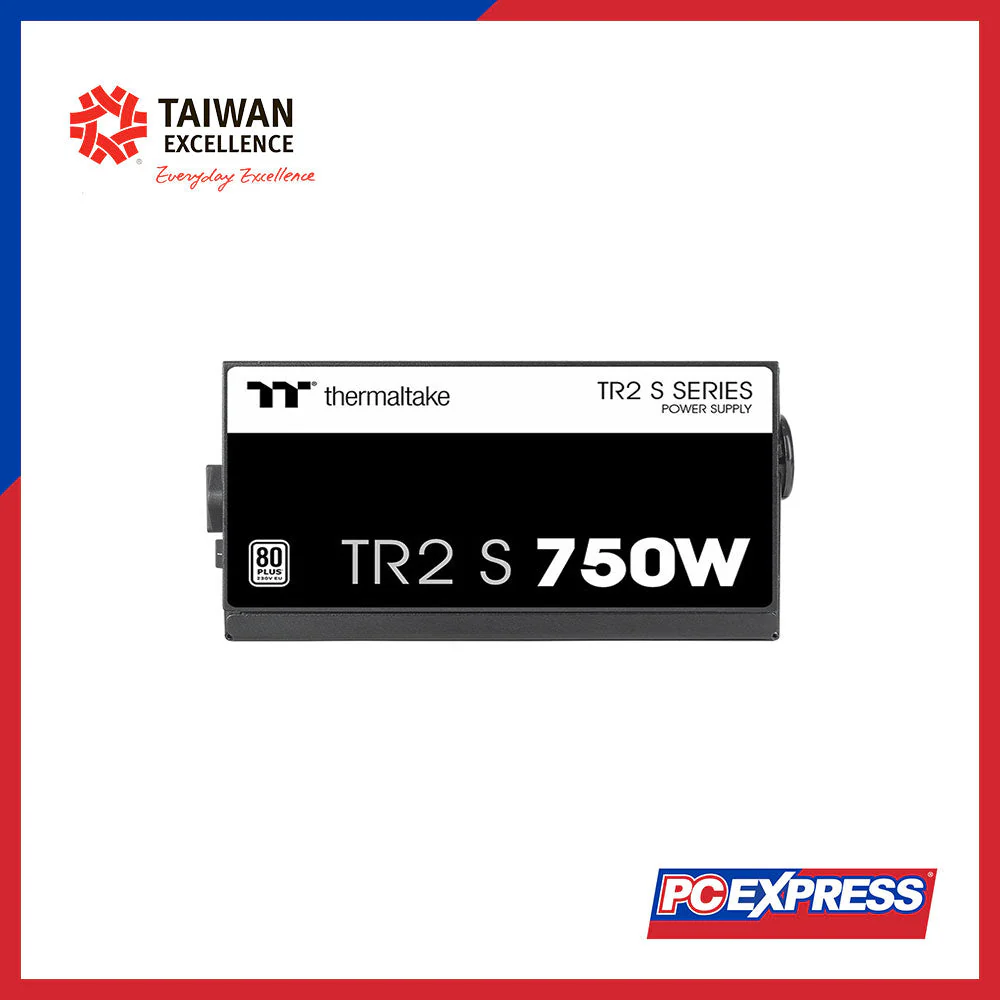

THERMALTAKE TR2 SP 750W 80+ Non-Modular Power Supply

AC Input

Input Voltage: 200 - 240V~

Input Current: 8A

Frequency: 50Hz/60Hz

DC Output

+3.3V

Max Output Current: 18A

Max Output Power: 110W

+5V

Max Output Current: 18A

Max Output Power: 110W

+12V

Max Output Current: 62.5A

Max Output Power: 750W

-12V

Max Output Current: 0.3A

Max Output Power: 3.6W

+5VSB

Max Output Current: 3A

Max Output Power: 15W

Total Power

750W

General Info

P/N

PS-TRS-0750NNSAWU-P

Model

TRS-750AH2NLW-T

PFC

Active PFC

Power Good Signal

100-250 msec

Hold-Up Time

> 17 msec within 80% load

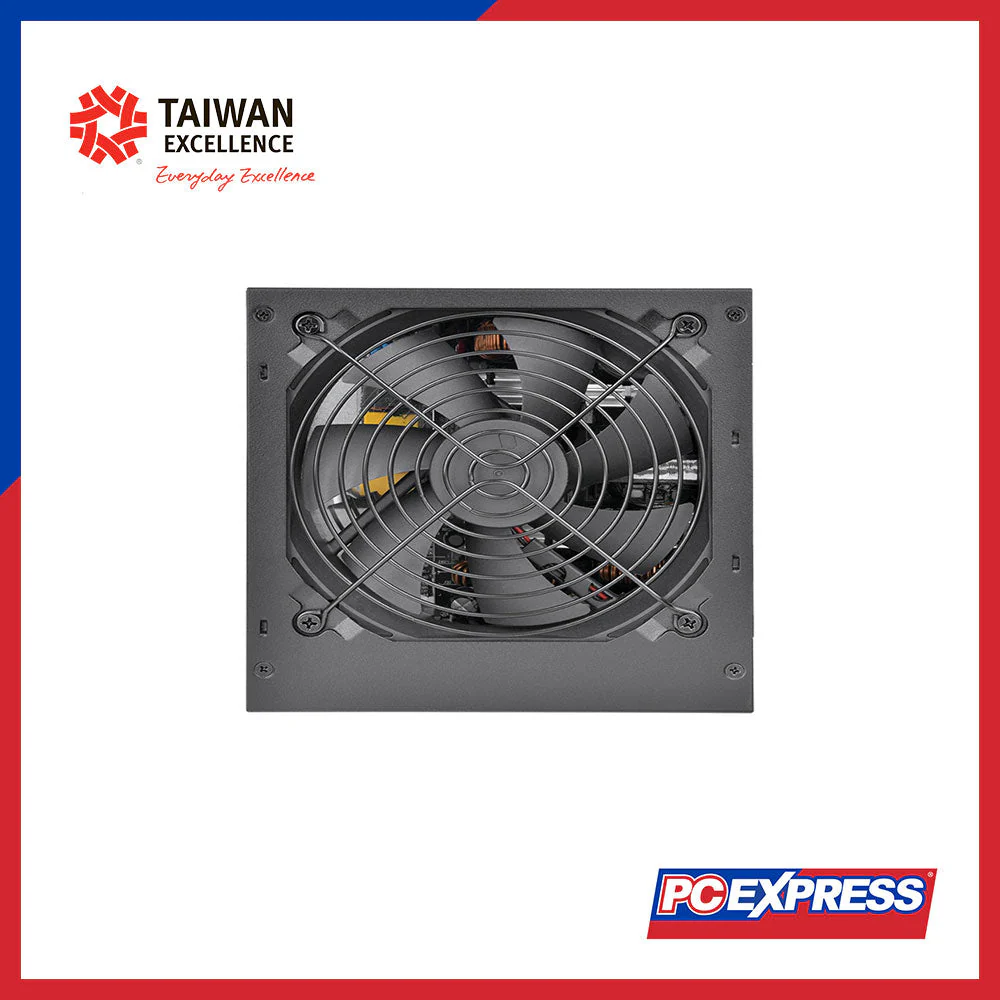

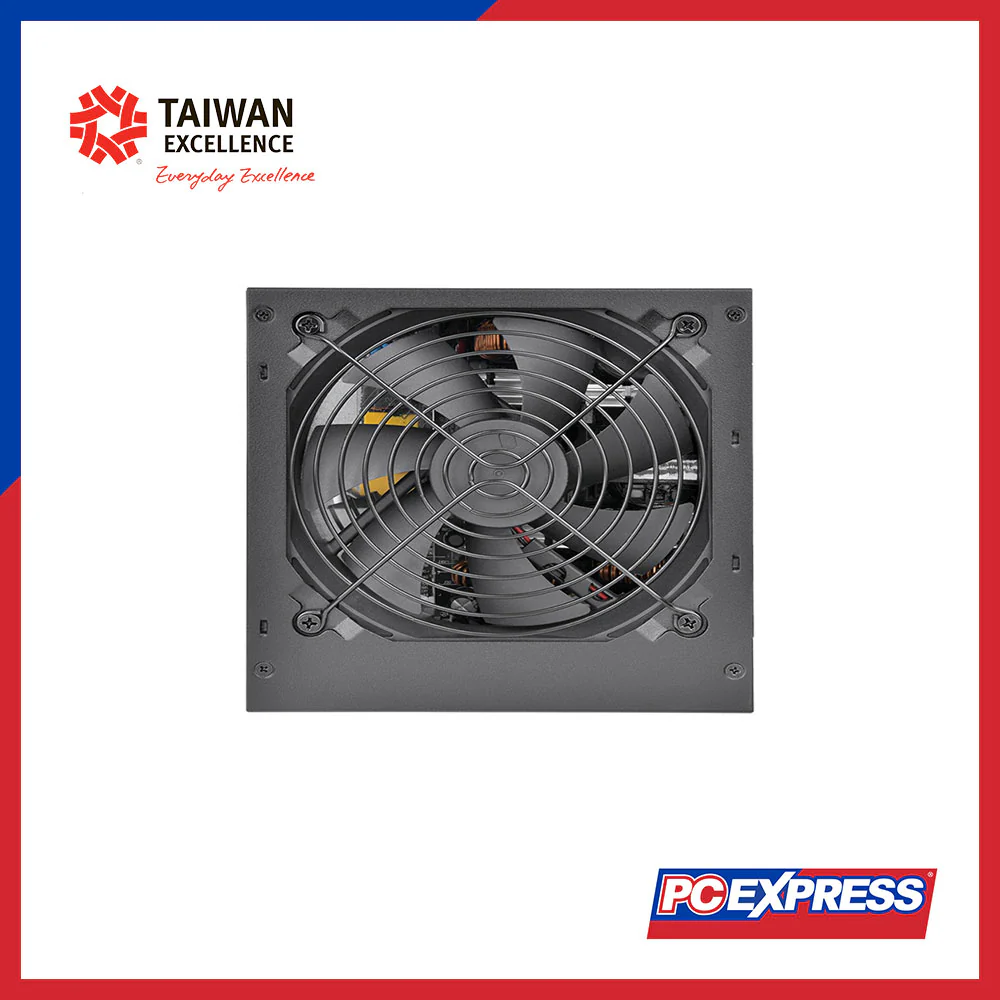

Cooling System

12cm FDB Fan

Dimension

150mm(W) x 86mm(H) x 140mm(D)

Environment

Operating Temperature

+5°C to +30°C

Operating Humidity

20% to 85%, non-condensing

Storage Temperature

-40°C to +55°C

Storage Humidity

10% to 95%, non-condensing

Miscellaneous

Efficiency

Meet 80 PLUS® 230V EU

MTBF

100,000 hrs minimum

Safety Approval

CE/LVD/CB/TUV

PCIe 6+2pin

2

Protections

Voltage Source

+3.3V, +5V, +12V

Over Voltage Protection

+3.3V: 3.764.3V, +5V: 5.747.0V, +12V: 13.4~15.6V

Over Power Protection

120%~160% over peak load

Short Circuit Protection

Short circuit on +5V, +12V, +3.3V, -12V will latch off, +5VSB auto-recovery
