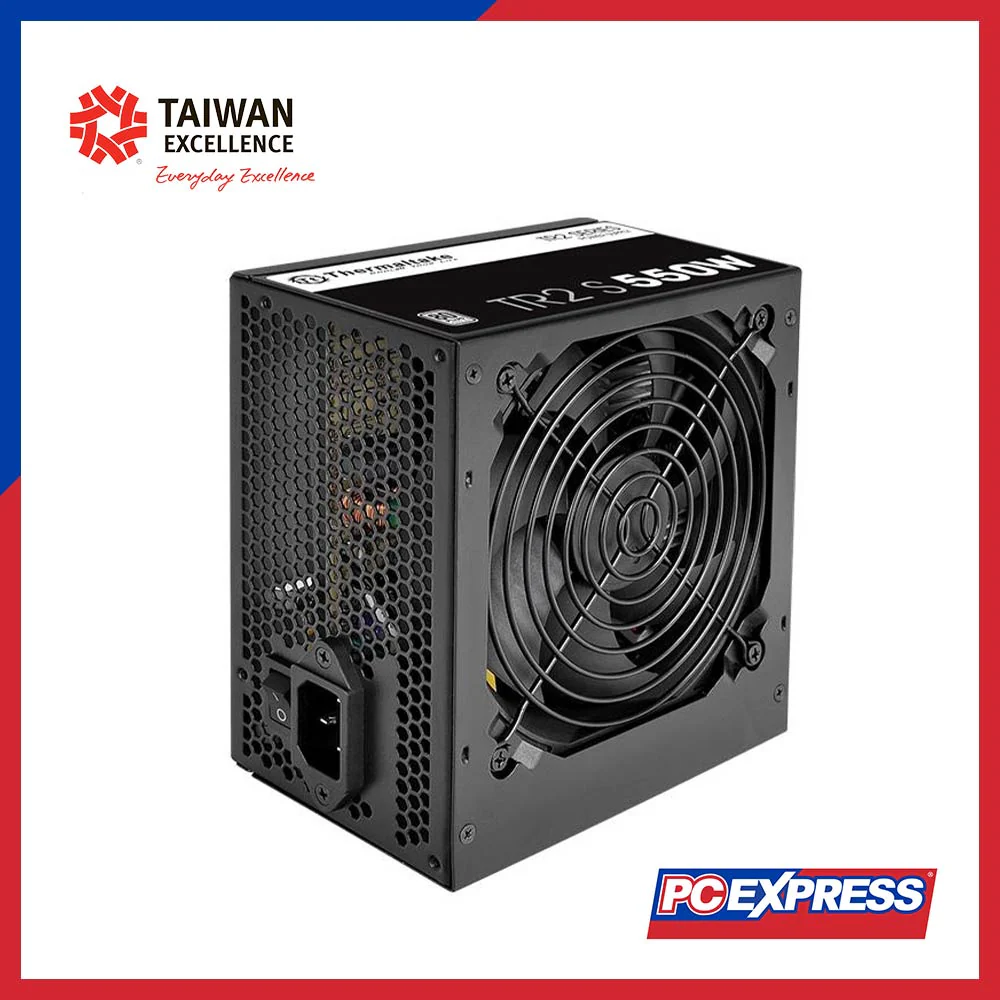

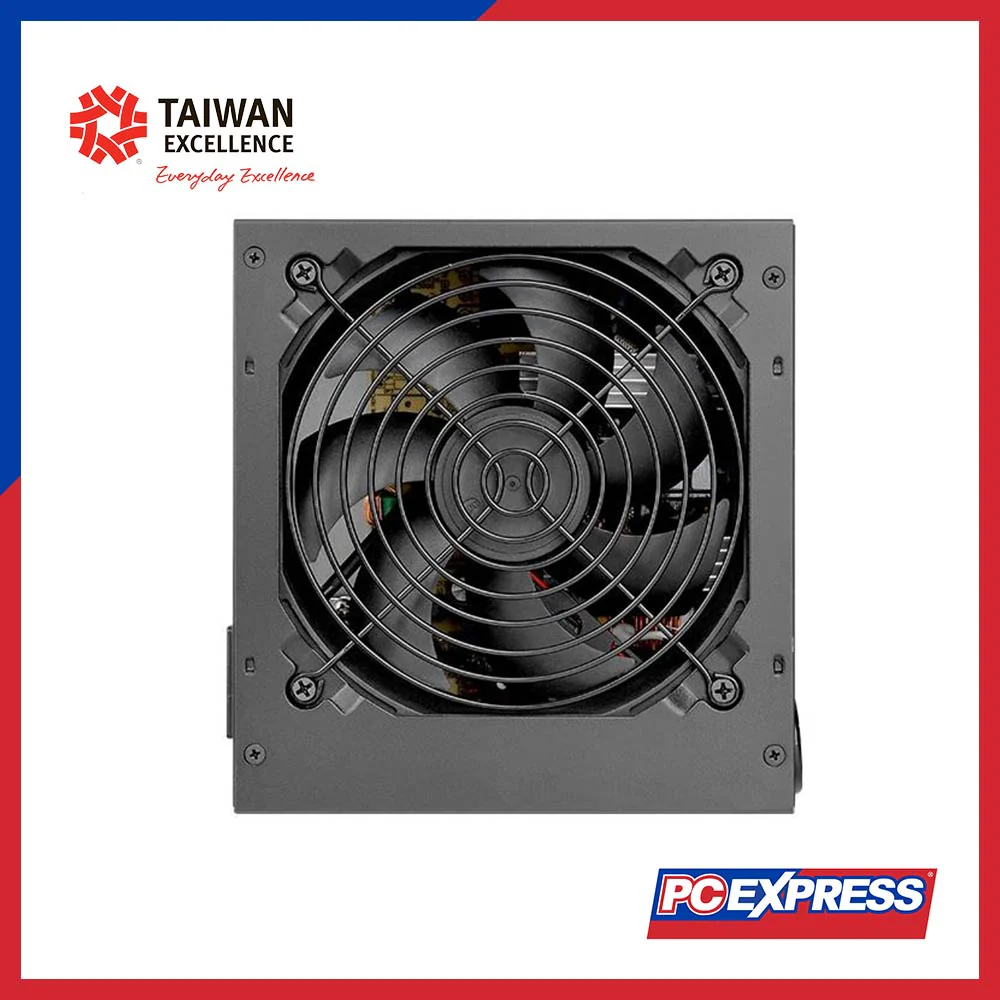

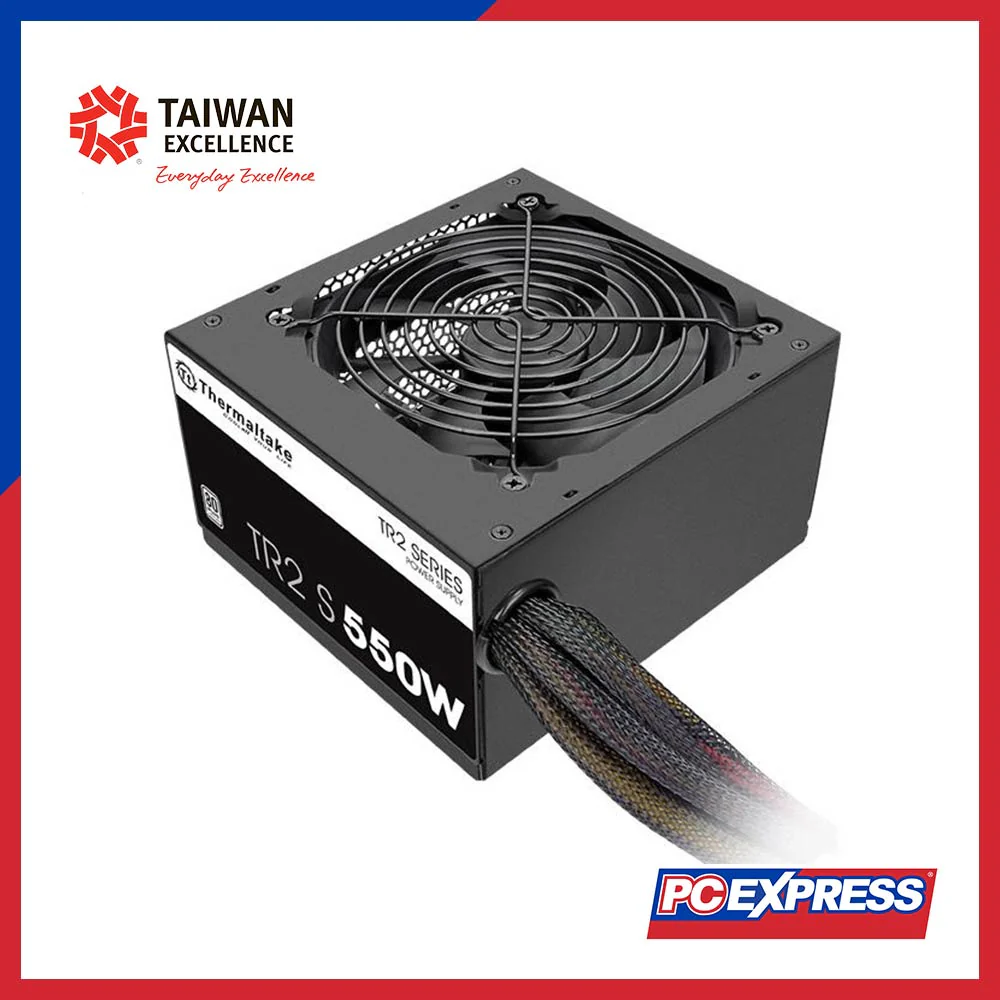

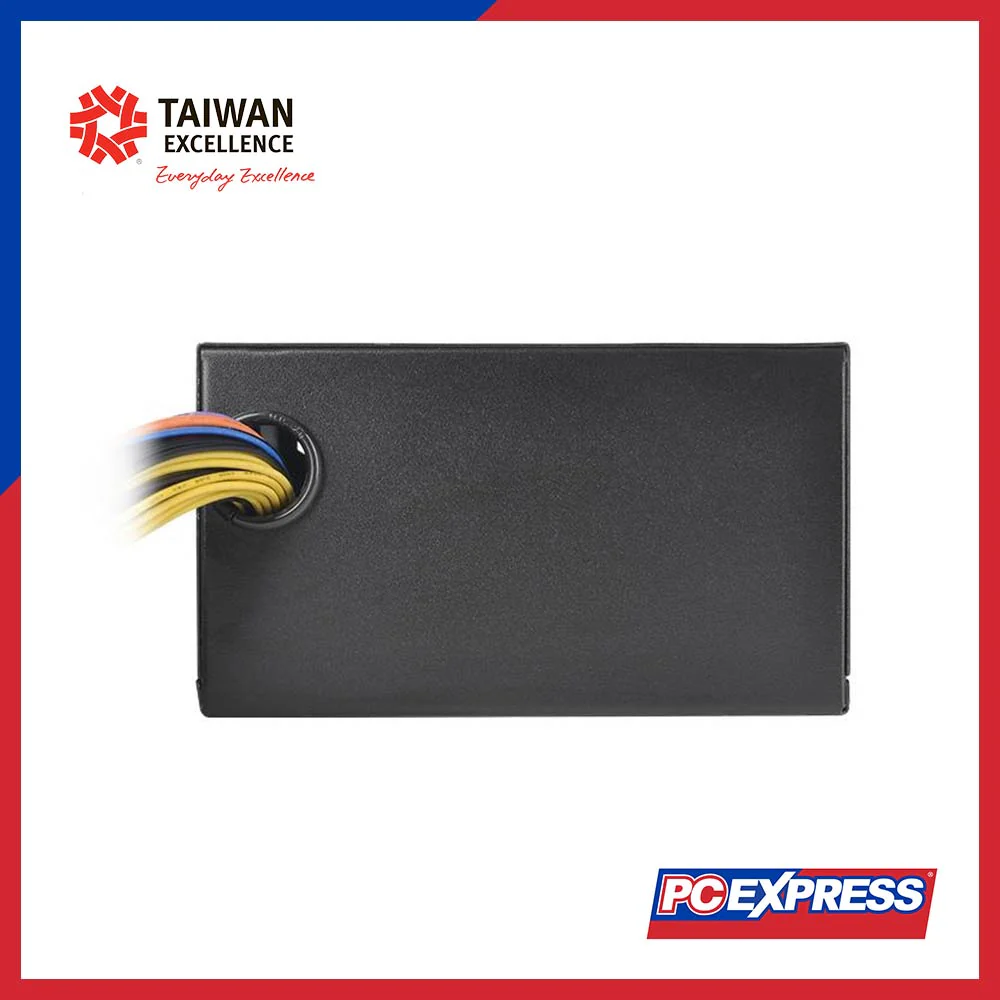

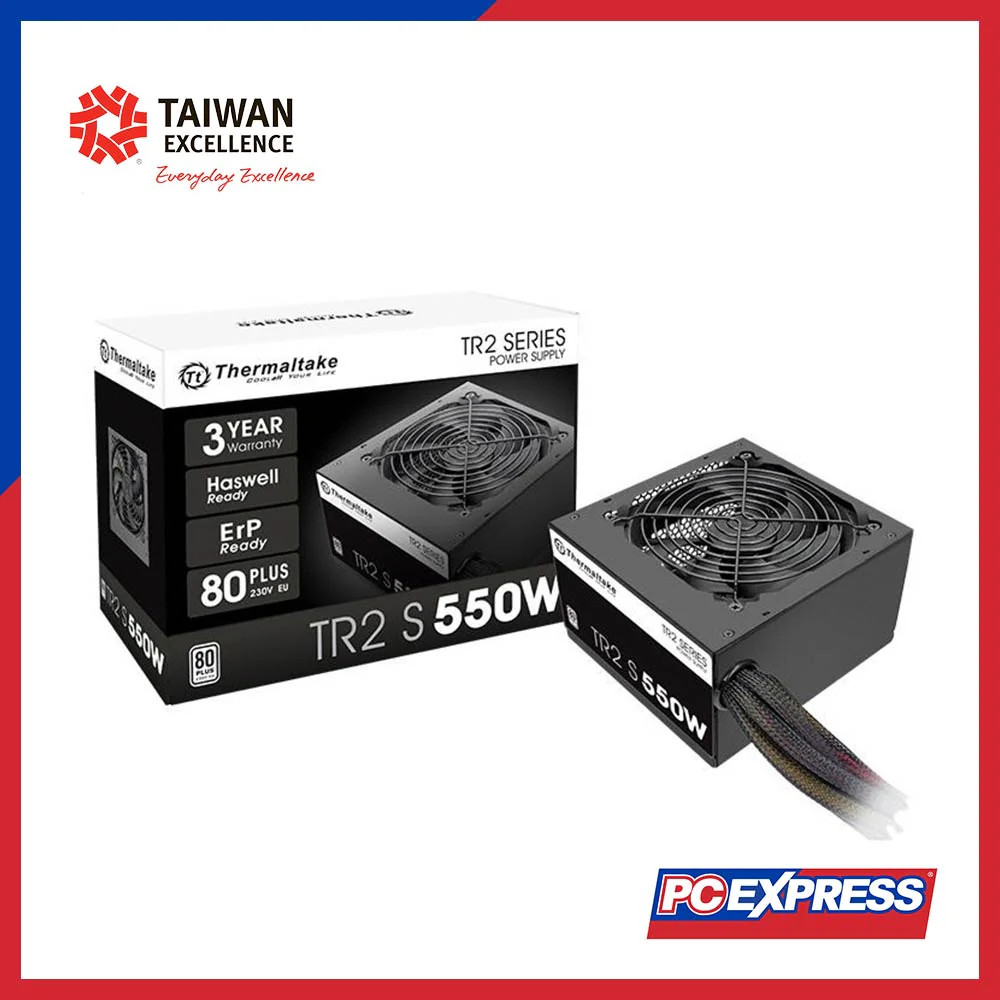

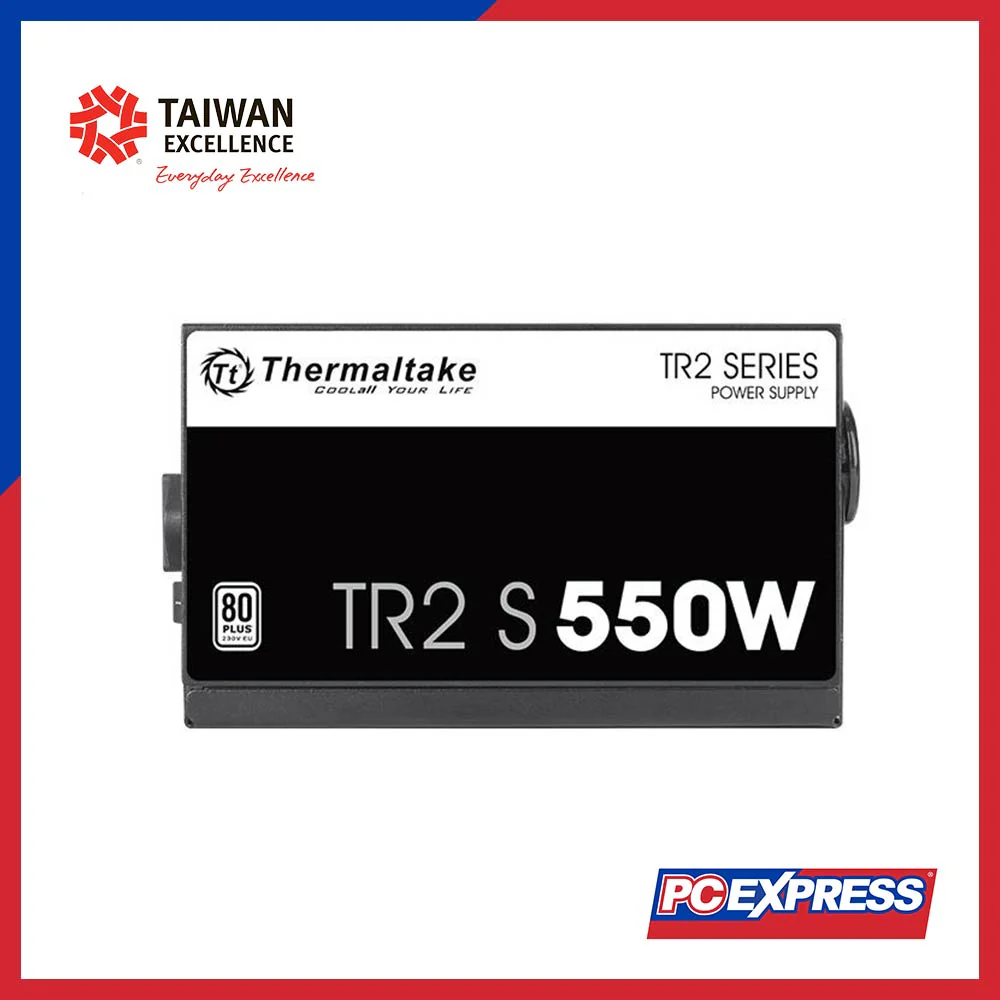

THERMALTAKE TR2 SP 550W 80+ Non-Modular Power Supply
SPECIFICATION
|
P/N |
PS-TRS-0550NNSAWU-P |
|
Watts |
550W |
|
RGB Fan |
No |
|
Form Factor |
ATX |
|
Model |
TRS-550AH2NK |
|
Type |
Intel ATX 12V 2.3 |
|
Max. Output Capacity |
550W |
|
Color |
Black |
|
PFC (Power Factor Correction) |
Active PFC |
|
Power Good Signal |
100–500 msec |
|
Hold Up Time |
16 msec (minimum) within 60% load |
|
Input Current |
7A max |
|
Input Frequency Range |
50 Hz – 60 Hz |
|
Input Voltage |
230 Vac |
|
Operating Temperature |
5℃ to +40℃ |
|
Operating Humidity |
20% to 85%, non-condensing |
|
Storage Temperature |
-40℃ to +55℃ |
|
Storage Humidity |
10% to 95%, non-condensing |
|
Cooling System |
120mm Fan: 1800 R.P.M. ± 10% |
|
Efficiency |
82–86% @ 20–100% load |
|
MTBF |
100,000 hrs minimum |
|
Safety Approval |
CE / CB / TUV |
|
PCI-E 6+2pin |
PCI-E 6+2pin × 2 |
Original: $34.06
-70%$34.06
$10.22More Images
