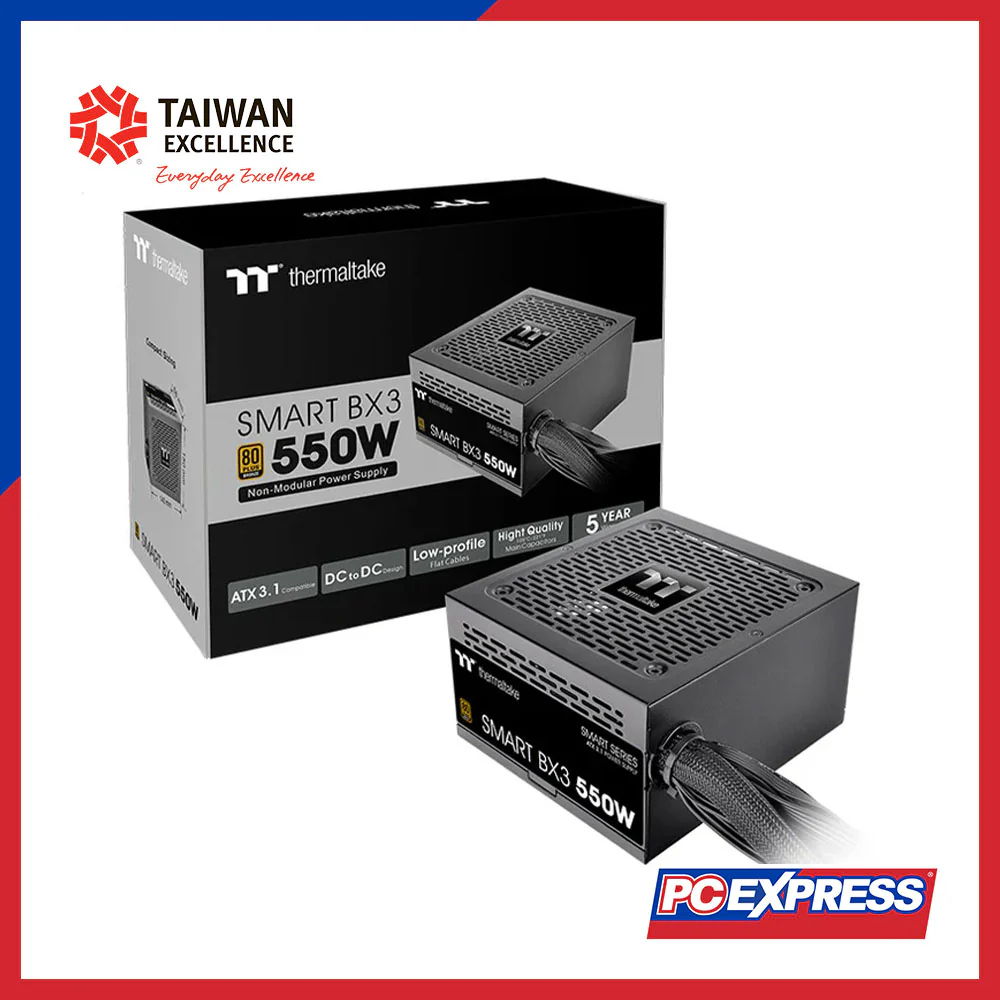

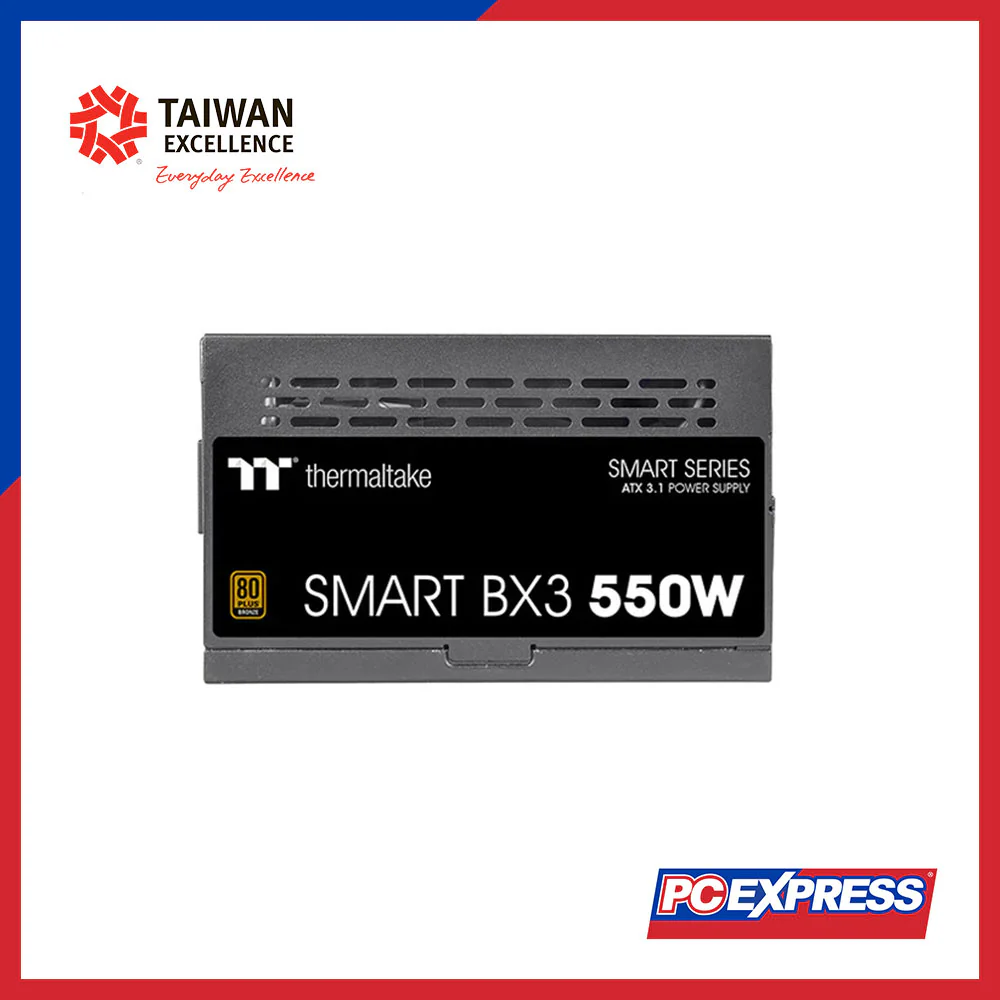

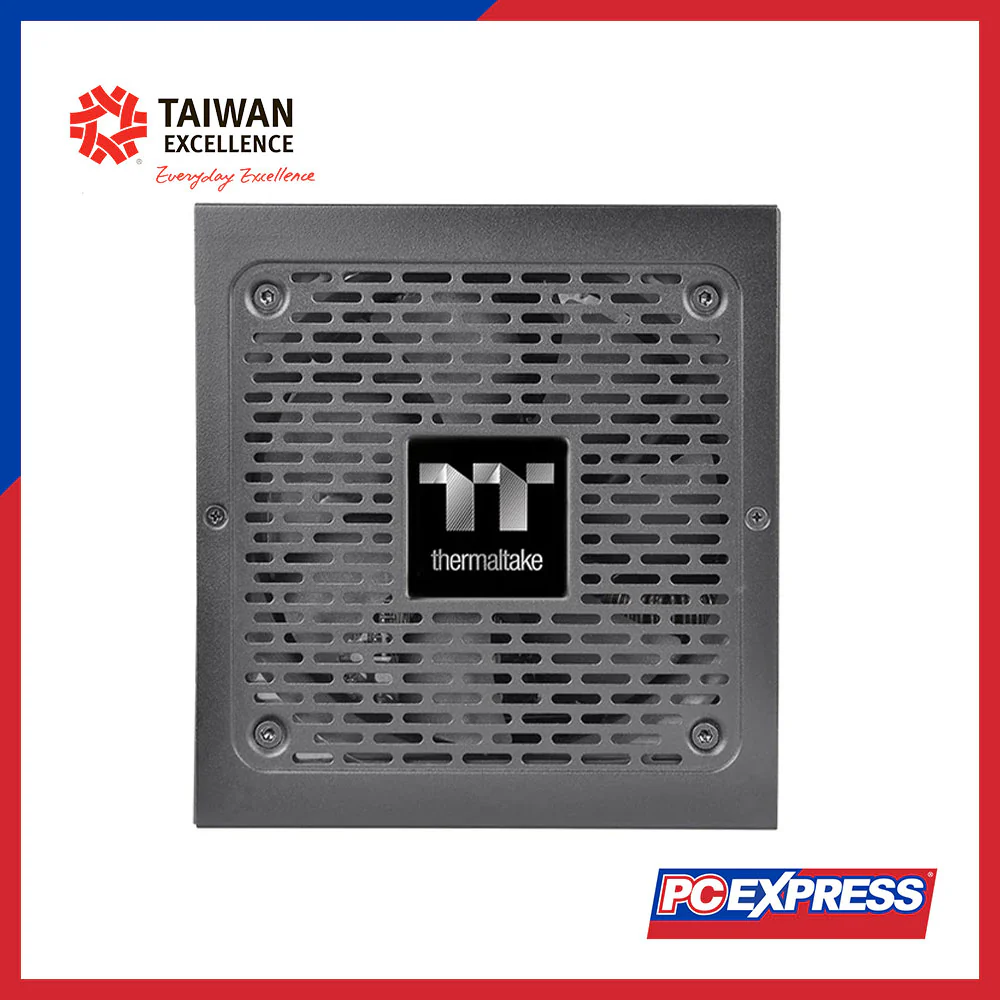

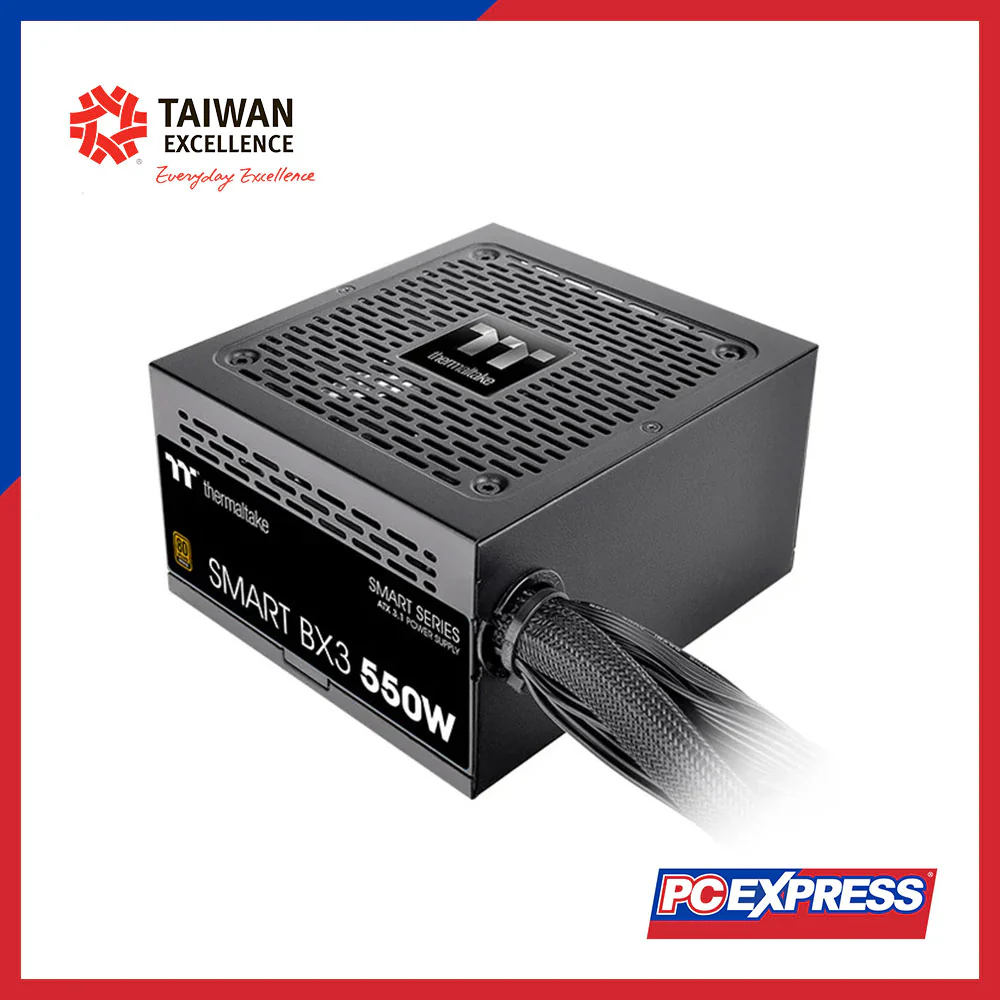

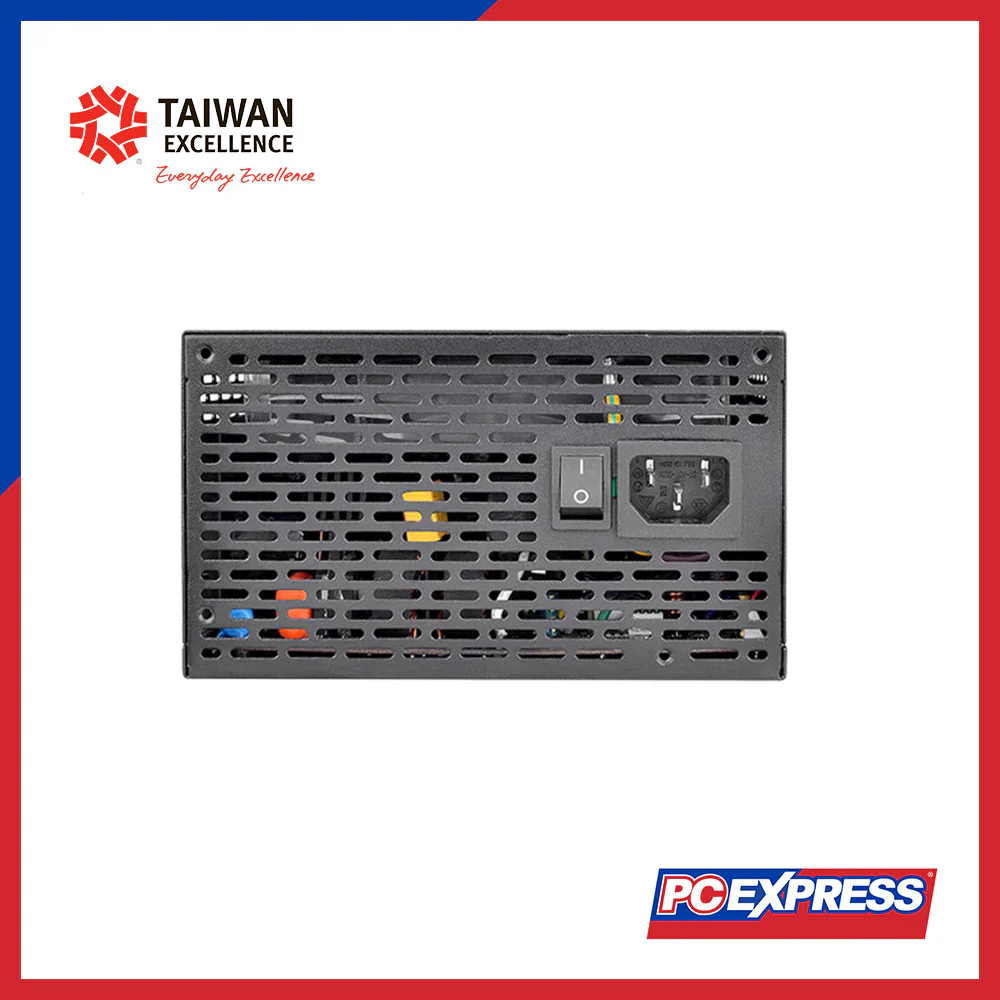

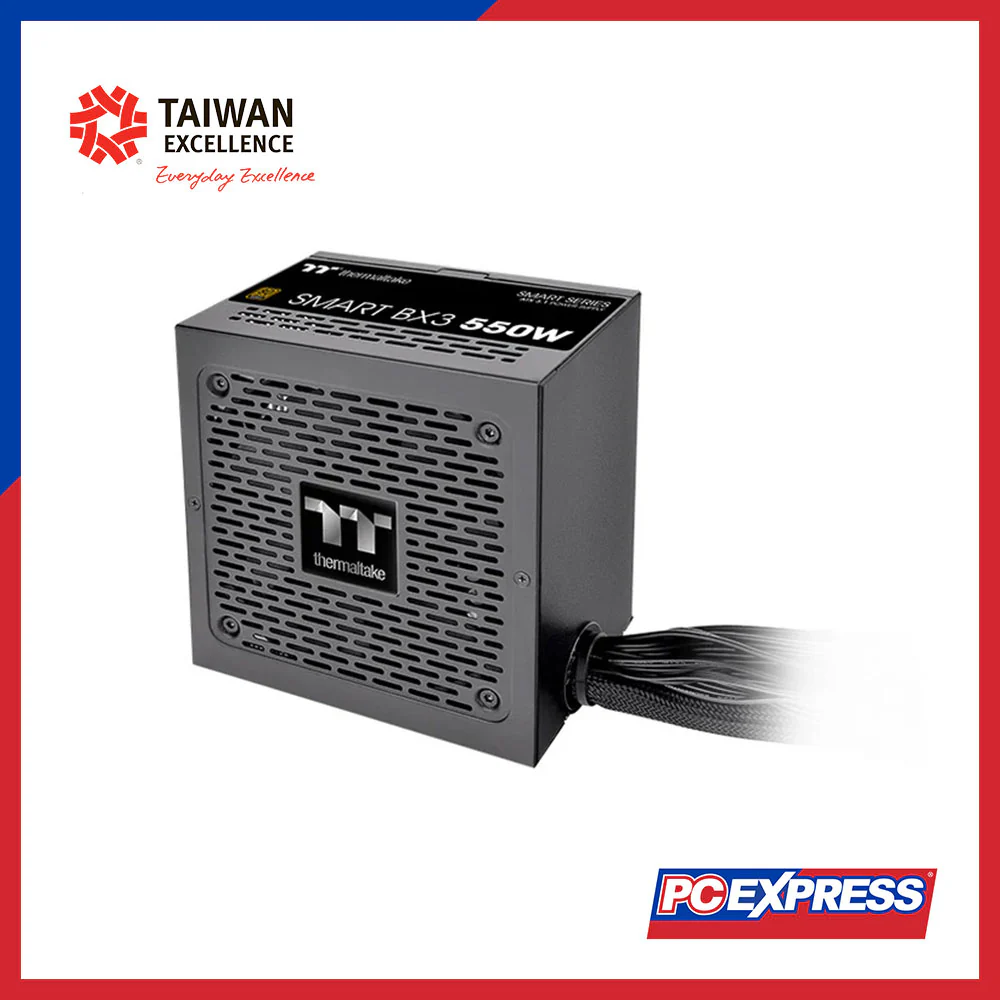

THERMALTAKE Smart BX3 550W 80+ Bronze ATX 3.1 Non-Modular Power Supply
SPECIFICATION
|
P/N |
PS-SPD-0550NNFABU-3 |
|
Model |
SPD-0550AH2NLB-3 |
|
Watts |
550 W |
|
Max Output Capacity |
550 W |
|
Color |
Black |
|
Dimensions (W×H×D) |
150 mm × 86 mm × 140 mm |
|
PFC |
Active PFC |
|
Power Good Signal |
100–150 ms |
|
Hold-Up Time |
>17 ms at 80% load |
|
Input Current |
12 A – 5 A |
|
Input Frequency Range |
50 Hz / 60 Hz |
|
Input Voltage |
100–240 V~ |
|
Operating Temperature |
5 °C to 45 °C |
|
Operating Humidity |
20% to 85% |
|
Storage Temperature |
–40 °C to 55 °C |
|
Storage Humidity |
10% to 95% |
|
Cooling System |
120 mm FDB fan |
|
Efficiency |
Meets 80 PLUS® Bronze at 115 VAC input |
|
MTBF |
100 (typical) |
|
Safety Approvals |
CE / UKCA / LVD / FCC / ICES / TUV / CB / cTUVus / BSMI / CCC |
|
PCI-E 6+2-Pin Connectors |
2 |
|
Protections |
OCP, OVP, UVP, OPP, OTP, SCP |
