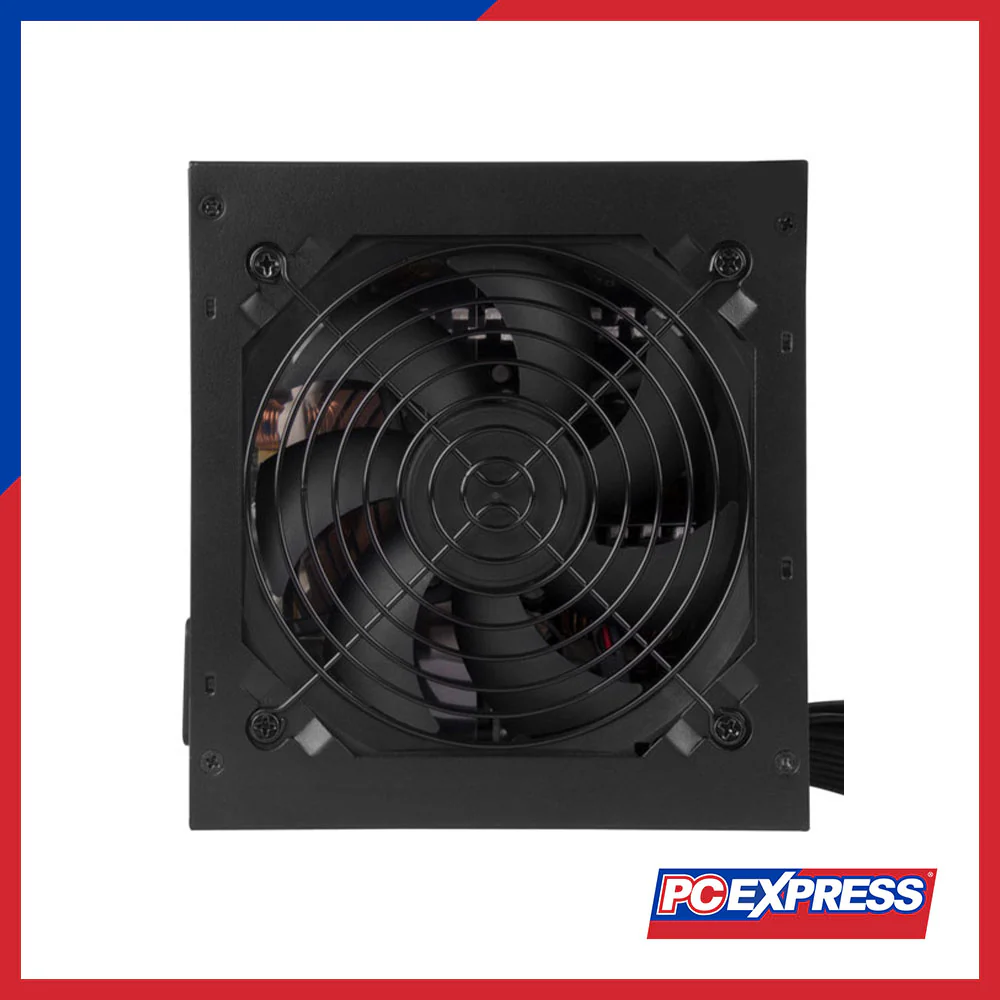

SILVERSTONE VIVA 650W 80+ Bronze Non-Modular True Rated Power Supply
SPECIFICATION
|
Model (safety certification) |
SST-ET650 (80 PLUS Bronze) |
|
Color |
Black (Lead-Free Paint) |
|
Max. DC Output |
650W |
|
Power density |
360W per liter |
|
Load Range |
+3.3V, +5V, +12V, +5VSB, -12V |
|
Max. Amps |
20A, 20A, 54A, 3.0A, 0.3A |
|
Peak Amps |
N/A |
|
Min. Amps |
2.05A, 2.05A, 9.2A, 0.41A, 0.05A |
|
Range (%) |
±5% for +3.3V, +5V; ±5% for +12V; ±5% for +5VSB; ±10% for -12V |
|
Line Reg. (%) |
±1% for all outputs |
|
Ripple (mVp-p) |
50mV for +3.3V, +5V; 120mV for +12V, +5VSB; 120mV for -12V |
|
Combined +3.3V & +5V |
120W |
|
Combined +12V |
648W |
|
Input Voltage |
100 ~ 264 Vrms |
|
Input Frequency Range |
47Hz ~ 63Hz |
|
PFC |
Active PFC (PF > 0.9 at full load) |
|
Efficiency |
82% ~ 85% (at 20% ~ 100% loading) |
|
MTBF |
100,000 hours |
|
Operating temperature |
0°C ~ 40°C |
|
Protection |
Over power protection, Over voltage protection, Short circuit protection |
|
Connectors |
See detailed list in the description |
|
Cooling System |
Single 120mm silent fan |
|
Noise Level |
18dBA minimum |
|
Form factor |
ATX (PS2) |
|
Dimension |
150mm (W) x 86mm (H) x 140mm (D) |
|
Weight |
1.52 Kg |
|
Other |
GPU Support list, Compatible with ATX12V v2.4 |
Original: $53.52
-70%$53.52
$16.06More Images
SILVERSTONE VIVA 650W 80+ Bronze Non-Modular True Rated Power Supply
SPECIFICATION
|
Model (safety certification) |
SST-ET650 (80 PLUS Bronze) |
|
Color |
Black (Lead-Free Paint) |
|
Max. DC Output |
650W |
|
Power density |
360W per liter |
|
Load Range |
+3.3V, +5V, +12V, +5VSB, -12V |
|
Max. Amps |
20A, 20A, 54A, 3.0A, 0.3A |
|
Peak Amps |
N/A |
|
Min. Amps |
2.05A, 2.05A, 9.2A, 0.41A, 0.05A |
|
Range (%) |
±5% for +3.3V, +5V; ±5% for +12V; ±5% for +5VSB; ±10% for -12V |
|
Line Reg. (%) |
±1% for all outputs |
|
Ripple (mVp-p) |
50mV for +3.3V, +5V; 120mV for +12V, +5VSB; 120mV for -12V |
|
Combined +3.3V & +5V |
120W |
|
Combined +12V |
648W |
|
Input Voltage |
100 ~ 264 Vrms |
|
Input Frequency Range |
47Hz ~ 63Hz |
|
PFC |
Active PFC (PF > 0.9 at full load) |
|
Efficiency |
82% ~ 85% (at 20% ~ 100% loading) |
|
MTBF |
100,000 hours |
|
Operating temperature |
0°C ~ 40°C |
|
Protection |
Over power protection, Over voltage protection, Short circuit protection |
|
Connectors |
See detailed list in the description |
|
Cooling System |
Single 120mm silent fan |
|
Noise Level |
18dBA minimum |
|
Form factor |
ATX (PS2) |
|
Dimension |
150mm (W) x 86mm (H) x 140mm (D) |
|
Weight |
1.52 Kg |
|
Other |
GPU Support list, Compatible with ATX12V v2.4 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPECIFICATION
|
Model (safety certification) |
SST-ET650 (80 PLUS Bronze) |
|
Color |
Black (Lead-Free Paint) |
|
Max. DC Output |
650W |
|
Power density |
360W per liter |
|
Load Range |
+3.3V, +5V, +12V, +5VSB, -12V |
|
Max. Amps |
20A, 20A, 54A, 3.0A, 0.3A |
|
Peak Amps |
N/A |
|
Min. Amps |
2.05A, 2.05A, 9.2A, 0.41A, 0.05A |
|
Range (%) |
±5% for +3.3V, +5V; ±5% for +12V; ±5% for +5VSB; ±10% for -12V |
|
Line Reg. (%) |
±1% for all outputs |
|
Ripple (mVp-p) |
50mV for +3.3V, +5V; 120mV for +12V, +5VSB; 120mV for -12V |
|
Combined +3.3V & +5V |
120W |
|
Combined +12V |
648W |
|
Input Voltage |
100 ~ 264 Vrms |
|
Input Frequency Range |
47Hz ~ 63Hz |
|
PFC |
Active PFC (PF > 0.9 at full load) |
|
Efficiency |
82% ~ 85% (at 20% ~ 100% loading) |
|
MTBF |
100,000 hours |
|
Operating temperature |
0°C ~ 40°C |
|
Protection |
Over power protection, Over voltage protection, Short circuit protection |
|
Connectors |
See detailed list in the description |
|
Cooling System |
Single 120mm silent fan |
|
Noise Level |
18dBA minimum |
|
Form factor |
ATX (PS2) |
|
Dimension |
150mm (W) x 86mm (H) x 140mm (D) |
|
Weight |
1.52 Kg |
|
Other |
GPU Support list, Compatible with ATX12V v2.4 |
