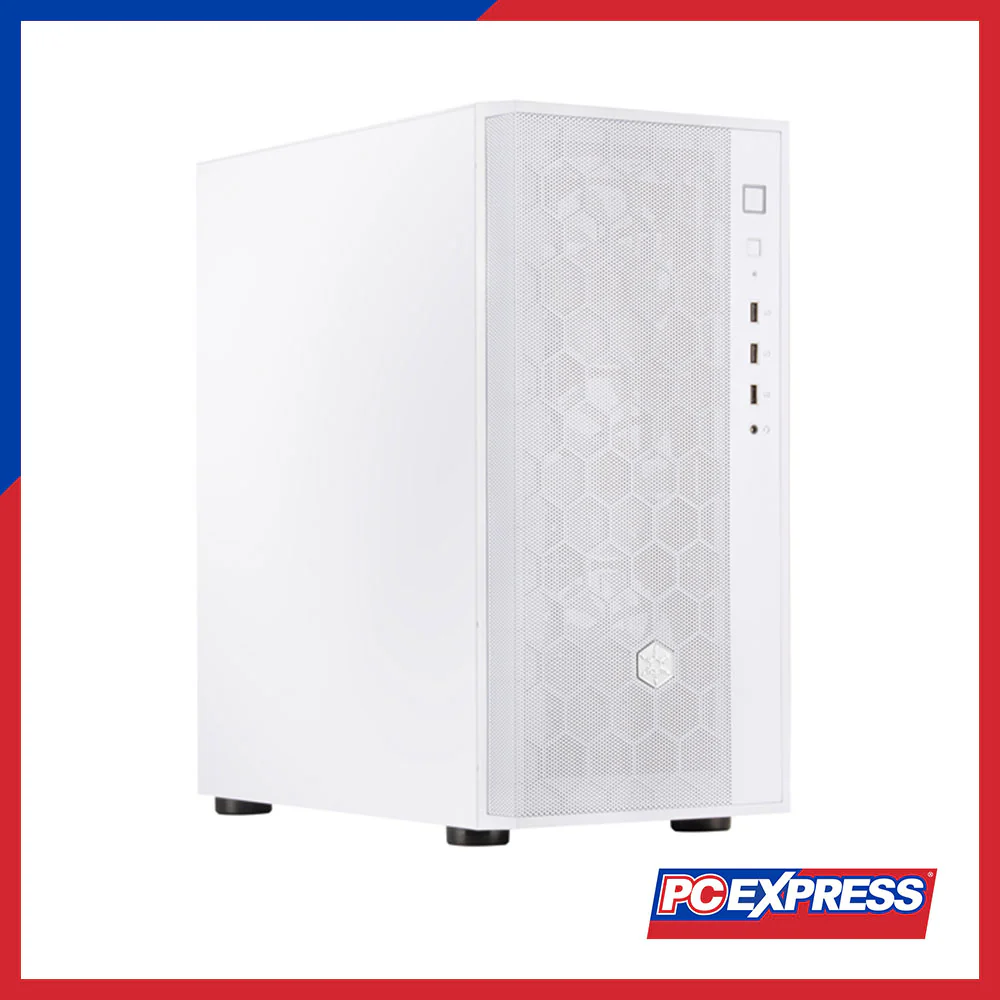

SILVERSTONE FARA R1 V2 TG Mesh Front Mid-Tower ATX Chassis (White)
SPECIFICATION
|
Model No. |
SST-FAR1W-G-V2 (White, tempered glass) |
SST-FAR1W-V2 (White, steel panel) |
SST-FAR1B-G-V2 (Black, tempered glass) |
SST-FAR1B-V2 (Black, steel panel) |
|
Material |
Steel, plastic, tempered glass |
Steel, plastic |
Steel, plastic, tempered glass |
Steel, plastic |
|
Motherboard |
ATX, Micro-ATX, Mini-ITX |
ATX, Micro-ATX, Mini-ITX |
ATX, Micro-ATX, Mini-ITX |
ATX, Micro-ATX, Mini-ITX |
|
Drive Bay |
Internal |
Internal |
Internal |
Internal |
|
3.5" Drive Bay |
2 (compatible with 2.5" x 1) |
2 (compatible with 2.5" x 1) |
2 (compatible with 2.5" x 1) |
2 (compatible with 2.5" x 1) |
|
2.5" Drive Bay |
2 |
2 |
2 |
2 |
|
Cooling System |
Front: 120mm x 3 / 140mm x 2 |
Front: 120mm x 3 / 140mm x 2 |
Front: 120mm x 3 / 140mm x 2 |
Front: 120mm x 3 / 140mm x 2 |
|
Rear: 120mm x 1 (included) |
Rear: 120mm x 1 (included) |
Rear: 120mm x 1 (included) |
Rear: 120mm x 1 (included) |
Rear: 120mm x 1 (included) |
|
Top: 120mm x 2, 140mm x 2 |
Top: 120mm x 2, 140mm x 2 |
Top: 120mm x 2, 140mm x 2 |
Top: 120mm x 2, 140mm x 2 |
Top: 120mm x 2, 140mm x 2 |
|
Radiator Support |
Front: 120mm / 140mm / 240mm / 280mm / 360mm* |
Front: 120mm / 140mm / 240mm / 280mm / 360mm* |
Front: 120mm / 140mm / 240mm / 280mm / 360mm* |
Front: 120mm / 140mm / 240mm / 280mm / 360mm* |
|
Rear: 120mm |
Rear: 120mm |
Rear: 120mm |
Rear: 120mm |
Rear: 120mm |
|
Top: 120mm / 240mm** |
Top: 120mm / 240mm** |
Top: 120mm / 240mm** |
Top: 120mm / 240mm** |
Top: 120mm / 240mm** |
|
Limitation of CPU Cooler |
161mm |
161mm |
161mm |
161mm |
|
Expansion Slot |
7+2 |
7+2 |
7+2 |
7+2 |
|
Limitation of Expansion Card |
Length: 340mm (with 25mm front fan installed) |
Length: 340mm (with 25mm front fan installed) |
Length: 340mm (with 25mm front fan installed) |
Length: 340mm (with 25mm front fan installed) |
|
Width: 167mm |
Width: 167mm |
Width: 167mm |
Width: 167mm |
|
|
Power Supply |
Standard PS2 (ATX) |
Standard PS2 (ATX) |
Standard PS2 (ATX) |
Standard PS2 (ATX) |
|
Limitation of PSU |
200mm (3.5" drive cage installed at the front) |
200mm (3.5" drive cage installed at the front) |
200mm (3.5" drive cage installed at the front) |
200mm (3.5" drive cage installed at the front) |
|
171mm (3.5" drive cage installed at the back) |
171mm (3.5" drive cage installed at the back) |
171mm (3.5" drive cage installed at the back) |
171mm (3.5" drive cage installed at the back) |
|
|
Front I/O Port |
USB 3.0 x 2, USB 2.0 x 1, Combo audio x 1 |
USB 3.0 x 2, USB 2.0 x 1, Combo audio x 1 |
USB 3.0 x 2, USB 2.0 x 1, Combo audio x 1 |
USB 3.0 x 2, USB 2.0 x 1, Combo audio x 1 |
|
Dimension |
210mm (W) x 455mm (H) x 420mm (D), 40.1 Liters |
210mm (W) x 455mm (H) x 420mm (D), 40.1 Liters |
210mm (W) x 455mm (H) x 420mm (D), 40.1 Liters |
210mm (W) x 455mm (H) x 420mm (D), 40.1 Liters |
|
Net Weight |
6.18 kg |
6.18 kg |
6.18 kg |
6.18 kg |
