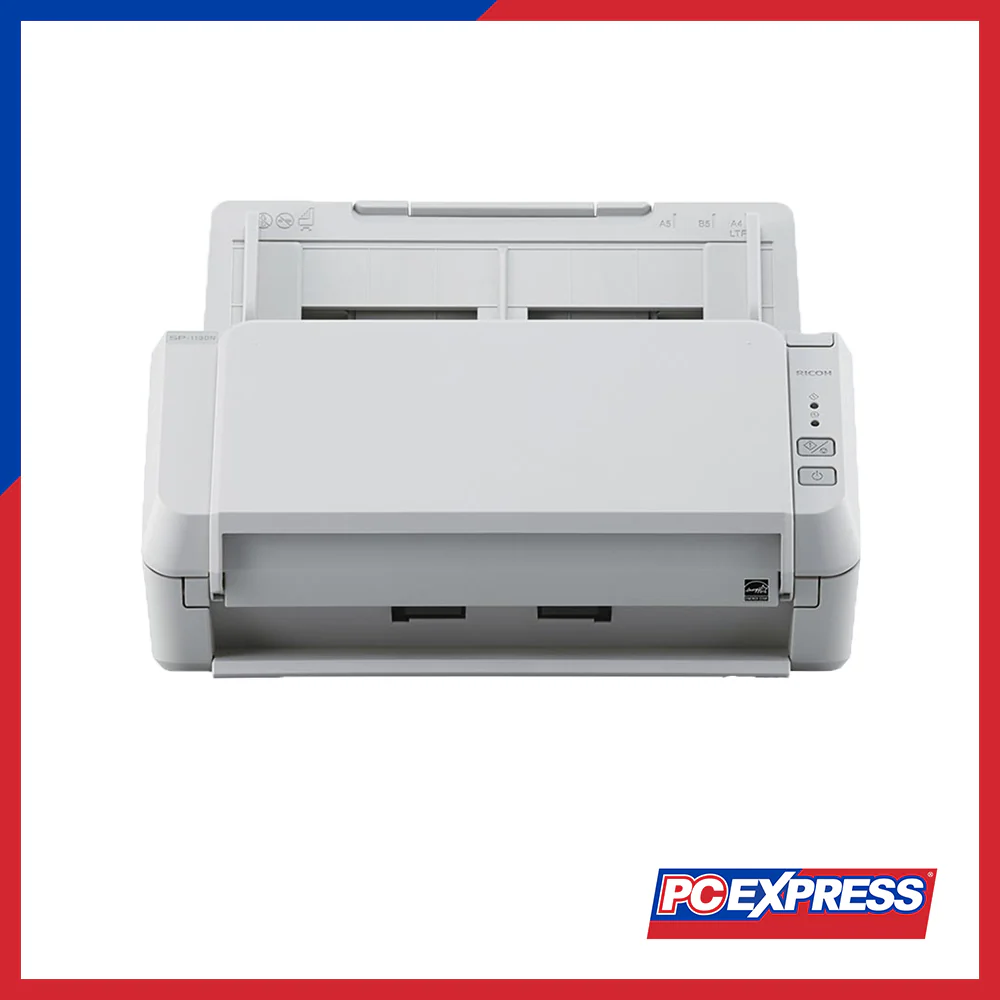

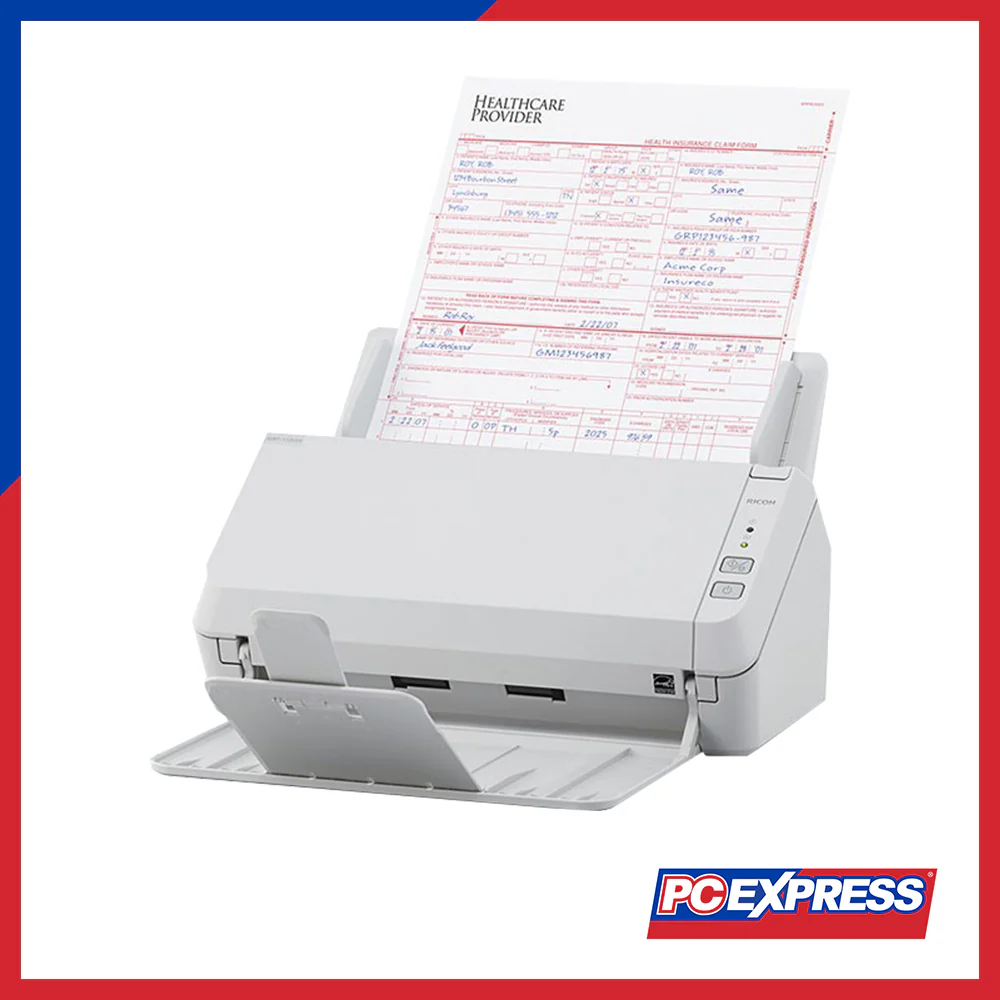

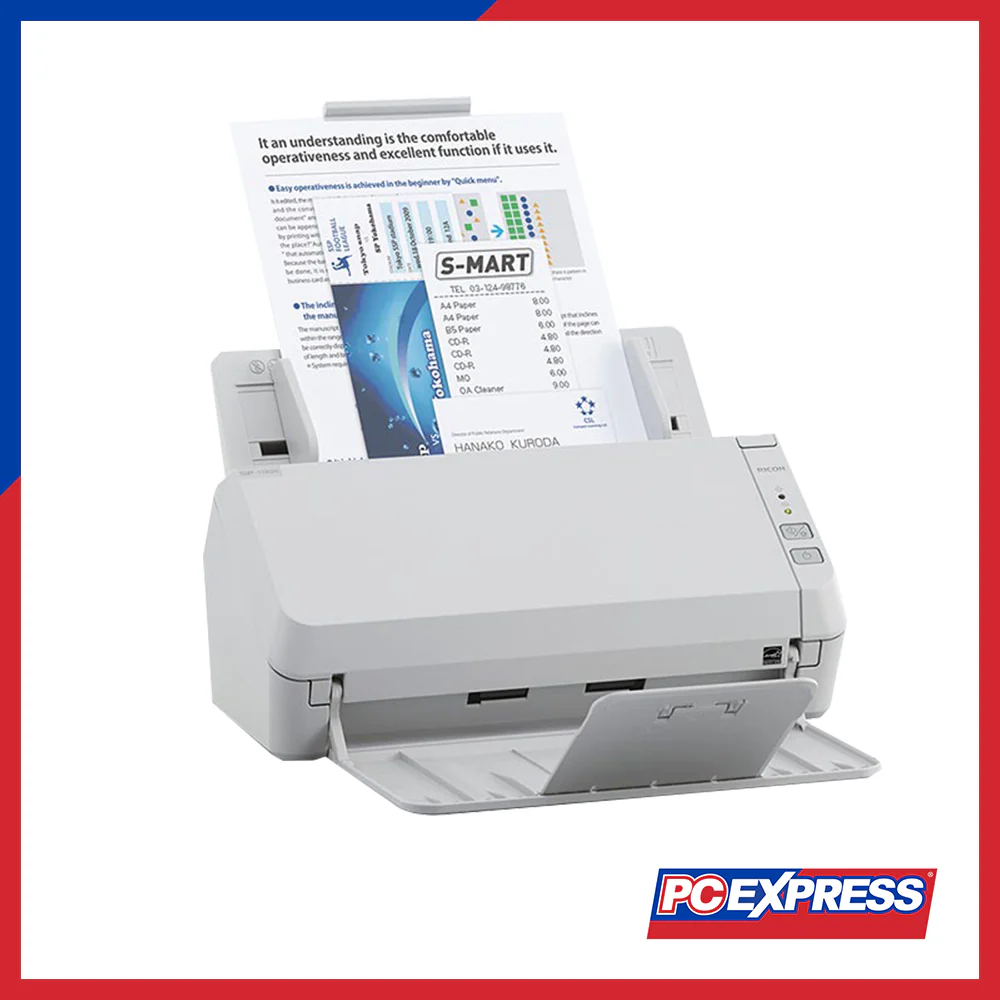

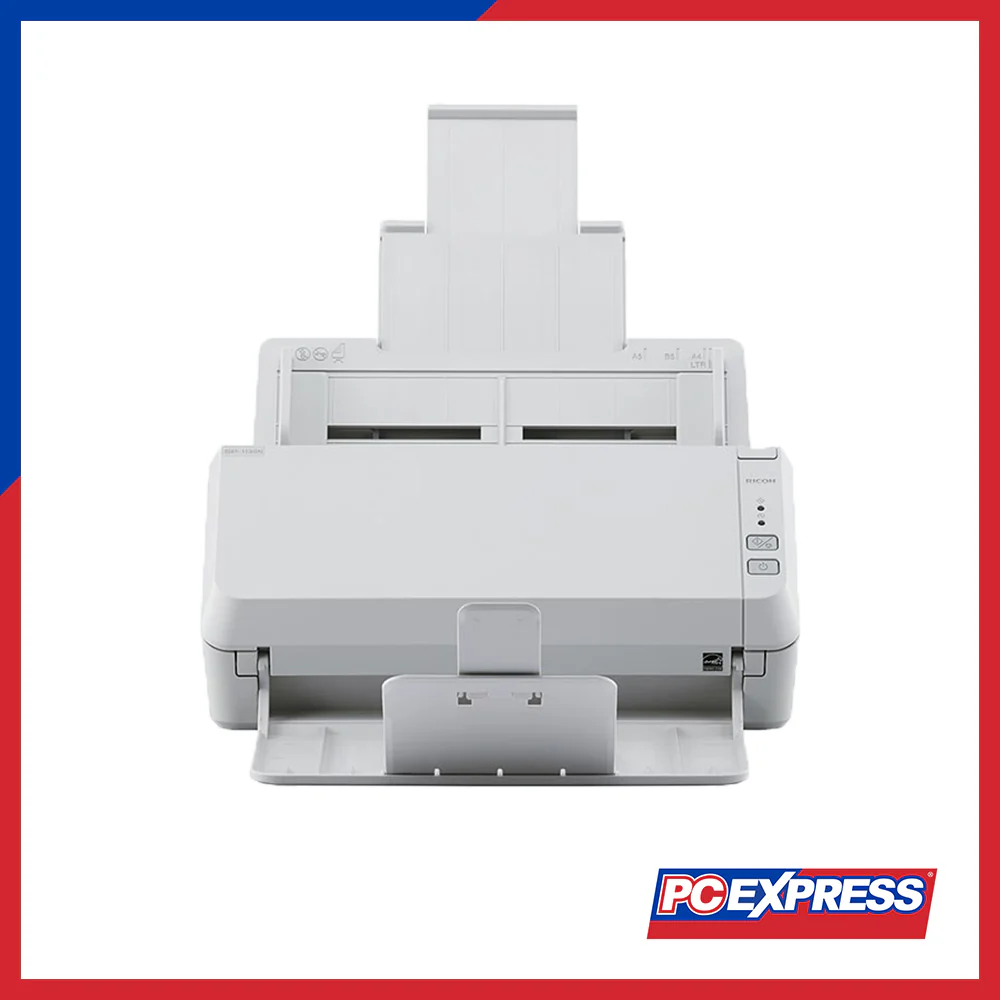

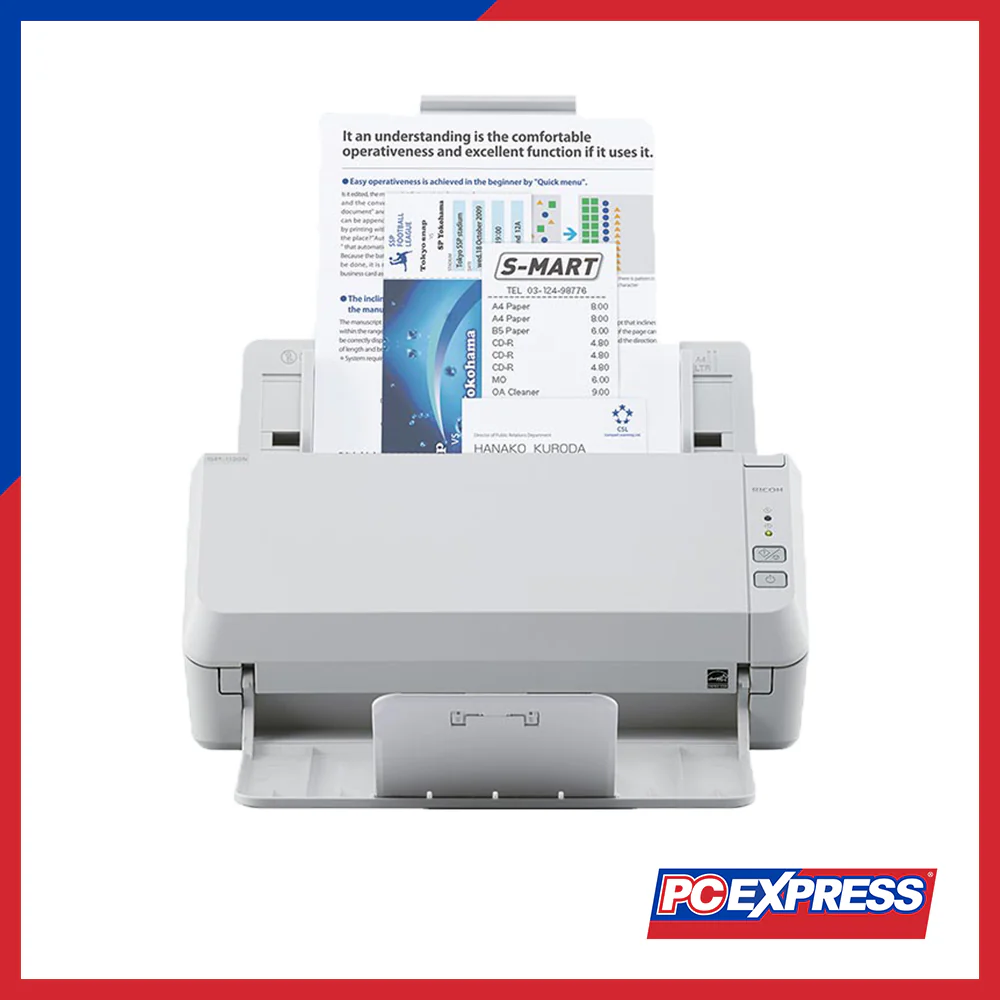

RICOH SP1130N Paperstream Capture Scanner
SPECIFICATION
|
Scanner Type |
ADF (Automatic Document Feeder), Duplex |
|
Scanning Speed (A4 Portrait) |
Simplex: 30 ppm (200/300 dpi); Duplex: 60 ipm (200/300 dpi) |
|
Image Sensor Type |
Single line CMOS-CIS ×2 (front ×1, back ×1) |
|
Light Source |
RGB LED ×2 (front ×1, back ×1) |
|
Optical Resolution |
600 dpi |
|
Output Resolution |
50–600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) |
|
Output Format |
Color: 24-bit; Grayscale: 8-bit; Monochrome: 1-bit |
|
Background Colors |
White |
|
Document Size (Maximum) |
216 × 355.6 mm (8.5 × 14 in.) |
|
Document Size (Minimum) |
52 × 74 mm (2.0 × 2.9 in.) |
|
Long Page Scanning |
Up to 3,048 mm (120 in.) |
|
Paper Weight (Paper) |
50 to 209 g/m² (13.4 to 56 lb) |
|
Paper Weight (Plastic Card) |
Up to 0.76 mm (0.0299 in.) |
|
ADF Capacity |
50 sheets (A4 80 g/m² or Letter 20 lb) |
|
Expected Daily Volume |
4,500 sheets |
|
Multifeed Detection |
Overlap detection (Ultrasonic sensor) |
|
Interface (USB) |
USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
|
Interface (Ethernet) |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Power Requirements |
AC 100 to 240 V ±10% |
|
Power Consumption (Operating Mode) |
18 W or less |
|
Power Consumption (Power Saving Mode) |
2 W or less |
|
Power Consumption (Auto Standby) |
0.3 W or less |
|
Operating Temperature |
5 to 35 °C (41 to 95 °F) |
|
Operating Humidity |
20 to 80% (non-condensing) |
|
Environmental Compliance |
ENERGY STAR, RoHS |
|
Dimensions (W × D × H) |
298 × 135 × 133 mm (11.7 × 5.3 × 5.2 in.) |
|
Weight |
2.5 kg (5.5 lb) |
|
Supported Operating System |
Windows 11, Windows 10, Windows Server 2025/2022/2019/2016, macOS, Linux (Ubuntu) |
|
Software / Drivers |
PaperStream IP (TWAIN/TWAIN x64/ISIS), WIA Driver, macOS ICA Driver, Linux SANE Driver, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, ABBYY FineReader (ScanSnap/Sprint), PaperStream Central Admin, Network Setup Tool, SP Series Online Update |
|
Image Processing Functions |
Multi image output; Automatic color/page size detection; Blank page detection; Dynamic threshold (iDTC), Advanced DTC, SDTC; Error diffusion; Dither; De-screen; Emphasis; Dropout color; sRGB output; Split image; De-skew; Edge filler; Vertical streak reduction; Digital endorser; Background removal; Character processing (thickness, augmentation, extraction) |
|
Included Items |
AC adapter, USB cable, Setup DVD-ROM |
