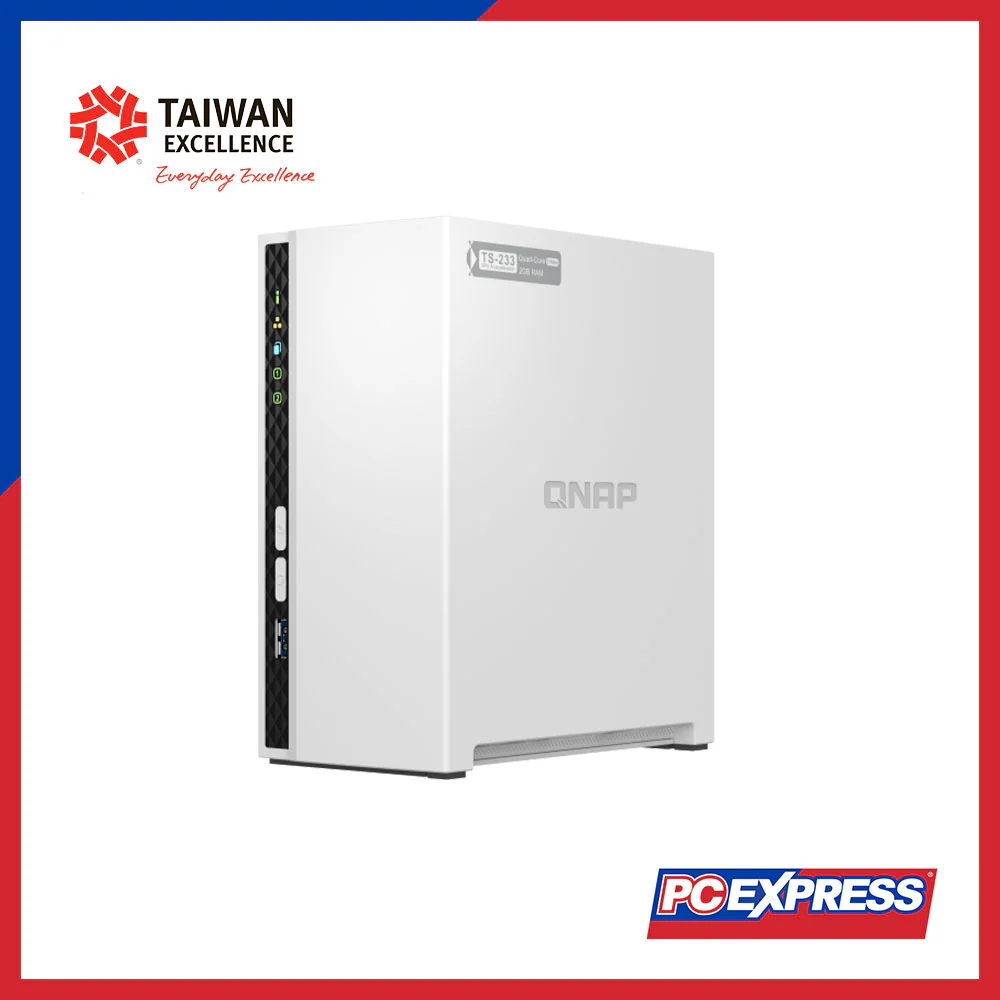

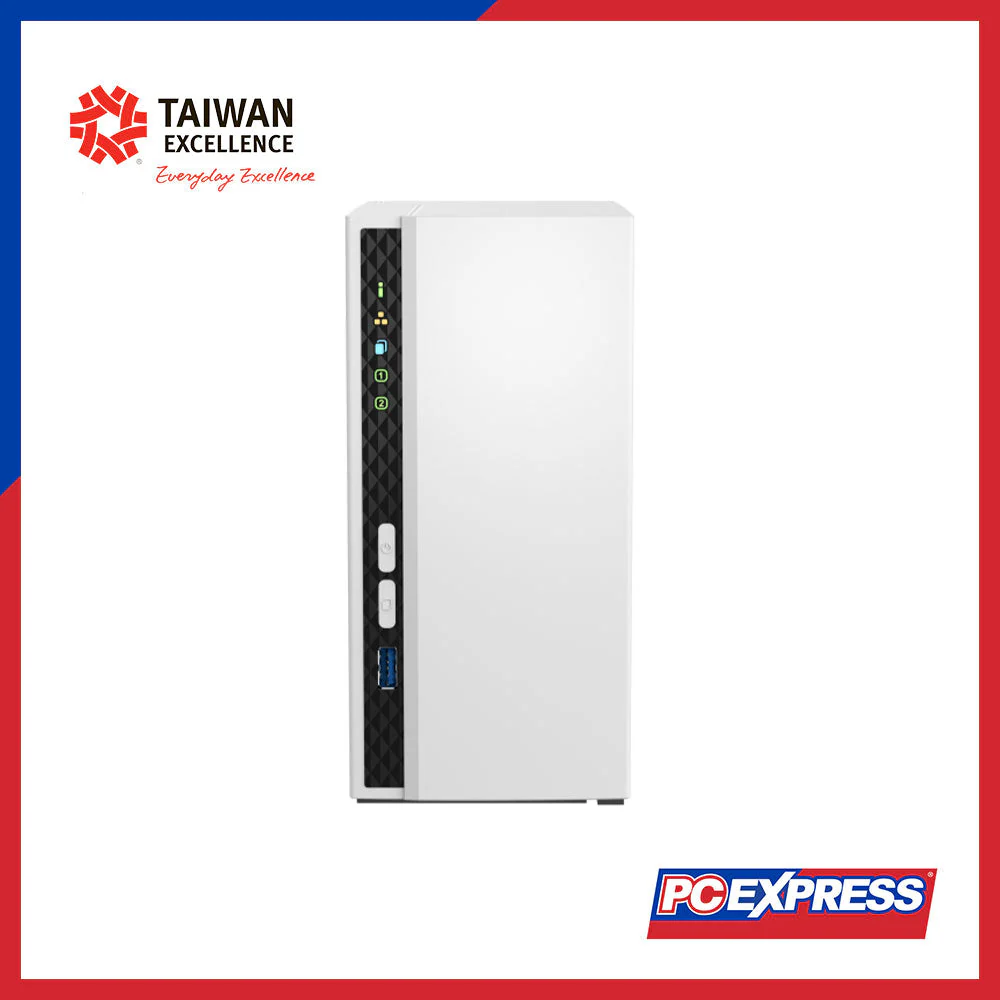

QNAP TS-233 2-BAY 2.0GHZ Arm 4-Core Cortex NAS Server

CPU

ARM 4-core Cortex-A55 2.0GHz processor

CPU Architecture

64-bit ARM

Graphics Processor

Mali-G52

System Memory

2 GB on board (non-expandable)

Maximum Memory

2 GB on board (non-expandable)

Flash Memory

4 GB (Dual boot OS protection)

Drive Bay

2 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

- 3.5-inch SATA hard disk drives
- 2.5-inch SATA SSDs

Hot-swappable

No

Networking

1 x Gigabit Ethernet (RJ45)

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

USB Ports

- 2 x USB 2.0
- 1 x USB 3.2 Gen 1

Form Factor

Tower

LED Indicators

System Status, LAN, USB, HDD1~2

Buttons

Power, Reset, USB Copy

Dimensions (HxWxD)

186 × 91.7 × 157.6 mm

Weight (Net/Gross)

1.69 kg / 1.89 kg

Operating Temperature

0 - 40°C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply

Minimum 48W adapter (12VDC), 100-240VAC

Power Consumption

- Disk Standby Mode: 3.43W
- Operating Mode: 10.81W

Cooling Fan

1 x 80mm, 12VDC

System Warning

Buzzer

Max. Concurrent Connections

200 (CIFS)
