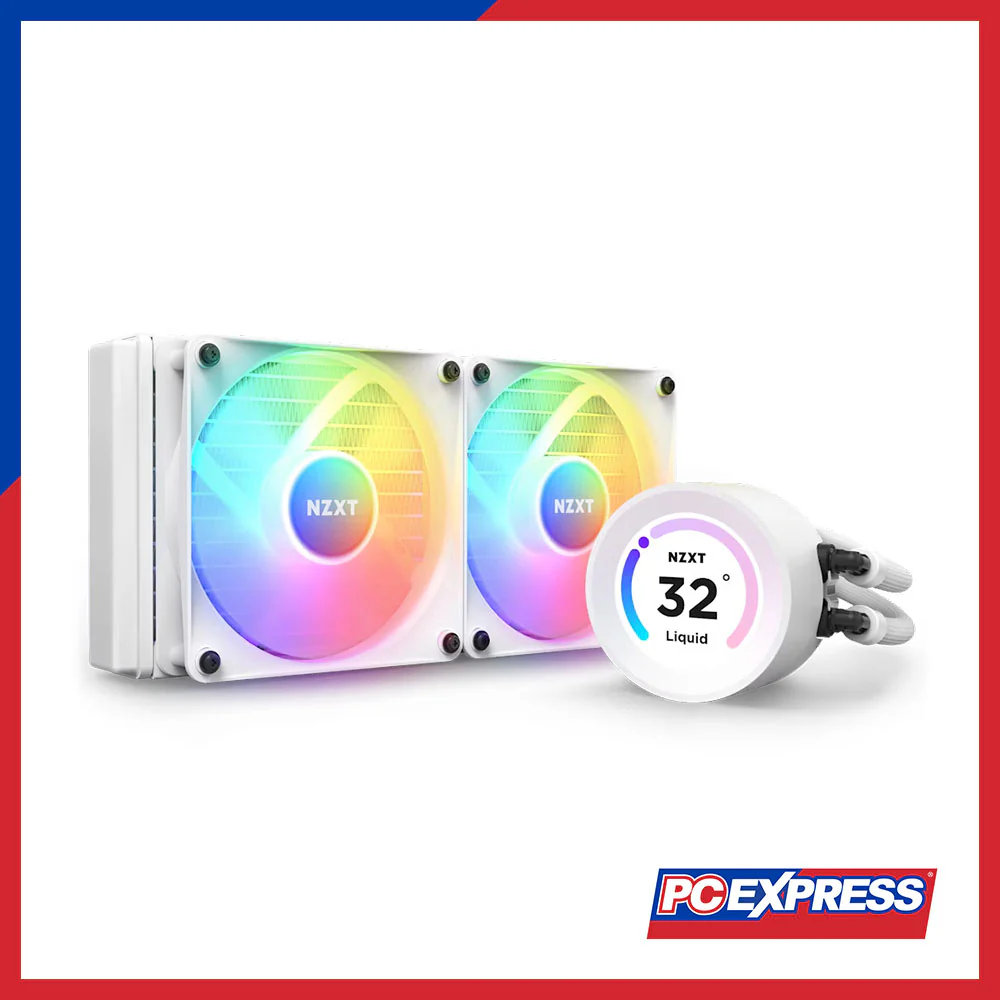

NZXT Kraken Elite 240 RGB 240mm AIO Liquid Cooler Fan
SPECIFICATION
|
CAP |
|
|
Material |
Aluminum, Plastic |
|
Display Orientation |
Software adjustable Default, +90, +180, -90 Degrees |
|
Display Panel Active Area |
2.36” (60mm) diameter |
|
Display Color |
24-bit true color LCD |
|
Display Resolution |
640 x 640 px |
|
Display Brightness |
690 cd/m² |
|
Display Panel Type |
TFT-LCD (Wide Viewing Angle) |
|

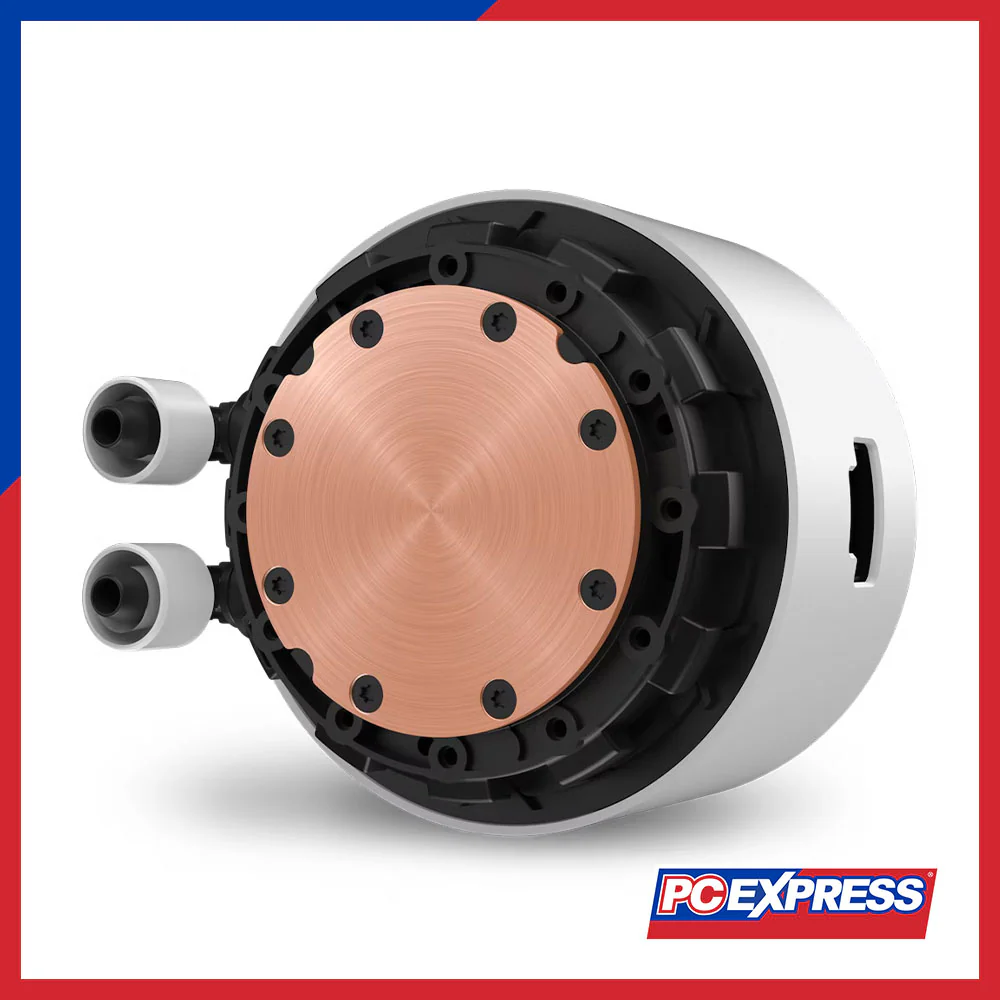

WATER BLOCK |
|
|
Dimensions |
Diameter: 81.9mm, H: 59.5mm |
|
Material (Block) |
Copper |
|
Material (Housing) |
Plastic |
|
PUMP |
|
|
Motor Speed |
800 - 2,800 ± 300 RPM |
|
Power |
12V DC, 0.3A |
|
RADIATOR |
|
|
Dimensions |
123 x 275 x 30mm |
|
Material |
Aluminum |
|
TUBE |
|
|
Length |
400mm |
|
Material |
Ultra-low Evaporation Rubber with Nylon Braided Sleeve |
|
FAN SPECS |
|
|
Model |
F120 RGB Core Fans |
|
Quantity |
2 |
|
Dimension |
120 x 120 x 26mm |
|
Speed |
500 - 1,800 ± 180RPM |
|
Airflow |
78.86 CFM |
|
Air Pressure |
2.57 mm H2O |
|
Noise |
33.88 dBA |
|
Bearing |
Fluid Dynamic Bearing |
|
Power Consumption |
12V DC, 0.2 A, 2.4 W |
|
Fan Connector |
4-pin PWM |
|
Life |
60,000 hours / 6 Years |
|
RGB CONTROLLER |
|
|
Dimensions |
63.2 x 53.2 x 12.8mm |
|
Weight |
52.8g |
|
Mounting |
Magnet and 3M Dual Lock |
|
Connection Cables |
1x USB 2.0 internal connector, 1x SATA power cable |
|
Input Connector |
12V DC / 2.6A |
|
RGB Lighting Channels |
3 |
|
Output Channel Voltage |
5V DC |
|
NZXT RGB Channel Output LED Qty. |
Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels |
|
COMPATIBLE SOCKET & CPU |
|
|
Intel |
Intel Socket LGA 1700, 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron |
|
AMD |
AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper |
|
GENERAL |
|
|
Warranty |
6 Years |
|
Model Number |
RL-KR24E-W1 (White) / RL-KR24E-B1 (Black) |
|
UPC |
810074842242 (White) / 810074842259 (Black) |
|
EAN |
5056547202242 (White) / 5056547202259 (Black) |
