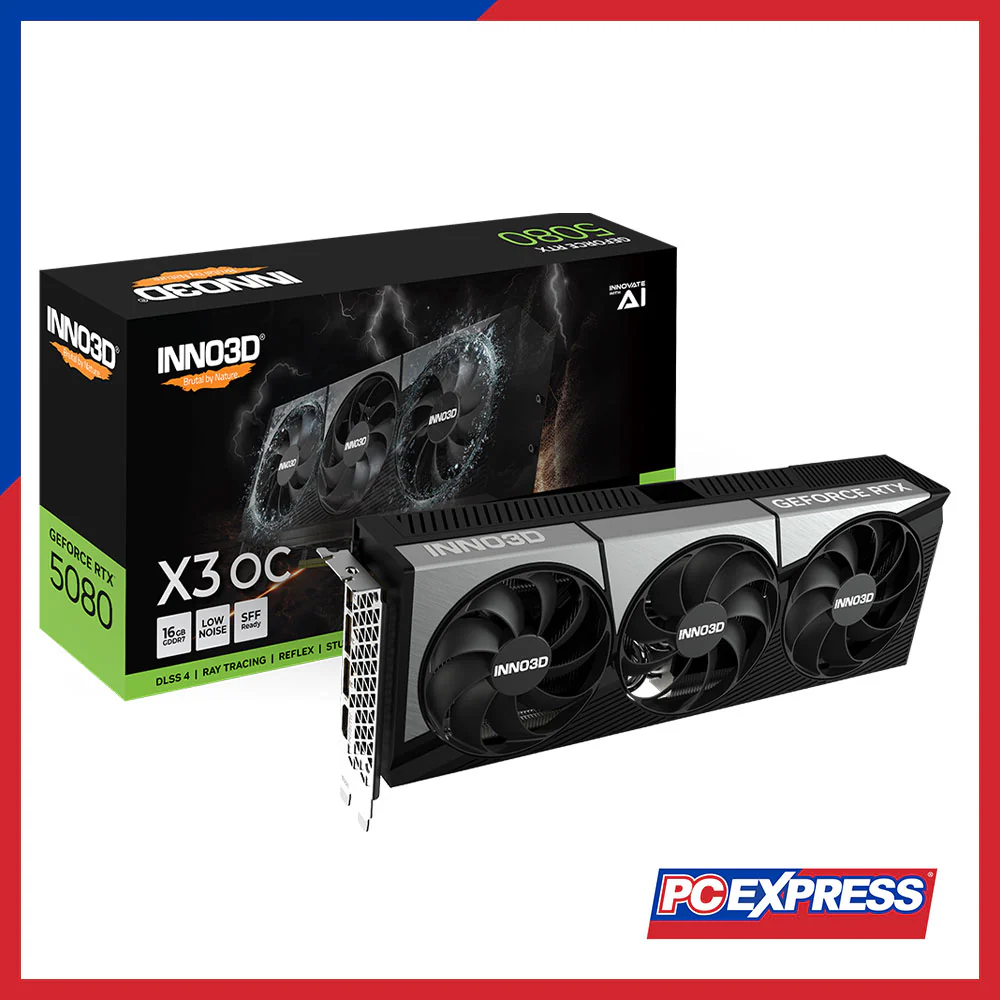

INNO3D GeForce RTX™ 5080 X3 OC 16GB GDDR7 256-bit Graphics Card
SPECIFICATION
|
Part Number |
N50803-16D7X-17603930 |
|
GPU Engine Specs |
|
|
CUDA Cores |
10,752 |
|
Boost Clock |
2640 MHz |
|
Base Clock |
2295 MHz |
|
Thermal and Power Spec |
|
|
Min. System Power Requirement |
850W |
|
Power Connectors |
3× PCIe 8-pin (adapter in box) or 1× 450W+ PCIe Gen 5 cable |
|
Memory Specs |
|
|
Memory Clock |
30 Gbps |
|
Standard Memory Config |
16 GB |
|
Memory Interface |
GDDR7 |
|
Memory Interface Width |
256-bit |
|
Memory Bandwidth |
960 GB/sec |
|
Feature Support |
|
|
Real-Time Ray Tracing |
Yes |
|
Ray Tracing Cores |
4th Gen, 171 TFLOPS |
|
Tensor Cores |
5th Gen, 1801 AI TOPS |
|
NVIDIA Architecture |
Blackwell |
|
Microsoft DirectX |
12 Ultimate |
|
NVIDIA DLSS |
4 |
|
NVIDIA Ansel |
Yes |
|
NVIDIA FreeStyle |
Yes |
|
Bus Support |
PCI Express Gen 5 |
|
NVIDIA ShadowPlay |
Yes |
|
OS Certification |
Windows 11/10, Linux, FreeBSDx86 |
|
NVIDIA Highlights |
Yes |
|
NVIDIA G-SYNC™ Ready |
Yes |
|
Game Ready Drivers |
Yes |
|
NVIDIA Studio Drivers |
Yes |
|
NVIDIA GPU Boost™ |
Yes |
|
Vulkan API |
1.4 |
|
OpenGL |
4.6 |
|
NVIDIA Encoder |
2× Ninth Generation |
|
NVIDIA Decoder |
2× Sixth Generation |
|
Accessories |
|
|
Graphics Card Length |
300 mm |
|
Graphics Card Height |
120 mm |
|
Graphics Card Width |
50 mm |
|
Display Support |
|
|
Multi-Monitor Support |
Up to 4 |
|
Max Digital Resolution |
4K @ 480Hz or 8K @ 165Hz (with DSC) |
|
HDCP |
2.3 |
|
Display Connectors |
3× DisplayPort 2.1b, 1× HDMI 2.1b |
