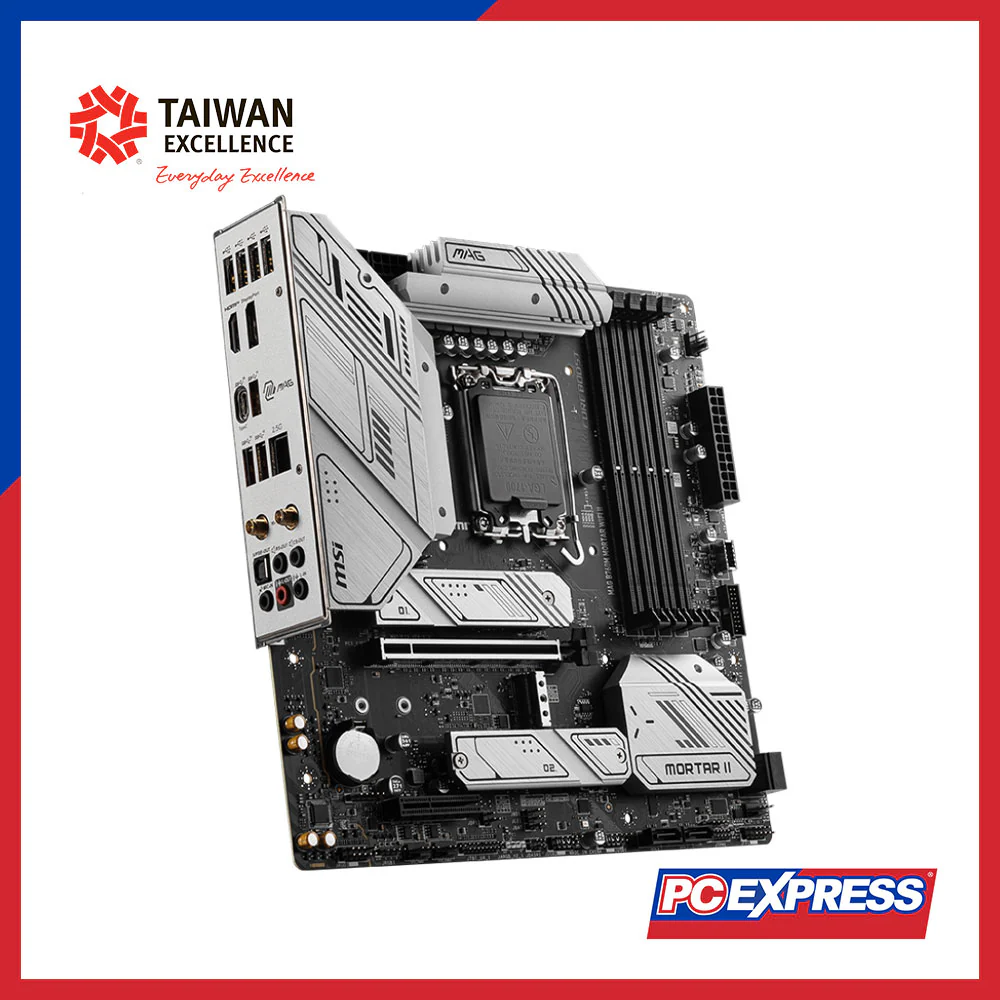

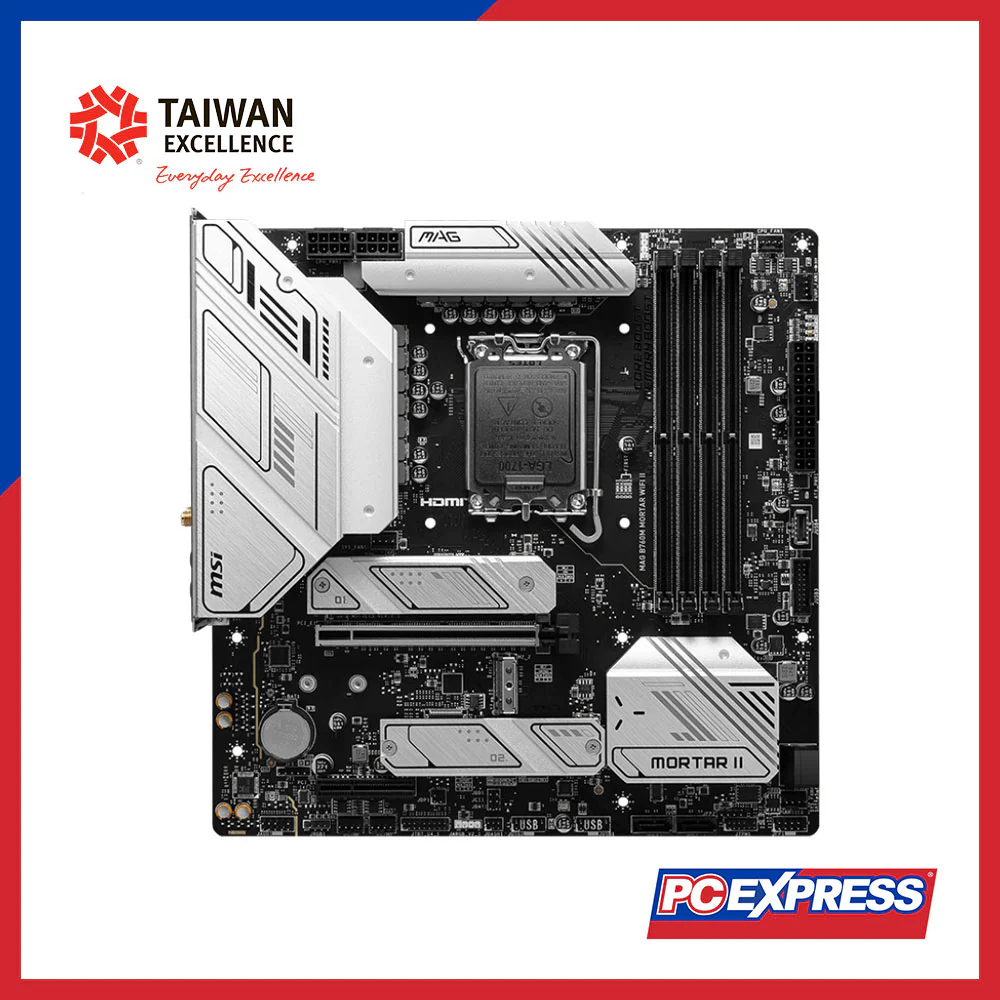

MSI MAG B760M MORTAR WIFI II mATX Motherboard

Chipset

Intel B760

CPU Support

Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700

Memory

4x DDR5, Maximum Memory Capacity 256GB, Memory Support up to 7800+(OC) MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile

Onboard Graphics

1x HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz, 1x DisplayPort 1.4, maximum resolution of 4K 60Hz, *Available only on processors featuring integrated graphics

Slot

1x PCI-E x16 slot, 1x PCI-E x4 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

Storage

3x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, 4x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek® 2.5Gbps LAN

Wireless LAN & Bluetooth

Intel® Wi-Fi 6E, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

Internal IO

Various connectors including power connectors, fan connectors, front panel connectors, RGB LED connectors, TPM pin header, USB ports, USB4 card connector, Tuning Controller connector

LED Feature

4x EZ Debug LED

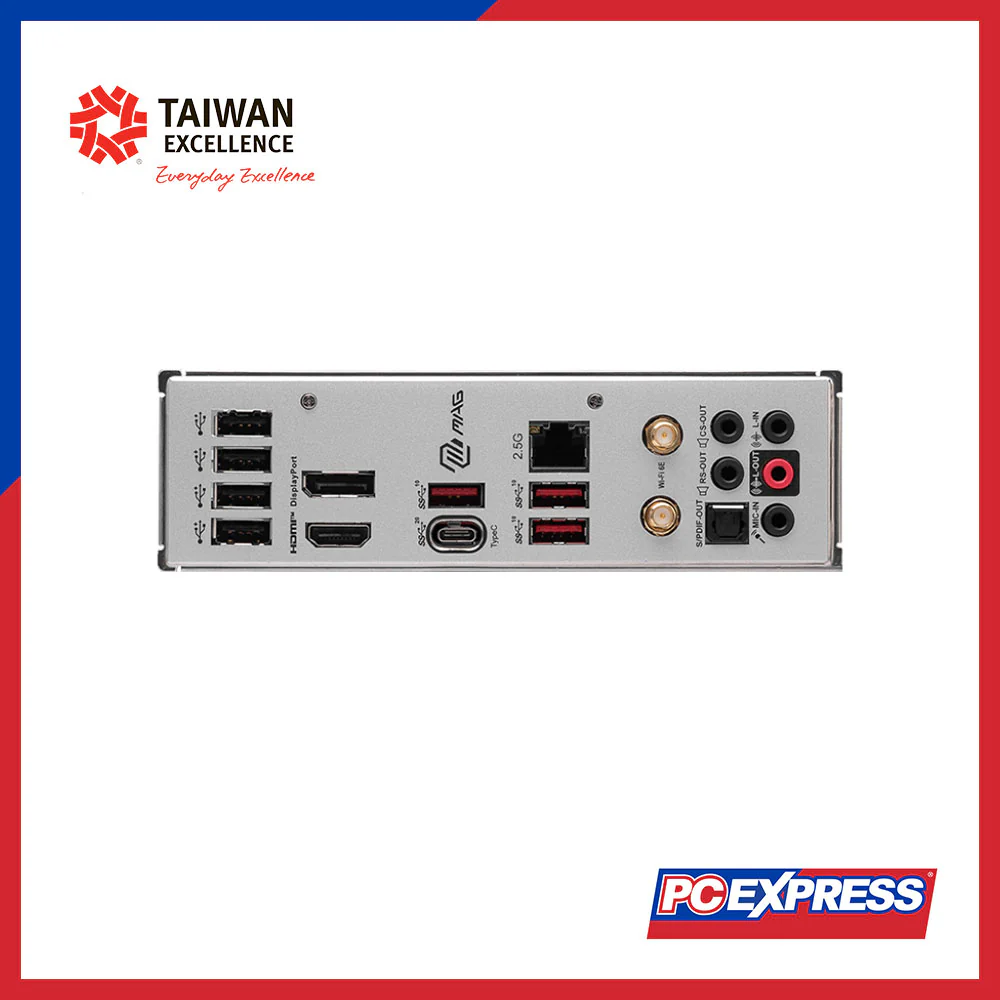

Back Panel Ports

DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth, HD Audio Connectors, USB 2.0, HDMI™ 2.1 Port, USB 3.2 Gen 2x2 20Gbps Type-C, USB 3.2 Gen 2 10Gbps Type-A

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

mATX, 243.84mmx243.84mm
