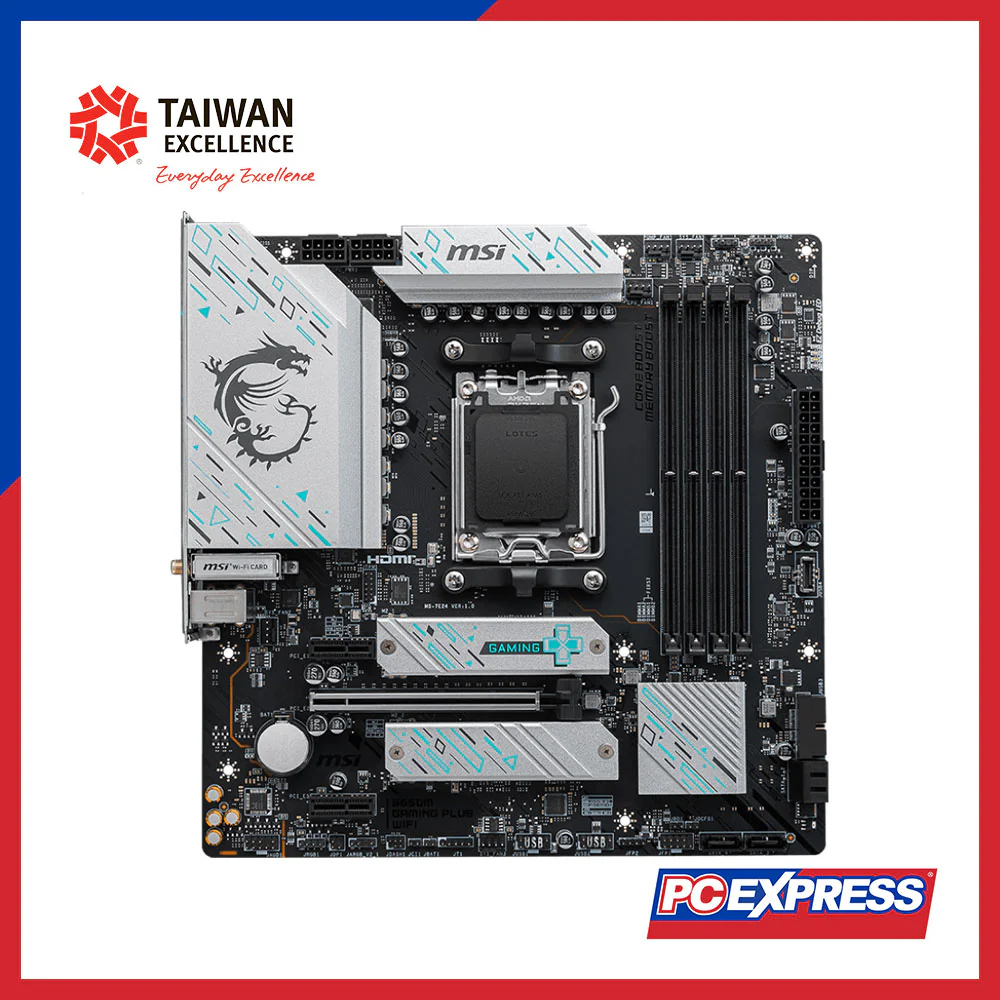

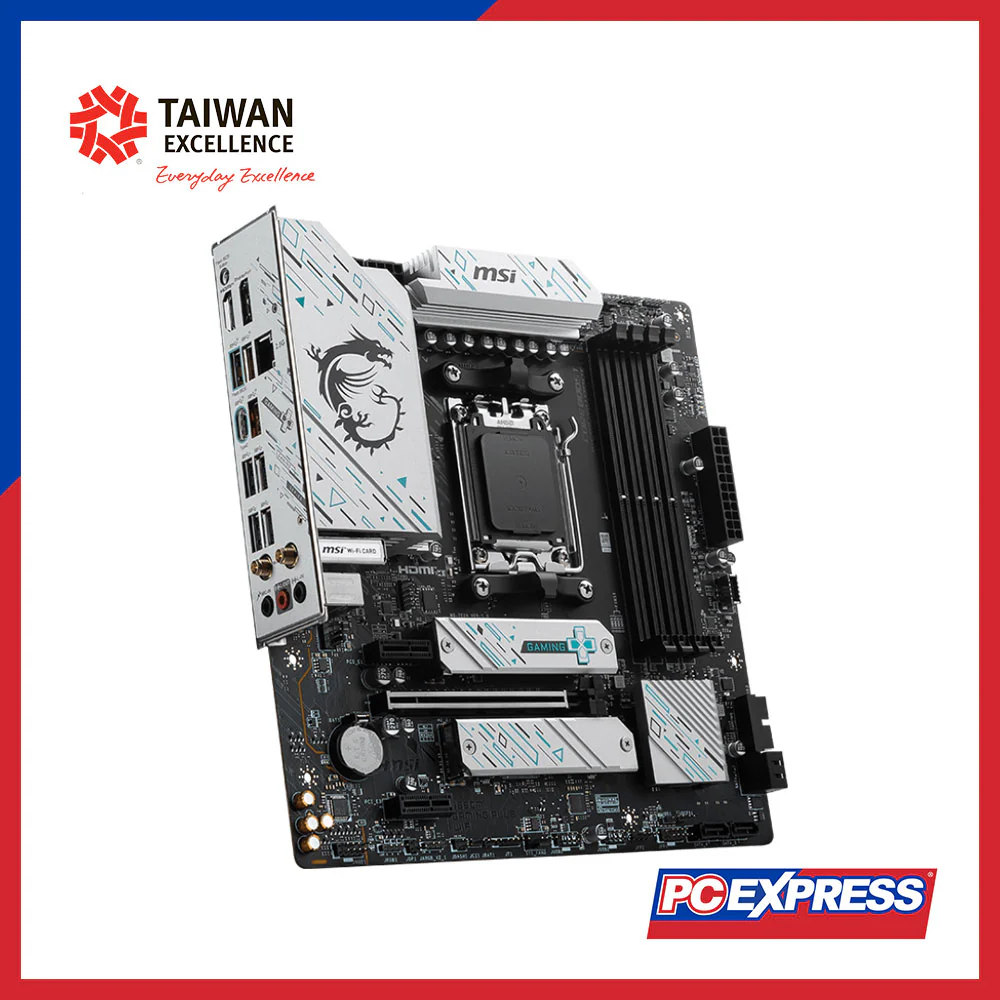

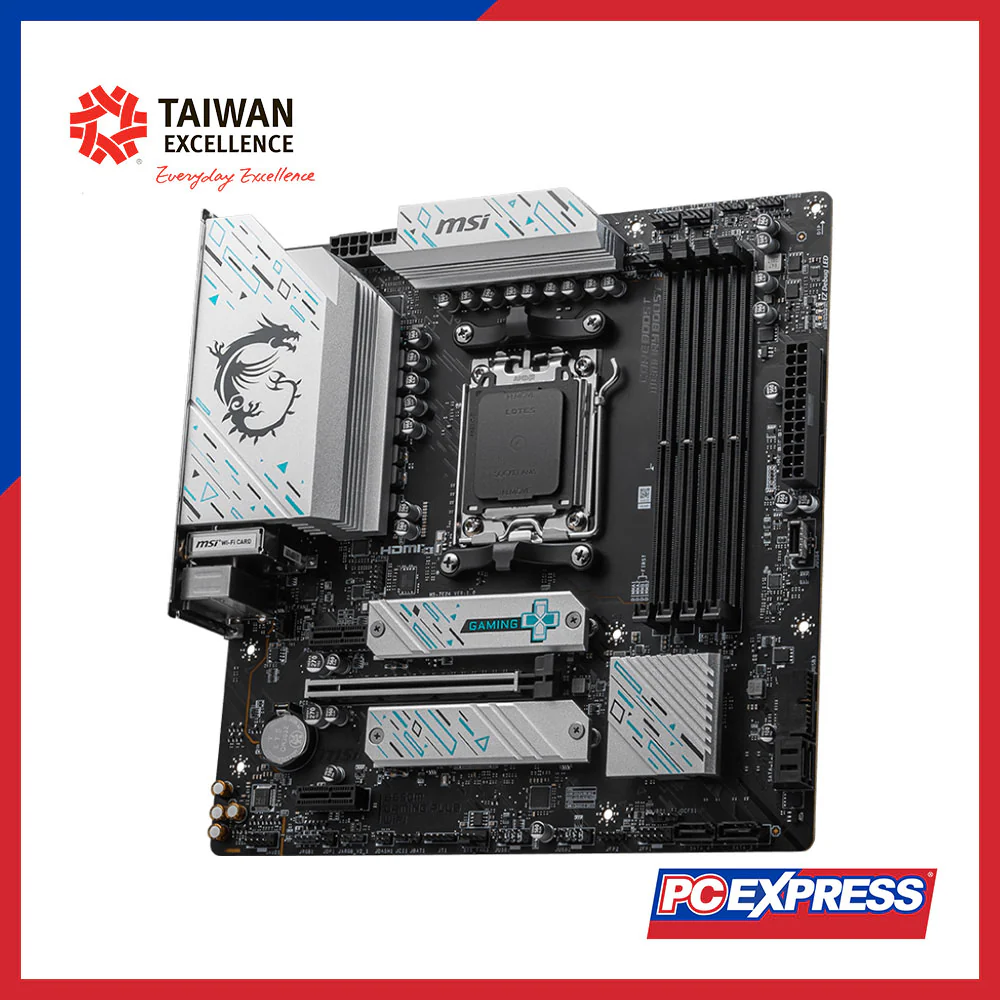

MSI B650M GAMING PLUS WIFI mATX Motherboard

Chipset

AMD B650

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Memory

- 4x DDR5 UDIMM, Maximum Capacity 256GB

- DDR5 Support: 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 (JEDEC) MHz

- Dual-Channel Mode, Non-ECC, Un-buffered Memory

- Supports AMD EXPO™

- Max Overclocking Frequency: 1DPC 1R up to 7200+ MHz, 1DPC 2R up to 6000+ MHz, 2DPC 1R up to 6000+ MHz, 2DPC 2R up to 5400+ MHz

Onboard Graphics

- 1x HDMI™ (HDMI™ 2.1, max resolution 4K @ 60Hz)

- 1x DisplayPort (DP 1.4, max resolution 4K @ 60Hz)

*Available only on processors with integrated graphics; varies by CPU

Slots

- 1x PCI-E x16 (varies by Ryzen™ processor model)

- 2x PCI-E x1 (Gen 3.0 and Gen 4.0)

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage

- 2x M.2 (PCIe 4.0 x4, supports 2280/2260 devices)

- 4x SATA 6G (supports RAID 0, RAID 1, RAID 10)

RAID

Supports RAID 0, RAID 1 for M.2 NVMe

USB Ports

- 4x USB 2.0 (Front)

- 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front)

- 3x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear)

- 1x USB 10Gbps Type C (Front)

LAN

Realtek® RTL8125BG 2.5Gbps LAN

Internal I/O

- 1x Power Connector (ATX_PWR), 2x CPU_PWR

- 1x CPU Fan, 1x Pump Fan, 3x System Fan

- 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller Connector (JDASH)

- 2x Addressable V2 RGB LED (JARGB_V2), 2x RGB LED (JRGB), 1x TPM Pin Header (TPM 2.0)

Wireless LAN & Bluetooth

- AMD Wi-Fi 6E (pre-installed in M.2 slot)

- MU-MIMO TX/RX, 802.11 a/b/g/n/ac/ax

- Bluetooth® 5.3 (ready for Windows 10 build 21H1 and Windows 11)

LED Features

4x EZ Debug LED

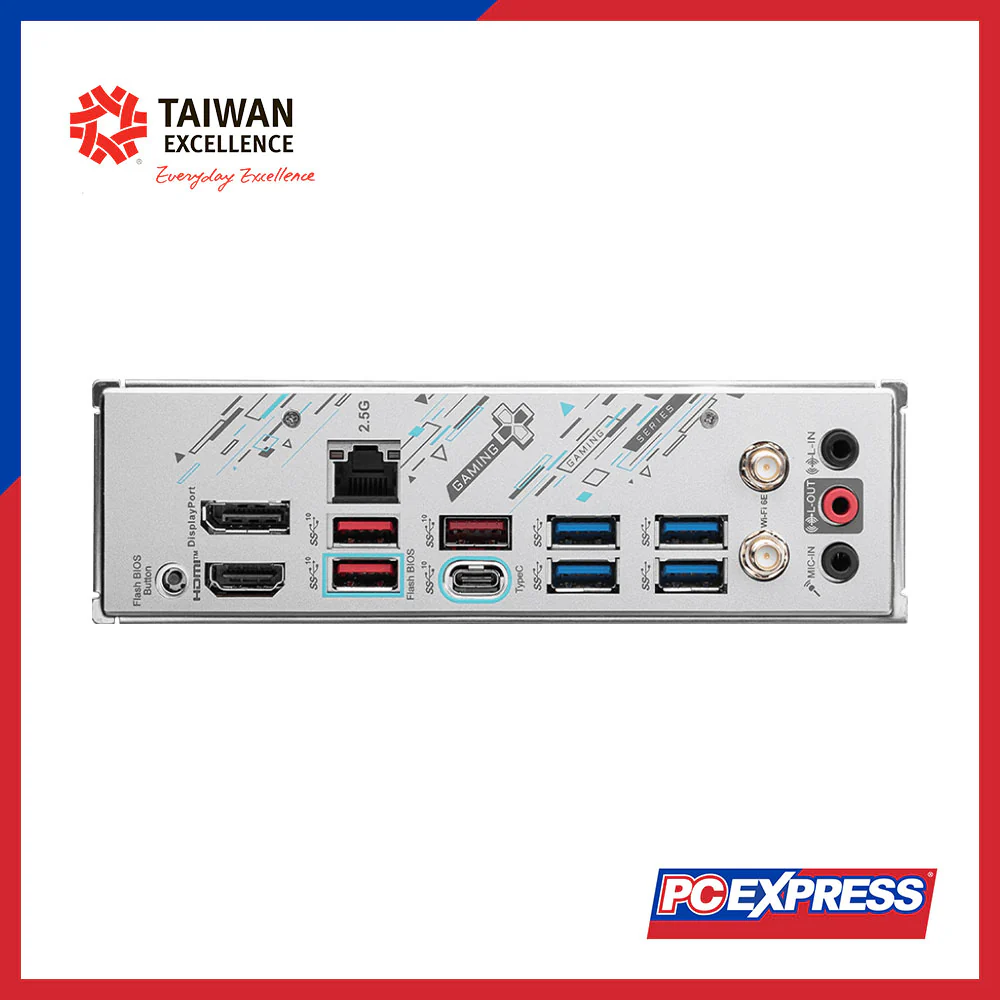

Back Panel Ports

- DisplayPort, 2.5G LAN, USB 3.2 Gen 2 (Type-A & Type-C), Wi-Fi/Bluetooth, Flash BIOS Button, HDMI™, Audio Connectors

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX, 243.84mm x 243.84mm
