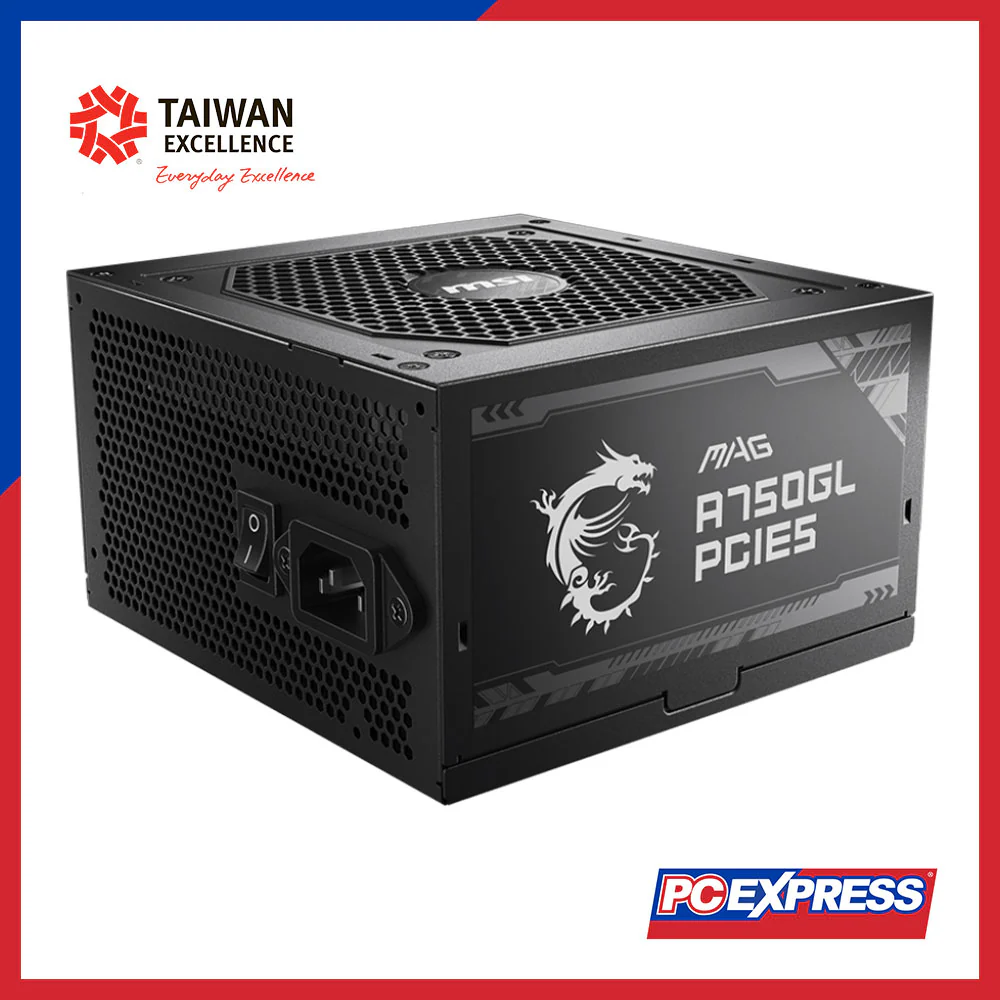

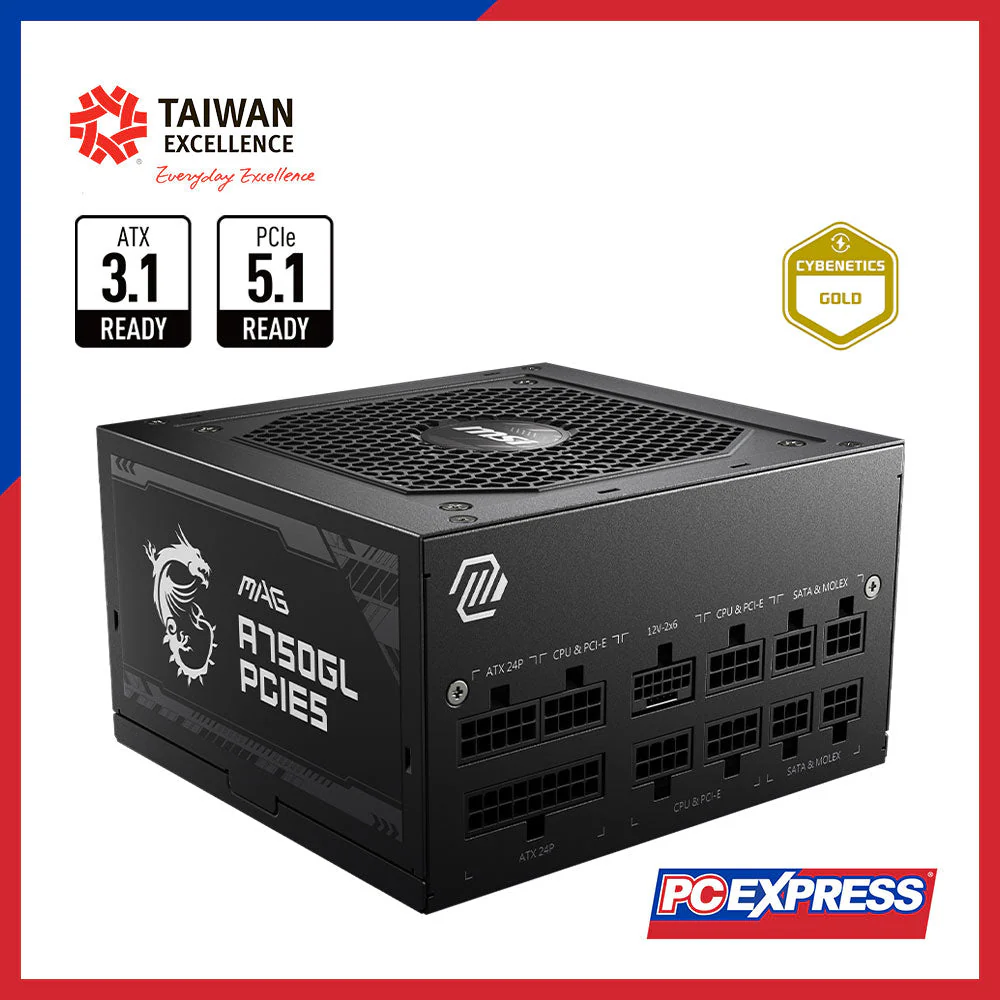

MSI 750W MAG A750GL ATX 3.1 80+ Gold Fully Modular Power Supply

Efficiency Rating

80 PLUS Gold (up to 90%)

Modular

Yes (Full Modular)

Fan Size

120 mm

Fan Bearing

Fluid Dynamic Bearing

Dimensions (DxWxH)

140 x 150 x 86 mm

PFC Type

Active PFC

Input Voltage Range

100~240 VAC

Power Watt

750W

Power Excursion

1500W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range

47-63Hz

Protection

OCP, OVP, OPP, OTP, SCP, UVP

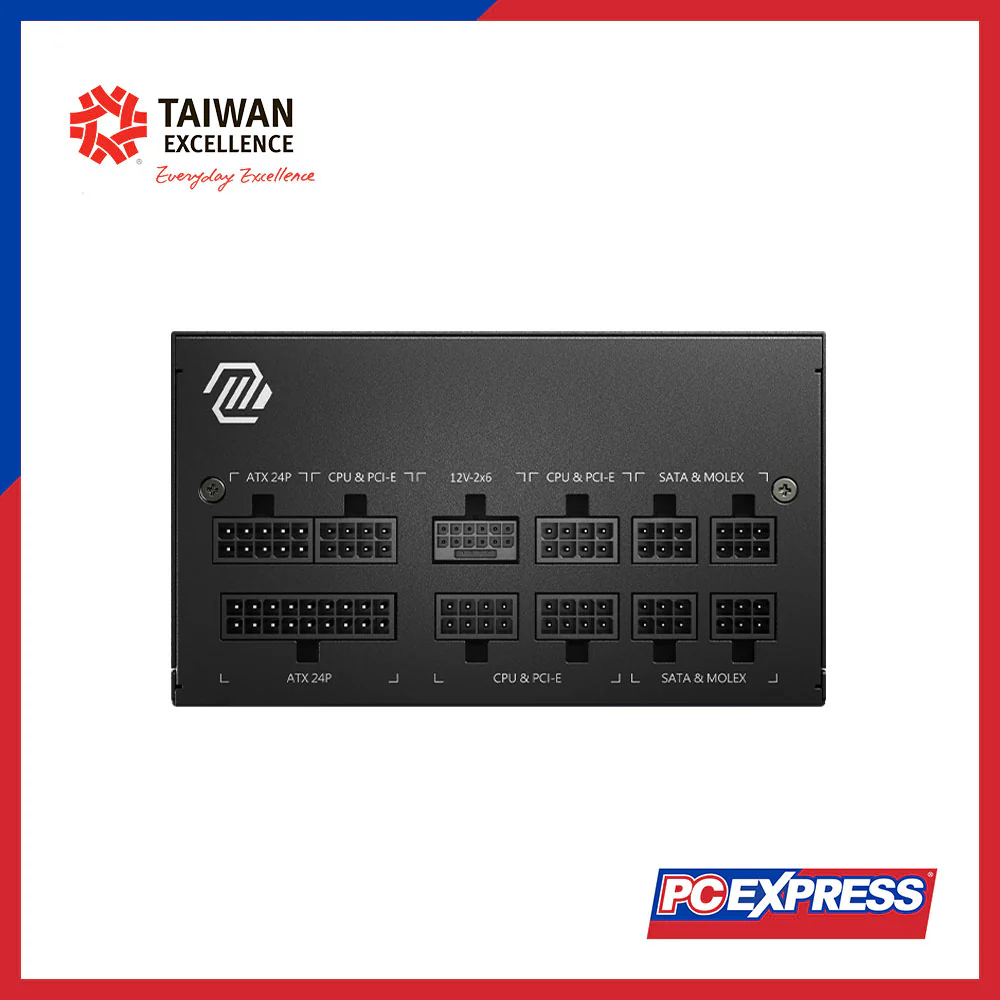

Connectors

- ATX (24 pin)

1

- EPS (4+4 pin)

2

- PCI-E 5.0 (16 pin)

1 (450W)

- PCI-E (6+2 pin)

3

- SATA (15 pin)

8

- PERIPHERAL (4 pin)

4

- FDD (4 pin)

1
