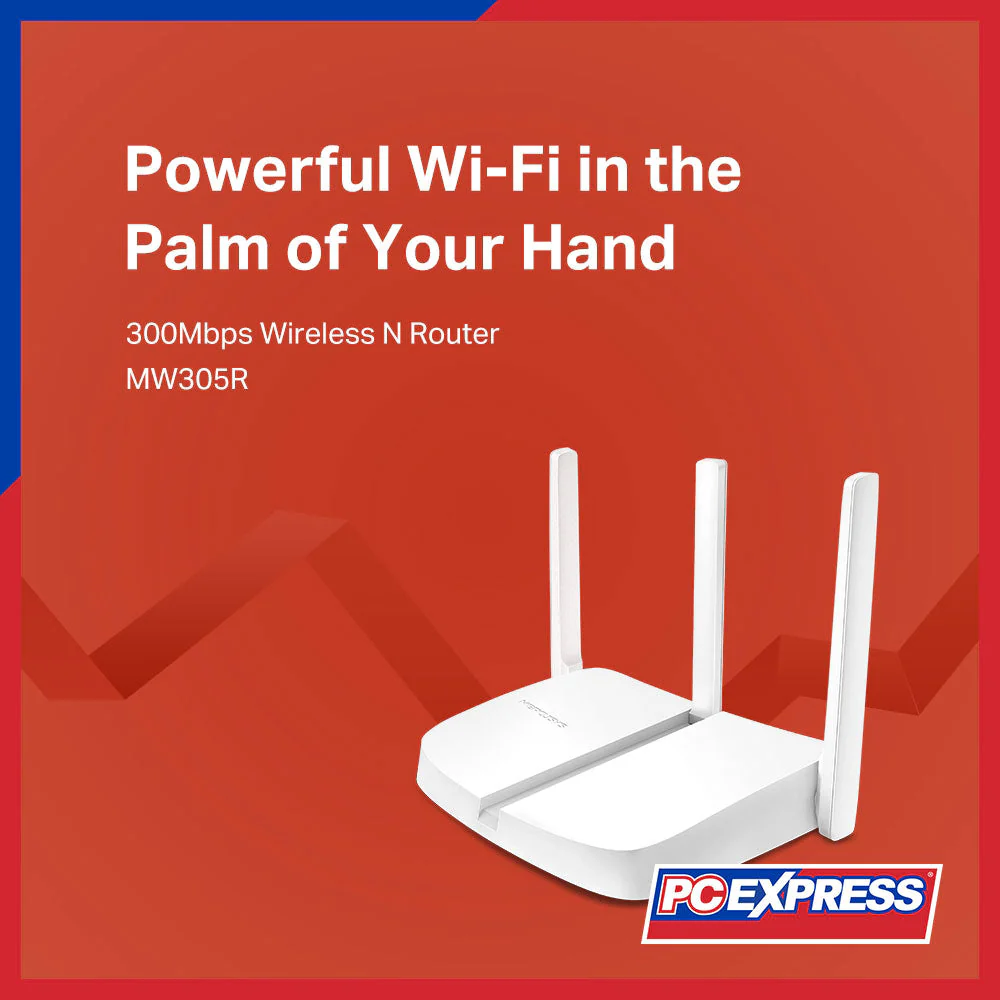

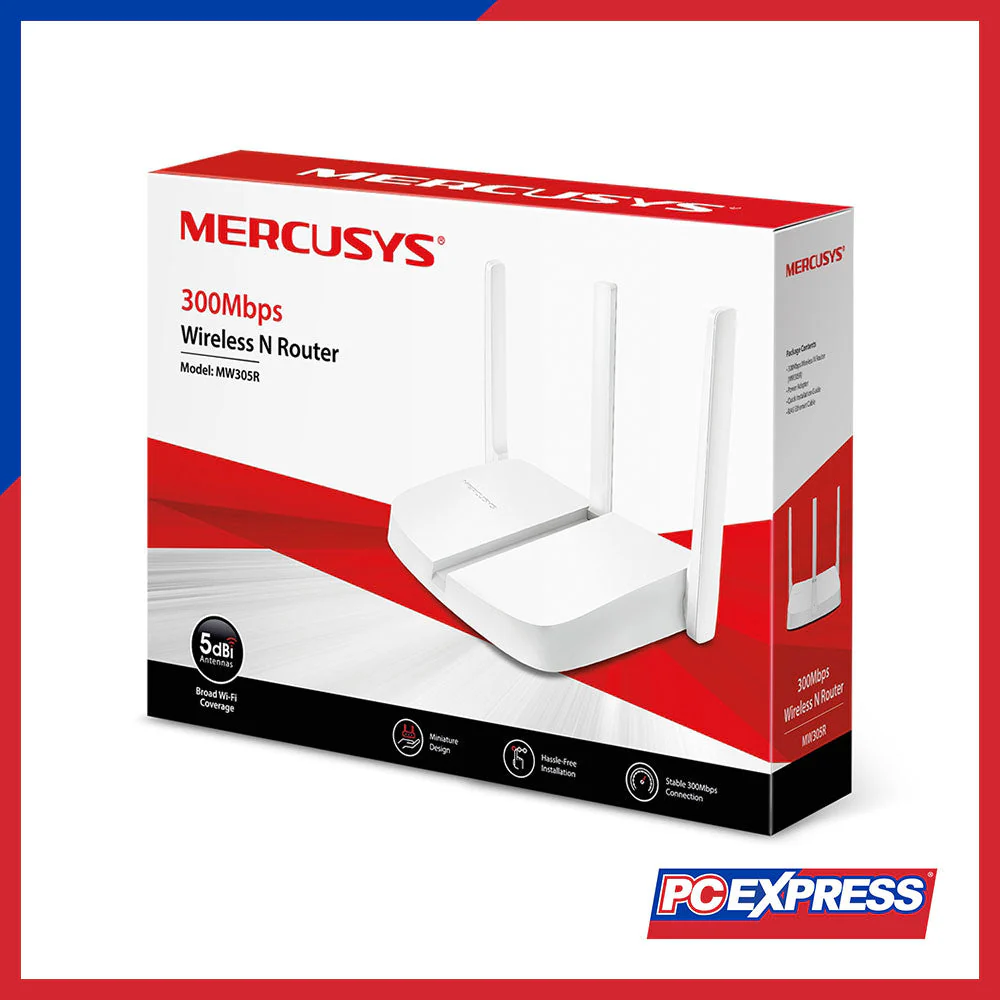

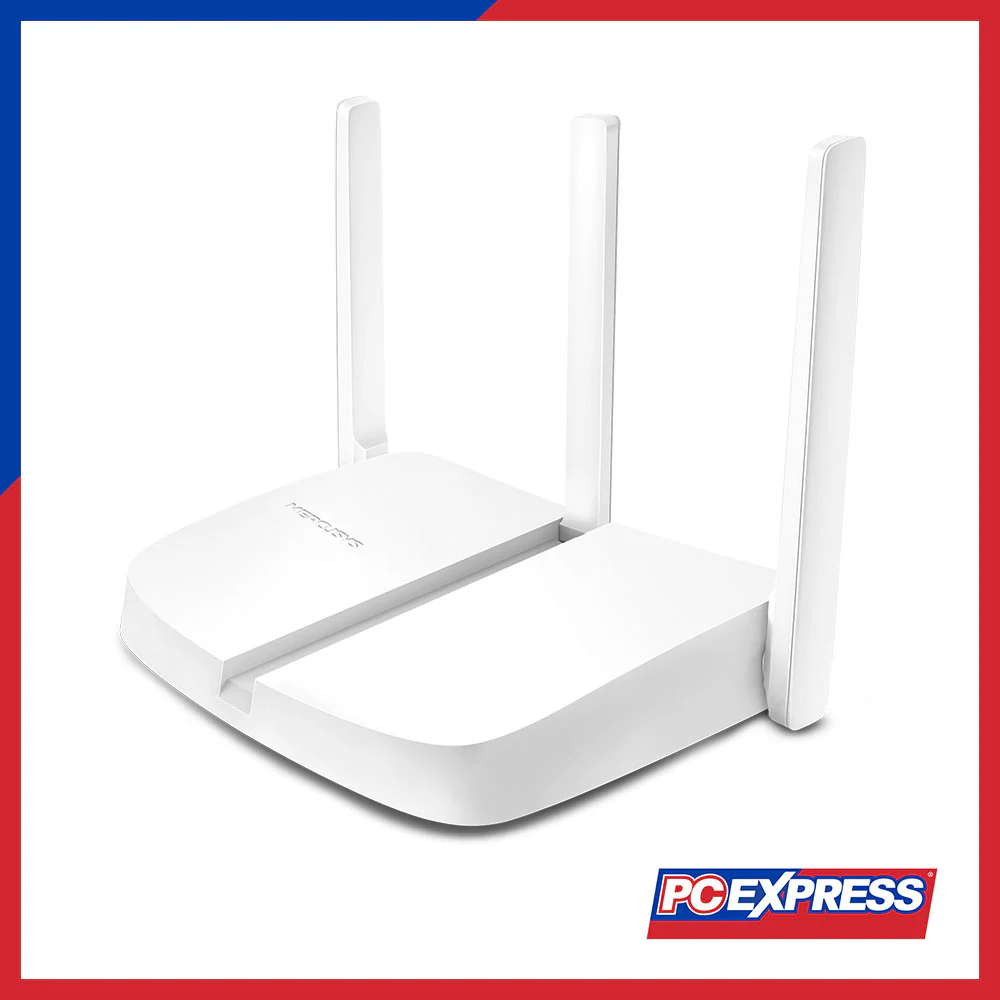

MERCUSYS MW305R 300Mbps Wireless-N Router

Wireless

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.4 - 2.4835GHz

WiFi Speeds

11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

• 270M: -70dBm@10% PER  • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER  • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER    • 1 M: -94dBm@10% PER

Transmission Power

 <20dBm

Wireless Security

WPA-PSK/WPA2-PSK

Wireless Functions

WDS bridge

Software

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Parental Control

Access control

Local management

Remote management

DHCP

Server

Port Forwarding

Virtual server, UPnP, DMZ

Dynamic DNS

DynDNS?NO-IP

Firewall Security

IP and MAC address binding

Protocols

IPv4

Guest Network

2.4GHz guest network

Hardware

Dimensions

147 mm × 115 mm × 34 mm

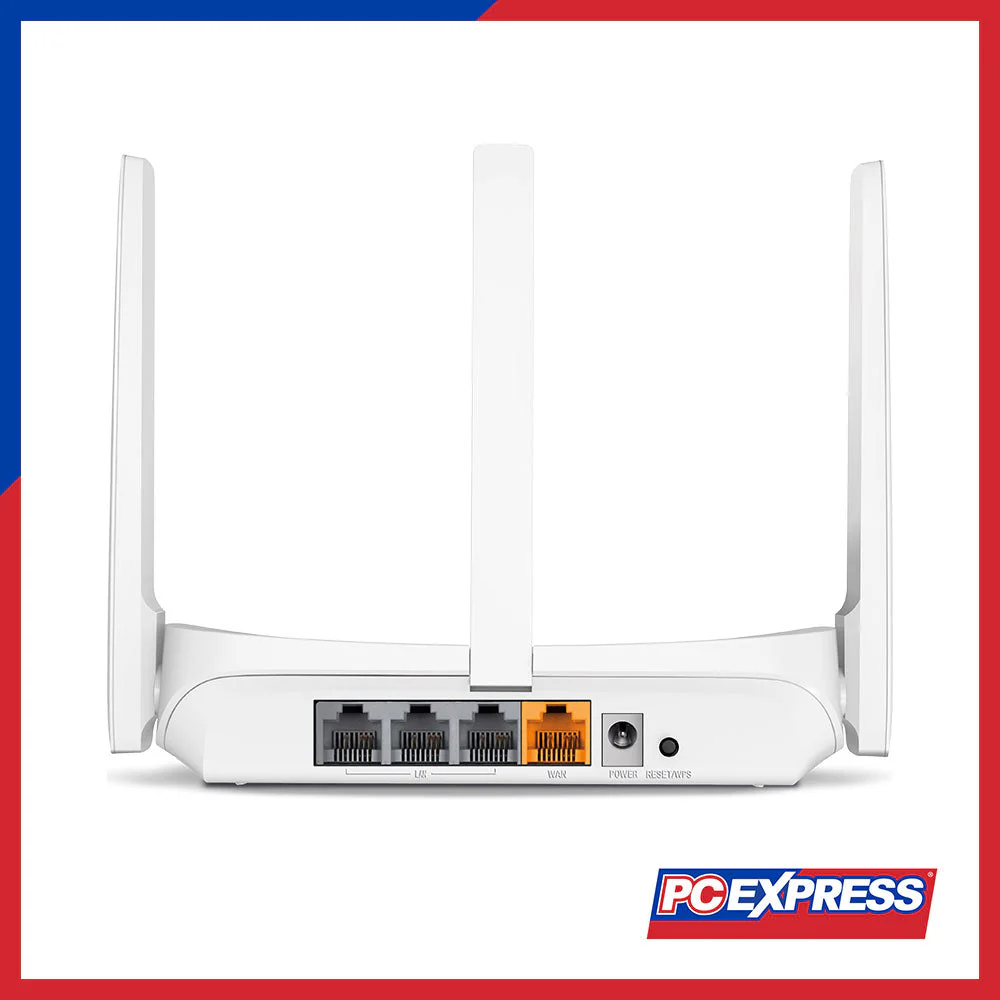

Interfaces

3 10/100Mbps LAN ports

1 10/100Mbps WAN port

Button

Reset/WPS button

External Power Supply

5VDC/0.6A

Antenna Type

3 x 5dBi fixed omni directional antennas

Others

Certifications

CE, ROHS

Environment

Operating temperature: 0?C ~ 40?C (32?F ~ 104?F)

Storage temperature: -40?C ~ 70?C (-40?F ~ 158?F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing
