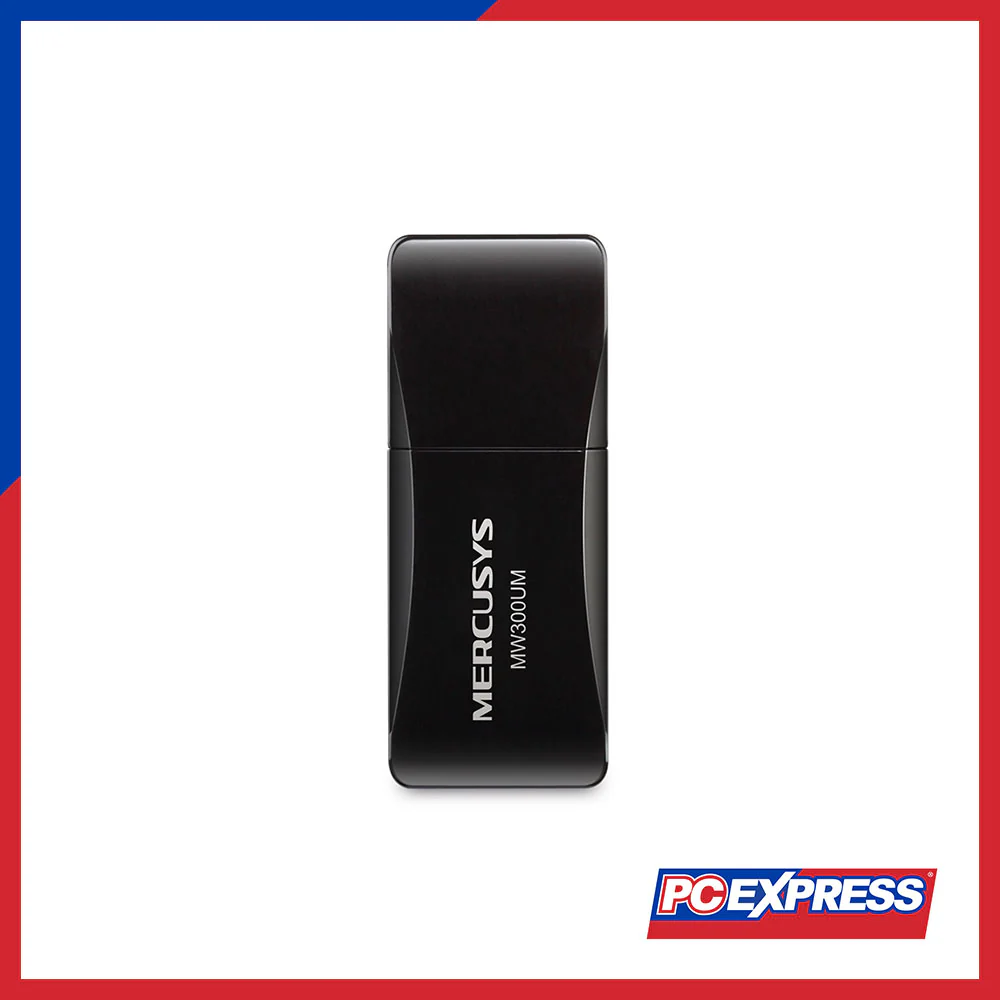

MERCUSYS MW300UM N300 Wireless Mini USB Adapter

Wireless

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400 - 2.4835GHz

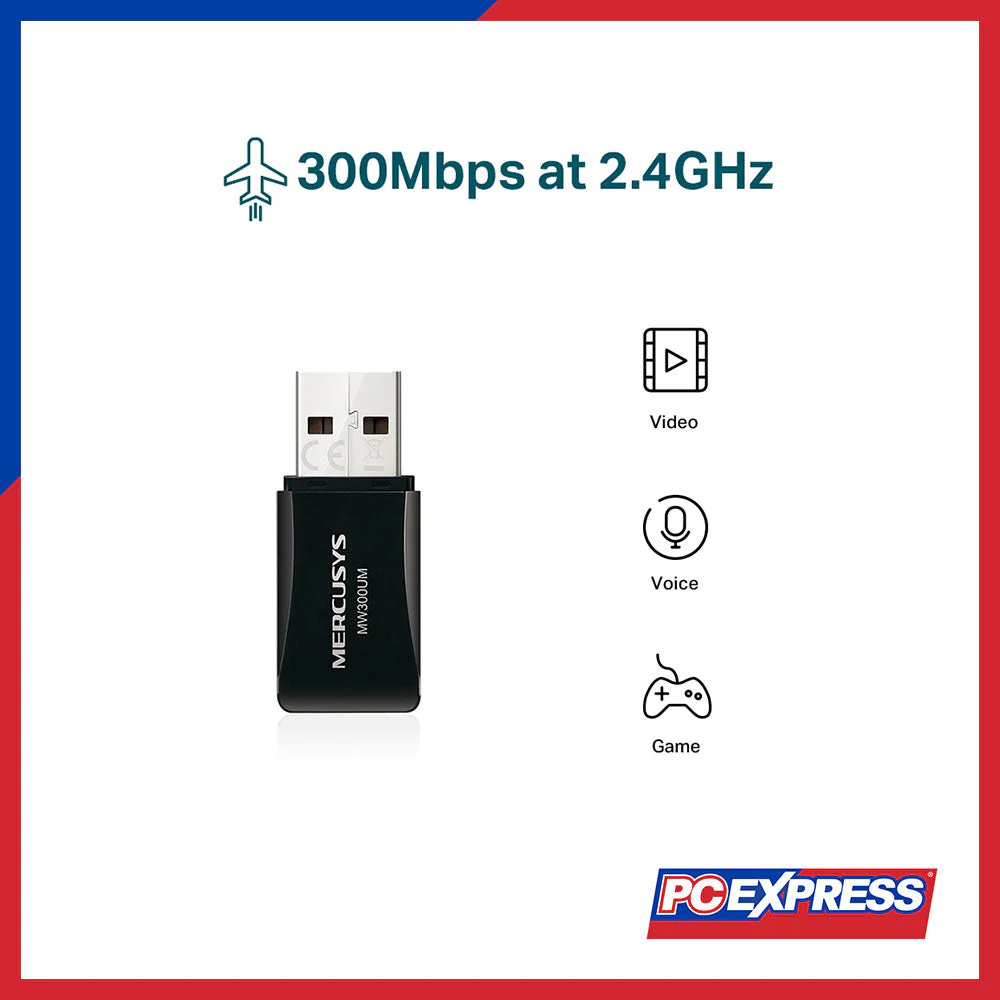

WiFi Speeds

11n: Up to 300Mbps(Dynamic)

11g: Up to 54Mbps(Dynamic)

11b: Up to 11Mbps(Dynamic)

Reception Sensitivity

270M: -62dBm@10% PER

130M: -65dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Transmission Power

<20dBm

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Hardware

Dimensions

1.69 × 0.68 × 0.33 in. (42.9 × 17.2 × 8.5 mm)

Interfaces

USB 2.0

Antenna Type

Internal

Others

Certifications

CE, ROHS

Environment

Operating temperature: 0?C ~ 40?C (32?F ~ 104?F)

Storage temperature: -40?C ~ 70?C (-40?F ~ 158?F)

Operating humidity: 10% ~ 90% Non-Condensing

Storage humidity: 5% ~ 90% Non-Condensing

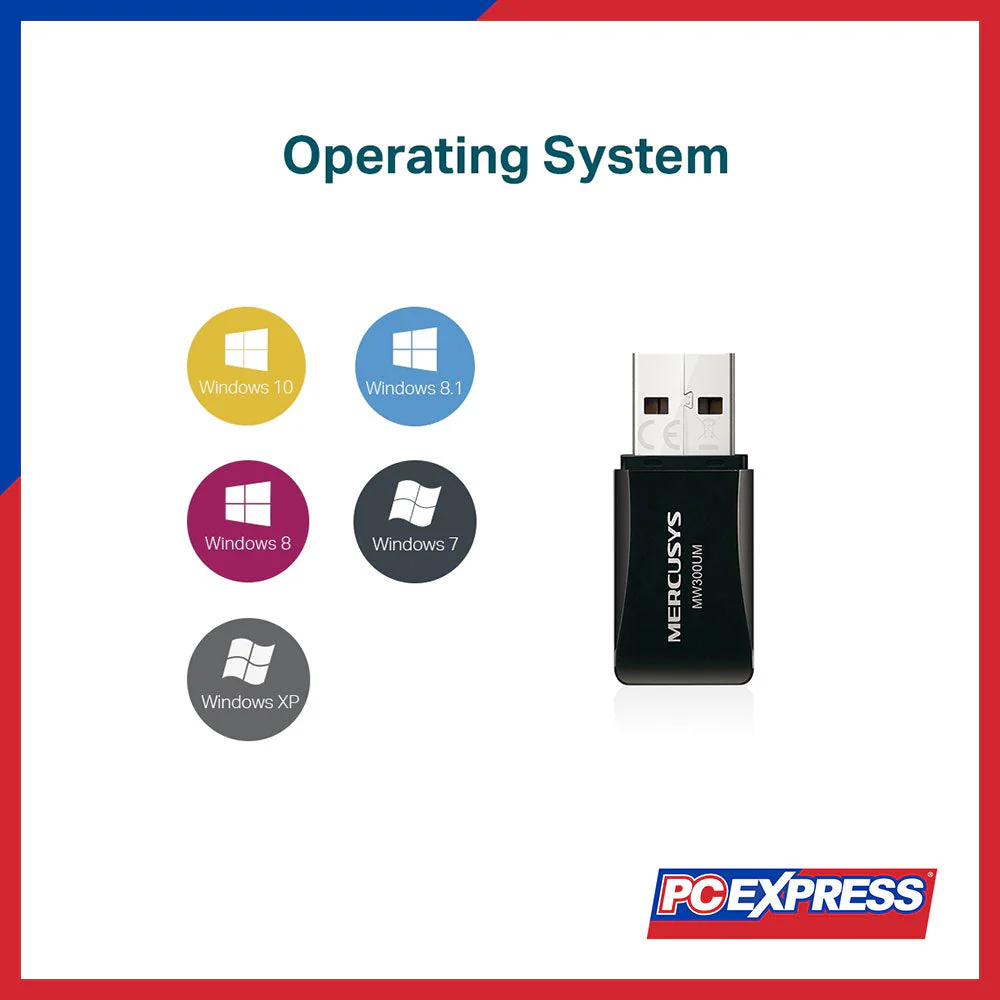

System Requirements

Windows 10/8.1/8/7/XP (32/64bit)
