MERCUSYS MR80X AX3000 Dual-Band Wi-Fi 6 Router

Wireless

Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds

2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

Various sensitivities for different data rates

Transmission Power

2.4 GHz < 20dBm (EIRP), 5 GHz < 23dBm (band1/band2), 5 GHz < 30dBm (band3)

Wireless Security

WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, WMM

Software

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control, Local Management, Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

VPN Server

OpenVPN, PPTP supported

Hardware

Dimensions

8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm)

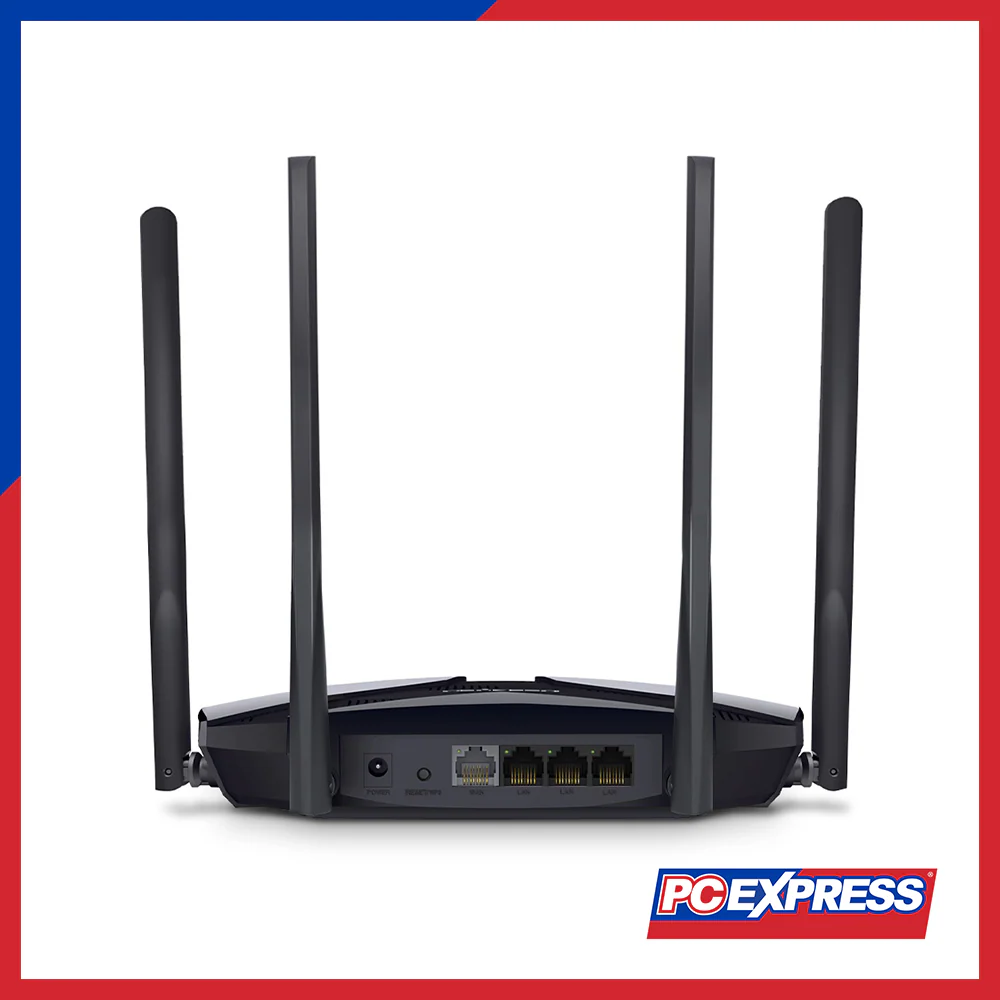

Interfaces

1× Gigabit WAN Port + 3× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents

• AX3000 Wi-Fi 6 Router MR80X, • Power Adapter, • Quick Installation Guide, • RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C104°F), • Operating Humidity: 10%~90% Non-Condensing, • Storage Humidity: 5%~90% Non-Condensing
