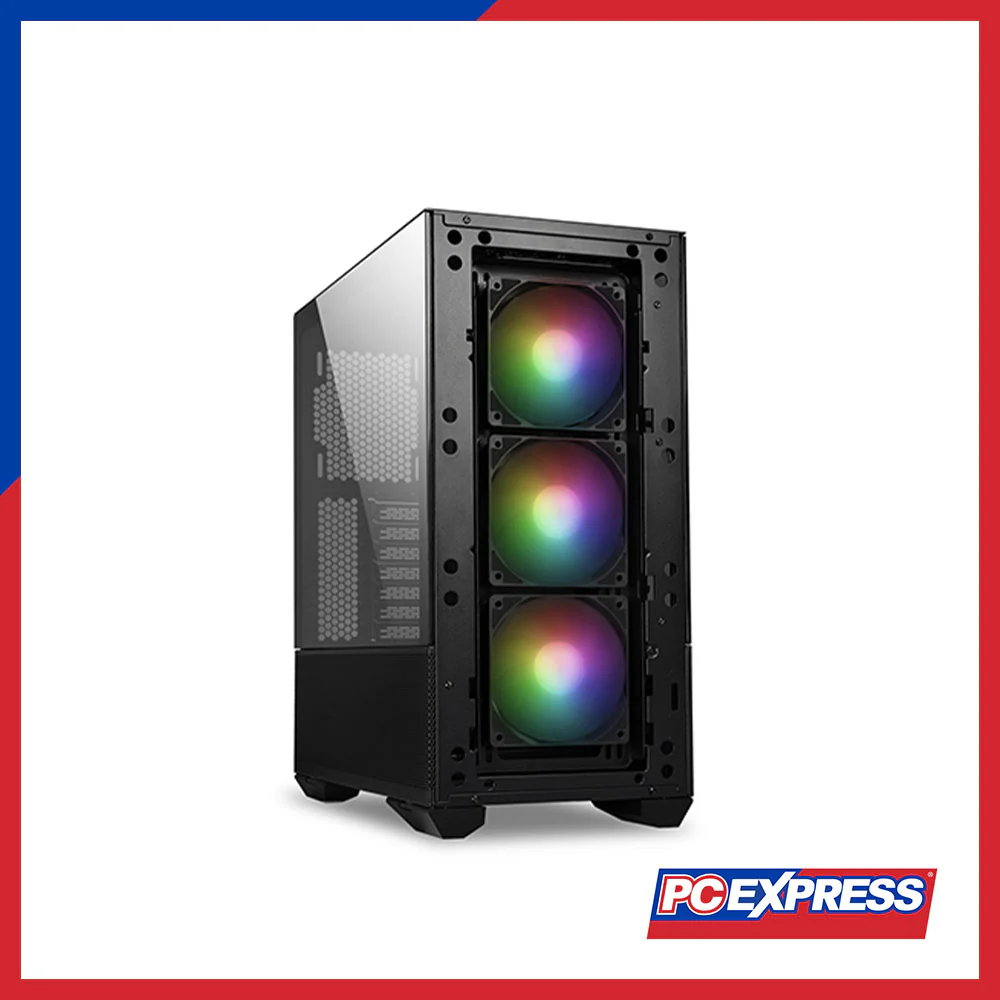

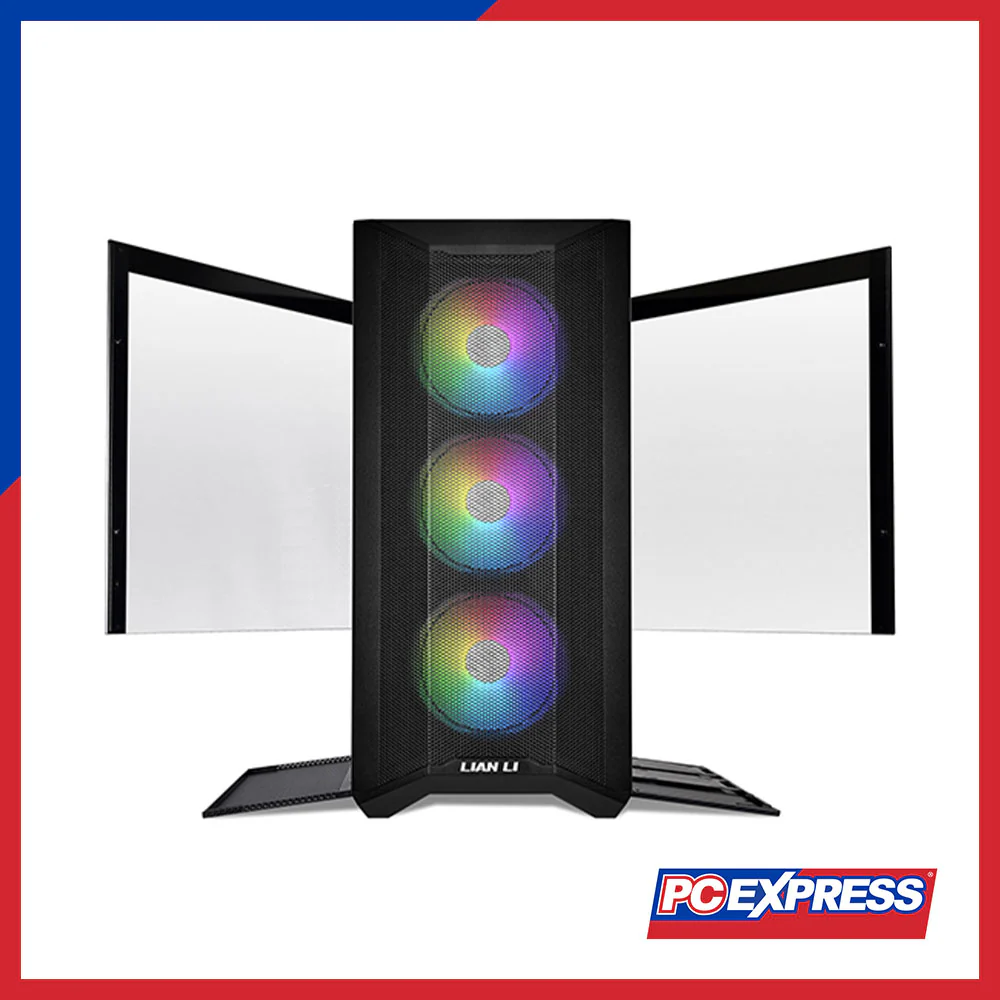

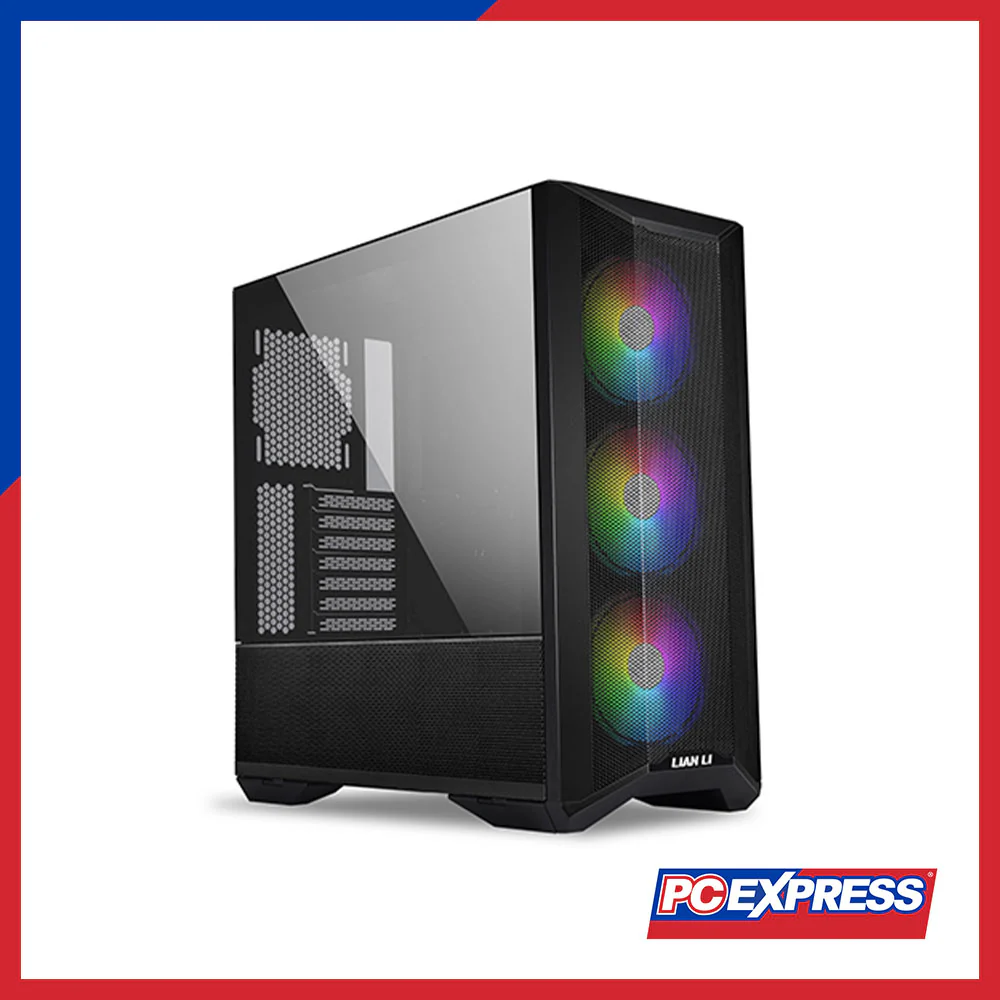

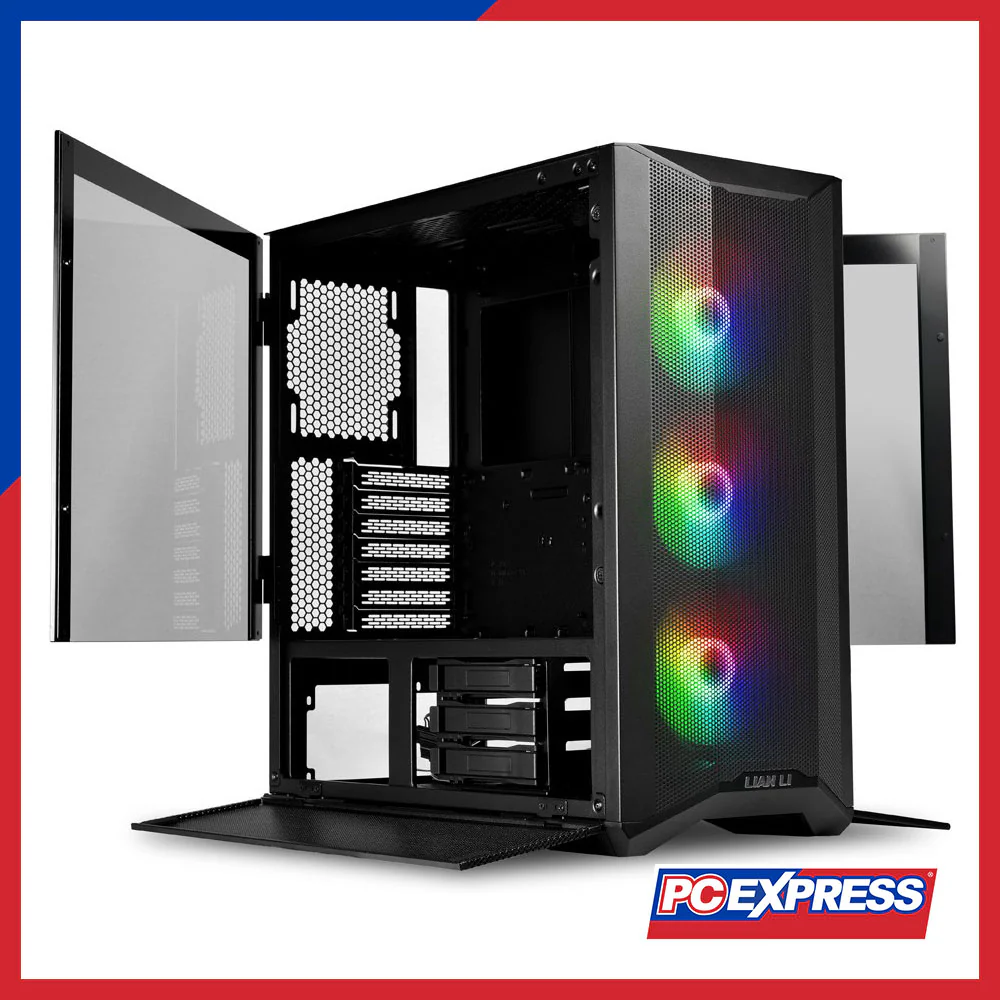

LIAN LI LANCOOL II Mesh Tempered Glass Chassis (Black)

Model

LANCOOL II MESH RGB / LANCOOL II MESH RGB+ Type C

Dimensions

478mm (D) x 229mm (W) x 494mm (H)

Motherboard Support

E-ATX (width: under 280mm) / ATX / M-ATX / ITX

PSU Length

210mm

Color Options

Black/White | Black/Snow Edition

Materials

Steel, 4.0mm tempered glass (both sides)

Fan Support

Front: 3 × 120mm or 2 × 140mm (multi-way fan/radiator bracket)
Top: 2 × 120/140mm
Rear: 1 × 120mm
Above PSU Chamber: 2 × 120mm

Radiator Support

Front: 1 × 360/280/240mm (multi-way fan/radiator bracket)
Top: 1 × 240mm (aligned to the left)

VGA Length

384mm

CPU Cooler Clearance

176mm

Drive Bays

Behind MB Tray: 2 × 2.5" SSD
Behind Right Flip Panel: 2 × 2.5" SSD
Hard Drive Cage: 3 × 3.5" HDD / 2.5" SSD
Above PSU Chamber: 2 × 2.5" SSD

Expansion Slots

7

I/O Ports

C button (color control), M button (lighting mode control)
1 × TRRS AUDIO
2 × USB 3.0
1 × USB 3.1 Type-C

Dust Filters

1 × Top (magnetic), 1 × Bottom (tray)

Included Fans

3 × 120mm 3-PIN ARGB fans (1300 RPM ±10%)

Fan Specs

Speed: 1300 RPM ±10%
Airflow: 49.14 CFM
Noise: 25.0 dB(A)
