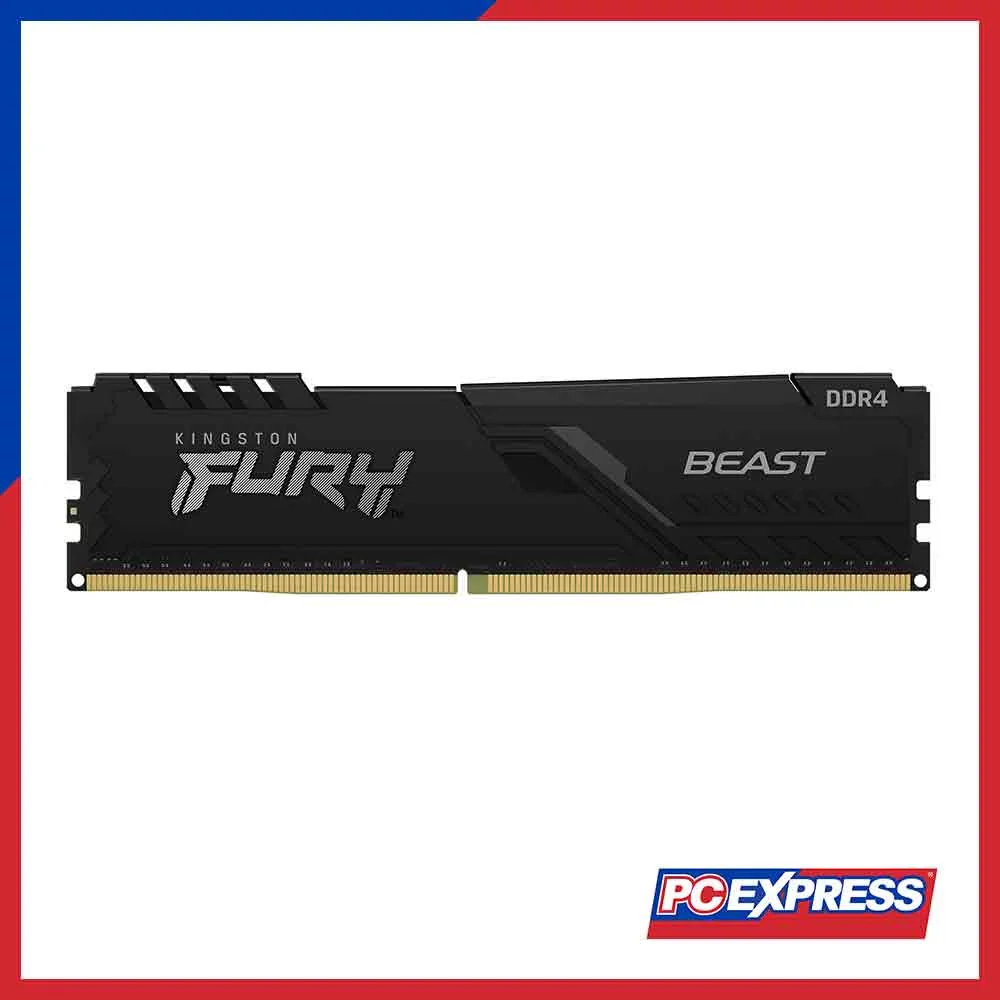

Kingston 8GB DDR4 2666MHz FURY BEAST Black (KF426C16BB/8) RAM
SPECIFICATION
SPECIFICATIONS
| Part Number | (KF426C16BB/8) |
| CL (IDD) | 16 cycles |
| ROW CYCLE TIME (tRCmin) | 45.75ns(min.) |
| REFRESH TO ACTIVE/REFRESH COMMAND TIME (tRFCmin) | 260ns(min.) |
| ROW ACTIVE TIME (tRASmin) | 29.25ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
FACTORY TIMING PARAMETERS |
|
| DEFAULT (PLUG N PLAY) | DDR4-2666 CL16-18-18 @ 1.2V |
| XMP PROFILE # 1 | DDR4-2666 CL16-18-18 @ 1.2V |
FEATURES |
|
| Power Supply: VDD = 1.2V Typical | |
| VDDQ = 1.2V Typical | |
| VPP = 2.5V Typical | |
| VDDSPD = 2.2V to 3.6V | |
| On-Die termination (ODT) | |
| 16 internal banks; 4 groups of 4 banks each | |
| Bi-Directional Differential Data Strobe | |
| 8 bit pre-fetch | |
| Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) | |
| Height 1.34” (34mm), w/ heatsink | |
$95.69
