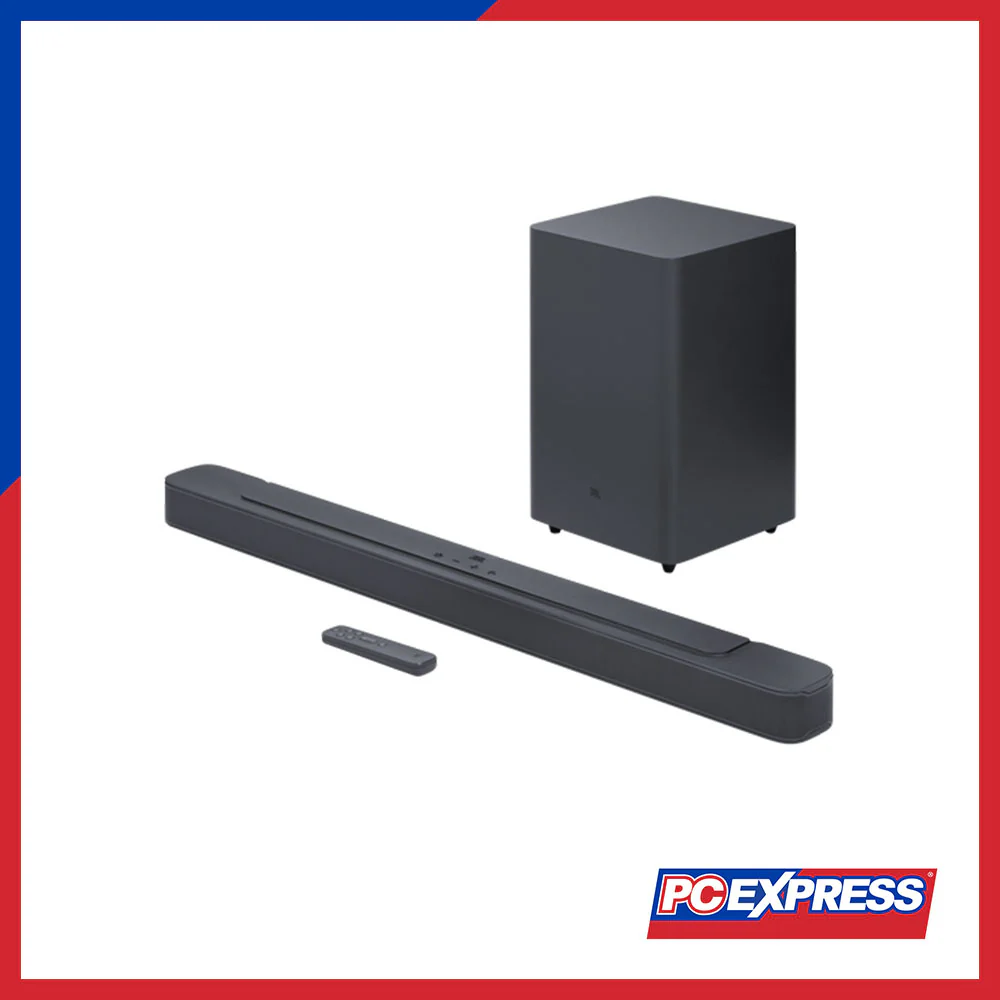

JBL Bar 2.1 Deep Bass (MK2) Channel Soundbar with Wireless Subwoofer

Power Supply

100 - 240V AC, ~ 50/60Hz

Operating Temperature

0°C - 45°C

Audio Specifications

Total Speaker Power Output (Max. @THD 1%) - 300W

Output Power (Max. @THD 1%) - 2 x 50W (Soundbar), 200W (Subwoofer)

Transducer - 4 x race-track drivers + 2 x 1” tweeter (Soundbar), 6.5” (Subwoofer)

Soundbar and Subwoofer Standby Power - <0.5W

Frequency Response - 40Hz - 20KHz

Audio Inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar Dimensions (W x H x D) - 965 x 56 x 85 mm / 38” x 2.2” x 3.4”

Subwoofer Dimensions (W x H x D) - 240 x 240 x 379 mm / 8.9” x 8.9” x 14.6”

Weights

Soundbar Weight - 2.14 kg

Subwoofer Weight - 5.61 kg

Packaging

Packaging Dimensions (W x H x D) - 1045 x 310 x 405 mm

Packaging Weight (Gross weight) - 10.32 kg

Control and Connection Specifications

USB Port - Type A

USB Rating - 5V DC/ 0.5A

Supporting File Format - mp3, wav

MP3 Codec - MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 Sampling Rate - 16KHz - 48 KHz

MP3 Bitrate - 80kbps - 320kbps

WAV Sample Rate - 16KHz - 48 KHz

WAV Bitrate - Up to 3000kbps

Bluetooth Version - 4.2

Bluetooth Profile - A2DP V1.3, AVRCP V1.5

Bluetooth Frequency Range - 2402MHz-2480MHz

Bluetooth Max. Transmitting Power - <10dBm (EIRP)

Modulation Type - GFSK, π/4 DQPSK, 8DPSK

5G Wireless Frequency Range - 5736.35 - 5820.35MHz

5G Max. Transmitting Power - <9dBm (EIRP)

Modulation Type - π/4 DQPSK
