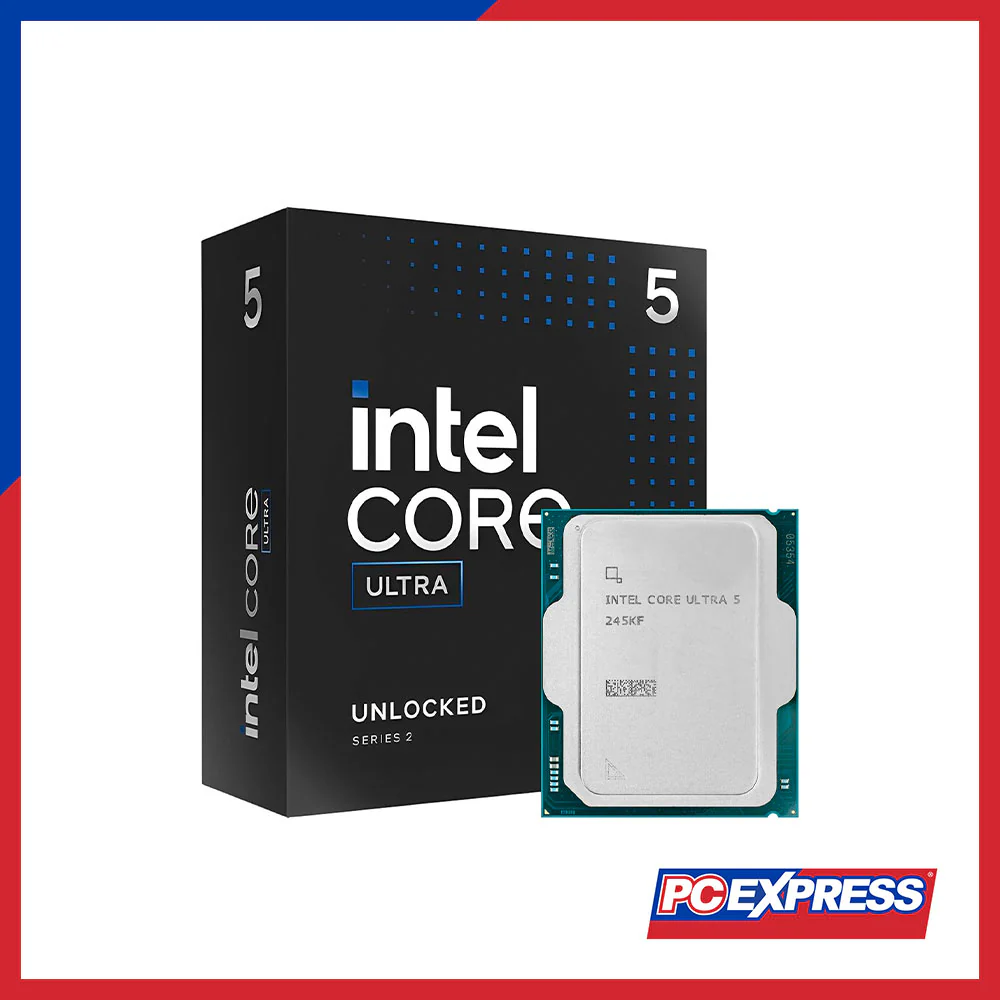

Intel® Core™ Ultra 5 245KF Desktop Processor

Product Collection

Intel® Core™ Ultra Processors (Series 2)

Code Name

Products formerly Arrow Lake

Vertical Segment

Desktop

Processor Number

245KF

Overall Peak TOPS (Int8)

22

CPU Specifications

Total Cores

14

# of Performance-cores

6

# of Efficient-cores

8

Total Threads

14

Max Turbo Frequency

5.2 GHz

Performance-core Max Turbo Frequency

5.2 GHz

Efficient-core Max Turbo Frequency

4.6 GHz

Performance-core Base Frequency

4.2 GHz

Efficient-core Base Frequency

3.6 GHz

Cache

24 MB Intel® Smart Cache

Total L2 Cache

26 MB

Processor Base Power

125 W

Maximum Turbo Power

159 W

Intel® Deep Learning Boost (DL Boost)

Yes

AI Software Frameworks Supported

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

Supplemental Information

Marketing Status

Launched

Launch Date

Q4'24

Embedded Options Available

No

Use Conditions

PC/Client/Tablet

Memory Specifications

Max Memory Size

192 GB

Memory Types

Up to DDR5 6400 MT/s

Maximum Memory Speed

6400 MHz

Max # of Memory Channels

2

NPU Specifications

NPU Name

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision

4

Max # of DMI Lanes

8

Intel® Thunderbolt™ 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations

Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

Max # of PCI Express Lanes

24

Package Specifications

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2020A

Max Operating Temperature

105 °C

Advanced Technologies

Intel® Volume Management Device (VMD)

Yes

Intel® Gaussian & Neural Accelerator

3.5

Intel® Thread Director

Yes

Intel® Speed Shift Technology
