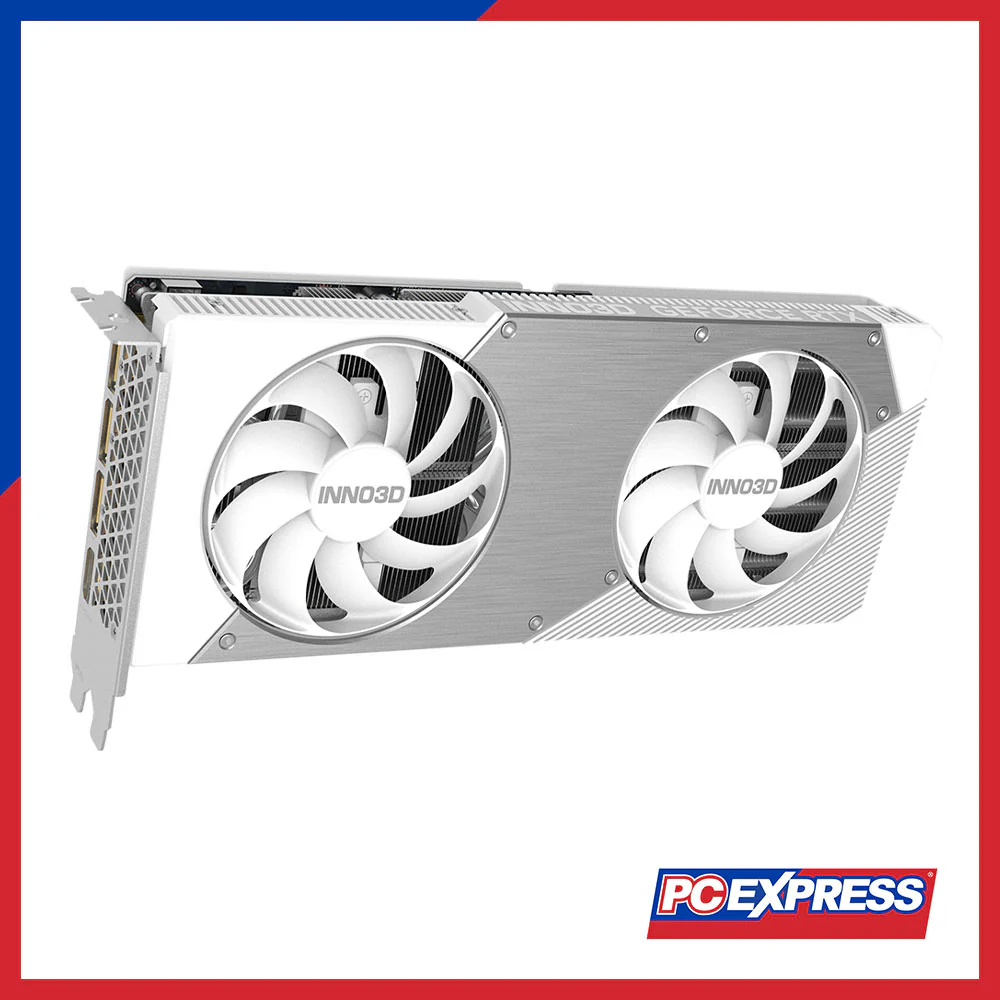

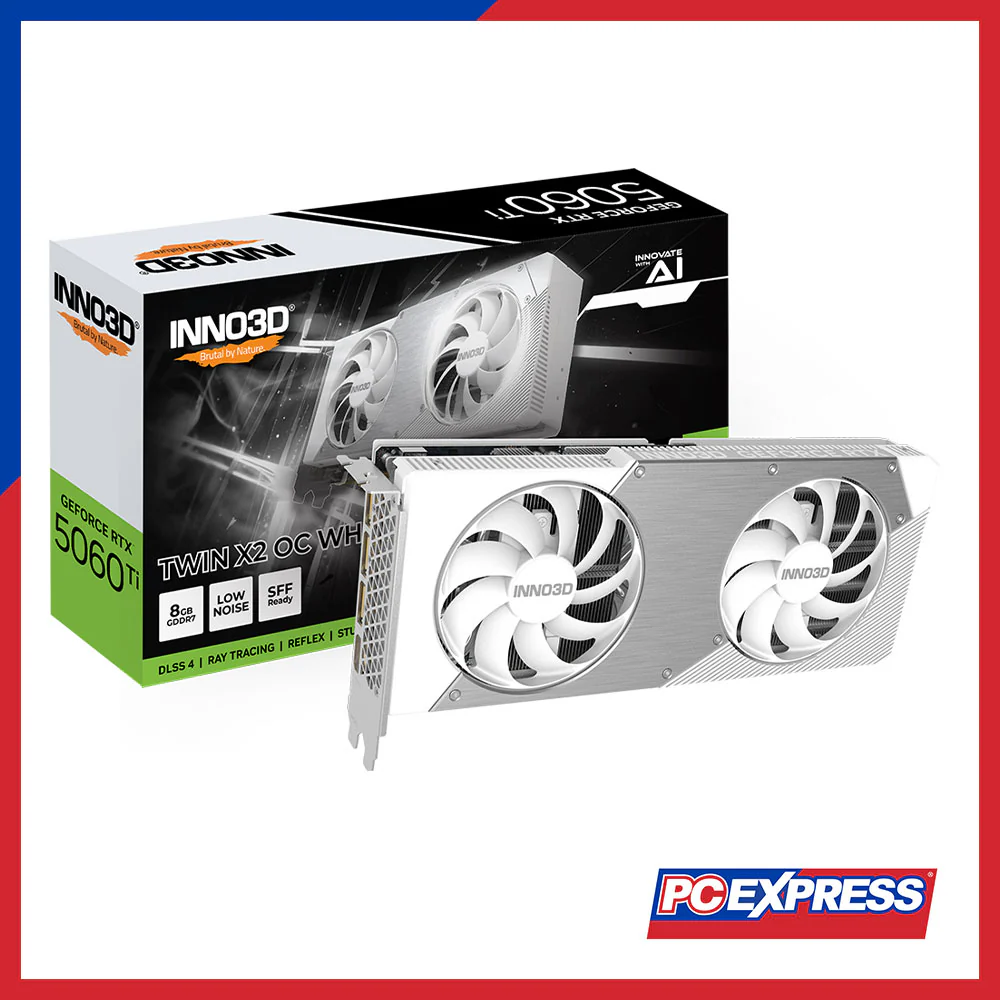

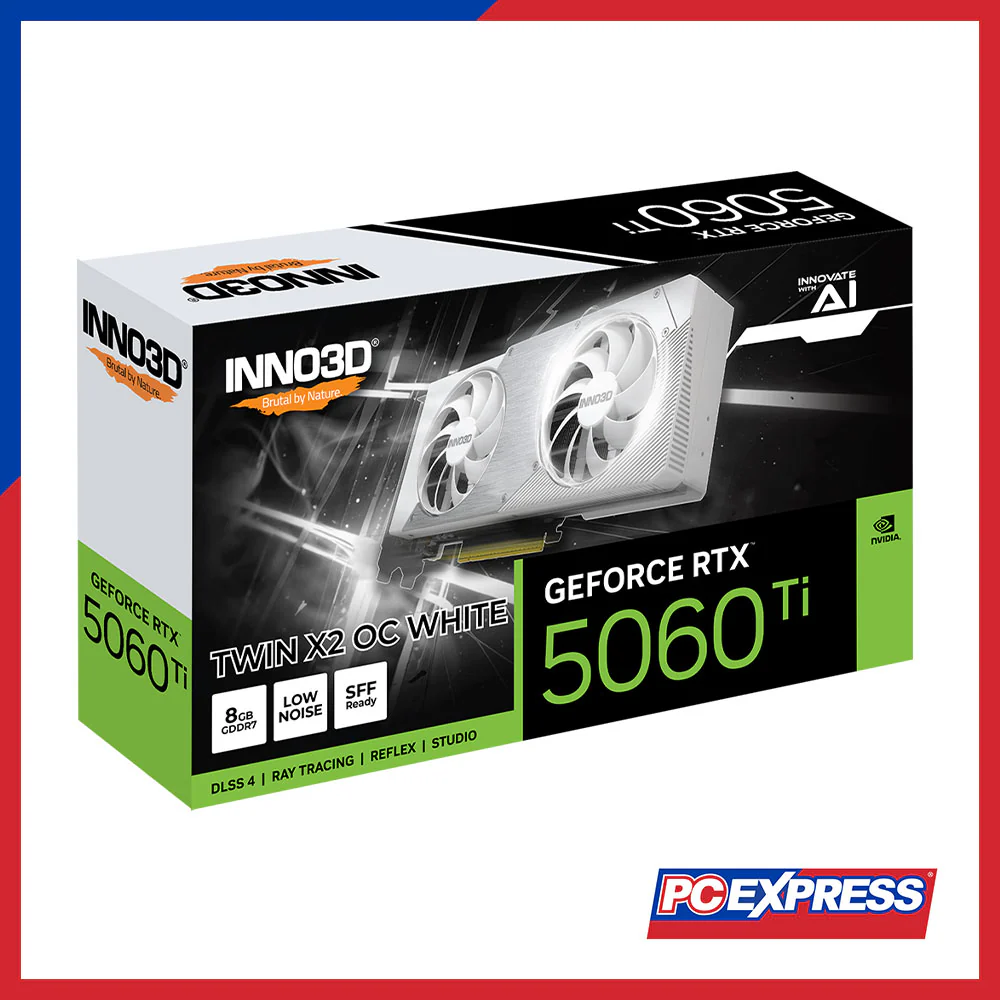

INNO3D GeForce RTX™ 5060 Ti TWIN X2 OC 8GB GDDR7 128-bit Graphics Card - White
SPECIFICATION
|
Marketing Name |
N506T2-08D7X-193075W |
|
CUDA Cores |
4608 |
|
Boost Clock (MHz) |
2602 MHz |
|
Base Clock (MHz) |
2325 MHz |
|
Min. System Power Requirement (W) |
650 W |
|
Supplementary Power Connectors |
1 × PCIe 8‑pin |
|
Memory Clock |
28 Gbps |
|
Standard Memory Config |
8 GB GDDR7 |
|
Memory Interface Width |
128‑bit |
|
Memory Bandwidth (GB/sec) |
448 GB/sec |
|
Real‑Time Ray Tracing |
Yes |
|
Ray Tracing Cores |
4th Gen, 72 TFLOPS |
|
Tensor Cores |
5th Gen, 759 AI TOPS |
|
NVIDIA Architecture |
Blackwell |
|
Microsoft DirectX |
12 Ultimate |
|
NVIDIA DLSS |
4 |
|
NVIDIA Ansel |
Yes |
|
NVIDIA FreeStyle |
Yes |
|
Bus Support |
PCIe Gen 5 |
|
NVIDIA ShadowPlay |
Yes |
|
OS Certification |
Windows 11/10, Linux, FreeBSD x86 |
|
NVIDIA Highlights |
Yes |
|
NVIDIA G‑SYNC™‑Ready |
Yes |
|
Game Ready Drivers |
Yes |
|
NVIDIA Studio Drivers |
Yes |
|
NVIDIA GPU Boost™ |
Yes |
|
Vulkan API |
1.4 |
|
OpenGL |
4.6 |
|
NVIDIA Encoder |
1 × 9th Gen |
|
NVIDIA Decoder |
1 × 6th Gen |
|
Card Length |
250 mm |
|
Card Height |
116 mm |
|
Card Width |
41 mm |
|
Multi‑Monitor Support |
Up to 4 |
|
Max Digital Resolution |
4K @ 480 Hz or 8K @ 165 Hz (with DSC) |
|
HDCP Support |
2.3 |
|
Display Connectors |
3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
