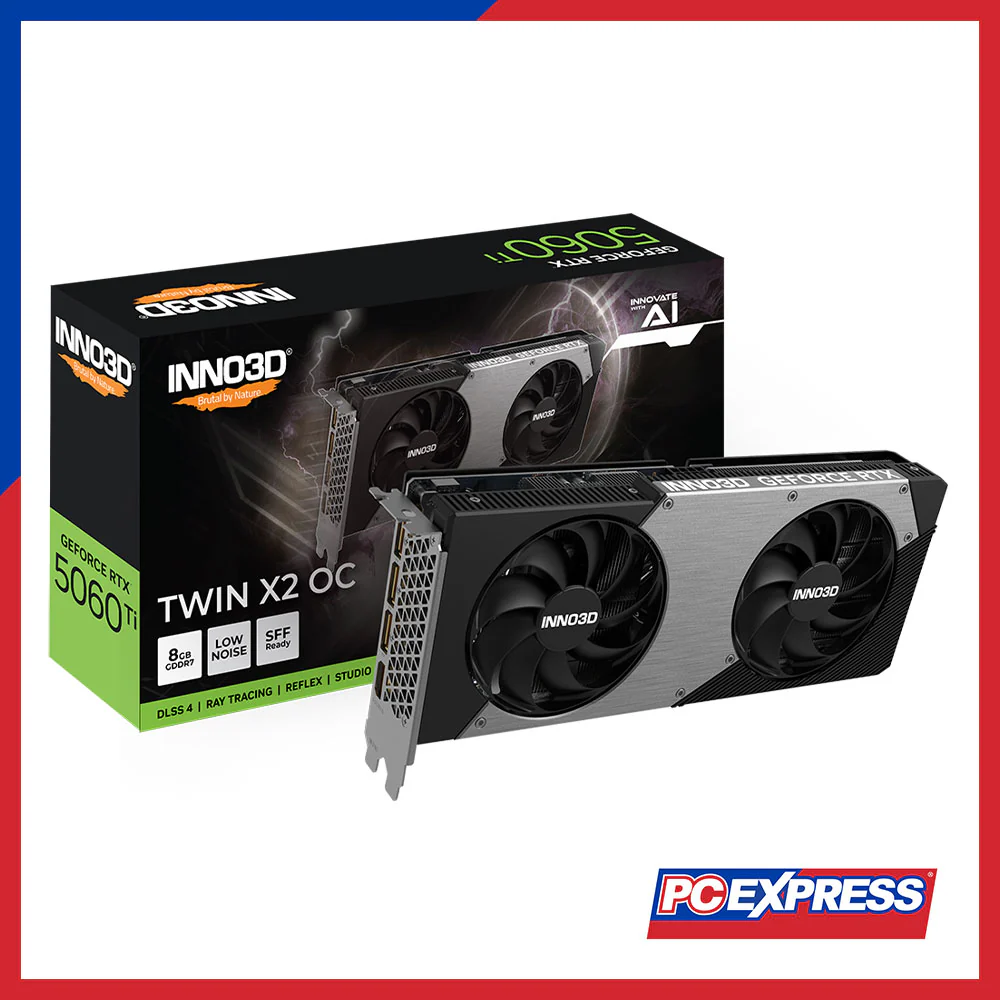

INNO3D GeForce RTX™ 5060 Ti TWIN X2 OC 8GB GDDR7 128-bit Graphics Card

Marketing Name

 N506T2-08D7X-193075N

CUDA Cores

4608

Boost Clock (MHz)

2602 MHz

Base Clock (MHz)

2235 MHz

Minimum System Power Requirement (W)

650 W

Supplementary Power Connectors

1 × PCIe 8‑pin cable

Memory Clock

28 Gbps

Standard Memory Config

8 GB GDDR7

Memory Interface

GDDR7

Memory Interface Width

128‑bit

Memory Bandwidth (GB/sec)

448 GB/sec

Real‑Time Ray Tracing

Yes

Ray Tracing Cores

4th Gen, 72 TFLOPS

Tensor Cores

5th Gen, 759 AI TOPS

NVIDIA Architecture

Blackwell

Microsoft DirectX

12 Ultimate

NVIDIA DLSS

4

NVIDIA Ansel

Yes

NVIDIA FreeStyle

Yes

Bus Support

PCI Express Gen 5

NVIDIA ShadowPlay

Yes

OS Certification

Windows 11/10, Linux, FreeBSD x86

NVIDIA Highlights

Yes

NVIDIA G‑SYNC™‑Ready

Yes

Game Ready Drivers

Yes

NVIDIA Studio Drivers

Yes

NVIDIA GPU Boost™

Yes

Vulkan API

1.4

OpenGL

4.6

NVIDIA Encoder

1 × 9th Generation

NVIDIA Decoder

1 × 6th Generation

Length

250 mm

Height

116 mm

Width

41 mm

Multi‑Monitor Support

Up to 4

Maximum Digital Resolution

4K @ 480 Hz or 8K @ 165 Hz (with DSC)

HDCP

2.3

Standard Display Connectors

3 × DisplayPort 2.1b, 1 × HDMI 2.1b
