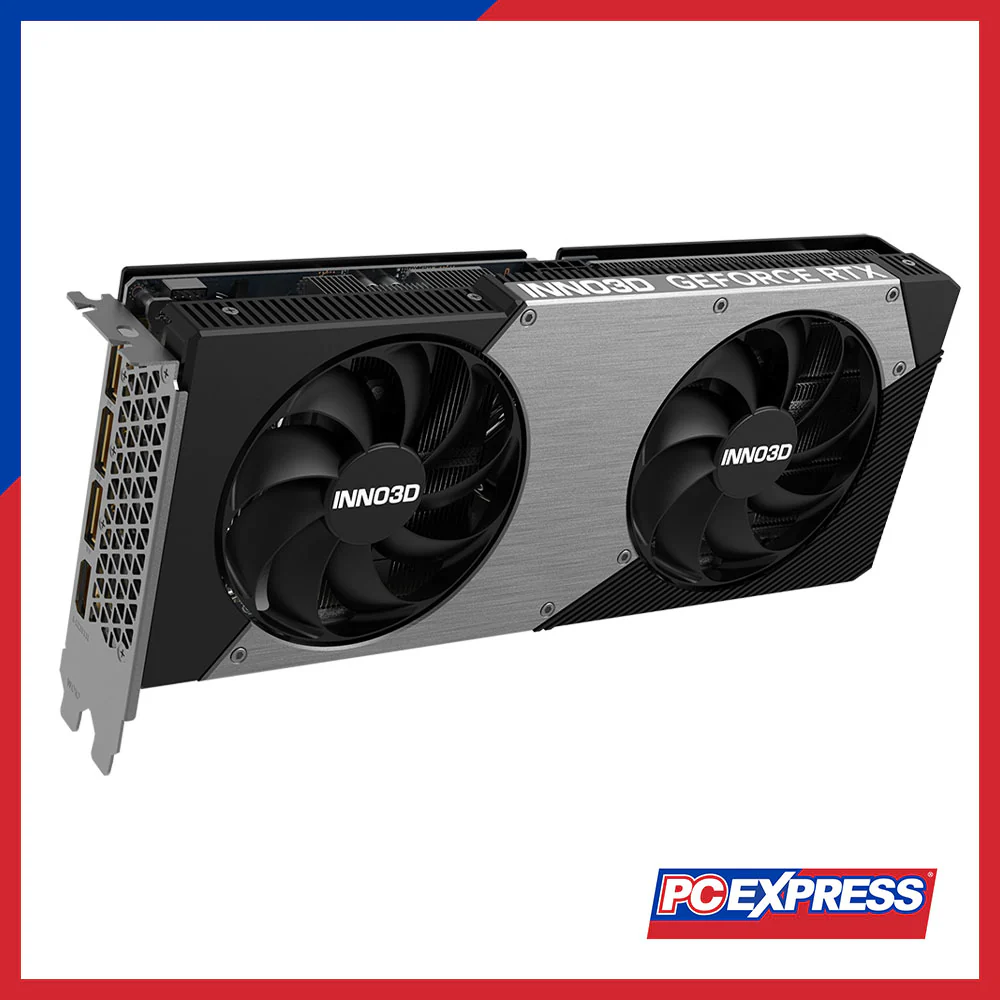

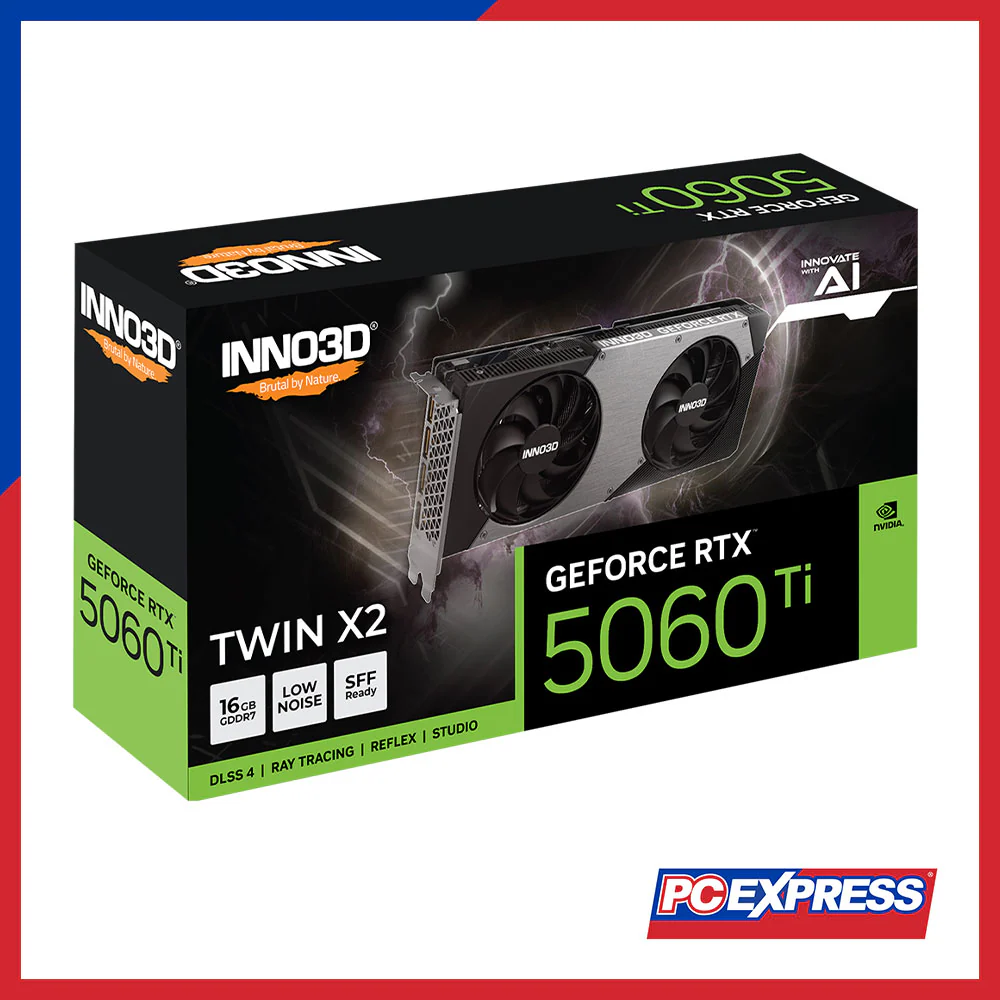

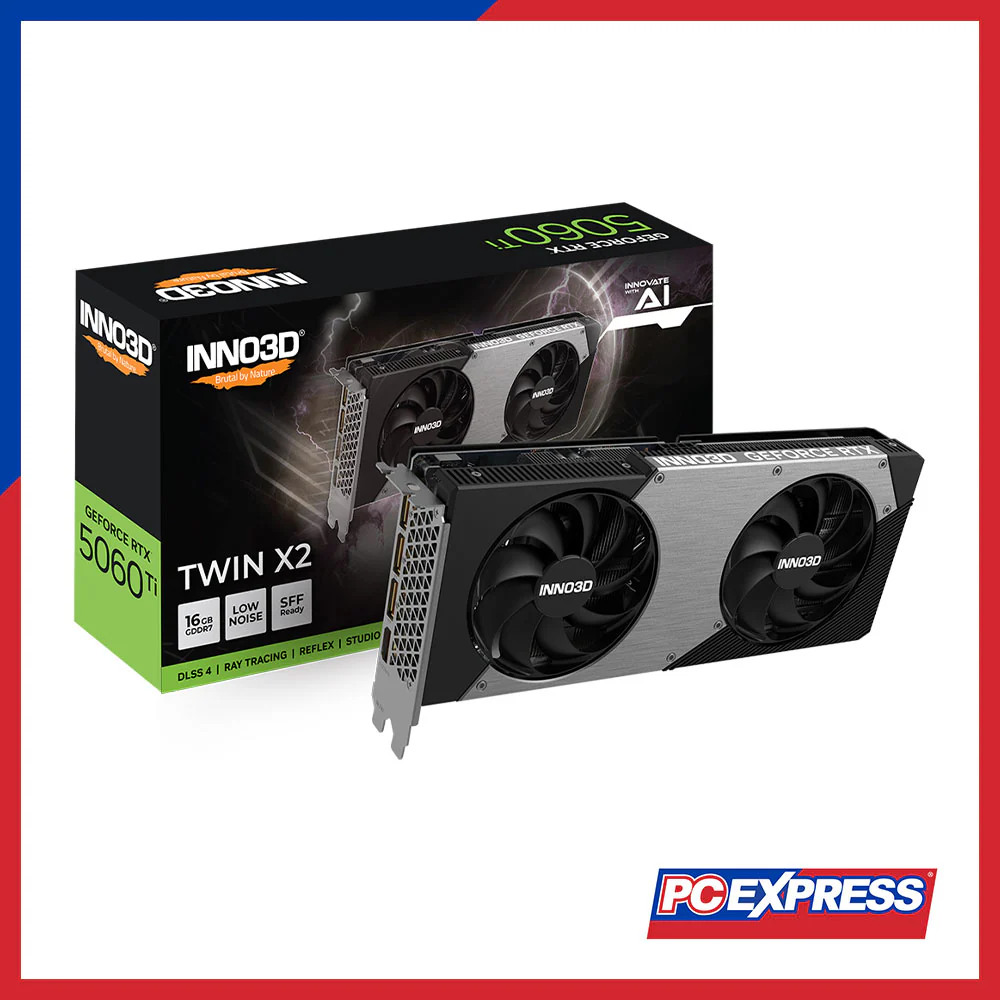

INNO3D GeForce RTX™ 5060 Ti TWIN X2 OC 16GB GDDR7 128-bit Graphics Card
SPECIFICATION
|
Part Number |
N506T2-16D7X-191073N |
|
GPU Engine Specs |
|
|
CUDA Cores |
4608 |
|
Boost Clock |
2602 MHz |
|
Base Clock |
2235 MHz |
|
Thermal and Power Spec |
|
|
Minimum System Power Requirement |
650W |
|
Supplementary Power Connectors |
1x PCIe 8-pin cable |
|
Memory Specs |
|
|
Memory Clock |
28 Gbps |
|
Standard Memory Config |
16GB |
|
Memory Interface |
GDDR7 |
|
Memory Interface Width |
128-bit |
|
Memory Bandwidth |
448 GB/sec |
|
Feature Support |
|
|
Real-Time Ray Tracing |
Yes |
|
Ray Tracing Cores |
4th Generation, 72 TFLOPS |
|
Tensor Cores |
5th Generation, 759 AI TOPS |
|
NVIDIA Architecture |
Blackwell |
|
Microsoft DirectX |
12 Ultimate |
|
NVIDIA DLSS |
4 |
|
NVIDIA Ansel |
Yes |
|
NVIDIA FreeStyle |
Yes |
|
Bus Support |
PCI Express Gen 5 |
|
NVIDIA ShadowPlay |
Yes |
|
OS Certification |
Windows 11 / 10, Linux, FreeBSDx86 |
|
NVIDIA Highlights |
Yes |
|
NVIDIA G-SYNC™-Ready |
Yes |
|
Game Ready Drivers |
Yes |
|
NVIDIA Studio Drivers |
Yes |
|
NVIDIA GPU Boost™ |
Yes |
|
Vulkan API |
1.4 |
|
OpenGL |
4.6 |
|
NVIDIA Encoder |
1x Ninth Generation |
|
NVIDIA Decoder |
1x Sixth Generation |
|
Accessories |
|
|
Graphics Card Dimensions |
Length: 250mm, Height: 116mm, Width: 41mm |
|
Display Support |
|
|
Multi Monitor Support |
Up to 4 |
|
Maximum Digital Resolution |
4K at 480Hz or 8K at 165Hz with DSC |
|
HDCP |
2.3 |
|
Standard Display Connectors |
3x DisplayPort 2.1b, 1x HDMI 2.1b |
