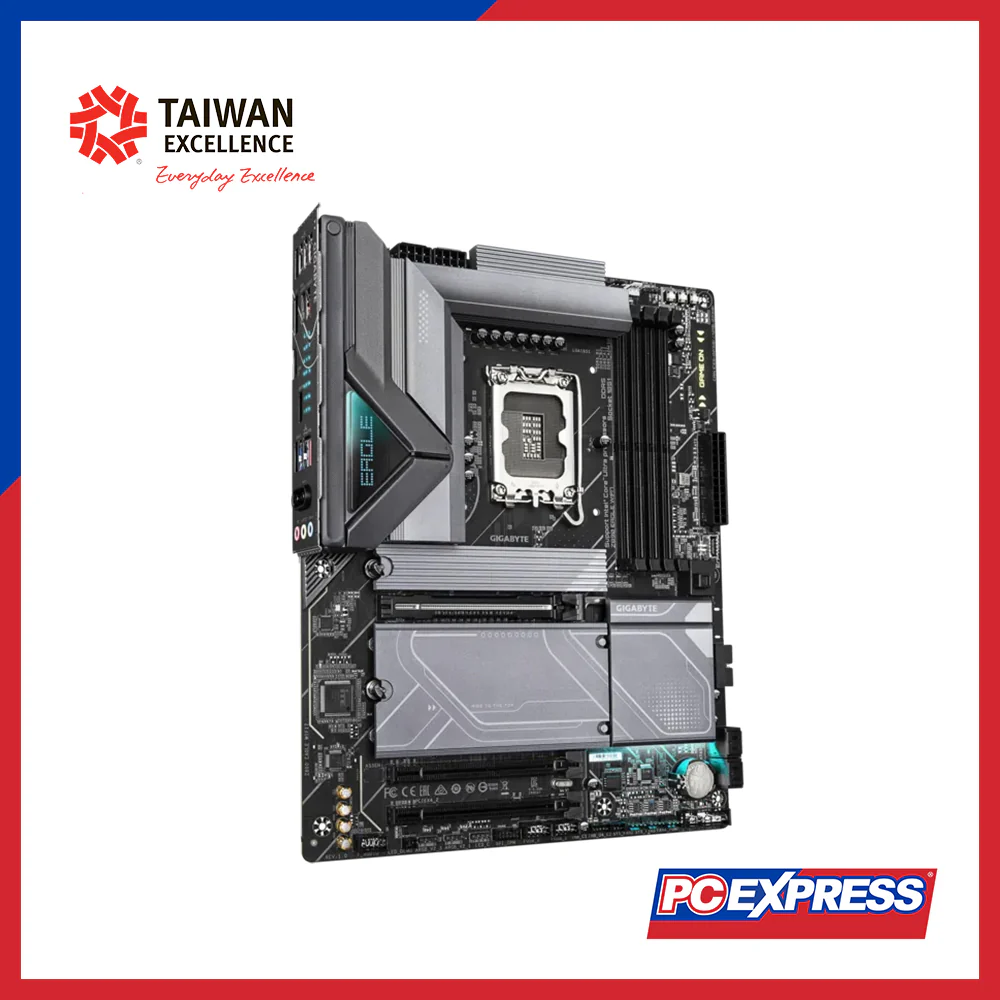

GIGABYTE Z890 Eagle WiFi7 ATX Motherboard
SPECIFICATION
|
CPU |
LGA1851 socket: Support for Intel® Core™ Ultra Processors |
|
L3 cache varies with CPU |
|
|
Refer to CPU Support List for compatibility |
|
|
Chipset |
Intel® Z890 Express Chipset |
|
Memory |
DDR5 support from 5600 up to 9200(O.C) MT/s |
|
4 x DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) |
|
|
Dual-channel architecture |
|
|
ECC & non-ECC un-buffered DIMM support |
|
|
XMP support |
|
|
CUDIMM memory module support |
|
|
Onboard Graphics |
Intel® HD Graphics support |
|
1 x USB4 Type-C (DisplayPort, up to 3840×2160@144Hz, DP 2.1) |
|
|
1 x DisplayPort (3840×2160@144Hz, DP 2.1) |
|
|
Audio |
Realtek® Audio CODEC |
|
High Definition Audio |
|
|
2/4/5.1/7.1-channel support |
|
|
LAN |
Realtek® 2.5GbE LAN |
|
Wireless Communication |
MediaTek Wi-Fi 7 MT7925 / Realtek Wi-Fi 7 RTL8922AE |
|
Supports 2.4/5/6 GHz bands |
|
|
Bluetooth 5.4 |
|
|
802.11be (Wi-Fi 7) support |
|
|
Expansion Slots (CPU) |
1 x PCIe 5.0 x16 slot |
|
Expansion Slots (Chipset) |
2 x PCIe 4.0 x4 slots |
|
Storage Interface (CPU) |
1 x M.2 PCIe 5.0 x4/x2 (multiple sizes supported) |
|
1 x M.2 PCIe 4.0 x4/x2 |
|
|
Storage Interface (Chipset) |
2 x M.2 PCIe 4.0 / SATA support |
|
4 x SATA 6Gb/s |
|
|
RAID 0/1/5/10 for NVMe & SATA |
|
|
USB (CPU) |
1 x USB4 Type-C (rear) |
|
USB (Chipset) |
USB Type-C Gen2 (internal) |
|
2 x USB 3.2 Gen2 Type-A (rear) |
|
|
5 x USB 3.2 Gen1 (rear + internal) |
|
|
8 x USB 2.0 (rear + internal) |
|
|
Internal I/O Connectors |
24-pin ATX + dual 8-pin CPU power |
|
CPU/system fan & pump headers |
|
|
RGB & ARGB headers |
|
|
4 x M.2 slots, 4 x SATA |
|
|
USB headers (Type-C, Gen1, USB 2.0) |
|
|
Thunderbolt add-in card connectors |
|
|
TPM header |
|
|
Power button, reset button |
|
|
Q-Flash Plus button |
|
|
Clear CMOS & reset jumper |
|
|
Back Panel Connectors |
USB4 Type-C (DisplayPort) |
|
2 x USB 3.2 Gen2 Type-A |
|
|
3 x USB 3.2 Gen1 |
|
|
4 x USB 2.0 |
|
|
1 x DisplayPort |
|
|
2 x antenna connectors |
|
|
1 x RJ-45 LAN |
|
|
3 x audio jacks |
|
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage, temperature, fan speed detection |
|
Water cooling flow detection |
|
|
Fan fail warning |
|
|
Fan speed control |
|
|
BIOS |
256 Mbit flash |
|
AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
Unique Features |
GIGABYTE Control Center (GCC) |
|
Q-Flash & Q-Flash Plus |
|
|
Smart Backup |
|
|
Bundled Software |
Norton® Internet Security (OEM) |
|
LAN bandwidth management software |
|
|
Operating System |
Windows 11 64-bit |
|
Form Factor |
ATX (30.5 cm x 24.4 cm) |
Original: $268.42
-70%$268.42
$80.53More Images
