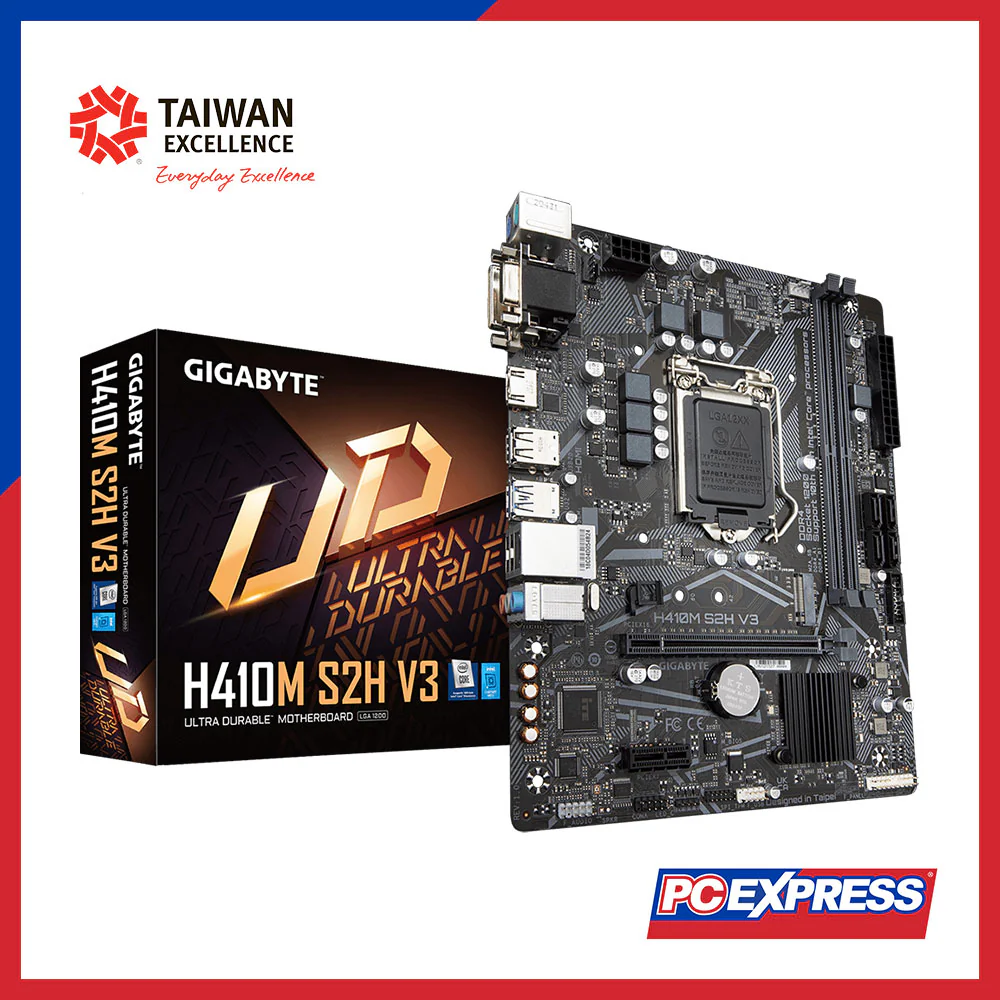

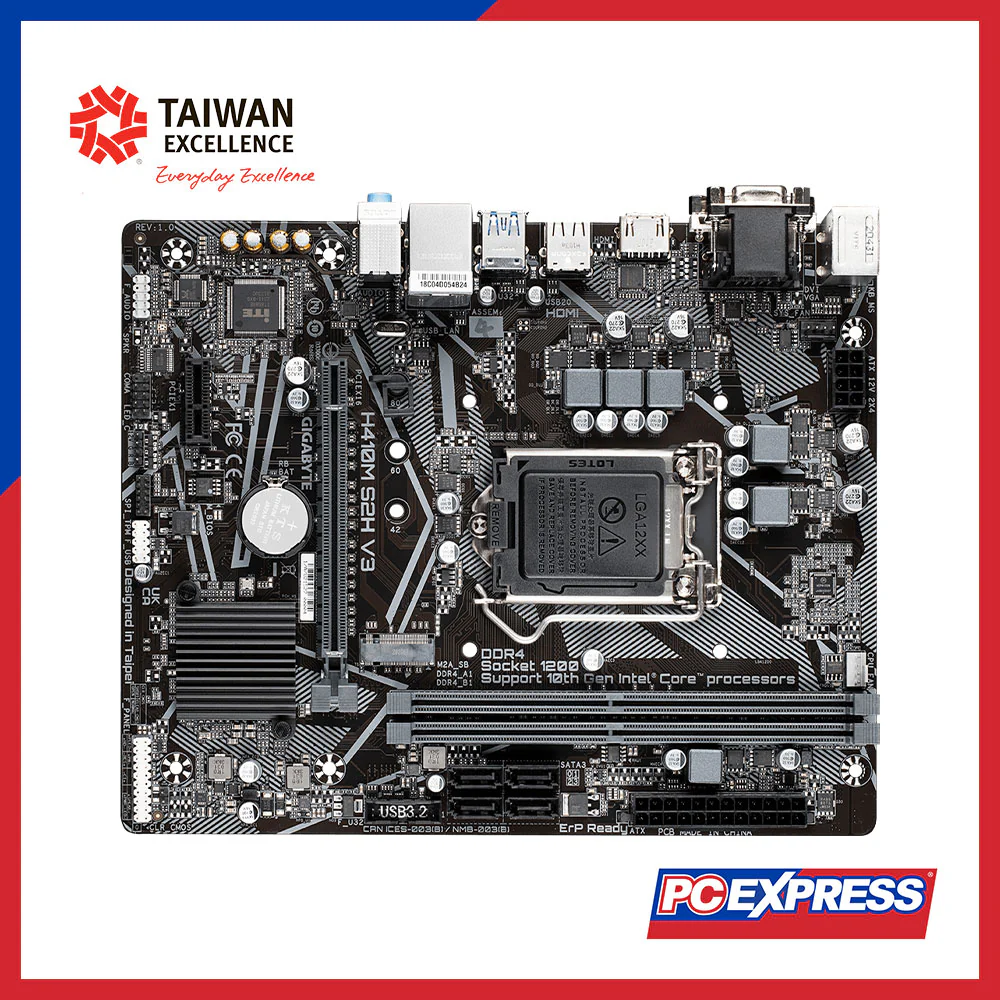

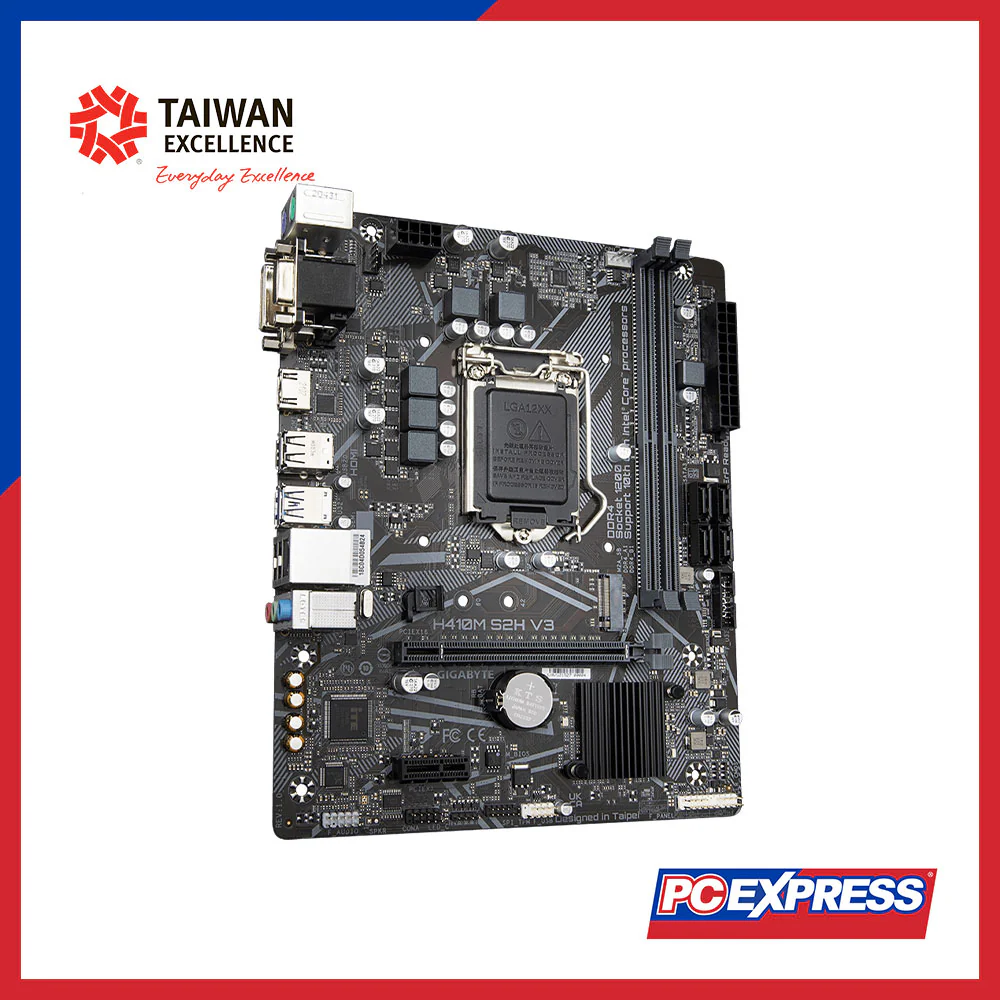

GIGABYTE H410M-S2H V3 Motherboard

Supported CPU Generations

10th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron (LGA1200 package)

L3 Cache (Varies)

Refer to "CPU Support List" for details

Chipset

Intel H510 Express Chipset

Memory

Intel Core i9/i7: DDR4 2933/2666/2400/2133 MHz

Intel Core i5/i3/Pentium/Celeron: DDR4 2666/2400/2133 MHz

Memory Slots

2 x DDR4 DIMM sockets (Up to 64 GB, 32 GB per DIMM)

Memory Architecture

Dual channel

Onboard Graphics

Intel HD Graphics support (D-Sub, DVI-D, HDMI)

Audio

Realtek Audio CODEC, High Definition, 2/4/5.1/7.1-channel

LAN

Gigabit Ethernet Chip (1 Gbps/100 Mbps)

Expansion Slots

1 x PCIe x16 (PCIe 3.0)

1 x PCIe x1 (PCIe 3.0)

Storage Interface

1 x M.2 connector (Socket 3, PCIe x4/x2 SSD support)

4 x SATA 6Gb/s connectors

USB Ports

Chipset: 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 internal)

Chipset: 6 x USB 2.0/1.1 ports (4 on back panel, 2 internal)

I/O Connectors

Various power, fan, USB, and audio headers

Clear CMOS jumper, TPM header, serial port header

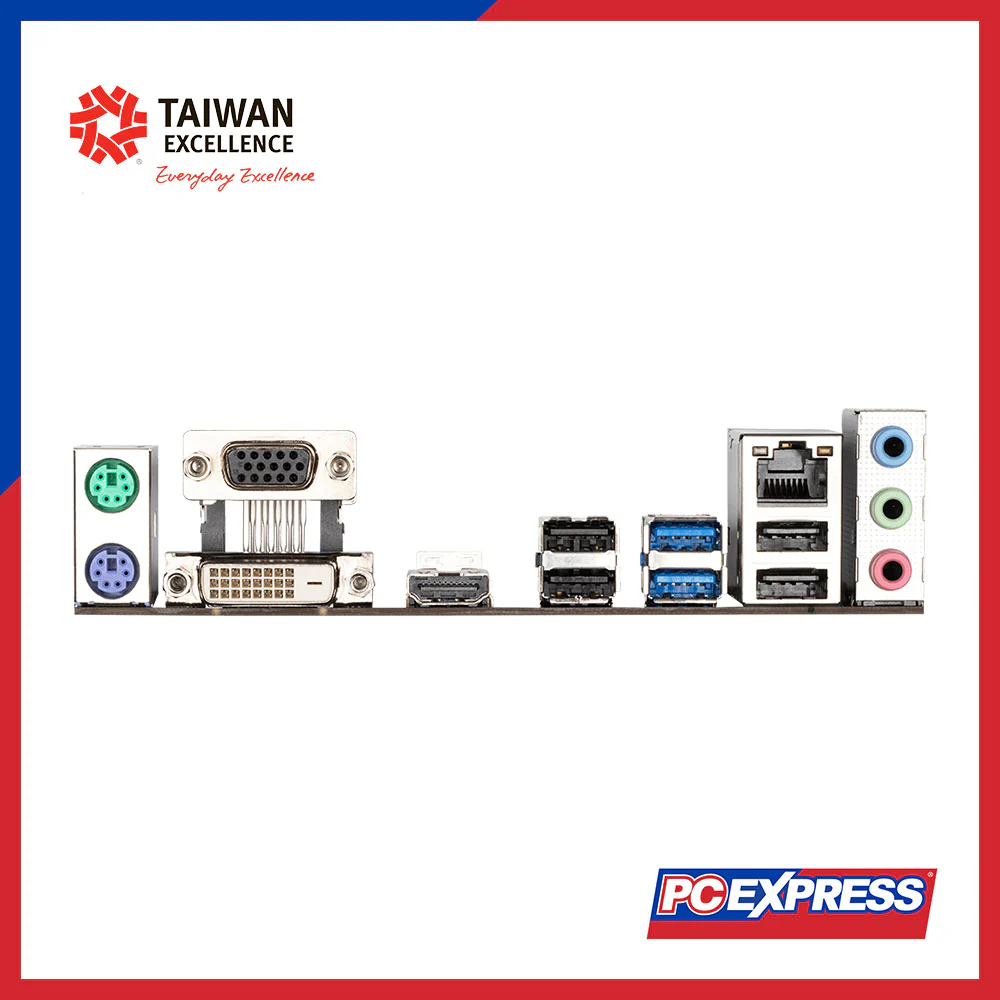

Back Panel Connectors

PS/2 keyboard and mouse ports, D-Sub, DVI-D, HDMI, USB, RJ-45, audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, overheating, fan fail

BIOS

1 x 128 Mbit flash, AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center, @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Q-Flash, Xpress Install

Bundled Software

Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System

Windows 10 64-bit

Form Factor

Micro ATX (22.6cm x 18.5cm)
