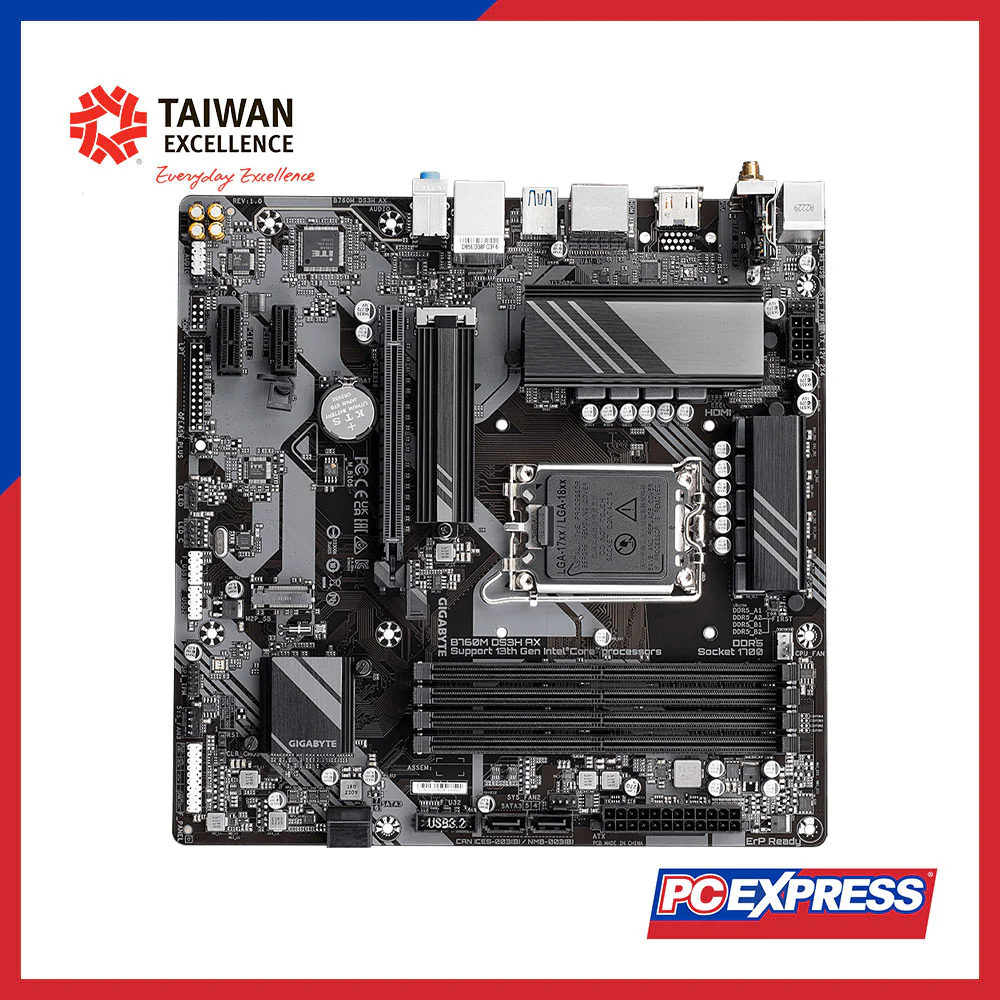

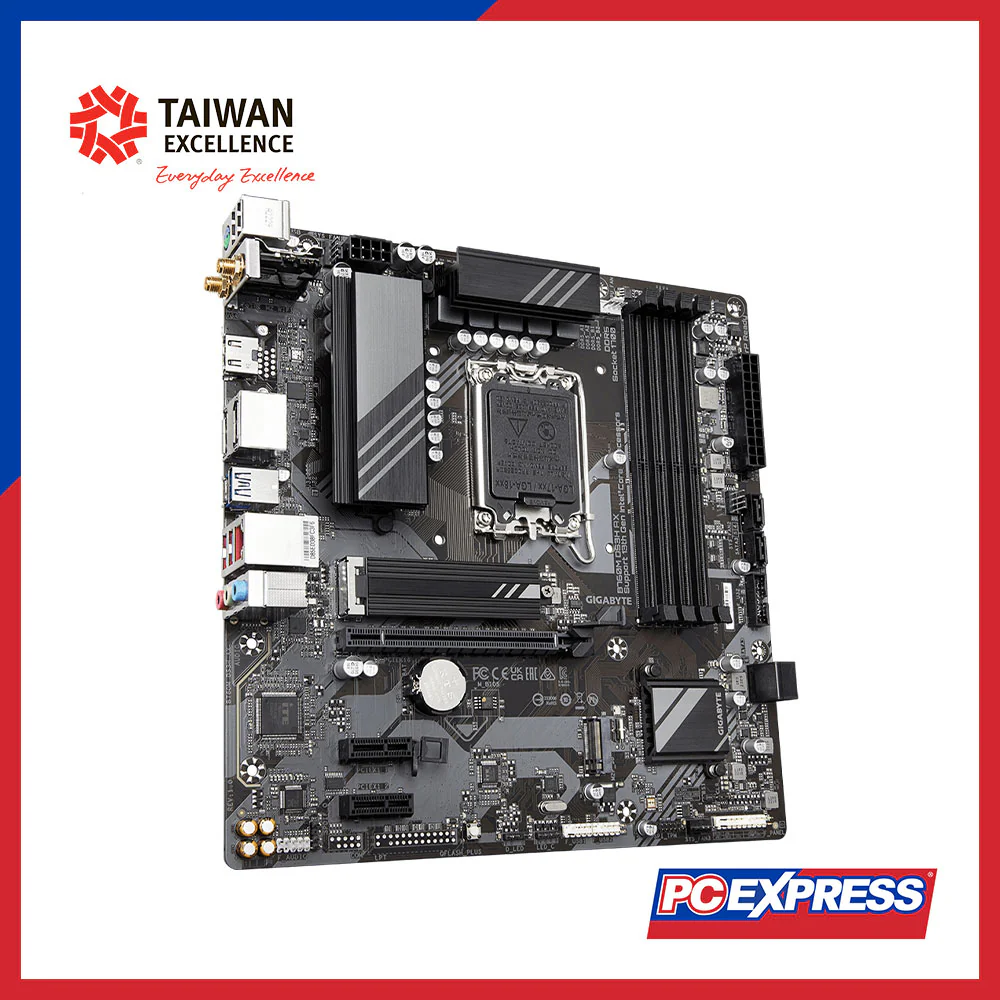

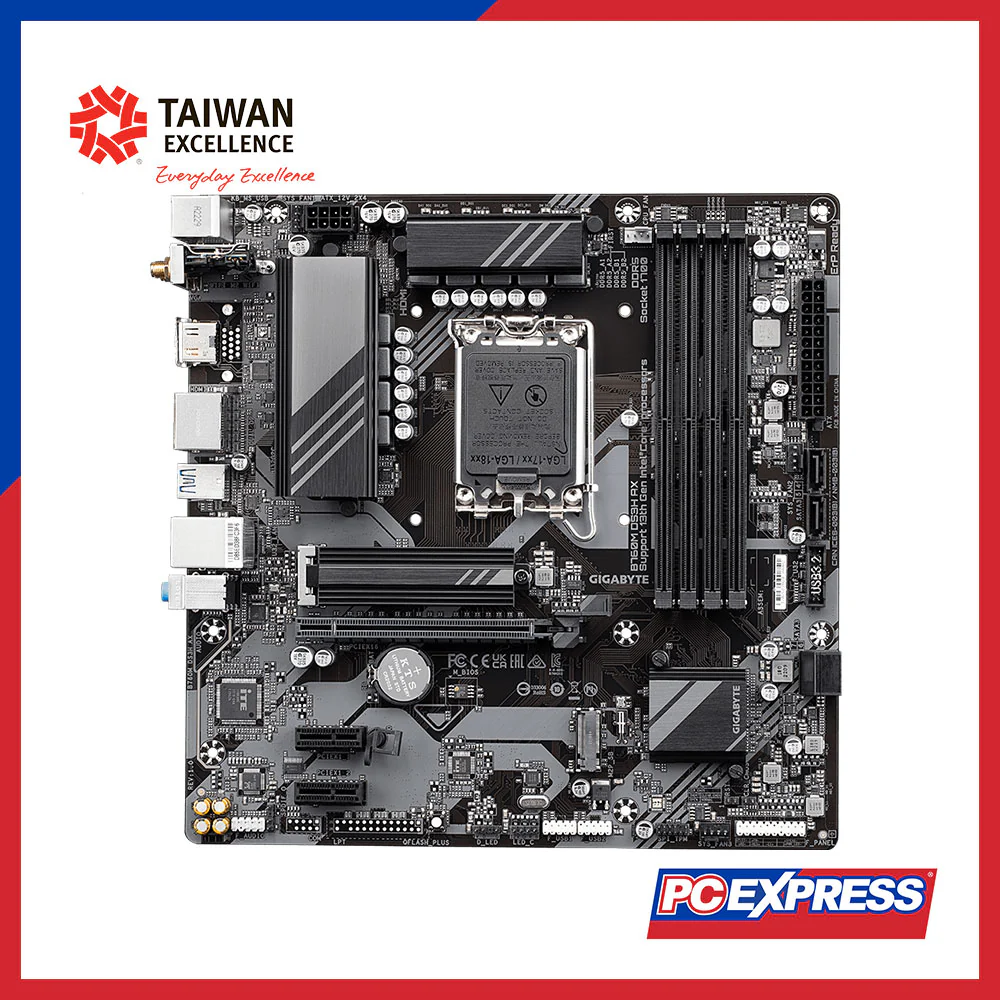

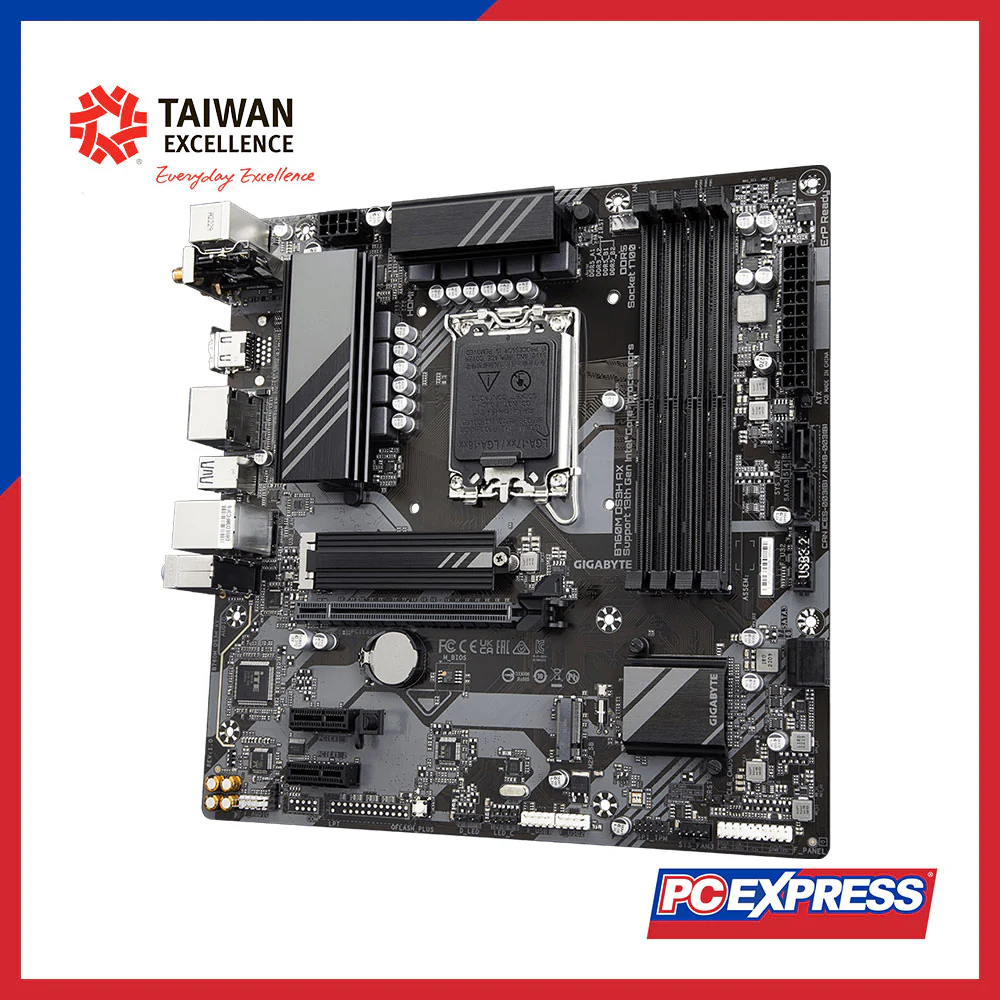

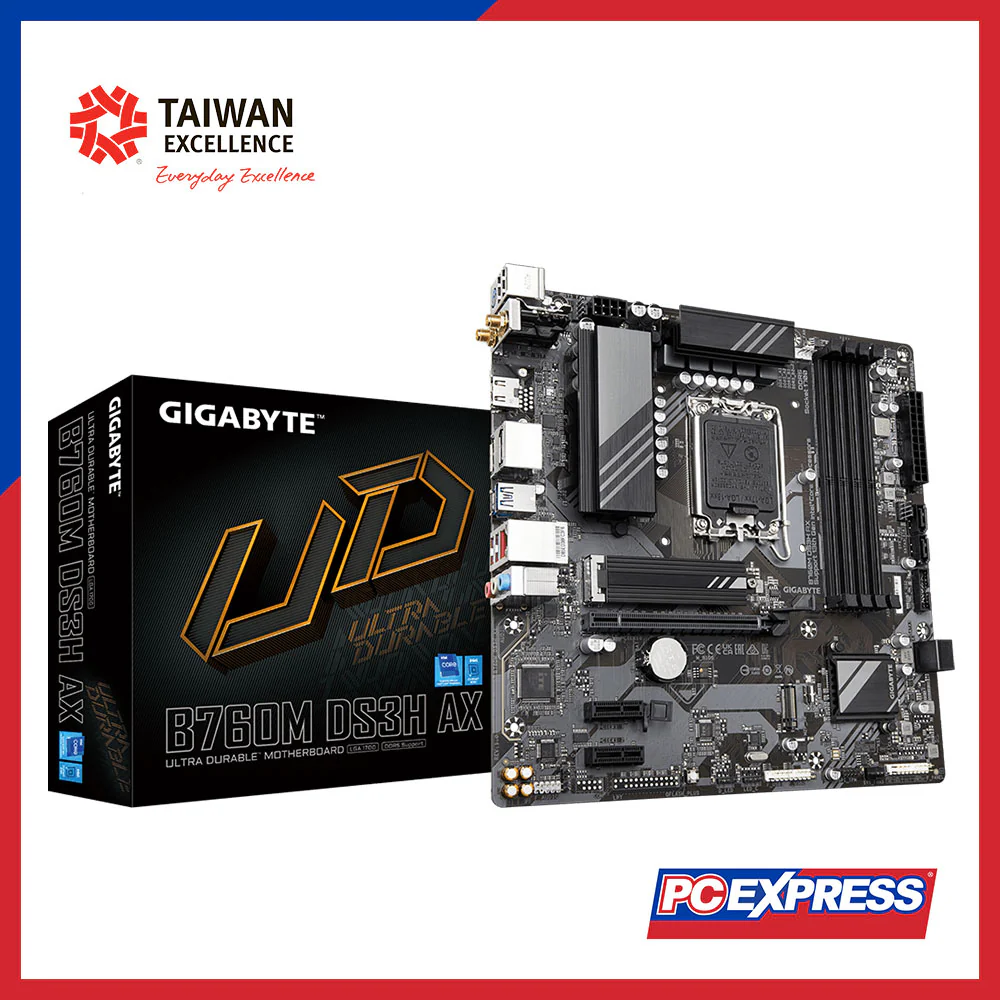

GIGABYTE B760M-DS3H-AX Micro-ATX Motherboard

CPU

- Socket: LGA1700
- Supports 14th, 13th, & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
- L3 cache varies with CPU (see CPU Support List)

Chipset

Intel® B760 Express Chipset

Memory

- Type & Speed: Supports DDR5 modules from 4000 MT/s up to DDR5 7600(O.C.)
- DIMMs: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM)
- Dual channel architecture
- Supports ECC (non-ECC mode) and non-ECC Un-buffered DIMM configurations
- Supports Extreme Memory Profile (XMP) (refer to Memory Support List)

Onboard Graphics

- Integrated Intel® HD Graphics
- HDMI: 1 port; max resolution 4096×2160@60 Hz (HDMI 2.1 & HDCP 2.3 supported)
- DisplayPort: 2 ports; each supports up to 4096×2304@60 Hz (DisplayPort 1.2, one port supports HDCP 2.3)
- Supports up to triple-display output (varies by CPU)

Audio

- Realtek® Audio CODEC with High Definition Audio
- Supports 2/4/5.1/7.1-channel audio (configurable via software)
- S/PDIF Out supported

LAN

Realtek® 2.5GbE LAN chip (speeds: 2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless Communication

Options by PCB Revision:
- PCB Rev. 1.0: AMD Wi‑Fi 6E RZ608 (MT7921K); WiFi a/b/g/n/ac/ax on 2.4/5/6 GHz, Bluetooth 5.2 (11ax 80MHz, up to 1.2 Gbps)
- PCB Rev. 1.1: Intel® Wi‑Fi 6E AX210; WiFi a/b/g/n/ac/ax on 2.4/5/6 GHz, Bluetooth 5.3
- PCB Rev. 1.2: Intel® Wi‑Fi 6E AX211; supports 11ax 160MHz (up to 2.4 Gbps)
- PCB Rev. 1.3: Realtek® Wi‑Fi 6E RTL8852CE; supports 11ax 160MHz (up to 2.4 Gbps)
(Actual data rate may vary)

Expansion Slots

- CPU: 1 x PCI Express x16 slot (PCIe 4.0, running at x16; supports graphics card or NVMe SSD)
- Chipset: 2 x PCI Express x1 slots (PCIe 3.0, running at x1)

Storage Interface

- CPU: 1 x M.2 connector (Socket 3, M key, type 2280; PCIe 4.0 x4/x2 SSD support; labeled M2A_CPU)
- Chipset: 1 x M.2 connector (Socket 3, M key, type 2280; PCIe 4.0 x4/x2 SSD support; labeled M2P_SB)
- 4 x SATA 6Gb/s connectors supporting RAID 0, 1, 5, & 10

USB

Chipset Ports:
- 1 x USB Type‑C® port on back panel (USB 3.2 Gen 2)
- 5 x USB 3.2 Gen 1 ports (3 on back panel, 2 via internal header)
- 2 x USB 2.0/1.1 ports on back panel
Additional via USB Hubs:
- 4 x USB 2.0/1.1 ports (internal headers)

Internal I/O Connectors

- 1 x 24‑pin ATX main power connector
- 1 x 8‑pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI modules)
- 1 x S/PDIF Out header
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper

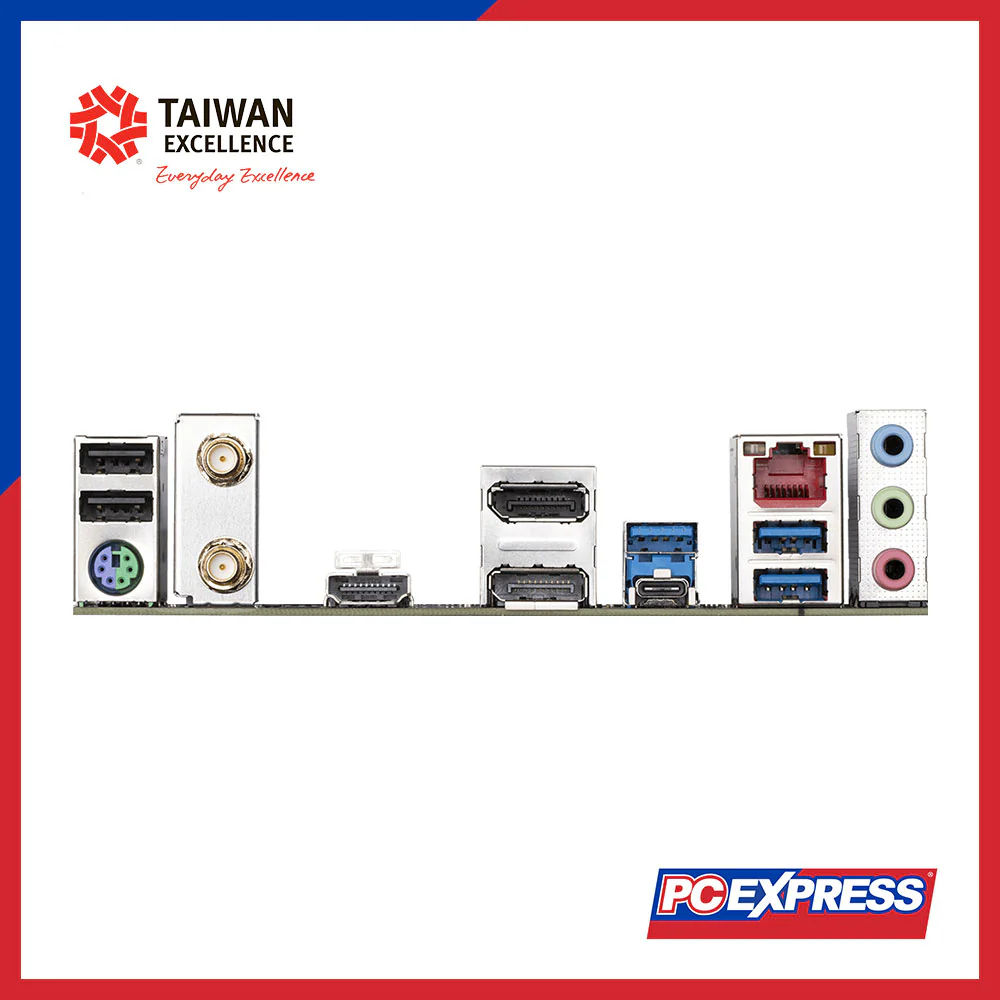

Back Panel Connectors

- 2 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI port
- 2 x DisplayPort outputs
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type‑C® port (USB 3.2 Gen 2)
- 1 x RJ‑45 port
- 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

- Voltage, temperature, & fan speed detection
- Water cooling flow rate detection
- Fan fail warning and fan speed control (support may depend on installed cooler)

BIOS

- 1 x 128 Mbit flash
- Licensed AMI UEFI BIOS
- Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

- Support for GIGABYTE Control Center (GCC)
- Q-Flash and Q-Flash Plus support

Bundled Software

- Norton® Internet Security (OEM version)
- LAN bandwidth management software

Operating System

Supports Windows 11 64‑bit and Windows 10 64‑bit

Form Factor

Micro ATX (24.4 cm x 24.4 cm)
